◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#49883) — 37 parça

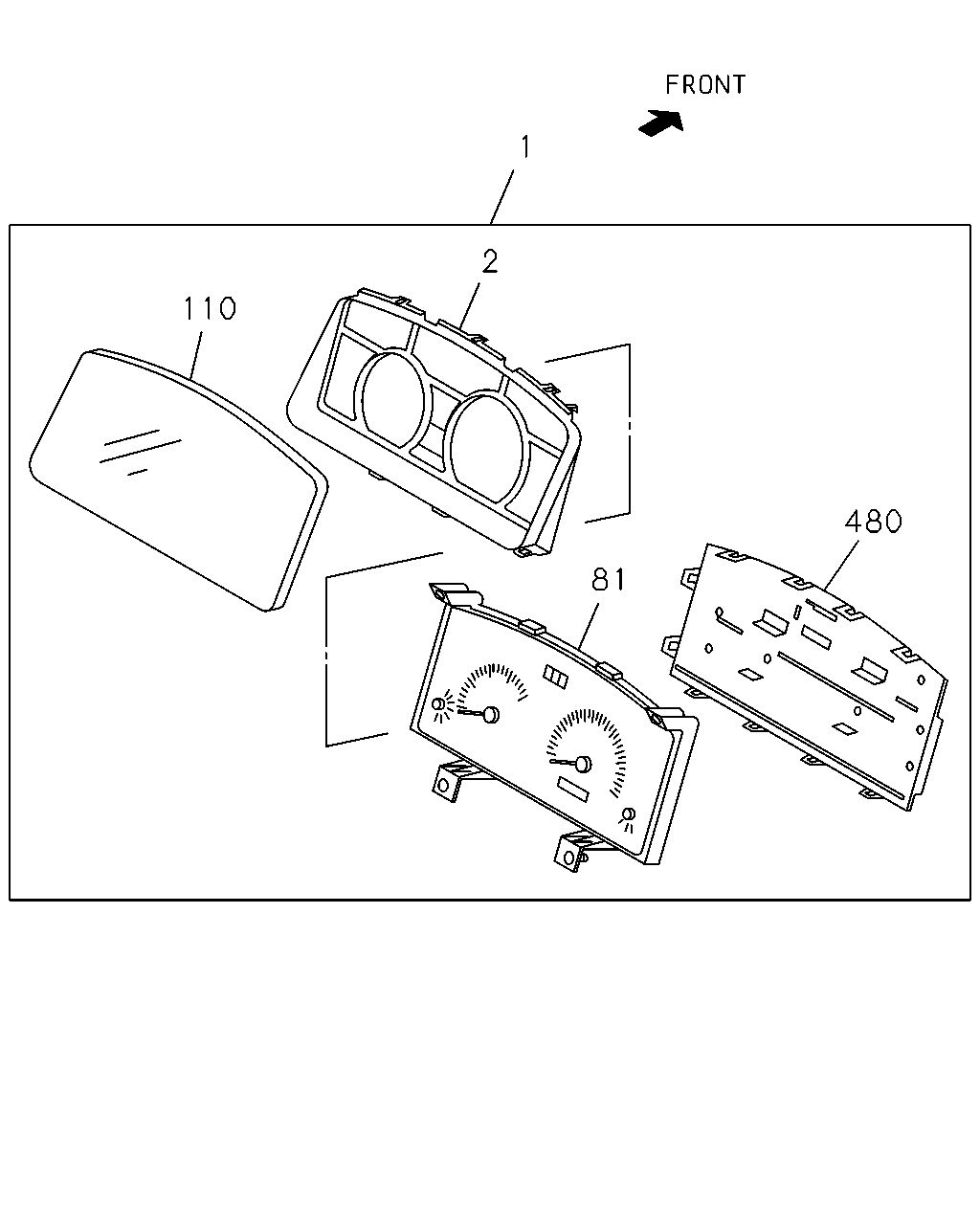

çizim 155549
1 2 110 480 81
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98021-249-4 01 1 0712- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98021-251-4 01 1 0712- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98094-461-2 01 1 0712- ● ●
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 0712- ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98073-677-0 01 1 0712- ● ● ● ●
81 09.735 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98073-680-0 01 1 0712- ● ● ● ●
81 09.735 METER SUB ASM
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98094-540-0 01 1 0712- ● ●
110 09.748 GLASS; CLUSTER METER
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98054-431-0 01 1 0712- ● ●
110 09.748 GLASS; CLUSTER METER
TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0712- ● ●
110 09.748 GLASS; CLUSTER METER
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98054-642-0 01 1 0712- ● ●
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 0712- ● ● ● ●
480 09.748 COVER; METER
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0712- ● ●

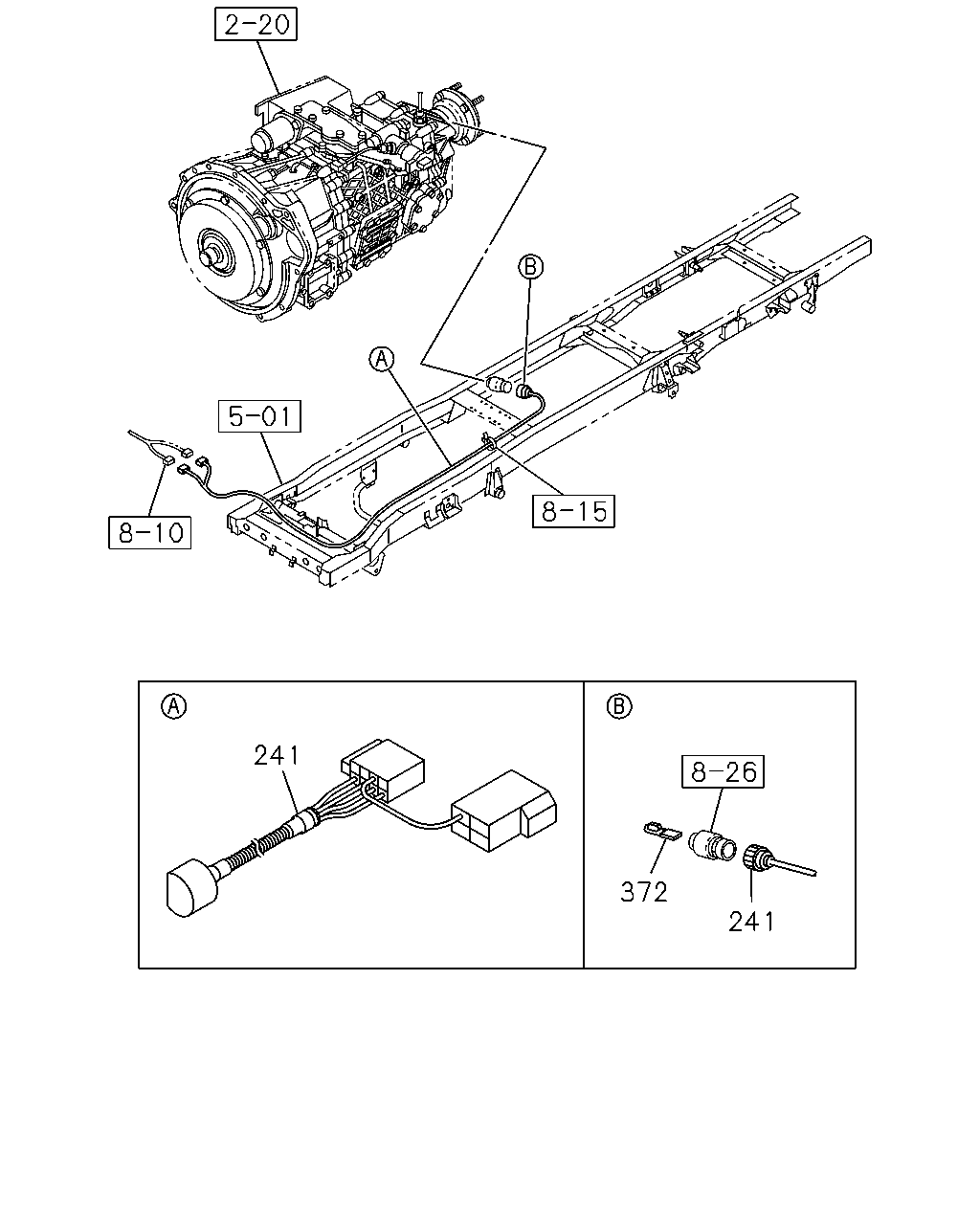

çizim 155554
241 372 241
BalonParca AdiParca NoAdetTipApplied Date A B C D
241 02.480 HARNESS; SPEEDOMETER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98035-237-0 01 1 0712-0803 ● ● ● ●
372 09.750 SHAFT; DRIVE,SPEED
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-97160-805-0 01 1 0712-0803 ● ● ● ●
çizim 155555
345
BalonParca AdiParca NoAdetTipApplied Date A B C D
345 09.743 CONTROL UNIT; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98088-848-0 01 1 0712- ● ●

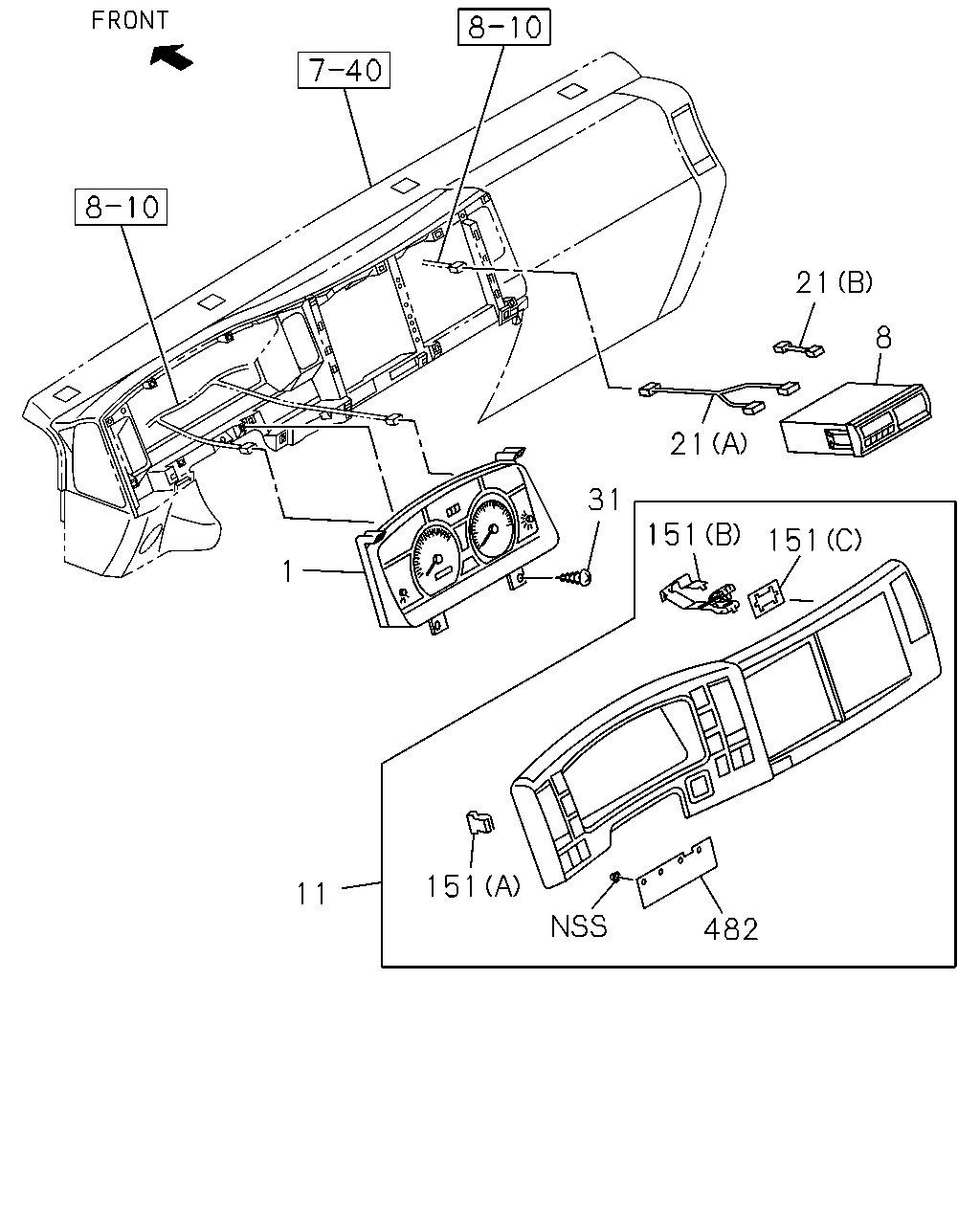

çizim 155805
21 8 21 31 151 151 1 151 11 482
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98021-249-4 01 1 0712- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98021-251-4 01 1 0712- ● ● ● ●
1 09.735 METER COMPL; CLUSTER
4HK1-TCS ENG(RJS) MULTI INFORMATION DISPLAY<7NY> TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98094-461-2 01 1 0712- ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98035-623-0 01 1 0712-0803 ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98113-385-0 01 1 0804-1008 ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98178-334-0 01 1 1009-1107 ● ● ● ●
8 09.750 TACHOGRAPH; CLUSTER METER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98197-455-0 01 1 1108- ● ● ● ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-682-2 01 1 0712-1001 ● ● ● ●
11 09.743 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97418-531-1 01 1 1002- ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97406-005-5 01 1 0712-1001 ● ● ● ●
11 09.743 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97418-534-1 01 1 1002- ● ● ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98201-155-0 01 1 1205- ● ● ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> (A) 		8-98099-111-0 01 1 0712-1204 ● ● ● ●
21 09.743 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98099-111-0 01 1 1205- ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 0712-1101 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ●
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 1301- ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (B) 		8-98152-030-0 01 1 1002- ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.090 (C) 		8-98152-031-0 01 1 1002- ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 13 1 0712-1001 ● ● ● ●
151 09.747 CLIP; METER CLUSTER
16.085 (A) 		8-98021-271-0 12 1 1002- ● ● ● ●
482 09.772 SEAL; CLUSTER METER 8-98116-843-0 01 1 0806- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
