Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#49881) — 348 parça

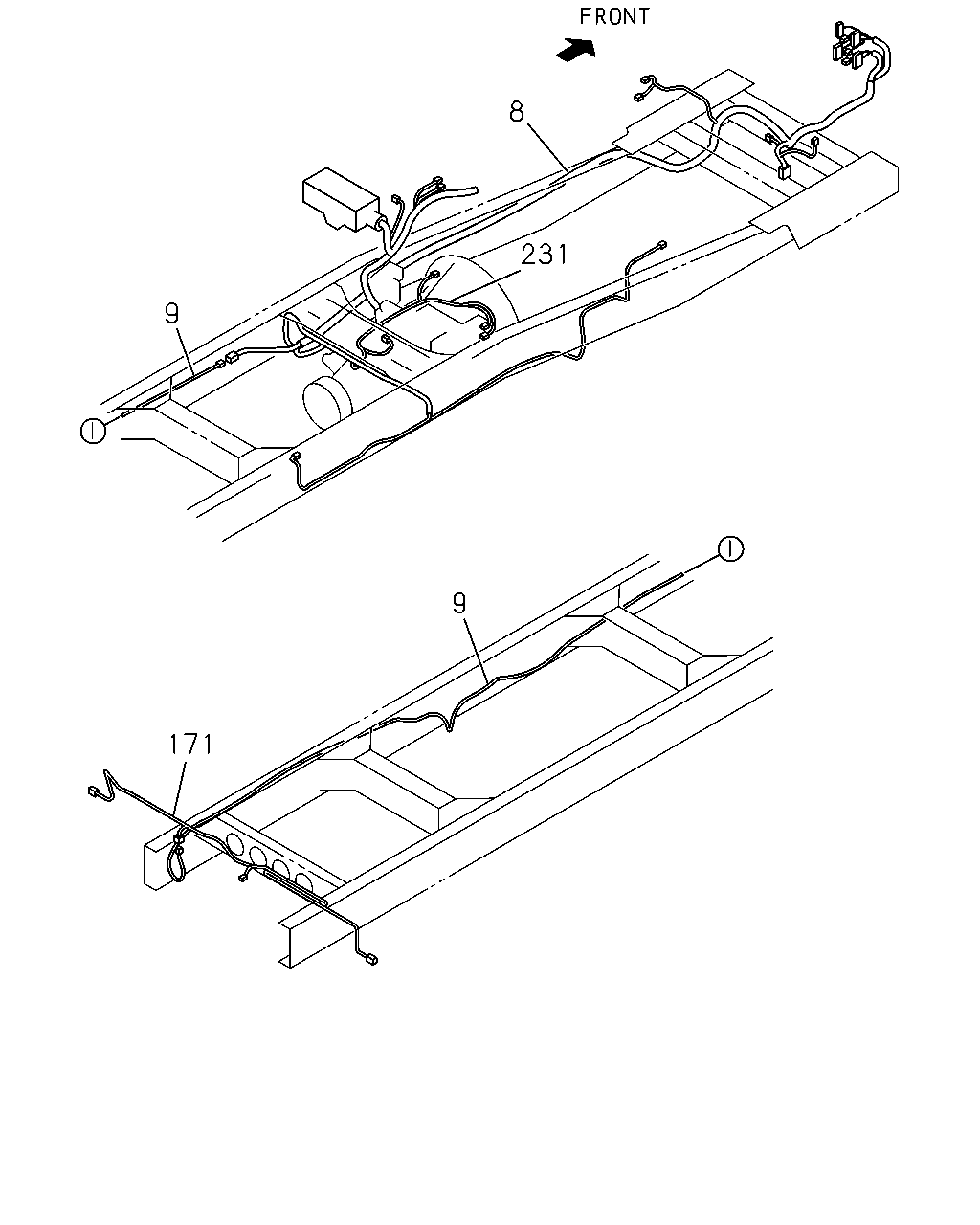

8 231 9 9 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-274-8	01	1	0712-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-278-8	01	1	0712-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-276-8	01	1	0712-	●	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-280-8	01	1	0712-	●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-241-9	01	1	0712-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-307-9	01	1	0712-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-310-9	01	1	0712-1301		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-717-0	01	1	1302-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-275-7	01	1	0712-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-279-7	01	1	0712-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-277-7	01	1	0712-			●	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-281-7	01	1	0712-			●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-308-9	01	1	0712-				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-311-9	01	1	0712-1301				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-718-0	01	1	1302-				●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98117-257-0	01	1	0910-				●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98046-995-1	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98046-995-1	01	1	0712-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98046-994-2	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98047-002-1	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-002-1	01	1	0712-		●		●
9	02.480 HARNESS; FRAME,RR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98047-002-1	01	1	0712-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98047-001-2	01	1	0712-	●
9	02.480 HARNESS; FRAME,RR EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98047-001-2	01	1	0712-			●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ>	8-98070-314-2	01	1	0712-0805		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 2700MM(27W) FRAME STRAIGHT TYPE<7KJ>	8-98117-252-0	01	1	0806-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98070-316-1	01	1	0712-0805		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) FRAME STRAIGHT TYPE<7KJ>	8-98117-254-0	01	1	0806-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-010-1	01	1	0712-0909		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3800MM(38W) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98047-010-1	01	1	0910-		●		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ>	8-98070-317-1	01	1	0712-0805		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4100MM(41W) FRAME STRAIGHT TYPE<7KJ>	8-98117-255-0	01	1	0806-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ>	8-98070-318-2	01	1	0712-0805		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ>	8-98117-256-0	01	1	0806-		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ>	8-98070-315-2	01	1	0712-0805		●		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 3300MM(33W) FRAME STRAIGHT TYPE<7KJ>	8-98117-253-0	01	1	0806-		●		●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ>	8-98080-017-1	01	1	0712-0805				●
9	02.480 HARNESS; FRAME,RR WHEEL BASE 4400MM(44W) FRAME STRAIGHT TYPE<7KJ>	8-98117-259-0	01	1	0806-				●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98070-319-1	01	1	0712-1009	●	●	●	●
171	02.596 HARNESS; CABLE,TAIL LAMP	8-98156-025-0	01	1	1010-	●	●	●	●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98029-598-1	01	1	0712-	●		●
231	02.480 HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98029-598-1	01	1	0712-		●		●
231	02.480 HARNESS; TRANS FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98080-121-2	01	1	0712-		●		●

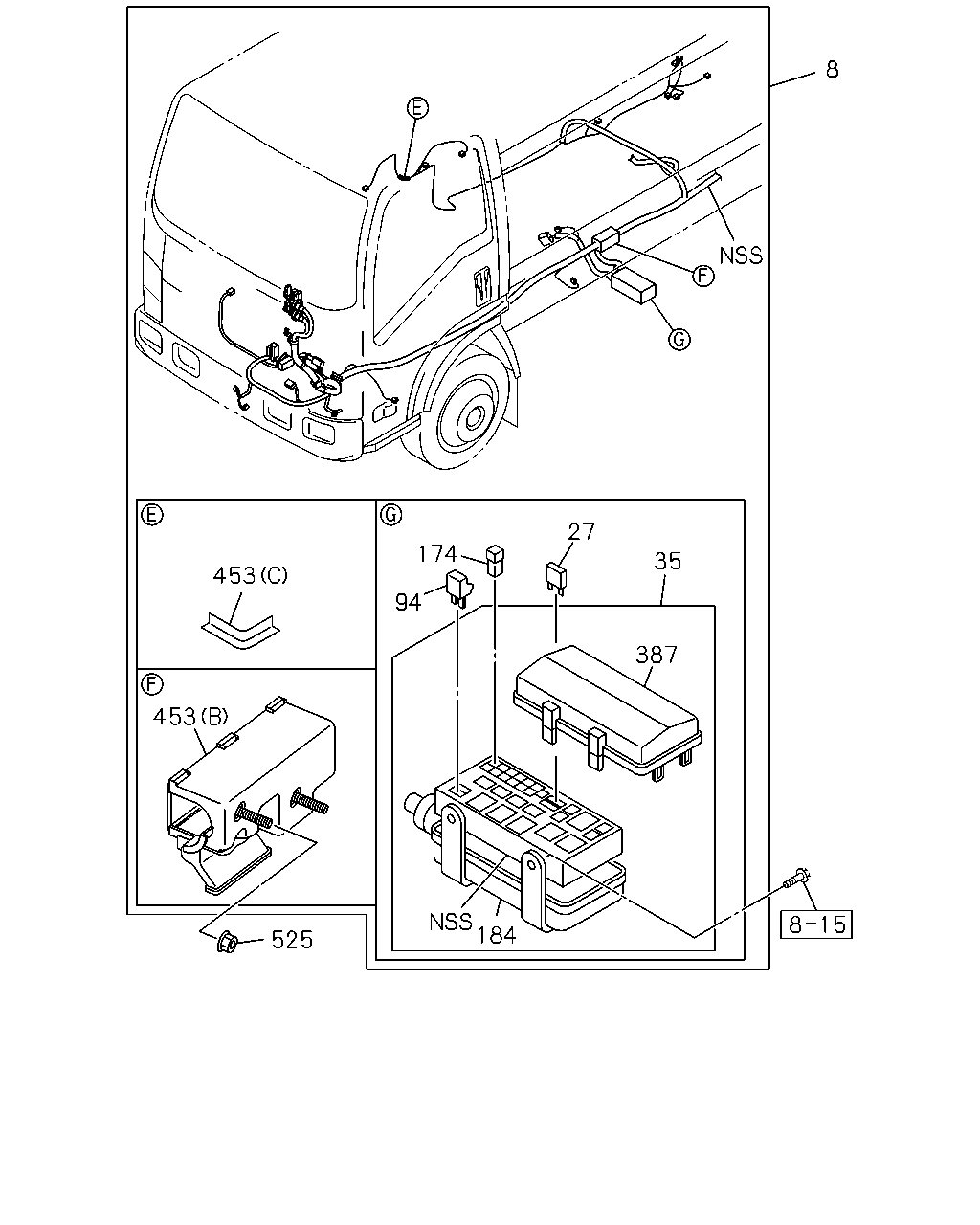

8 27 174 35 453 94 387 453 184 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-274-8	01	1	0712-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-278-8	01	1	0712-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-276-8	01	1	0712-	●	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-280-8	01	1	0712-	●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-241-9	01	1	0712-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-307-9	01	1	0712-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-310-9	01	1	0712-1301		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-717-0	01	1	1302-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-275-7	01	1	0712-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-279-7	01	1	0712-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-277-7	01	1	0712-			●	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-281-7	01	1	0712-			●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-308-9	01	1	0712-				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-311-9	01	1	0712-1301				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-718-0	01	1	1302-				●
27	08.965 FUSE UNIT 02.485 10A RED	8-98054-257-0	AR	1	0712-	●	●	●	●
35	02.530 BOX; RELAY & FUSE	8-98030-763-0	01	1	0712-	●	●	●	●
94	02.483 DIODE; FRAME HARNESS BLACK 2P-1.5A	8-94422-639-1	01	1	0712-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 30A PINK	8-98079-191-0	AR	1	0712-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	AR	1	0712-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 50A RED	8-98079-193-0	AR	1	0712-	●	●	●	●
174	08.965 FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	AR	1	0712-	●	●	●	●
184	02.559 COVER; RELAY & FUSE BOX	8-98030-766-0	01	1	0712-	●	●	●	●
387	02.483 COVER; RELAY BOX	8-98081-367-0	01	1	0712-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0712-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0712-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0712-	●	●	●	●
525	08.919 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	0712-	●	●	●	●

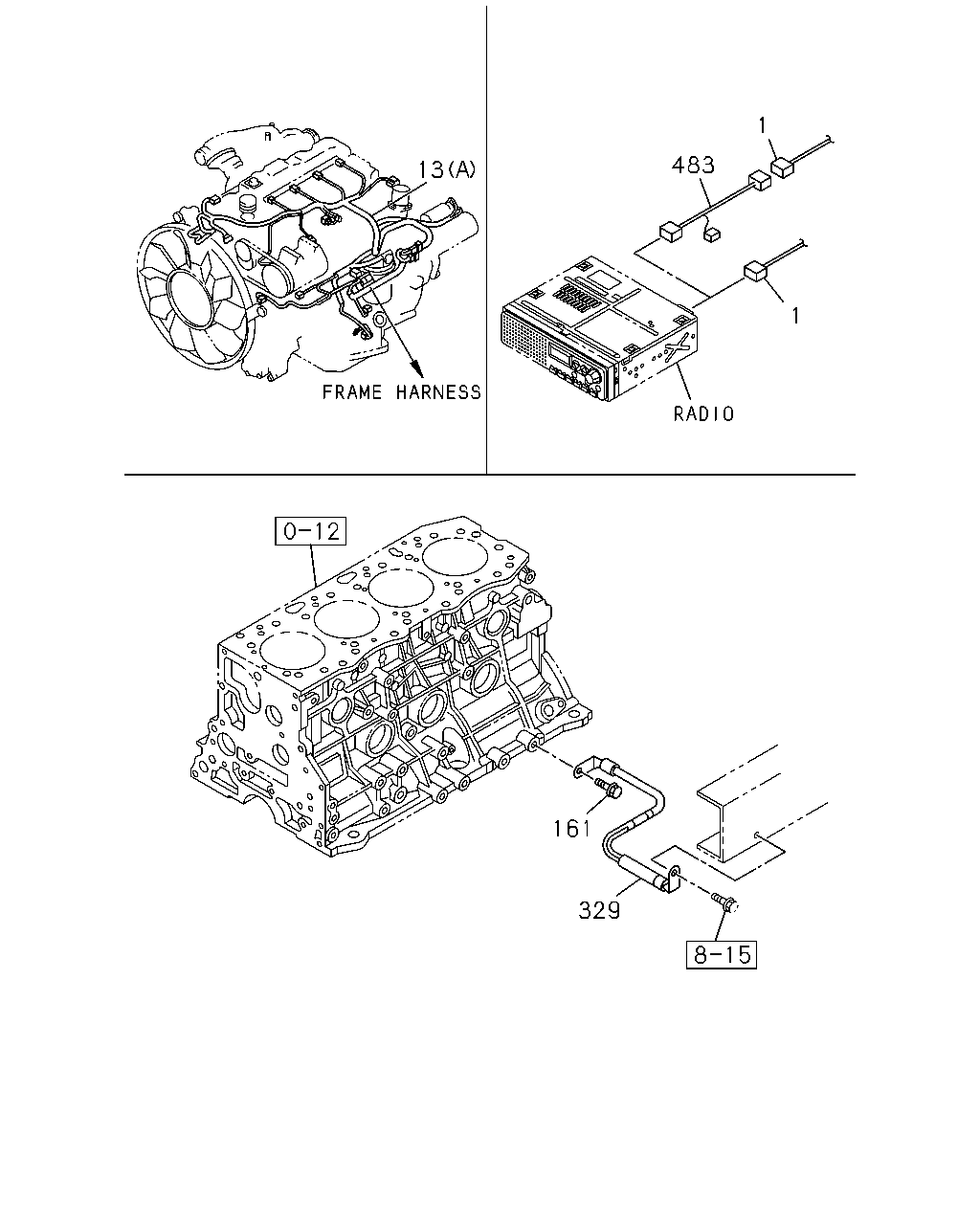

1 483 13 1 161 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-4	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-6	01	1	0907-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-641-0	01	1	1205-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-641-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-6	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-7	01	1	0907-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-7	01	1	0907-		●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-4	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-6	01	1	0907-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98204-640-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98204-640-0	01	1	1205-		●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-6	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-7	01	1	0907-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-7	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98201-653-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98201-653-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-1	01	1	0712-0801			●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-4	01	1	0802-0906			●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-6	01	1	0907-1204			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-6	01	1	0907-1204				●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-642-0	01	1	1205-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-642-0	01	1	1205-				●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-1	01	1	0712-0801			●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-6	01	1	0802-0906			●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-7	01	1	0907-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-7	01	1	0907-				●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98094-802-4	01	1	0712-1006	●	●	●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98147-725-0	01	1	1007-	●	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-97332-133-3	01	1	0712-1007		●		●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1008-		●		●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-98090-070-2	01	1	0712-		●		●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (C)	8-98090-071-2	01	1	0712-		●		●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0712-	●	●	●	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0712-		●		●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98030-126-1	01	1	0712-	●		●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	0712-		●		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-304-2	01	1	0712-0804		●		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-465-0	01	1	0712-0804		●		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	0805-		●		●
483	02.480 HARNESS; EXT,RADIO IDENTIFICATION LABEL FOR KD<6UT>	8-98116-875-0	01	1	0805-	●	●	●	●

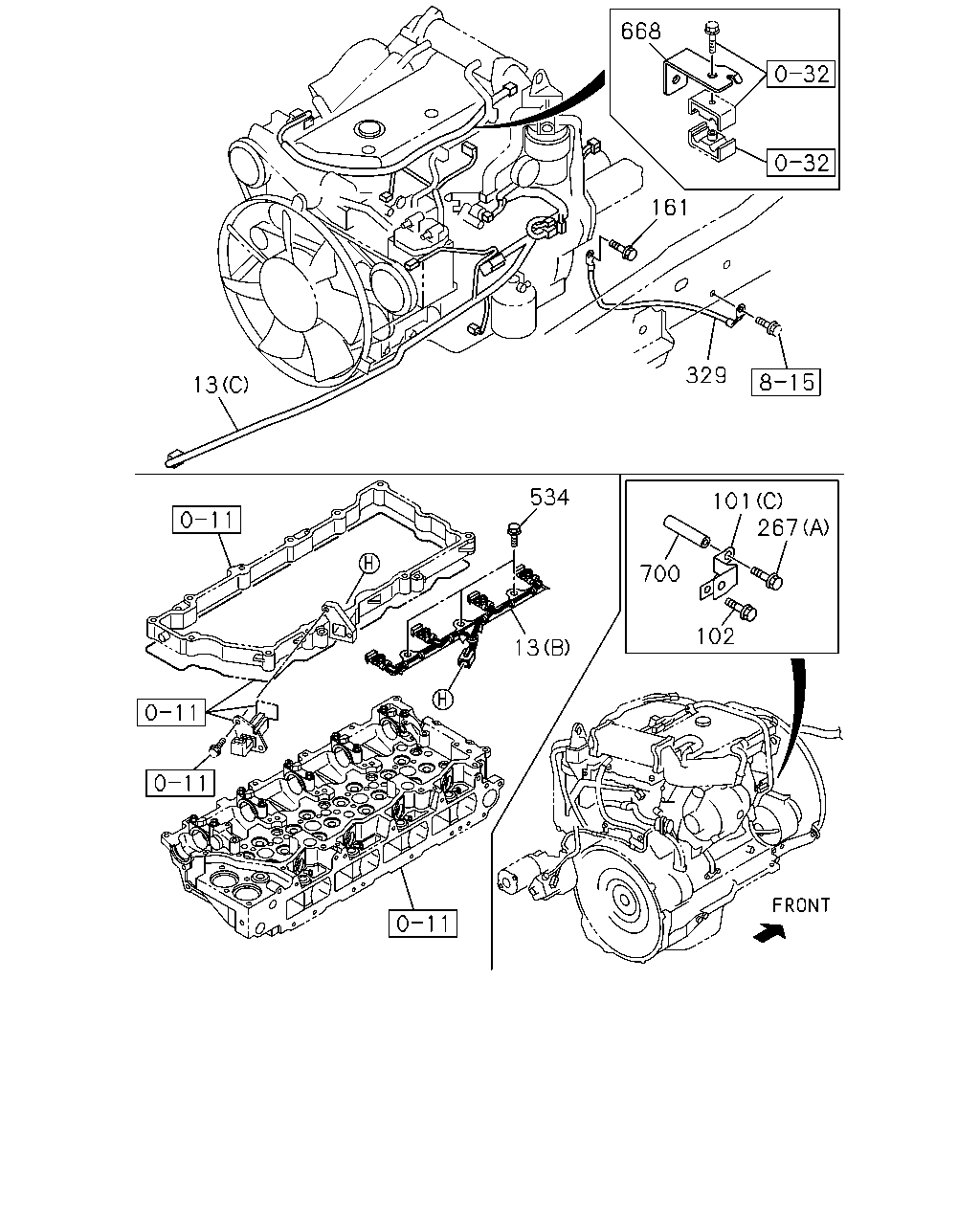

668 161 329 13 534 101 267 700 102 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98094-802-4	01	1	0712-1006	●	●	●	●
13	02.525 HARNESS; ENG 4JJ1-TCS ENG(LFB) (A)	8-98147-725-0	01	1	1007-	●	●	●	●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-97332-133-3	01	1	0712-1007		●		●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1008-		●		●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(6QN) (C)	8-98090-070-2	01	1	0712-		●		●
13	02.525 HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V80A(7YN) (C)	8-98090-071-2	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0712-	●	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0712-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (D)	8-98094-483-1	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (C)	8-98052-805-0	01	1	0712-		●		●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) 00.029 M10X16 FLANGE	0-28151-016-0	01	1	0712-0801		●		●
102	08.900 BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) 02.042 M10X25 FLANGE	0-28151-025-0	01	1	0712-0801		●		●
161	02.559 BOLT; GROUND,HARNESS 4JJ1-TCS ENG(LFB) 02.483 M10X16 FLANGE	0-28051-016-0	01	1	0712-	●	●	●	●
161	02.559 BOLT; GROUND,HARNESS 4HK1-TCS ENG(RJS) 02.343 M8X16 FLANGE	0-28050-816-0	01	1	0712-		●		●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-		●		●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0712-		●		●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB)	8-98030-126-1	01	1	0712-	●		●
329	02.480 CABLE; ENG TO FRAME 4JJ1-TCS ENG(LFB) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98030-126-1	01	1	0712-		●		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98039-304-2	01	1	0712-0804		●		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ> EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98102-465-0	01	1	0712-0804		●		●
329	02.480 CABLE; ENG TO FRAME 4HK1-TCS ENG(RJS) FRAME STRAIGHT TYPE<7KJ>	8-98102-465-0	01	1	0805-		●		●
534	02.483 BOLT 4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE	8-94399-863-1	03	1	0712-0805		●		●
534	02.483 BOLT 4HK1-TCS ENG(RJS) 00.683 M10X55 FLANGE	8-97365-449-0	03	1	0806-		●		●
668	02.559 BRACKET; HARNESS 4HK1-TCS ENG(RJS)	8-98001-095-0	01	1	0712-		●		●
700	02.483 TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60)	8-98084-726-0	01	1	0712-		●		●

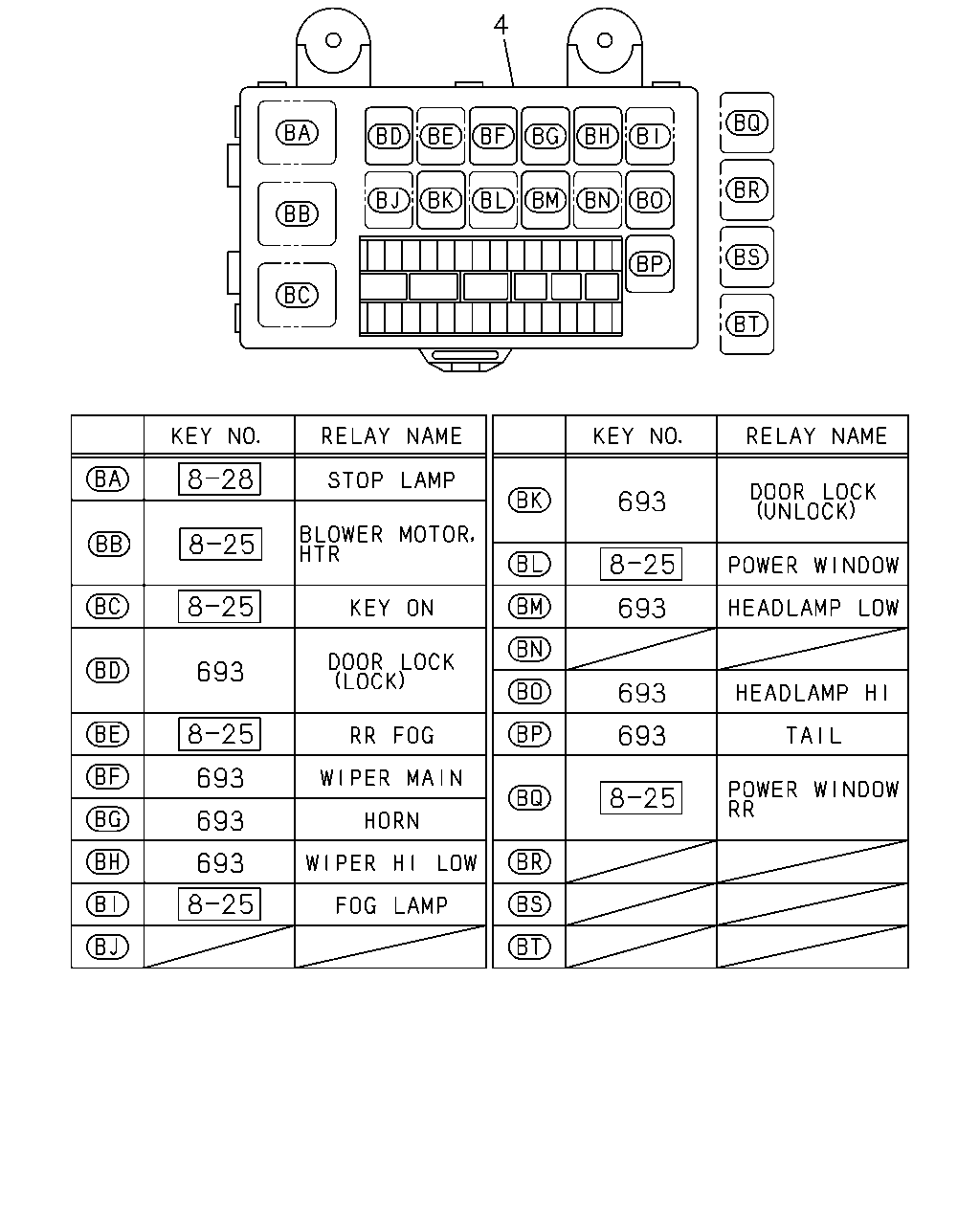

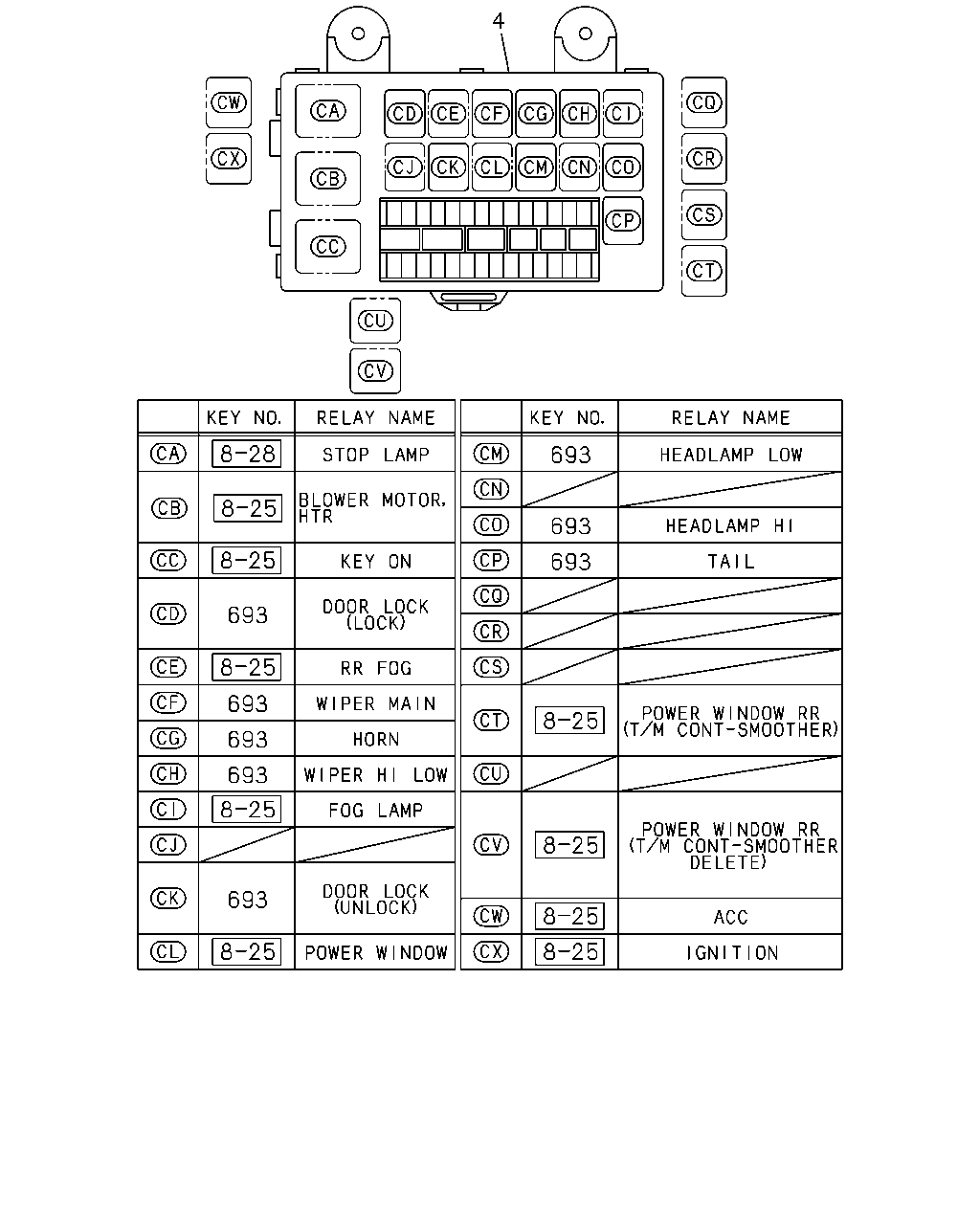

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0712-0906	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0907-	●	●
4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-619-1	01	1	0907-			●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0712-0906	●	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0907-	●	●
693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0907-			●	●

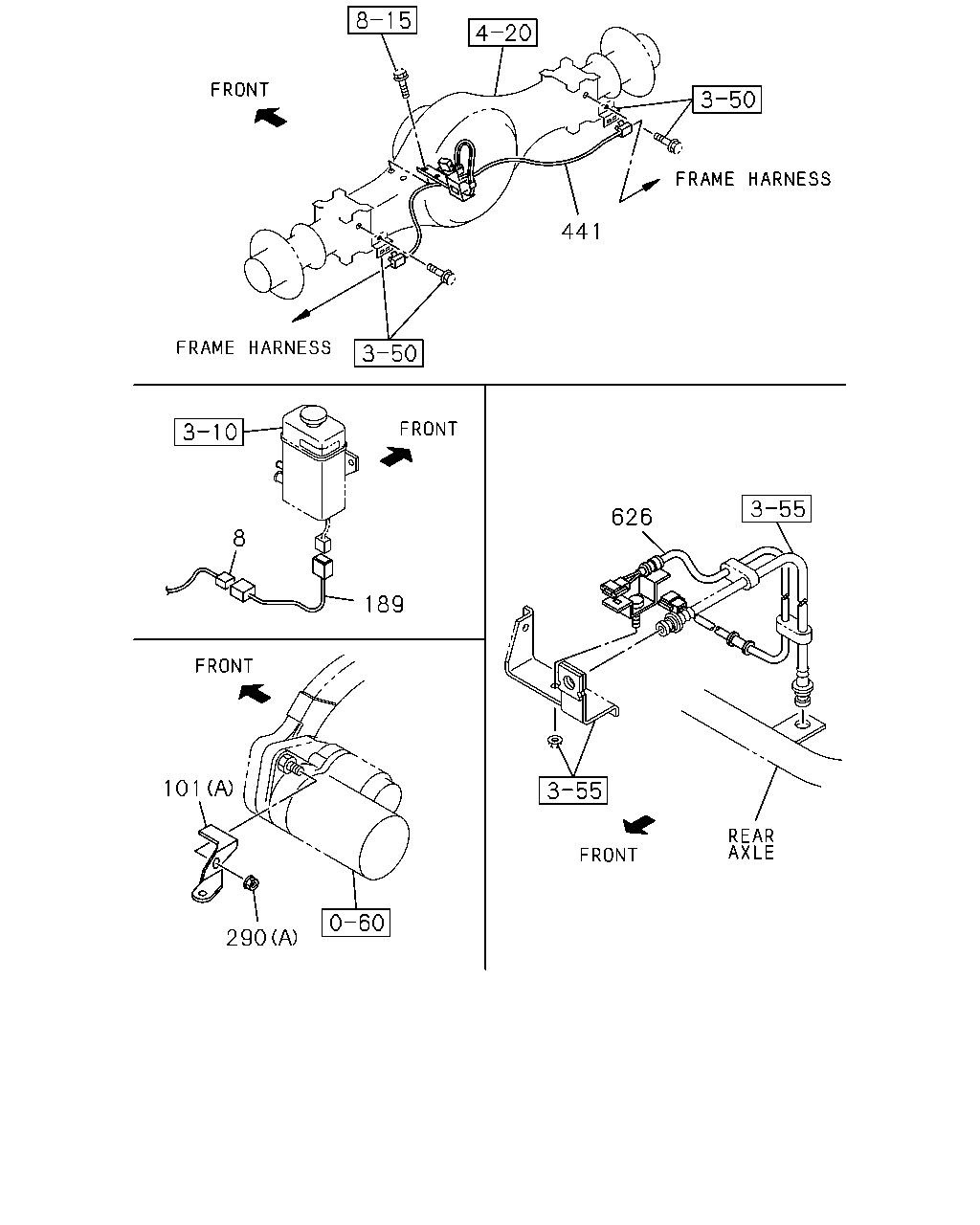

441 626 8 189 101 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-274-8	01	1	0712-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-278-8	01	1	0712-	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-276-8	01	1	0712-	●	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-280-8	01	1	0712-	●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MYY5T(RSM),M/T MYY6S(RST) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98074-241-9	01	1	0712-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-307-9	01	1	0712-		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-310-9	01	1	0712-1301		●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-717-0	01	1	1302-		●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-275-7	01	1	0712-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98070-279-7	01	1	0712-			●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-277-7	01	1	0712-			●	●
8	02.480 HARNESS; FRAME,FRT 4JJ1-TCS ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. FRAME STRAIGHT TYPE<7KJ>	8-98070-281-7	01	1	0712-			●	●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-308-9	01	1	0712-				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-311-9	01	1	0712-1301				●
8	02.480 HARNESS; FRAME,FRT 4HK1-TCS ENG(RJS) M/T MZZ6F(RSR) FRAME STRAIGHT TYPE<7KJ> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98225-718-0	01	1	1302-				●
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0712-	●	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0712-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (D)	8-98094-483-1	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (C)	8-98052-805-0	01	1	0712-		●		●
189	02.480 HARNESS; EXT 4HK1-TCS ENG(RJS) POOR QUALITY DIESEL FUEL(KF0) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98166-888-0	01	1	1007-				●
189	02.480 HARNESS; EXT HYDRO BRAKE BOOSTER(7QQ)	8-98095-676-0	01	1	0712-1006				●
189	02.480 HARNESS; EXT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POOR QUALITY DIESEL FUEL(KF0)	8-98095-676-0	01	1	1007-				●
189	02.480 HARNESS; EXT 4HK1-TCS ENG(RJS) HYDRO BRAKE BOOSTER(7QQ) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98095-676-0	01	1	1007-				●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●	●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98080-697-1	01	1	0712-	●		●
441	02.480 HARNESS; CABLE,SPEED SENSOR 4 WHEEL DISC BRAKE<JF9>	8-98080-697-1	01	1	0712-		●		●
441	02.480 HARNESS; CABLE,SPEED SENSOR EXC. 4 WHEEL DISC BRAKE<JF9>,FRAME STRAIGHT TYPE<7KJ>	8-97308-225-4	01	1	0712-		●		●
626	02.480 HARNESS; FLEX HOSE FRAME STRAIGHT TYPE<7KJ>	8-97253-968-1	01	1	0712-		●		●
626	02.480 HARNESS; FLEX HOSE FRAME STRAIGHT TYPE<7KJ>	8-97253-969-1	01	1	0712-		●		●

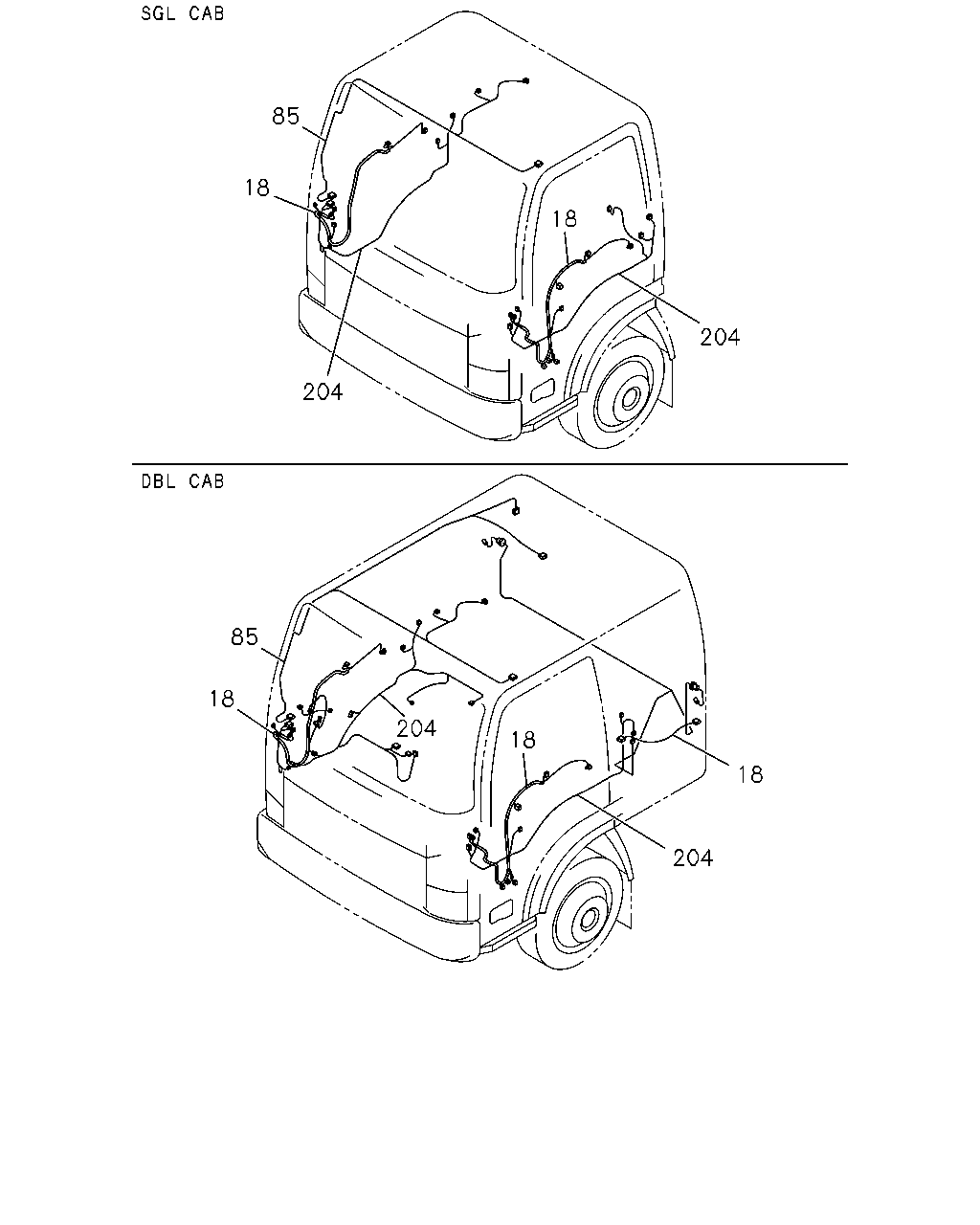

85 18 18 204 204 85 18 204 18 18 204

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-082-3	01	1	0712-	●	●	●	●
18	02.480 HARNESS; DOOR O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> ,MIRROR - O/SIDE RR VIEW,HEATED<7SV> FRONT	8-98071-090-3	01	1	0712-	●	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-080-3	01	1	0712-	●	●	●	●
18	02.480 HARNESS; DOOR EXC. O/SIDE MIRROR ELEC REM CONT, HEATED<DL8>,MIRROR - O/SIDE RR VIEW, HEATED<7SV> FRONT	8-98071-088-3	01	1	0712-	●	●	●	●
18	02.480 HARNESS; DOOR REAR	8-98056-047-1	02	1	0712-1203			●	●
18	02.480 HARNESS; DOOR REAR	8-98202-555-0	02	1	1204-			●	●
85	06.495 HARNESS; ROOM LAMP	8-98071-096-2	01	1	0712-	●	●
85	06.495 HARNESS; ROOM LAMP	8-98071-098-2	01	1	0712-			●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98074-595-3	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-070-2	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-800-5	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-802-5	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98070-799-5	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98070-801-5	01	1	0712-	●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER<AK5>	8-98071-074-3	01	1	0712-			●	●
204	02.559 HARNESS; CABLE,FLOOR EXC. AIR BAG DRIVER & PASSENGER<AK5>	8-98071-073-3	01	1	0712-			●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98070-805-5	01	1	0712-			●	●
204	02.559 HARNESS; CABLE,FLOOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98070-806-5	01	1	0712-			●	●
204	02.559 HARNESS; CABLE,FLOOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98070-804-5	01	1	0712-			●	●

1 29 431 431 2 2 41 5 693 28 431 431 4 453 431 293 479 479 694

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-4	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-6	01	1	0907-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-641-0	01	1	1205-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-641-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-6	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-7	01	1	0907-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-7	01	1	0907-		●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-4	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-6	01	1	0907-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98204-640-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98204-640-0	01	1	1205-		●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-6	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-7	01	1	0907-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-7	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98201-653-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98201-653-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-1	01	1	0712-0801			●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-4	01	1	0802-0906			●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-6	01	1	0907-1204			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-6	01	1	0907-1204				●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-642-0	01	1	1205-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-642-0	01	1	1205-				●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-1	01	1	0712-0801			●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-6	01	1	0802-0906			●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-7	01	1	0907-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-7	01	1	0907-				●
2	02.483 DIODE; CABLE HARNESS (A) BLACK 2P-1.5A	8-94422-639-1	AR	1	0712-	●	●	●	●
2	02.483 DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	AR	1	0712-	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0712-0906	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0907-	●	●
4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-619-1	01	1	0907-			●	●
5	02.485 FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0712-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0712-	●	●	●	●
5	02.485 FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0712-	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING	0-72180-516-0	01	1	0712-1101	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1102-1212	●	●	●	●
28	02.483 SCREW; FUSE BOX 16.090 M5X16 TAPPING	0-72180-516-0	01	1	1301-	●	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0712-0906	●	●	●	●
29	02.483 COVER; FUSE BOX	8-98056-968-0	01	1	0907-	●	●
29	02.483 COVER; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98056-968-0	01	1	0907-			●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0712-0906	●	●	●	●
41	08.821 PULLER; FUSE	8-98054-260-0	01	1	0907-	●	●
41	08.821 PULLER; FUSE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98054-260-0	01	1	0907-			●	●
293	02.559 NUT 01.062 M6 FLANGE	0-91180-106-0	04	1	0712-	●	●	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	0712-0906	●	●	●	●
431	02.530 CONNECTOR; JOINT (D) 10P BLUE	1-82699-598-0	01	1	0907-1005	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (D) 10P BLUE	1-82699-598-0	01	1	0907-1005			●	●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1006-1204	●
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1006-1204		●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1006-1204			●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1006-1204				●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1205-	●		●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 10P BLUE	1-82699-598-0	01	1	1205-		●		●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0712-0906	●	●	●	●
431	02.530 CONNECTOR; JOINT (C) 10P	8-97077-943-0	02	1	0907-1204	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C) 10P	8-97077-943-0	02	1	0907-1204			●	●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P	8-97077-943-0	02	1	1205-	●		●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (C) 10P	8-97077-943-0	02	1	1205-		●		●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0712-0906	●	●	●	●
431	02.530 CONNECTOR; JOINT (A)	8-98046-205-0	01	1	0907-	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98046-205-0	01	1	0907-			●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0712-0906	●	●	●	●
431	02.530 CONNECTOR; JOINT (B)	8-98046-206-0	01	1	0907-	●	●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (B)	8-98046-206-0	01	1	0907-			●	●
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0712-0906	●	●	●	●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0907-1204	●
431	02.530 CONNECTOR; JOINT TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0907-1204		●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0907-1204			●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	0907-1204				●
431	02.530 CONNECTOR; JOINT 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	1205-	●		●
431	02.530 CONNECTOR; JOINT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF) (E) 10P GREEN	1-82699-599-0	01	1	1205-		●		●
453	02.483 PROTECTOR; HARNESS (C)	8-94417-716-0	02	1	0712-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (B)	8-98031-620-1	01	1	0712-	●	●	●	●
453	02.483 PROTECTOR; HARNESS (A)	8-98057-647-0	01	1	0712-	●	●	●	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)	8-98108-678-0	01	1	0802-	●	●	●	●
479	02.530 CAP; CONNECTOR EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98108-679-0	01	1	0802-	●	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0712-0906	●	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0907-	●	●
693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0907-			●	●
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-772-0	01	1	1101-1204	●	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-772-0	01	1	1101-1204			●	●
694	02.483 BOX ASM; CONNECTOR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-772-0	01	1	1205-	●		●
694	02.483 BOX ASM; CONNECTOR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98190-772-0	01	1	1205-	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98190-772-0	01	1	1205-		●		●
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98190-772-0	01	1	1205-		●
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	0712-0906	●	●	●	●
694	02.483 BOX ASM; CONNECTOR	8-98057-640-0	01	1	0907-1012	●	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98057-640-0	01	1	0907-1012			●	●
694	02.483 BOX ASM; CONNECTOR TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-640-0	01	1	1101-1204	●	●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-640-0	01	1	1101-1204			●	●
694	02.483 BOX ASM; CONNECTOR 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-640-0	01	1	1205-	●		●
694	02.483 BOX ASM; CONNECTOR AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98057-640-0	01	1	1205-		●		●

4 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0712-0906	●	●	●	●
4	02.483 BOX ASM; FUSE,HARNESS	8-98067-619-1	01	1	0907-	●	●
4	02.483 BOX ASM; FUSE,HARNESS AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98067-619-1	01	1	0907-			●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0712-0906	●	●	●	●
693	02.694 RELAY; FUSE BOX 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0907-	●	●
693	02.694 RELAY; FUSE BOX AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 08.852 24V 10A MATSUSHITA	8-97173-035-1	AR	1	0907-			●	●

666 267 101 290 101 374 443

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
101	02.483 BRACKET; HARNESS CONNECTOR 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 02.183 (A)	8-98030-725-1	01	1	0712-	●	●	●	●
101	02.483 BRACKET; HARNESS CONNECTOR (B)	8-98032-447-1	01	1	0712-	●		●
101	02.483 BRACKET; HARNESS CONNECTOR EXC. FRAME STRAIGHT TYPE<7KJ> (B)	8-98032-447-1	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR FRAME STRAIGHT TYPE<7KJ> (D)	8-98094-483-1	01	1	0712-		●		●
101	02.483 BRACKET; HARNESS CONNECTOR 4HK1-TCS ENG(RJS) (C)	8-98052-805-0	01	1	0712-		●		●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) 03.671 (B) M6X10 FLANGE	0-28050-610-0	02	1	0712-		●		●
267	02.483 BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONT(C60) 09.171 (A) M10X120 FLANGE	0-28156-012-0	01	1	0712-		●		●
290	02.483 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0712-	●	●	●	●
290	02.483 NUT; BRKT 4JJ1-TCS ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	0712-	●	●	●	●
374	02.530 PLUG; HARNESS CONNECTOR 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0712-			●	●
443	02.480 HARNESS; EXT,A/C HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60)	8-98106-935-0	01	1	0712-0803	●	●	●	●
666	02.483 BRACKET; CLIP 4HK1-TCS ENG(RJS)	8-98098-185-0	01	1	0712-		●		●

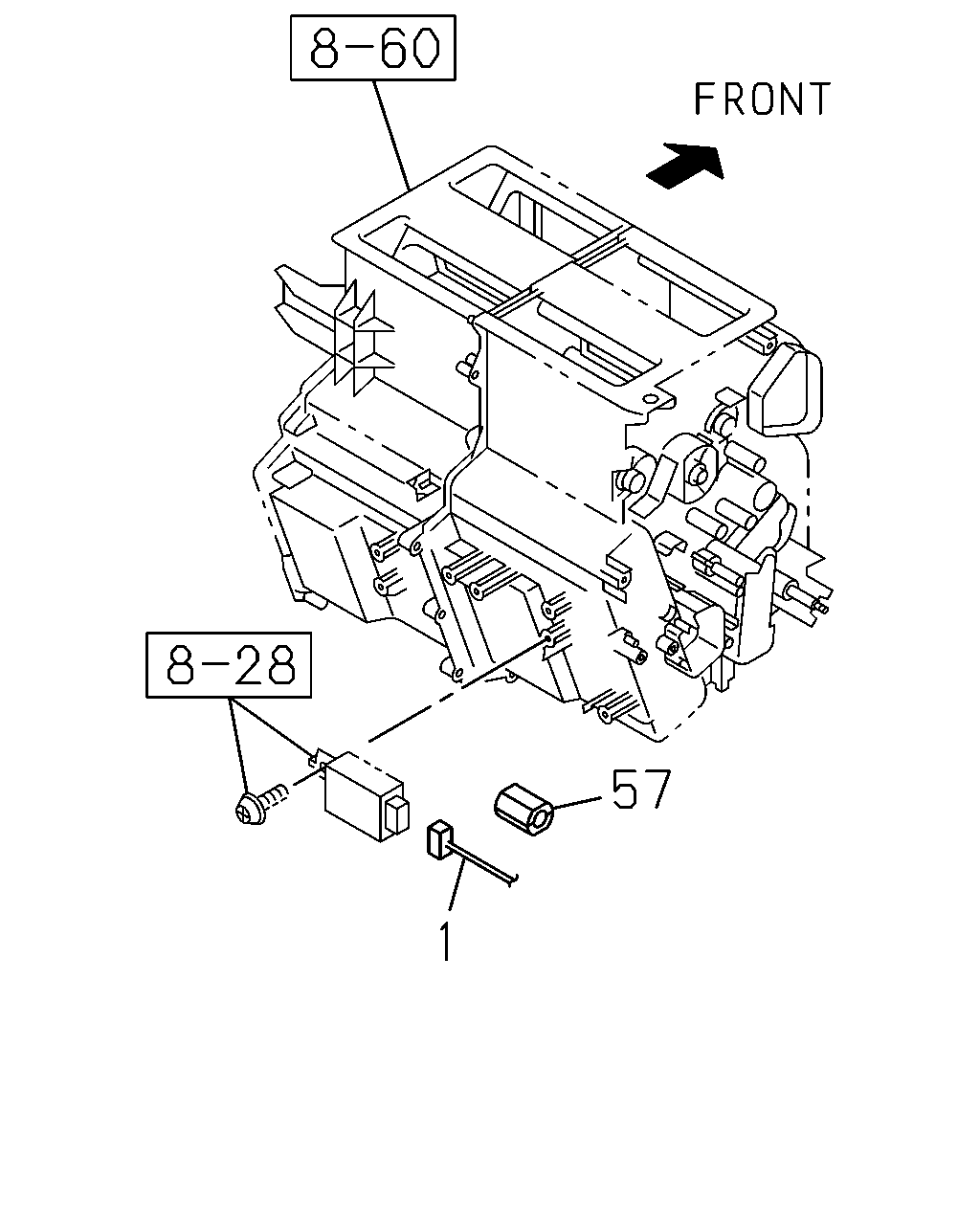

57 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-4	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-6	01	1	0907-1204	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-717-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-641-0	01	1	1205-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-641-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-6	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-7	01	1	0907-	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-727-7	01	1	0907-		●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-4	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-6	01	1	0907-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-715-6	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98204-640-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98204-640-0	01	1	1205-		●
1	02.480 HARNESS; CAB HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-1	01	1	0712-0801	●	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-6	01	1	0802-0906	●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-7	01	1	0907-1204	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98089-726-7	01	1	0907-1204		●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98201-653-0	01	1	1205-	●
1	02.480 HARNESS; CAB TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER& PASSENGER<AK5>	8-98201-653-0	01	1	1205-		●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-1	01	1	0712-0801			●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-4	01	1	0802-0906			●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-6	01	1	0907-1204			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98089-722-6	01	1	0907-1204				●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-642-0	01	1	1205-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98204-642-0	01	1	1205-				●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-1	01	1	0712-0801			●	●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-6	01	1	0802-0906			●	●
1	02.480 HARNESS; CAB 4JJ1-TCS ENG(LFB) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-7	01	1	0907-			●
1	02.480 HARNESS; CAB AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98089-728-7	01	1	0907-				●
57	02.483 FILTER; FUSE BOX	8-98211-338-0	01	1	1205-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
