0-35A — ENGINE CONTROL VALVE AND LEVER (#4988) — 74 parça
çizim 6888
52 45 52 51
BalonParca AdiParca NoAdetTipApplied Date A B C D
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=13 L=20 		9-09525-235-0 02 1 9610-9905 ●
45 CLIP; FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) ID=11 L=20 		9-09525-035-0 02 1 9906- ● ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9610-9905 ●
51 BOLT; CLIP,FUEL CUT CABLE
ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9906- ● ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=3199 		1-73907-318-8 01 1 9610-9708 ● ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=3199 		1-73907-318-8 01 1 9709-9905 ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) CAB UP +110MM<TGG> L=3334 		1-73907-534-0 01 1 9906- ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) L=3259 		1-71907-454-0 01 1 9709-9905 ●
52 CABLE; FUEL CUT
ELECTRONIC GOV RED3(KG5) EXC. CAB UP +110MM<TGG> L=3199 		1-73907-528-0 01 1 9906- ● ●

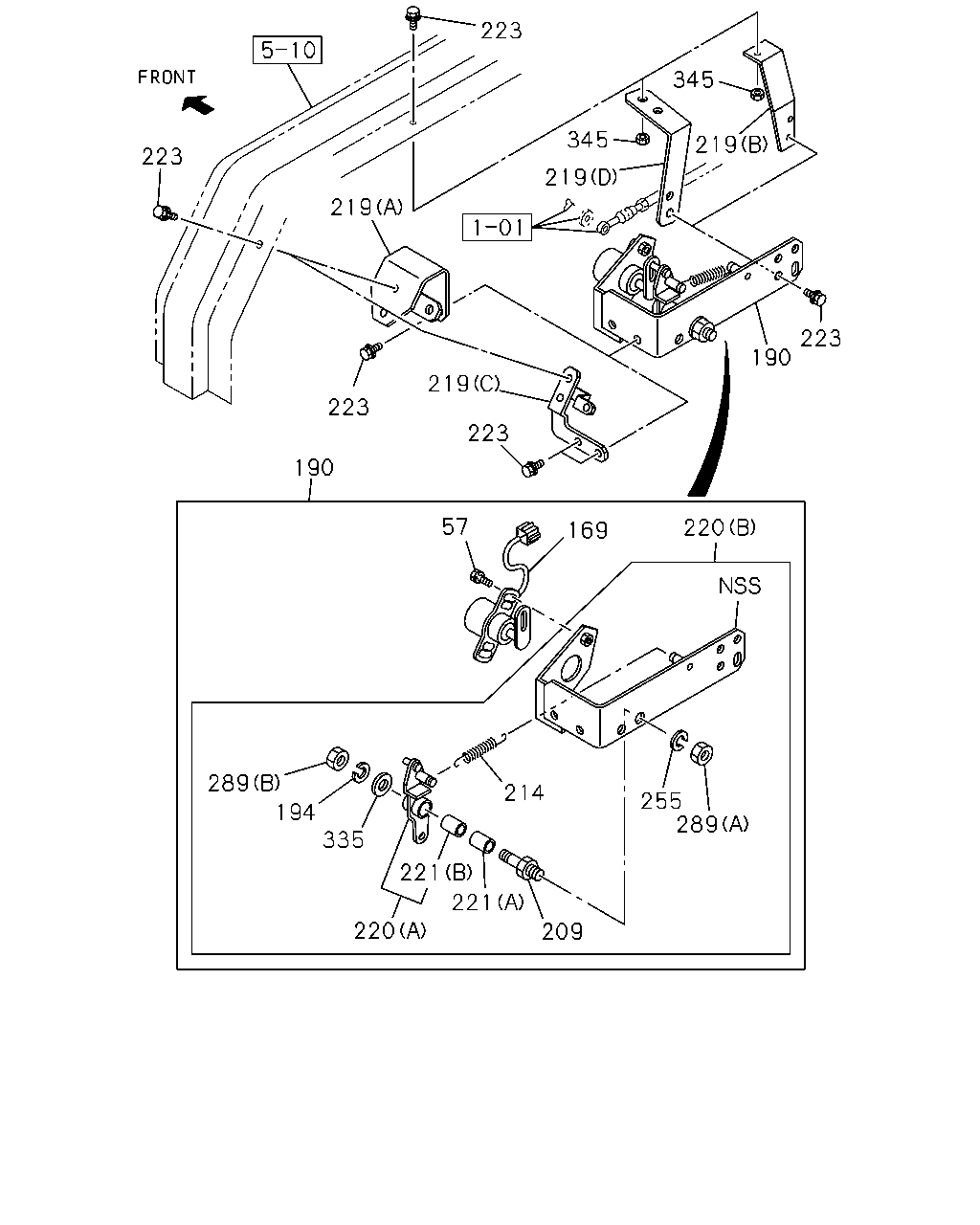

çizim 39588
223 345 345 219 223 219 219 223 190 219 223 223 190 57 220 169 289 214 255 289 194 335 221 221 220 209
BalonParca AdiParca NoAdetTipApplied Date A B C D
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9610-9905 ●
57 BOLT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 9906-0004 ● ●
57 BOLT; BRKT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0005- ● ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 9610-9905 ●
169 SENSOR
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 9906-0004 ● ●
169 SENSOR
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-81534-010-0 01 1 0005- ● ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-470-0 01 1 9610-9701 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-504-0 01 1 9702-9905 ●
190 LEVER; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-23335-504-0 01 1 9906-0004 ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> 		1-23335-504-0 01 1 0005- ● ●
190 LEVER; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> 		1-23335-547-0 01 1 0005- ● ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 9610-9905 ●
194 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 9906-0004 ● ●
194 WASHER; LK,LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> ID=8.2 		9-09150-508-0 01 1 0005- ● ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 9610-9905 ●
209 SHAFT; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 9906-0004 ● ●
209 SHAFT; ENG CONT
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		1-14336-002-1 01 1 0005- ● ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 9610-9905 ●
214 SPRING; ENG CONT RETURN
PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 9906-0004 ● ●
214 SPRING; ENG CONT RETURN
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		8-94481-840-1 01 1 0005- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 9610-9905 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23335-459-0 01 1 9906-9910 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (A) 		1-23335-459-0 01 1 9911- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 9610-9905 ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-460-2 01 1 9906-9910 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B) 		1-23335-460-2 01 1 9911- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-511-0 01 1 9911-0004 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (C) 		1-23335-545-0 01 1 0005- ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-541-0 01 1 9911-0004 ● ●
219 BRACKET; ENG CONT
PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (D) 		1-23335-546-0 01 1 0005- ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-347-1 01 1 9610-9701 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 9702-9905 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 9906-0004 ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-23311-357-0 01 1 0005- ● ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-471-0 01 1 9610-9701 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 9702-9905 ●
220 LEVER ASM
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-23335-505-0 01 1 9906-0004 ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> EXC. CAB UP +110MM<TGG> (B) 		1-23335-505-0 01 1 0005- ● ●
220 LEVER ASM
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> CAB UP +110MM<TGG> (B) 		1-23335-551-0 01 1 0005- ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 9610-9905 ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 9906-0004 ● ●
221 BUSHING; LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A) 		1-09330-057-0 01 1 0005- ● ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 9610-9905 ●
221 BUSHING; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 9906-0004 ● ●
221 BUSHING; LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B) 		1-09330-058-0 01 1 0005- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 07 1 9610-9905 ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 07 1 9906-0004 ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 04 1 0005-0008 ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X20 FLANGE 		0-28680-820-0 05 1 0009- ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE 		0-28680-825-0 03 1 0005-0008 ● ●
223 BOLT; BRKT FIX
PTO CONTROL OPERATION CAB BACK<TBZ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 9610-9905 ●
255 WASHER; LK,LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 9906-0004 ● ●
255 WASHER; LK,LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> ID=10.2 		9-09150-510-0 01 1 0005- ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 9610-9905 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 9906-0004 ● ●
289 NUT; LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (A) M10 		9-09110-410-0 01 1 0005- ● ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 9610-9905 ●
289 NUT; LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 9906-0004 ● ●
289 NUT; LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> (B) M8 		9-09111-408-0 01 1 0005- ● ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 9610-9905 ●
335 WASHER; PL LEVER
PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 9906-0004 ● ●
335 WASHER; PL LEVER
ELECTRONIC GOV RED3(KG5) PTO CONTROL OPERATION CAB BACK<TBZ> 		5-09503-135-0 01 1 0005- ● ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 9610-9905 ●
345 NUT; BRKT
PTO CONTROL OPERATION CAB BACK<TBZ> M8 FLANGE 		0-91150-108-0 01 1 9906- ● ●
