8-03 — LAMP; REAR AND REAR SIDE (#49879) — 41 parça

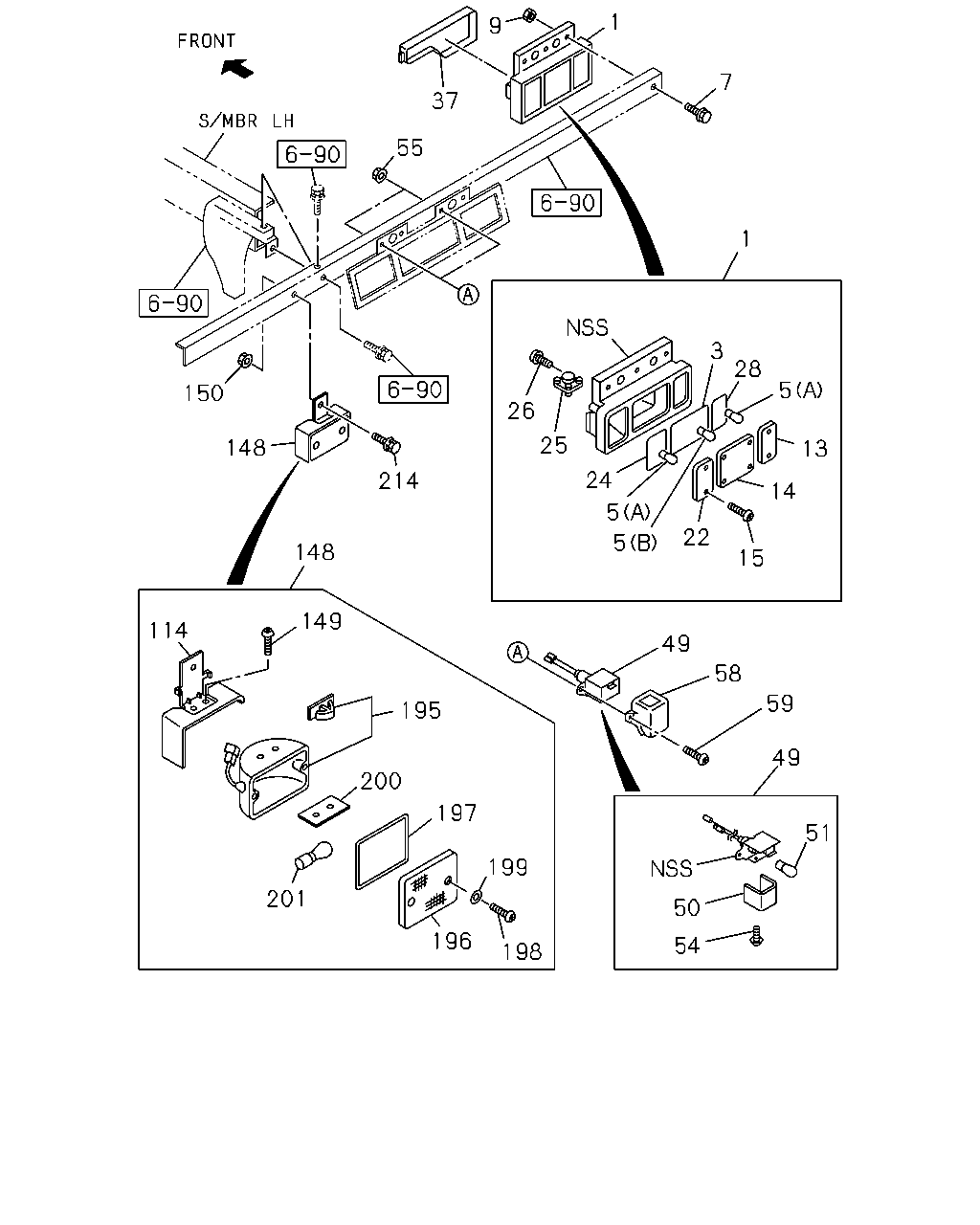

çizim 155534
1 9 7 37 55 1 3 28 5 150 26 25 148 13 24 214 14 5 22 5 148 15 149 114 49 58 59 195 49 200 197 51 199 201 50 196 54 198
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 02.679 LAMP ASM; RR COMB 8-98002-165-0 01 1 0712- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98002-166-0 01 1 0712- ● ● ● ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98002-164-0 01 1 0712- ● ● ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 02 1 0712- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 04 1 0712- ● ● ● ●
5 08.991 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 02 1 0712- ● ● ● ●
7 02.664 SCREW; RR COMB LAMP
B0LT M6X20 		8-94402-623-0 06 1 0712- ● ● ● ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 06 1 0712- ● ● ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-639-0 01 1 0712- ● ● ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-638-0 01 1 0712- ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0712- ● ● ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0712- ● ● ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 0712- ● ● ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 02 1 0712- ● ● ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 02 1 0712- ● ● ● ●
25 02.810 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 0712- ● ● ● ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING 		9-07076-414-0 01 1 0712- ● ● ● ●
26 02.812 SCREW; BACK HORN
BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 02 1 0712- ● ● ● ●
26 02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 01 1 0712- ● ● ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 02 1 0712- ● ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 0712- ● ● ● ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 0712- ● ● ● ●
49 02.700 LAMP; LICENSE PLATE
24V 5W 		8-97105-380-0 02 1 0712- ● ● ● ●
50 02.709 LENS; LICENSE PLATE LAMP 8-97108-212-0 02 1 0712- ● ● ● ●
51 08.991 BULB; LICENSE PLATE LAMP
24V 5W 		1-82194-039-0 02 1 0712- ● ● ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 02 1 0712- ● ● ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 04 1 0712- ● ● ● ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 02 1 0712- ● ● ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 04 1 0712- ● ● ● ●
114 02.679 BRACKET; RR FOG LAMP 8-97108-583-0 01 1 0712- ● ● ● ●
148 02.679 LAMP ASM; RR FOG 8-97181-002-0 01 1 0712- ● ● ● ●
149 02.689 SCREW; BRKT TO LAMP BODY 8-94336-372-0 02 1 0712- ● ● ● ●
150 02.664 NUT; RR FOG LAMP
07.829 M6 FLANGE 		5-09440-004-0 01 1 0712- ● ● ● ●
195 02.679 LAMP UNIT; RR FOG 8-94336-322-0 01 1 0712- ● ● ● ●
196 02.679 LENS; RR FOG LAMP 8-94336-325-0 01 1 0712- ● ● ● ●
197 02.679 GASKET; RR FOG LAMP 8-94336-324-0 01 1 0712- ● ● ● ●
198 02.688 SCREW; LENS TO BODY 0-71190-416-0 02 1 0712- ● ● ● ●
199 02.689 WASHER; LENS,RR FOG LAMP 8-94336-326-0 02 1 0712- ● ● ● ●
200 02.679 PLATE; SET,RR FOG LAMP 8-94336-323-0 01 1 0712- ● ● ● ●
201 08.991 BULB; RR FOG LAMP
24V 21W 		1-82194-036-0 01 1 0712- ● ● ● ●
214 02.679 BOLT; RR FOG LAMP
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 0712- ● ● ● ●
