Sayfa 7-50 - Isuzu EPC

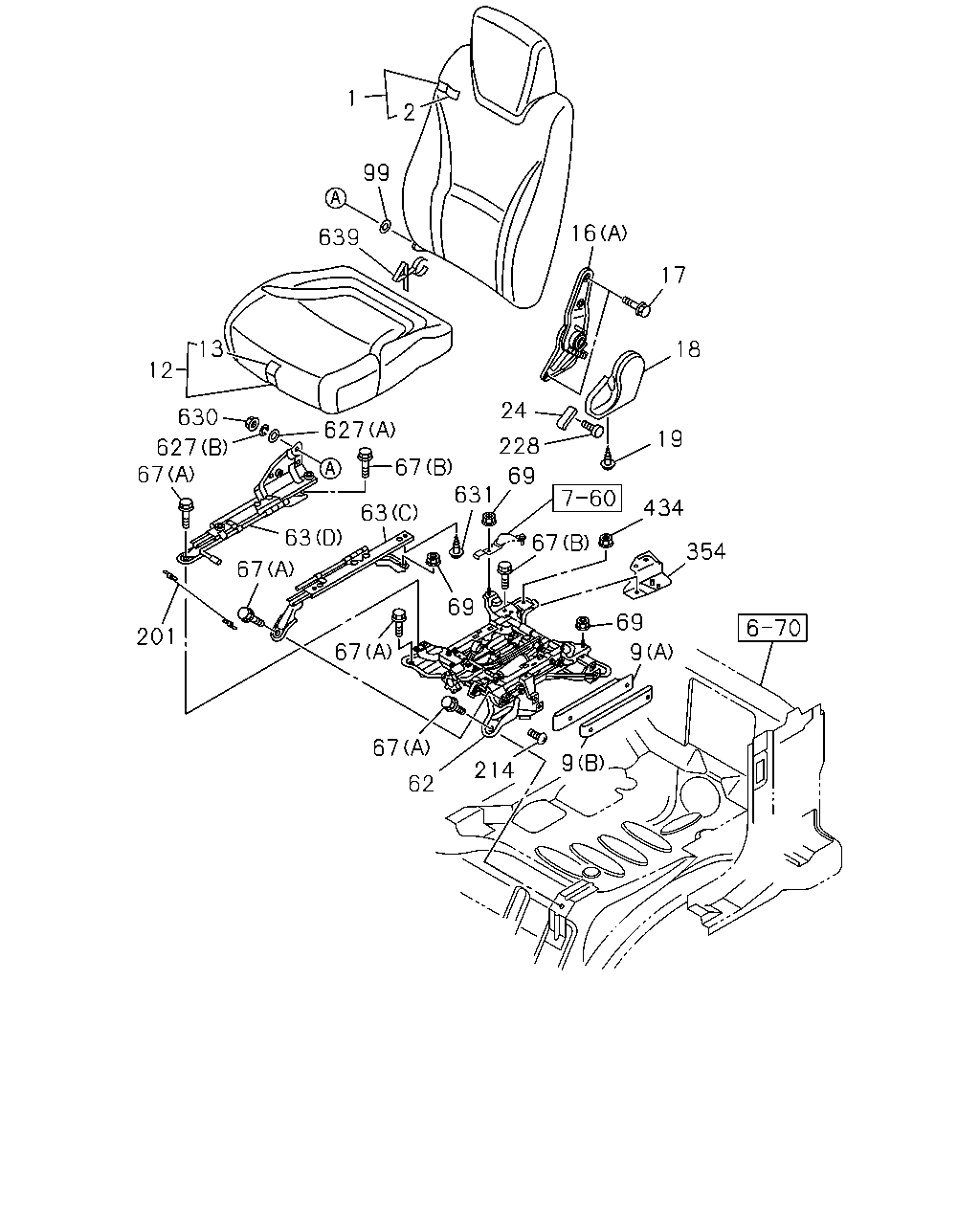

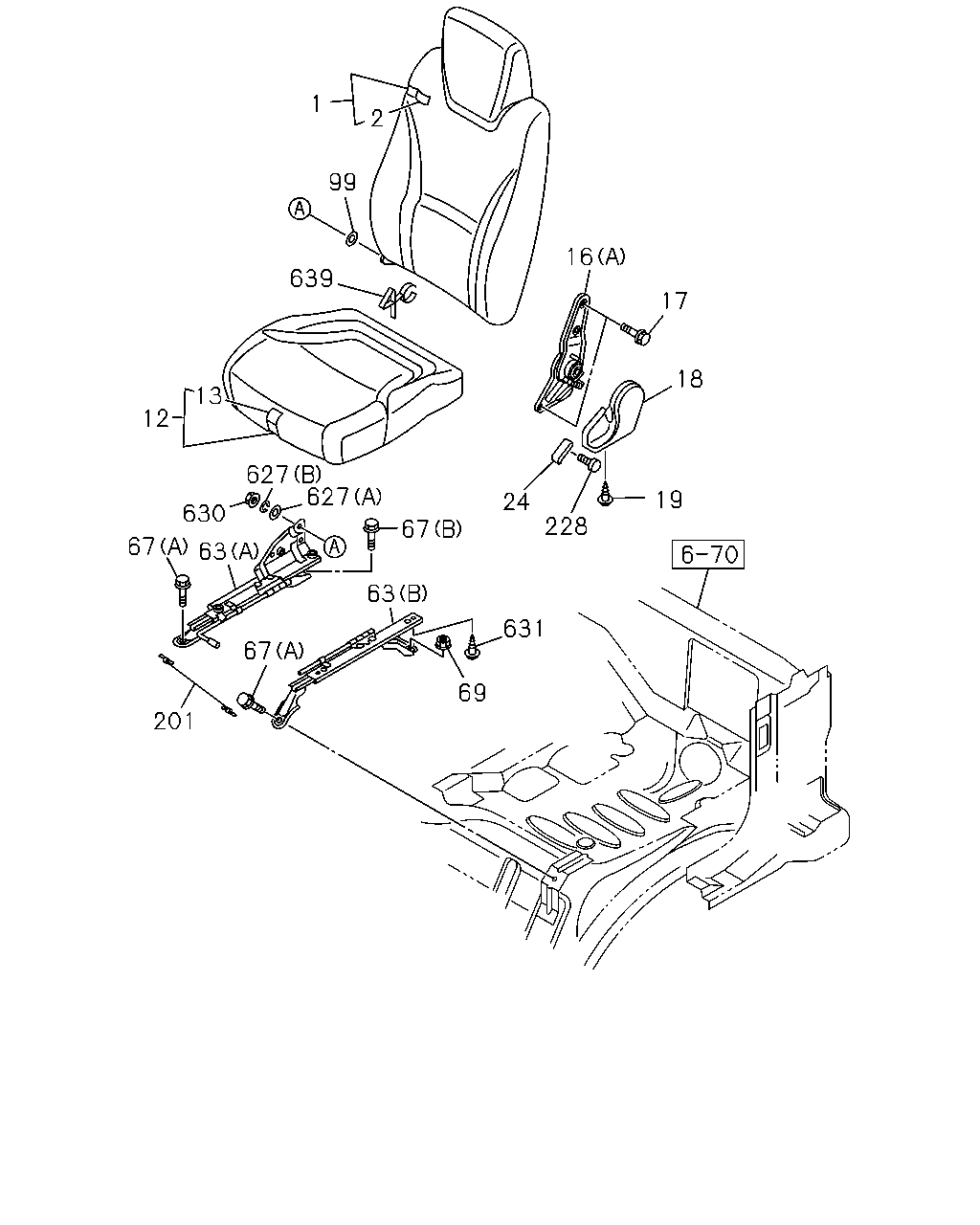

7-50 — FRONT SEAT (#49875) — 566 parça

1 2 99 16 639 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-1	01	1	0712-0803	●	●
1	16.720 BACK ASM; SEAT EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-357-1	01	1	0712-0803	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-1	01	1	0712-0803			●	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-357-2	01	1	0804-0804	●	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-2	01	1	0804-0804	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-2	01	1	0804-0804			●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-3	01	1	0805-0805	●	●	●	●
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-3	01	1	0805-0805	●	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-357-4	01	1	0806-1009	●	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-4	01	1	0806-1009	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0806-1009			●	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-237-1	01	1	1010-	●	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-237-1	01	1	1010-	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-237-1	01	1	1010-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-1	01	1	0712-0803	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-358-1	01	1	0712-0803	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-1	01	1	0712-0803			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-358-1	01	1	0804-0804	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-1	01	1	0804-0804	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-1	01	1	0804-0804			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-1	01	1	0805-0805	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-1	01	1	0805-0805	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-358-2	01	1	0806-1009	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-2	01	1	0806-1009	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0806-1009			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-256-0	01	1	1010-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-256-0	01	1	1010-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-256-0	01	1	1010-			●	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-711-0	01	1	0804-0902	●	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-257-0	01	1	0903-1009	●	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-246-1	01	1	1010-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-394-2	01	1	0712-0804	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0712-0804			●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-394-2	01	1	0805-0805	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0805-0805			●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-394-2	01	1	0806-1009	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0806-1009			●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-250-1	01	1	1010-	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-250-1	01	1	1010-			●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-1	01	1	0712-0803	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-2	01	1	0804-0804	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-3	01	1	0805-0805	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-3	01	1	0806-0902	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0903-1009	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-712-0	01	1	0804-0902	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0903-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-265-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-395-2	01	1	0712-0804	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0712-0804			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-395-2	01	1	0805-0805	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0805-0805			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-395-2	01	1	0806-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0806-1009			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-270-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-1	01	1	1010-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-1	01	1	0712-0803	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-2	01	1	0804-0804	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0805-0805	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0806-0902	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0903-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-0	01	1	0712-0803	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-0	01	1	0712-0803	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-0	01	1	0712-0803			●	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-1	01	1	0804-0804	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0804-0804	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0804-0804			●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0805-0805	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0805-0805	●	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-1	01	1	0806-	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0806-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0806-			●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK	8-97859-273-3	01	1	0712-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0712-	●	●	●	●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0712-0803	●	●
17	16.682 BOLT; RECLINING EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0712-0803	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0712-0803			●	●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0804-0804	●	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0804-0804	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0804-0804			●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0805-0805	●	●	●	●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0805-0805	●	●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0806-	●	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0806-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0806-			●	●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0712-0803	●	●
18	16.682 COVER; RECLINING EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-361-0	01	1	0712-0803	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0712-0803			●	●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-361-0	01	1	0804-0804	●	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0804-0804	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0804-0804			●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0805-0805	●	●	●	●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0805-0805	●	●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-361-0	01	1	0806-	●	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0806-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0806-			●	●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0712-0803	●	●
19	16.686 SCREW; COVER EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0712-0803	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0712-0803			●	●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0804-0804	●	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0804-0804	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0804-0804			●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0805-0805	●	●	●	●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0805-0805	●	●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0806-	●	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0806-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0806-			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0712-0803	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-362-0	01	1	0712-0803	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0712-0803			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-362-0	01	1	0804-0804	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0804-0804	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0804-0804			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0805-0805	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0805-0805	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-362-0	01	1	0806-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0806-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0806-			●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) OUTER	8-98114-418-0	01	1	0804-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) INNER	8-98114-420-0	01	1	0804-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98002-907-1	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A) INNER	8-98002-907-1	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-1	01	1	0712-0803			●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A) INNER	8-98002-907-2	01	1	0804-0804	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0804-0804			●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0805-0805	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A) INNER	8-98002-907-2	01	1	0806-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0806-			●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) OUTER	8-98002-908-0	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B) OUTER	8-98002-908-0	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-0	01	1	0712-0803			●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B) OUTER	8-98002-908-1	01	1	0804-0804	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0804-0804			●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0805-0805	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B) OUTER	8-98002-908-1	01	1	0806-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0806-			●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0712-0802	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSPENSION SEAT<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0712-	●	●	●	●
69	16.682 NUT; FRT SEAT SUSPENSION SEAT<SA3> M10 FLANGE	8-98055-961-0	02	1	0803-	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0712-	●	●	●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0804-0804	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0805-0805	●	●	●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0805-0805	●	●
99	16.716 BUSHING; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98112-751-0	01	1	0806-	●	●
99	16.716 BUSHING; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0806-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0806-			●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98063-219-0	01	1	0712-0803	●	●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0712-0803	●	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0712-0803			●	●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0804-0804	●	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0804-0804			●	●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0804-	●	●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-0	01	1	0712-0803	●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-0	01	1	0712-0803	●	●
201	16.682 CABLE; ADJ	8-98003-086-0	01	1	0712-0803			●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0804-0804	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0804-0804			●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0805-0805	●	●	●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0806-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0806-			●	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0712-0803	●	●
228	16.714 SCREW; KNOB EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0712-0803	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0712-0803			●	●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0804-0804	●	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0804-0804	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0804-0804			●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0805-0805	●	●	●	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0805-0805	●	●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0806-	●	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0806-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0806-			●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0712-0803			●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0804-0804			●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0805-0805	●	●	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0806-			●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0712-0803			●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0804-0804			●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0805-0805	●	●	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0806-			●	●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0712-0803	●	●
630	16.682 NUT; CAP EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0712-0803	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0712-0803			●	●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0804-0804	●	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0804-0804	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0804-0804			●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0805-0805	●	●	●	●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0805-0805	●	●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0806-	●	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0806-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0806-			●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0712-0803			●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804			●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-			●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0712-0803			●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804			●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-			●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0712-0804	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0712-0804			●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0805-0805	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0805-0805			●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0806-	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0806-			●	●

1 2 99 16 639 17 13 18 12 24 630 627 19 228 627 67 67 631 69 434 63 63 67 354 67 69 69 201 67 9 67 9 214 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-1	01	1	0712-0803	●	●
1	16.720 BACK ASM; SEAT EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-357-1	01	1	0712-0803	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-1	01	1	0712-0803			●	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-357-2	01	1	0804-0804	●	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-2	01	1	0804-0804	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-2	01	1	0804-0804			●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-3	01	1	0805-0805	●	●	●	●
1	16.720 BACK ASM; SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-3	01	1	0805-0805	●	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-357-4	01	1	0806-1009	●	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-357-4	01	1	0806-1009	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97409-357-4	01	1	0806-1009			●	●
1	16.720 BACK ASM; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-237-1	01	1	1010-	●	●
1	16.720 BACK ASM; SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-237-1	01	1	1010-	●	●
1	16.720 BACK ASM; SEAT DARK GRAY	8-97421-237-1	01	1	1010-			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-1	01	1	0712-0803	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-358-1	01	1	0712-0803	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-1	01	1	0712-0803			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-358-1	01	1	0804-0804	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-1	01	1	0804-0804	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-1	01	1	0804-0804			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-1	01	1	0805-0805	●	●	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-1	01	1	0805-0805	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-358-2	01	1	0806-1009	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-358-2	01	1	0806-1009	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97409-358-2	01	1	0806-1009			●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-256-0	01	1	1010-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-256-0	01	1	1010-	●	●
2	16.724 COVER; TRIM,FRT SEAT,BACK DARK GRAY	8-97421-256-0	01	1	1010-			●	●
9	16.682 COVER; SIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) UPPER GRAY	8-97415-722-0	01	1	0804-	●	●
9	16.682 COVER; SIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) LOWER GRAY	8-97415-723-0	01	1	0804-	●	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-711-0	01	1	0804-0902	●	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-257-0	01	1	0903-1009	●	●
12	16.670 CUSHION; SEAT,FRT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-246-1	01	1	1010-	●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-394-2	01	1	0712-0804	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0712-0804			●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-394-2	01	1	0805-0805	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0805-0805			●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-394-2	01	1	0806-1009	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97409-394-2	01	1	0806-1009			●	●
12	16.670 CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-250-1	01	1	1010-	●	●
12	16.670 CUSHION; SEAT,FRT DARK GRAY	8-97421-250-1	01	1	1010-			●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-1	01	1	0712-0803	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-2	01	1	0804-0804	●	●
12	16.670 CUSHION; SEAT,FRT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-3	01	1	0805-0805	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-3	01	1	0806-0902	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0903-1009	●	●
12	16.670 CUSHION; SEAT,FRT EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-712-0	01	1	0804-0902	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0903-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-265-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-395-2	01	1	0712-0804	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0712-0804			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-395-2	01	1	0805-0805	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0805-0805			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-395-2	01	1	0806-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0806-1009			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-270-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-1	01	1	1010-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-1	01	1	0712-0803	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-2	01	1	0804-0804	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0805-0805	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0806-0902	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0903-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-0	01	1	0712-0803	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-0	01	1	0712-0803	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-0	01	1	0712-0803			●	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-1	01	1	0804-0804	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0804-0804	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0804-0804			●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0805-0805	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0805-0805	●	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-1	01	1	0806-	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0806-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0806-			●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK	8-97859-273-3	01	1	0712-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0712-	●	●	●	●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0712-0803	●	●
17	16.682 BOLT; RECLINING EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0712-0803	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0712-0803			●	●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0804-0804	●	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0804-0804	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0804-0804			●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0805-0805	●	●	●	●
17	16.682 BOLT; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0805-0805	●	●
17	16.682 BOLT; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M10X20	8-98062-661-0	04	1	0806-	●	●
17	16.682 BOLT; RECLINING EXC. INSPECTION ENGINE COVER<8GA> M10X20	8-98062-661-0	04	1	0806-	●	●
17	16.682 BOLT; RECLINING M10X20	8-98062-661-0	04	1	0806-			●	●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0712-0803	●	●
18	16.682 COVER; RECLINING EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-361-0	01	1	0712-0803	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0712-0803			●	●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-361-0	01	1	0804-0804	●	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0804-0804	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0804-0804			●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0805-0805	●	●	●	●
18	16.682 COVER; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0805-0805	●	●
18	16.682 COVER; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-361-0	01	1	0806-	●	●
18	16.682 COVER; RECLINING EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-361-0	01	1	0806-	●	●
18	16.682 COVER; RECLINING GRAY	8-97409-361-0	01	1	0806-			●	●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0712-0803	●	●
19	16.686 SCREW; COVER EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0712-0803	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0712-0803			●	●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0804-0804	●	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0804-0804	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0804-0804			●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0805-0805	●	●	●	●
19	16.686 SCREW; COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0805-0805	●	●
19	16.686 SCREW; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M5	8-98062-663-0	01	1	0806-	●	●
19	16.686 SCREW; COVER EXC. INSPECTION ENGINE COVER<8GA> M5	8-98062-663-0	01	1	0806-	●	●
19	16.686 SCREW; COVER M5	8-98062-663-0	01	1	0806-			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0712-0803	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-362-0	01	1	0712-0803	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0712-0803			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-362-0	01	1	0804-0804	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0804-0804	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0804-0804			●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0805-0805	●	●	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0805-0805	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97409-362-0	01	1	0806-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97409-362-0	01	1	0806-	●	●
24	16.682 KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0806-			●	●
62	16.686 DAMPER ASM; SEAT SUSP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> GRAY	8-97415-703-1	01	1	0804-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (C) OUTER	8-98114-418-0	01	1	0804-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (D) INNER	8-98114-420-0	01	1	0804-	●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) INNER	8-98002-907-1	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A) INNER	8-98002-907-1	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-1	01	1	0712-0803			●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A) INNER	8-98002-907-2	01	1	0804-0804	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0804-0804			●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0805-0805	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (A) INNER	8-98002-907-2	01	1	0806-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0806-			●	●
63	16.682 ADJUSTER; SEAT SLIDE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B) OUTER	8-98002-908-0	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B) OUTER	8-98002-908-0	01	1	0712-0803	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-0	01	1	0712-0803			●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B) OUTER	8-98002-908-1	01	1	0804-0804	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0804-0804			●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0805-0805	●	●	●	●
63	16.682 ADJUSTER; SEAT SLIDE EXC. SUSPENSION SEAT<SA3> (B) OUTER	8-98002-908-1	01	1	0806-	●	●
63	16.682 ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0806-			●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0712-0802	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●	●	●	●
67	16.682 BOLT; FRT SEAT TO BODY SUSPENSION SEAT<SA3> (A) M10X20 FLANGE	8-98055-941-0	02	1	0803-	●	●
67	16.682 BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0712-	●	●	●	●
69	16.682 NUT; FRT SEAT SUSPENSION SEAT<SA3> M10 FLANGE	8-98055-961-0	02	1	0803-	●	●
69	16.682 NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0712-	●	●	●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0804-0804	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0805-0805	●	●	●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0805-0805	●	●
99	16.716 BUSHING; SEAT BACK INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98112-751-0	01	1	0806-	●	●
99	16.716 BUSHING; SEAT BACK EXC. INSPECTION ENGINE COVER<8GA>	8-98112-751-0	01	1	0806-	●	●
99	16.716 BUSHING; SEAT BACK	8-98112-751-0	01	1	0806-			●	●
99	16.716 BUSHING; SEAT BACK SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98063-219-0	01	1	0712-0803	●	●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0712-0803	●	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0712-0803			●	●
99	16.716 BUSHING; SEAT BACK EXC. SUSPENSION SEAT<SA3>	8-98063-219-0	01	1	0804-0804	●	●
99	16.716 BUSHING; SEAT BACK	8-98063-219-0	01	1	0804-0804			●	●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98114-421-0	01	1	0804-	●	●
201	16.682 CABLE; ADJ SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98003-086-0	01	1	0712-0803	●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-0	01	1	0712-0803	●	●
201	16.682 CABLE; ADJ	8-98003-086-0	01	1	0712-0803			●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0804-0804	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0804-0804			●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0805-0805	●	●	●	●
201	16.682 CABLE; ADJ EXC. SUSPENSION SEAT<SA3>	8-98003-086-1	01	1	0806-	●	●
201	16.682 CABLE; ADJ	8-98003-086-1	01	1	0806-			●	●
214	16.682 SCREW; SIDE COVER SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA>	8-98130-276-0	04	1	0809-	●	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0712-0803	●	●
228	16.714 SCREW; KNOB EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0712-0803	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0712-0803			●	●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0804-0804	●	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0804-0804	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0804-0804			●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0805-0805	●	●	●	●
228	16.714 SCREW; KNOB SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0805-0805	●	●
228	16.714 SCREW; KNOB INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M4	8-98062-662-0	01	1	0806-	●	●
228	16.714 SCREW; KNOB EXC. INSPECTION ENGINE COVER<8GA> M4	8-98062-662-0	01	1	0806-	●	●
228	16.714 SCREW; KNOB M4	8-98062-662-0	01	1	0806-			●	●
354	16.686 BRACKET; SUSPENSION DEVICE SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.714	8-98090-868-1	01	1	0804-	●	●
434	16.716 NUT; BRKT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> 16.682 M10 FLANGE	8-98055-961-0	01	1	0804-	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0712-0803			●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0804-0804			●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0805-0805	●	●	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98063-223-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98063-223-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0806-			●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0712-0803	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0712-0803			●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0804-0804	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0804-0804			●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0805-0805	●	●	●	●
627	16.682 WASHER; FRT SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0805-0805	●	●
627	16.682 WASHER; FRT SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (B)	8-98063-224-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT EXC. INSPECTION ENGINE COVER<8GA> (B)	8-98063-224-0	01	1	0806-	●	●
627	16.682 WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0806-			●	●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0712-0803	●	●
630	16.682 NUT; CAP EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0712-0803	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0712-0803			●	●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0804-0804	●	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0804-0804	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0804-0804			●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0805-0805	●	●	●	●
630	16.682 NUT; CAP SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0805-0805	●	●
630	16.682 NUT; CAP INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8	8-98063-225-0	01	1	0806-	●	●
630	16.682 NUT; CAP EXC. INSPECTION ENGINE COVER<8GA> M8	8-98063-225-0	01	1	0806-	●	●
630	16.682 NUT; CAP M8	8-98063-225-0	01	1	0806-			●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0712-0803			●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0804-0804			●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT M8X25 W/LK WASHER	8-98062-658-0	02	1	0806-			●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0712-0803	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0712-0803			●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0804-0804			●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●	●	●	●
631	16.682 BOLT; ADJ,SEAT SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0805-0805	●	●
631	16.682 BOLT; ADJ,SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT EXC. INSPECTION ENGINE COVER<8GA> M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-	●	●
631	16.682 BOLT; ADJ,SEAT M8X32 W/LK WASHER	8-98062-659-0	02	1	0806-			●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0712-0804	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0712-0804			●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0805-0805	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0805-0805			●	●
639	16.679 CLIP; SEAT INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3>	8-98097-693-0	01	1	0806-	●	●
639	16.679 CLIP; SEAT	8-98097-693-0	01	1	0806-			●	●

460 460 368 361 161 160 139 141 16 478 361 126 126 114 16 13 368 139 139 115 116 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97415-712-0	01	1	0804-0902	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-265-0	01	1	0903-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-265-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-395-2	01	1	0712-0804	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0712-0804			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-395-2	01	1	0805-0805	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0805-0805			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97409-395-2	01	1	0806-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97409-395-2	01	1	0806-1009			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> DARK GRAY	8-97421-270-1	01	1	1010-	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION DARK GRAY	8-97421-270-1	01	1	1010-			●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-1	01	1	0712-0803	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-2	01	1	0804-0804	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0805-0805	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0806-0902	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0903-1009	●	●
13	16.717 COVER; TRIM,FRT SEAT,CUSHION EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1010-	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-0	01	1	0712-0803	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-0	01	1	0712-0803	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-0	01	1	0712-0803			●	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-1	01	1	0804-0804	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0804-0804	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0804-0804			●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0805-0805	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0805-0805	●	●
16	16.682 ADJUSTER ASM; RECLINING INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (A)	8-98005-418-1	01	1	0806-	●	●
16	16.682 ADJUSTER ASM; RECLINING EXC. INSPECTION ENGINE COVER<8GA> (A)	8-98005-418-1	01	1	0806-	●	●
16	16.682 ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0806-			●	●
16	16.682 ADJUSTER ASM; RECLINING (C) BLACK	8-97859-273-3	01	1	0712-	●	●	●	●
16	16.682 ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0712-	●	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-725-0	01	1	1001-1009	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-296-0	01	1	1010-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-364-1	01	1	0712-0912	●	●	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-364-1	01	1	1001-1009	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97409-364-1	01	1	1001-1009			●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-295-0	01	1	1010-	●	●
114	16.724 COVER; TRIM,PASSENGER SEAT,BACK DARK GRAY	8-97421-295-0	01	1	1010-			●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97406-048-3	01	1	0712-0902	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97406-048-3	01	1	0712-0902			●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-278-0	01	1	0903-1009	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97416-278-0	01	1	0903-1009			●	●
115	16.720 CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-327-2	01	1	1010-	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT DARK GRAY	8-97421-327-2	01	1	1010-			●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97406-047-3	01	1	0712-0902	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-277-0	01	1	0903-0912	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-710-0	01	1	1001-1009	●	●
115	16.720 CUSHION ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-326-2	01	1	1010-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-366-2	01	1	0712-0902	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97409-366-2	01	1	0712-0902			●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-293-0	01	1	0903-1009	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97416-293-0	01	1	0903-1009			●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-347-1	01	1	1010-	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI DARK GRAY	8-97421-347-1	01	1	1010-			●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-365-2	01	1	0712-0902	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-292-0	01	1	0903-0912	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-739-0	01	1	1001-1009	●	●
116	16.717 COVER; TRIM,PASSENGER SEAT,CUSHI EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-346-1	01	1	1010-	●	●
126	16.686 BUSHING; HINGE,RECLINING	8-98069-558-0	02	1	0712-	●	●	●	●
139	16.679 BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	04	1	0712-	●	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-729-0	01	1	1001-1009	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-308-0	01	1	1010-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97409-368-1	01	1	0712-0912	●	●	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-368-1	01	1	1001-1009	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97409-368-1	01	1	1001-1009			●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-307-1	01	1	1010-	●	●
141	16.724 COVER; TRIM,BENCH SEAT,BACK DARK GRAY	8-97421-307-1	01	1	1010-			●	●
160	16.650 CONSOLE; UPR,BACK CENTER GRAY	8-97405-361-1	01	1	0712-	●	●	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	03	1	0712-0812	●	●	●	●
161	16.650 SCREW; CONSOLE M4X12	8-94279-351-0	04	1	0901-	●	●	●	●
361	16.682 BOLT; ADJ,RECLINING M8X18	8-94279-109-1	04	1	0712-	●	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0802-0804	●	●	●	●
368	16.682 BOLT; SEAT 16.320 M8X24.5 W/LK&PL WASHER	8-94279-217-0	02	1	0805-	●	●	●	●
368	16.682 BOLT; SEAT 16.679 M8X20 W/PL WASHER	8-98031-841-0	02	1	0712-0801	●	●	●	●
368	16.682 BOLT; SEAT 16.679 M8X20 W/PL WASHER	8-98031-841-0	01	1	0802-0804	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97418-696-0	01	1	1001-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-283-0	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97406-045-4	01	1	0712-0912	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97406-045-4	01	1	1001-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97406-045-4	01	1	1001-1009			●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (A) DARK GRAY	8-97421-282-0	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (A) DARK GRAY	8-97421-282-0	01	1	1010-			●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97418-700-1	01	1	1001-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT EXC. INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-302-1	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97406-046-2	01	1	0712-0912	●	●	●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97406-046-3	01	1	1001-1009	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97406-046-3	01	1	1001-1009			●	●
460	16.670 BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> (B) DARK GRAY	8-97421-301-1	01	1	1010-	●	●
460	16.670 BACK ASM; PASSENGER SEAT (B) DARK GRAY	8-97421-301-1	01	1	1010-			●	●
478	16.716 BRACKET ASM; HINGE,PASSENGER SEA	8-98002-092-0	01	1	0712-	●	●	●	●
480	16.716 CLIP; CUSHION	8-94279-977-0	05	1	0712-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
