7-40 — INSTRUMENT PANEL AND BOX (#49871) — 220 parça

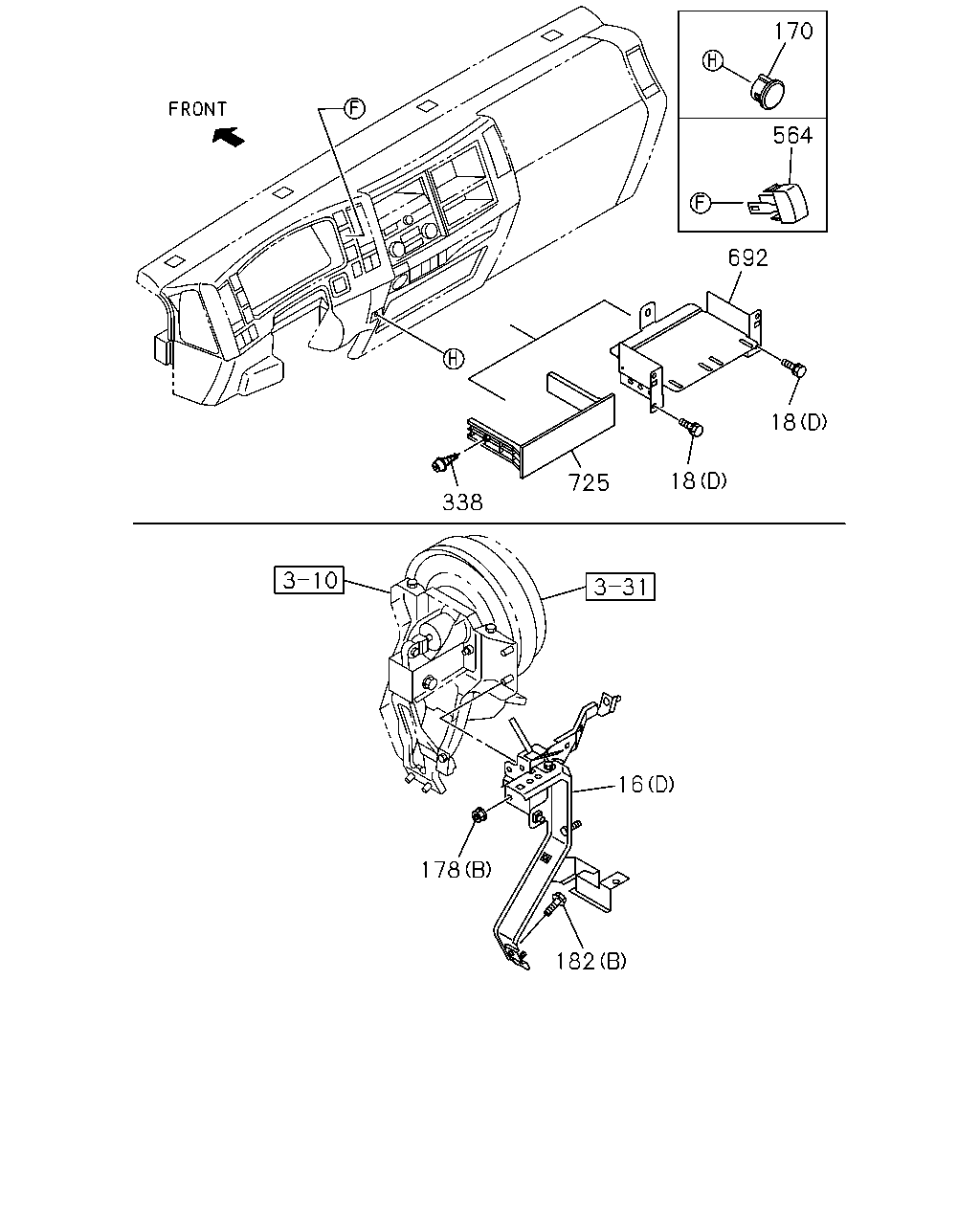

çizim 155524
170 564 692 18 1 725 338 16 178 182
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.080 PANEL; INST
GRAY 		8-97406-004-4 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0712- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0712-1101 ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW M5X10 TAPPING W/TORQUES 		8-98058-632-0 03 1 0712- ● ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 0712- ● ● ● ●
170 16.165 COVER; HOLE 8-98070-401-2 01 1 0712- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0712- ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0712- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0712-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0712- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING 		0-72180-516-0 02 1 0712-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING 		0-72180-516-0 02 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ● ● ●
338 16.081 SCREW; COVER
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 16.100 M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712- ● ● ● ●
564 16.081 COVER; SW 8-98025-954-1 03 1 0712- ● ● ● ●
692 16.085 BRACKET; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 		8-98094-272-0 01 1 0712- ● ● ● ●
725 16.081 COVER; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.650 BLACK 		8-97407-896-1 01 1 0712- ● ● ● ●

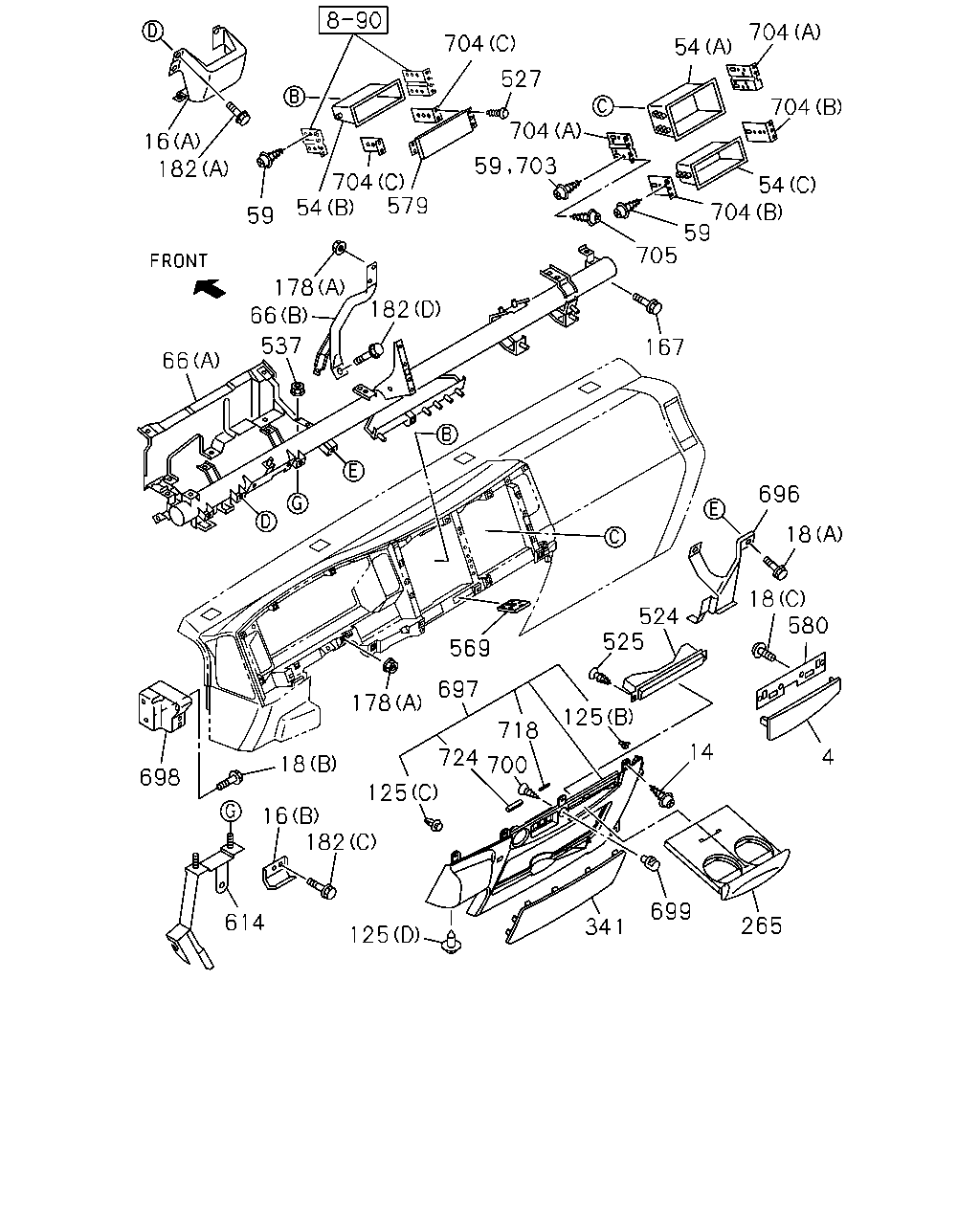

çizim 155538
704 704 54 527 704 704 16 182 704 54 579 54 704 59 705 59 178 66 182 537 167 66 696 18 18 580 524 525 569 697 178 125 718 14 4 724 700 18 698 125 16 182 699 614 265 341 125 59 703
BalonParca AdiParca NoAdetTipApplied Date A B C D
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0712- ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 0712-1101 ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ● ● ●
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 1301- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0712- ● ● ● ●
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 0712- ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0712-1101 ● ● ● ●
18 16.085 BOLT; BRKT
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ● ● ●
18 16.085 BOLT; BRKT
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ● ● ●
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW M5X10 TAPPING W/TORQUES 		8-98058-632-0 03 1 0712- ● ● ● ●
18 16.085 BOLT; BRKT
TACHOGRAPH DIGITAL<EBB> IDENTIFICATION LABEL FOR KD<6UT> 09.647 (D) SCREW M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 0712- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-2 01 1 0712- ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0712-0808 ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0809- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-2 01 1 0809- ● ● ● ●
54 16.100 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH DIGITAL<EBB> (A) H=108.4 BLACK 		8-97407-129-2 01 1 0712- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712-0811 ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0712-0811 ● ●
59 16.100 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0812- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0812- ● ● ● ●
59 16.100 SCREW; CLUSTER POCKET
M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0812- ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> EXC. KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98192-945-0 01 1 1310- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5>, KDPREPARATORY PACK VAR.4<7TV> (A) 		8-98192-944-0 01 1 1310- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97585-579-1 01 1 0712- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98098-028-3 01 1 0712-1309 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
AIR BAG DRIVER & PASSENGER<AK5> KD PREPARATORY PACK VAR.4<7TV> (A) 		8-98098-028-3 01 1 1310- ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 0712-1309 ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98089-365-3 01 1 1310- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0712-0808 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0712- ● ● ● ●
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 0712- ● ● ● ●
178 16.085 NUT; INST PANEL
01.062 (A) M6 FLANGE 		0-91180-106-0 03 1 0712- ● ● ● ●
178 16.085 NUT; INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.777 (B) M8 W/LK WASHER 		8-94279-050-0 02 1 0712- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0712-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0712- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING 		0-72180-516-0 02 1 0712-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING 		0-72180-516-0 02 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0712-0909 ● ● ● ●
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0712-1205 ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ● ● ●
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0712- ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING 		0-72180-516-0 03 1 0712-1101 ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ● ●
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING 		0-72180-516-0 03 1 1301- ● ● ● ●
527 16.100 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.742 DARK GRAY 		8-97098-326-0 01 1 0712- ● ● ● ●
537 16.085 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 02 1 0712-0801 ● ● ● ●
569 16.100 HOLDER; CARD 8-97410-276-0 01 1 0712- ● ● ● ●
579 16.080 COVER; INST PNL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97408-909-0 01 1 0712-0808 ● ● ● ●
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0712- ● ● ● ●
614 16.085 BRACKET; HARNESS 8-98065-475-1 01 1 0712-0801 ● ● ● ●
696 16.085 BRACKET; KNEE 8-98098-126-0 01 1 0712-1109 ● ● ● ●
696 16.085 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ● ● ●
696 16.085 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0712-1205 ● ● ● ●
697 16.080 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0712- ● ● ● ●
698 16.085 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0712- ● ● ● ●
699 16.081 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0712- ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0712-1101 ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING 		0-72180-516-0 01 1 1301- ● ● ● ●
703 16.085 SCREW; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 16.100 M5X10 TAPPING W/TORQUES 		8-98058-632-0 04 1 0712- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0712- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98073-822-0 02 1 0712-0808 ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 0809- ● ● ● ●
704 16.085 BRACKET; CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> (A) 		8-97585-618-2 02 1 0712- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X10 TAPPING W/TORQUES 		8-98058-632-0 02 1 0811-0811 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 0712-1101 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 0712-1101 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 1301- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. TACHOGRAPH DIGITAL<EBB> 09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 04 1 1301- ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 0712-1101 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1212 ● ● ● ●
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 09.647 M5X20 HEXALOBULAR SOCKET 		0-72180-520-0 01 1 1301- ● ● ● ●
718 16.100 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ● ● ●
718 16.100 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ● ● ●
718 16.100 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ● ● ●
724 16.085 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ● ● ●

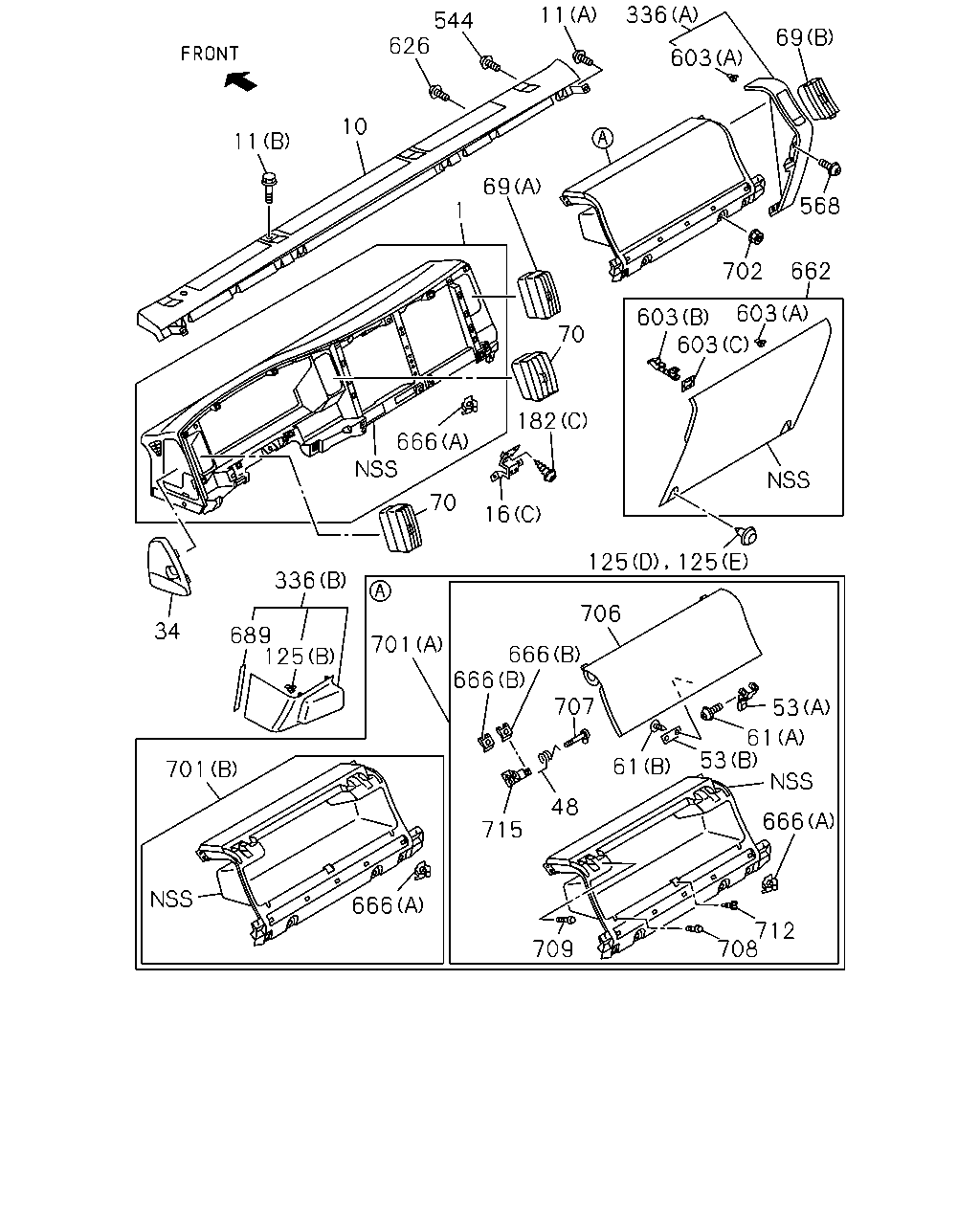

çizim 155824
11 336 603 69 544 626 10 11 69 568 662 702 603 603 603 70 182 16 70 666 34 336 689 125 701 666 701 666 666 706 707 715 48 709 708 61 712 666 53 61 53 125 125
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97405-265-4 01 1 0712-1003 ● ● ● ●
10 16.069 PANEL ASM; GARNISH
GRAY 		8-97419-683-5 01 1 1004- ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 0712-1101 ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ● ● ●
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING 		0-72180-516-0 08 1 1301- ● ● ● ●
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (B) 		8-97585-532-0 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) (C) 		8-97585-612-2 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0712- ● ● ● ●
16 16.085 BRACKET; INST PNL
TRANSMISSION CONTROL-SMOOTHER(8GF) (D) 		8-98093-380-3 01 1 0712- ● ● ● ●
34 16.085 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0712- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-987-0 01 1 0712-1311 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-411-0 01 1 1312-1405 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-764-0 01 1 1406- ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-986-0 01 1 0712-1311 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-410-0 01 1 1312-1405 ● ● ● ●
48 16.110 SPRING; GLOVE BOX LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98270-763-0 01 1 1406- ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-913-0 01 1 0805-1405 ● ● ● ●
53 16.115 STRIKER; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98270-765-0 01 1 1406- ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98108-915-0 01 1 0805-1405 ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-97926-404-0 02 1 1406- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0712- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0712- ● ● ● ●
70 09.264 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0712-0808 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0809-0909 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0912-1001 ● ● ● ●
125 16.085 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ● ● ●
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 02 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
16.165 (C) 		8-98004-025-0 01 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0712- ● ● ● ●
125 16.085 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0712- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0712-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
(D) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 0712- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING 		0-72180-516-0 02 1 0712-1101 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONERMANUAL CONT(C60) 16.090 (C) SCREW M5X16 TAPPING 		0-72180-516-0 02 1 1301- ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 04.634 (B) M10X22 W/PL WASHER 		8-98033-926-0 01 1 0712-0903 ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 0904- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0712- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97414-689-0 01 1 0712-0801 ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0802- ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0712- ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING 		0-72180-516-0 03 1 0712-1101 ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ● ● ●
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING 		0-72180-516-0 03 1 1301- ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING 		0-72180-516-0 01 1 0712-1101 ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ● ● ●
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING 		0-72180-516-0 01 1 1301- ● ● ● ●
603 16.090 CLIP; COVER
(B) 		8-98152-030-0 02 1 1002- ● ● ● ●
603 16.090 CLIP; COVER
(C) 		8-98152-031-0 02 1 1002- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 01 1 0712- ● ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 05 1 0712-1001 ● ● ● ●
603 16.090 CLIP; COVER
16.085 (A) 		8-98021-271-0 03 1 1002- ● ● ● ●
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 0712- ● ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97405-258-1 01 1 0712-1001 ● ● ● ●
662 16.081 COVER; LWR,INST PANEL
GRAY 		8-97418-533-2 01 1 1002- ● ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0712-0901 ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 0902-1003 ● ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 02 1 0902-1003 ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) 		8-98037-629-0 02 1 1004- ● ● ● ●
666 16.085 INSERT; INST PANEL
(A) 		8-98037-629-0 15 1 0712- ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) 		8-98038-450-0 04 1 0712-1311 ● ● ● ●
666 16.085 INSERT; INST PANEL
EXC. AIR BAG DRIVER & PASSENGER<AK5> (B) M5 		8-97926-400-0 04 1 1312- ● ● ● ●
689 09.743 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0712- ● ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97405-262-3 01 1 0712-0901 ● ● ● ●
701 16.100 TRAY; INST
AIR BAG DRIVER & PASSENGER<AK5> (B) GRAY 		8-97416-908-1 01 1 0902- ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97405-261-4 01 1 0712-0804 ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97415-542-6 01 1 0805-1405 ● ● ● ●
701 16.100 TRAY; INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> (A) GRAY 		8-97429-702-0 01 1 1406- ● ● ● ●
702 16.069 NUT; TRAY
01.062 M6 FLANGE 		0-91180-106-0 02 1 0712- ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97405-372-2 01 1 0712-0804 ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97415-541-0 01 1 0805-1405 ● ● ● ●
706 16.081 LID; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> GRAY 		8-97429-992-0 01 1 1406- ● ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98035-730-1 02 1 0712-1311 ● ● ● ●
707 09.744 SHAFT; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-393-0 02 1 1312- ● ● ● ●
708 16.100 STOPPER; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98010-867-1 02 1 0712- ● ● ● ●
709 16.085 SCREW; TRAY INST
EXC. AIR BAG DRIVER & PASSENGER<AK5> M5X16 TAPPING 		0-71040-516-0 04 1 0712- ● ● ● ●
712 16.110 LOCK; TRAY INST LID
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98031-846-0 01 1 0712- ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-929-0 01 1 0712-1311 ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-397-0 01 1 1312- ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-98034-928-0 01 1 0712-1311 ● ● ● ●
715 16.081 SUPPORT; TRAY,HINGE
EXC. AIR BAG DRIVER & PASSENGER<AK5> 		8-97926-396-0 01 1 1312- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
