6-78 — FLOOR HOLE PLUG (#49862) — 25 parça

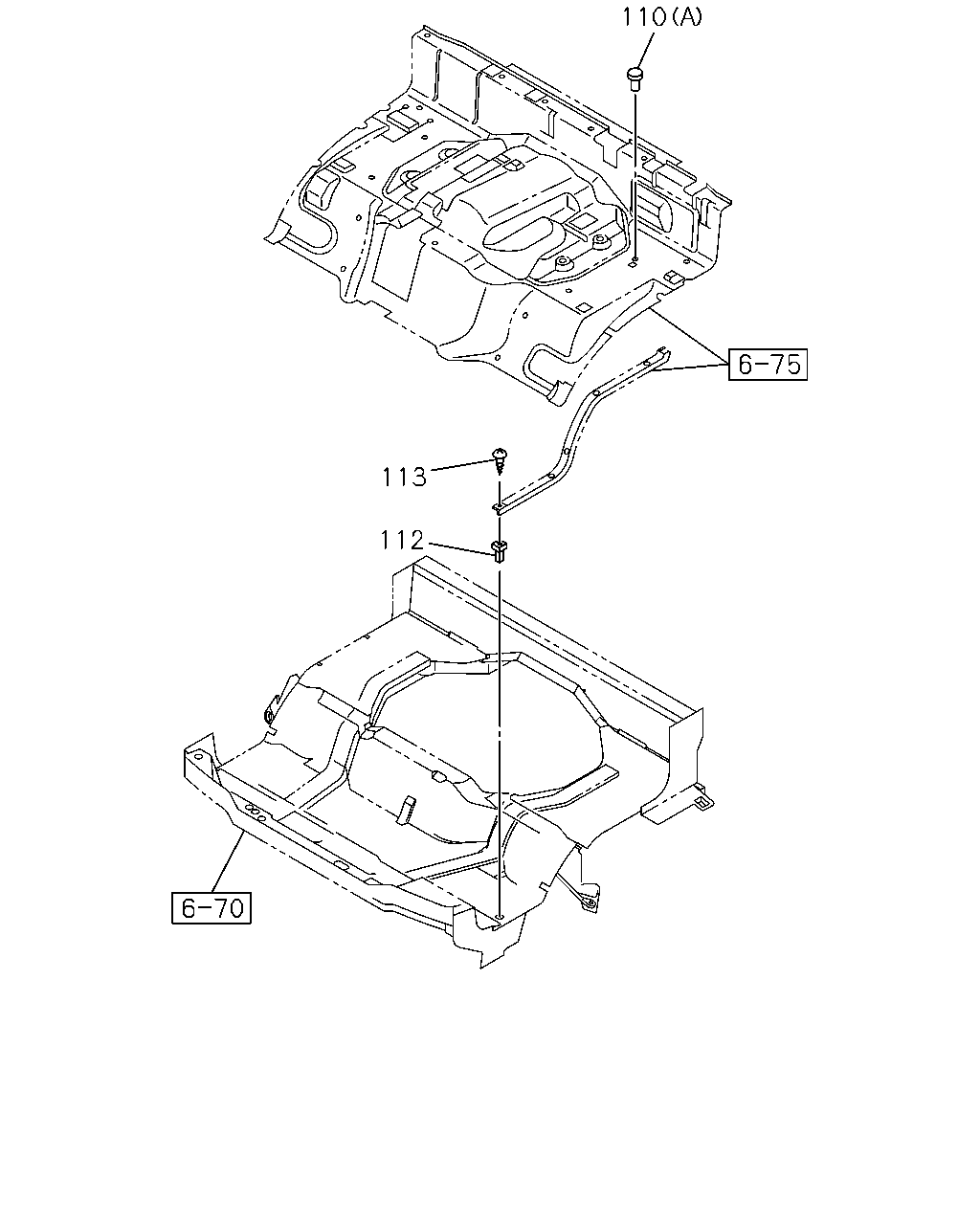

110 113 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
110	16.802 FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	12	1	0712-	●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0712-			●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0712-0802			●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0803-			●	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	0803-				●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	0712-			●	●
110	16.802 FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	11	1	0712-	●	●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	0712-			●	●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	0712-			●	●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	0712-	●	●	●	●
113	16.800 SCREW; TRIM COVER 04.681 M5X12 TAPPING	0-72180-512-0	08	1	0712-	●	●	●	●

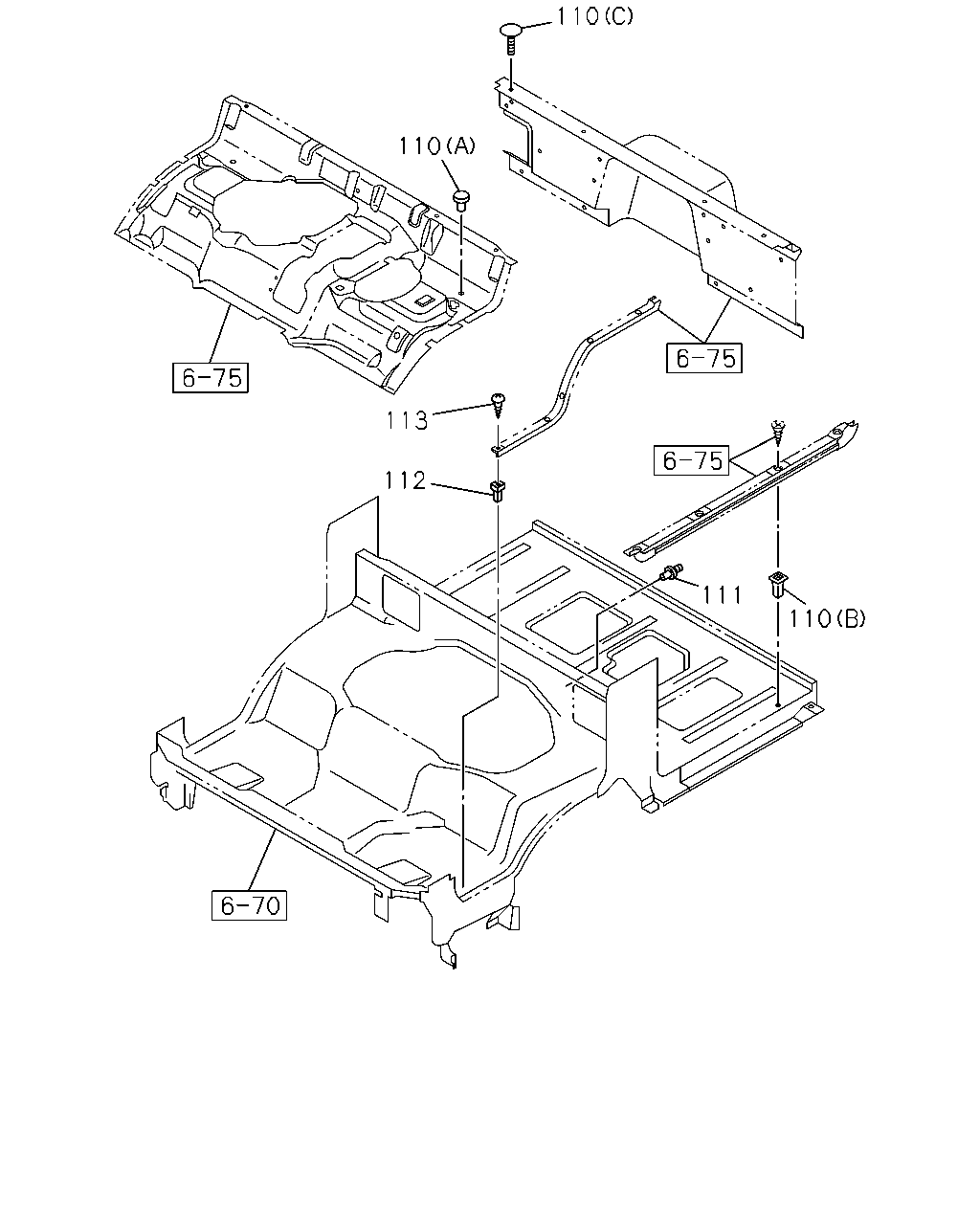

110 110 113 112 111 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
110	16.802 FASTENER; FLOOR MAT EXC. INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	12	1	0712-	●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (A) BLACK	8-94279-089-0	04	1	0712-			●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0712-0802			●	●
110	16.802 FASTENER; FLOOR MAT 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) BLACK	8-94279-089-0	02	1	0803-			●	●
110	16.802 FASTENER; FLOOR MAT 4HK1-TCS ENG(RJS) (A) BLACK	8-94279-089-0	02	1	0803-				●
110	16.802 FASTENER; FLOOR MAT (A) BLACK	8-94279-089-0	09	1	0712-			●	●
110	16.802 FASTENER; FLOOR MAT INSPECTION ENGINE COVER<8GA> (A) BLACK	8-94279-089-0	11	1	0712-	●	●
110	16.802 FASTENER; FLOOR MAT 04.931 (B) H=15	8-94463-268-1	08	1	0712-			●	●
110	16.802 FASTENER; FLOOR MAT 16.742 (C) DARK GRAY	8-97098-326-0	04	1	0712-			●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF), TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 16.802 BLACK	8-94279-089-0	08	1	0712-			●	●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCS ENG(RJS) 16.802 BLACK	8-94279-089-0	09	1	0712-0802				●
111	16.800 FASTENER; FLOOR MAT,CAB RR MTG 4HK1-TCS ENG(RJS) 16.802 BLACK	8-94279-089-0	11	1	0803-				●
112	16.800 GROMMET; SCREW,TRIM COVER 04.931 H=15	8-94463-268-1	08	1	0712-	●	●	●	●
113	16.800 SCREW; TRIM COVER 04.681 M5X12 TAPPING	0-72180-512-0	08	1	0712-	●	●	●	●
