6-76 — FLOOR EQUIPMENT AND SEALING (#49861) — 99 parça

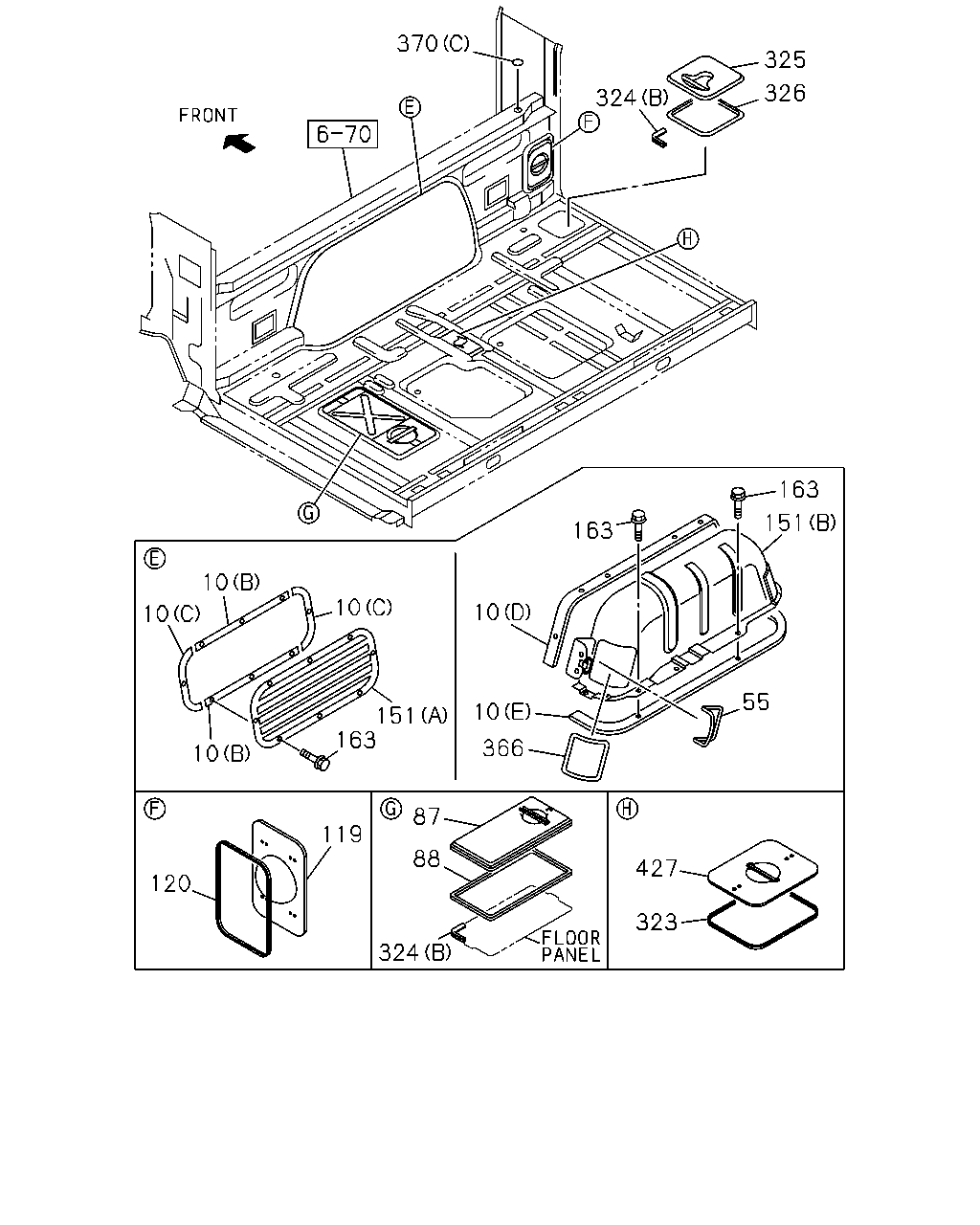

çizim 155498
370 325 326 324 163 151 163 10 10 10 10 55 10 151 163 366 10 87 119 88 427 120 323 324
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 0712- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0712- ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (B) 		8-97853-660-0 02 1 0712- ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (C) 		8-97853-661-0 02 1 0712- ● ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (D) 		8-98006-847-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (E) 		8-98006-852-0 01 1 0712- ●
55 16.549 SEAL; SUPPORT COVER
4HK1-TCS ENG(RJS) 		8-97583-500-1 01 1 0712- ●
87 16.549 COVER; BATTERY CHECK HOLE 8-97856-332-4 01 1 0712- ● ●
88 16.549 SEAL; BATTERY CHECK HOLE COVER 8-97853-725-1 01 1 0712- ● ●
119 16.090 LID; P/S OIL TANK 8-97853-440-2 01 1 0712- ● ●
120 16.090 SEAL; LID,P/S 8-97853-441-1 01 1 0712- ● ●
151 16.549 COVER ASM; ENG
4JJ1-TCS ENG(LFB) (A) 		8-97850-241-3 01 1 0712- ● ●
151 16.549 COVER ASM; ENG
4HK1-TCS ENG(RJS) (B) 		8-98043-008-4 01 1 0712- ●
163 16.549 BOLT; RR,ENG COVER,FRT
4JJ1-TCS ENG(LFB) 02.343 M6X16 FLANGE 		0-28650-616-0 08 1 0712- ● ●
163 16.549 BOLT; RR,ENG COVER,FRT
4HK1-TCS ENG(RJS) 02.343 M6X16 FLANGE 		0-28650-616-0 11 1 0712- ●
323 16.549 SEAL; COVER,A/T OIL
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-443-2 01 1 0712-0901 ● ●
323 16.549 SEAL; COVER,A/T OIL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-443-2 01 1 0902- ● ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 02 1 0712- ● ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 02 1 0712- ● ●
324 16.545 FINISHER; FLOOR PANEL
16.570 (B) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 0712- ● ●
325 16.549 COVER; LLC 8-97856-974-0 01 1 0712- ● ●
326 16.549 SEAL; COVER 8-97856-975-1 01 1 0712- ● ●
366 16.545 FINISHER; COVER
4HK1-TCS ENG(RJS) 		8-97583-501-0 01 1 0712- ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
16.545 (C) OD=32 BLACK 		8-98031-126-0 01 1 0712- ● ●
427 16.549 COVER; SMOOTHER OIL
4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97853-442-2 01 1 0712- ● ●

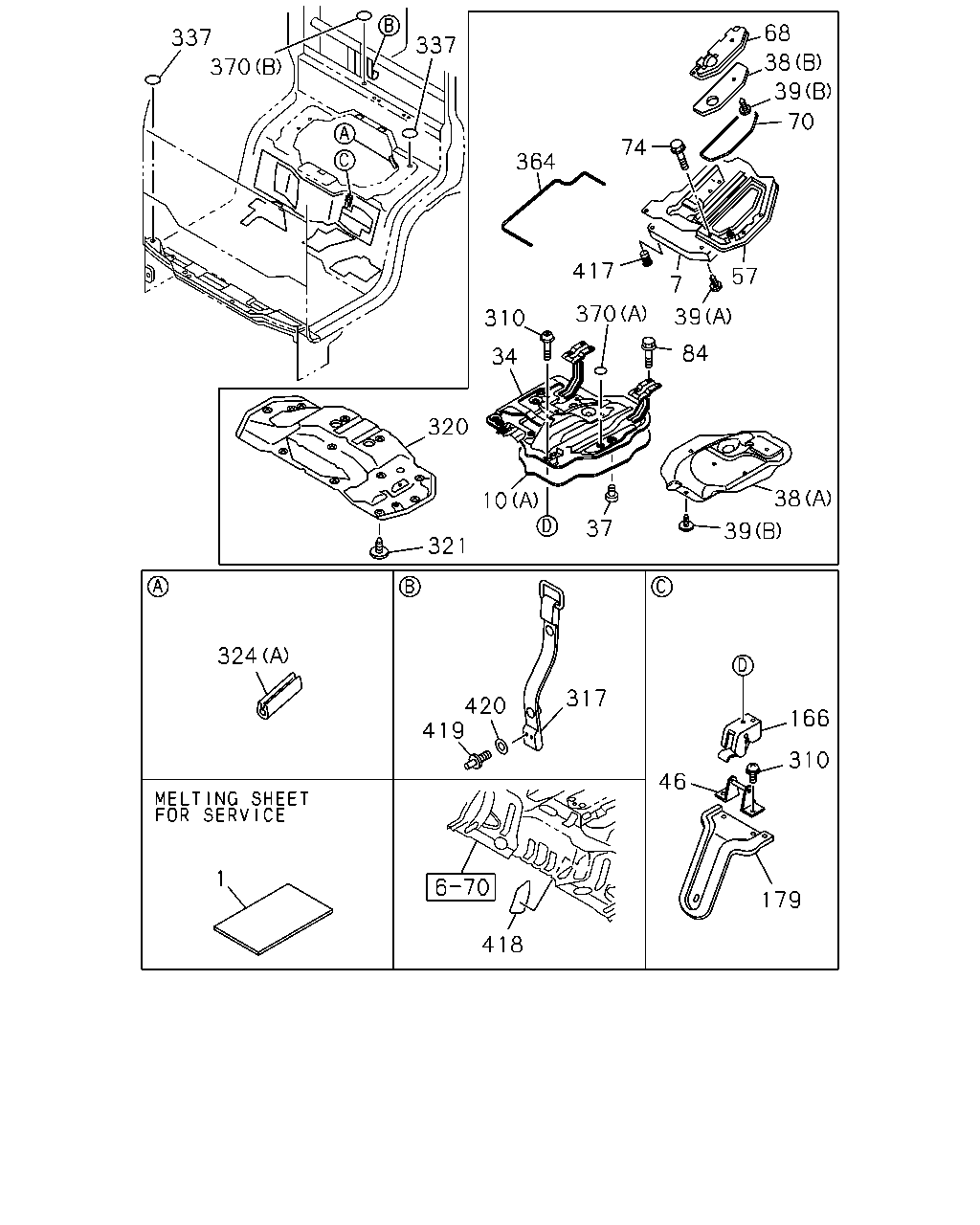

çizim 155510
68 337 337 38 370 39 70 74 364 417 57 7 370 39 310 84 34 320 38 10 37 39 321 324 317 420 419 166 310 46 1 179 418
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY 		8-94262-093-0 AR 1 0712- ● ● ● ●
7 16.545 INSULATOR; SUPPORT COVER
INSPECTION ENGINE COVER<8GA> 		8-97586-179-3 01 1 0712- ● ●
7 16.545 INSULATOR; SUPPORT COVER 8-97586-179-3 01 1 0712- ● ●
10 16.549 SEAL; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-98029-377-0 01 1 0712- ● ●
10 16.549 SEAL; ENG COVER
(A) 		8-98029-377-0 01 1 0712- ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (B) 		8-97853-660-0 02 1 0712- ● ●
10 16.549 SEAL; ENG COVER
4JJ1-TCS ENG(LFB) (C) 		8-97853-661-0 02 1 0712- ● ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (D) 		8-98006-847-0 01 1 0712- ●
10 16.549 SEAL; ENG COVER
4HK1-TCS ENG(RJS) (E) 		8-98006-852-0 01 1 0712- ●
34 16.549 COVER ASM; ENG,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-391-2 01 1 0712- ● ●
34 16.549 COVER ASM; ENG,CAB FLOOR 8-97589-391-2 01 1 0712- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
INSPECTION ENGINE COVER<8GA> 16.155 OD=30 T=10 		5-74917-001-2 02 1 0712- ● ●
37 16.549 RUBBER; BUFFER,ENG COVER
16.155 OD=30 T=10 		5-74917-001-2 02 1 0712- ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (B) 		8-97586-169-2 01 1 0712- ● ●
38 16.549 INSULATOR; ENG COVER
(B) 		8-97586-169-2 01 1 0712- ● ●
38 16.549 INSULATOR; ENG COVER
INSPECTION ENGINE COVER<8GA> (A) 		8-97586-187-3 01 1 0712- ● ●
38 16.549 INSULATOR; ENG COVER
(A) 		8-97586-187-3 01 1 0712- ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> (B) OD=30 		8-94279-952-0 07 1 0712- ● ●
39 16.549 CLIP; INSULATOR,COVER
(B) OD=30 		8-94279-952-0 07 1 0712- ● ●
39 16.549 CLIP; INSULATOR,COVER
INSPECTION ENGINE COVER<8GA> 08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0712- ● ●
39 16.549 CLIP; INSULATOR,COVER
08.021 (A) ID=6.2 L=11.4 		8-97808-623-0 05 1 0712- ● ●
46 16.549 HOOK ASM; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-145-0 02 1 0712- ● ●
46 16.549 HOOK ASM; ENG COVER 8-98040-145-0 02 1 0712- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97589-396-4 01 1 0712- ● ●
57 16.549 COVER ASM; SUPPORT,CAB FLOOR 8-97589-396-4 01 1 0712- ● ●
68 16.549 COVER ASM; SUB,ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-141-0 01 1 0712- ● ●
68 16.549 COVER ASM; SUB,ENG COVER 8-98040-141-0 01 1 0712- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR
INSPECTION ENGINE COVER<8GA> 		8-97853-050-1 01 1 0712- ● ●
70 16.549 SEAL; ENG SUB COVER,CAB FLOOR 8-97853-050-1 01 1 0712- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0712- ● ●
74 16.549 BOLT; SUPPORT COVER TO FLOOR
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0712- ● ●
84 16.549 BOLT; ENG COVER HINGE
INSPECTION ENGINE COVER<8GA> 01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0712- ● ●
84 16.549 BOLT; ENG COVER HINGE
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0712- ● ●
166 16.549 LOCK; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98040-152-0 02 1 0712- ● ●
166 16.549 LOCK; ENG COVER 8-98040-152-0 02 1 0712- ● ●
179 16.549 REINFORCEMENT; COVER
INSPECTION ENGINE COVER<8GA> 		8-98048-301-1 01 1 0712- ● ●
179 16.549 REINFORCEMENT; COVER 8-98048-301-1 01 1 0712- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
02.343 M6X16 FLANGE 		0-28650-616-0 04 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 09 1 0712-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 09 1 0712-0810 ● ●
310 16.549 SCREW; ENG COVER HOOK
INSPECTION ENGINE COVER<8GA> 16.570 M6X16 		0-38050-616-0 05 1 0811- ● ●
310 16.549 SCREW; ENG COVER HOOK
16.570 M6X16 		0-38050-616-0 05 1 0811- ● ●
317 16.549 BAND; ENGINE COVER
INSPECTION ENGINE COVER<8GA> 		8-97585-575-0 01 1 0712- ● ●
317 16.549 BAND; ENGINE COVER 8-97585-575-0 01 1 0712- ● ●
320 16.549 INSULATOR; FLOOR,FRT
EXC. INSPECTION ENGINE COVER<8GA> 		8-97586-164-7 01 1 0712- ● ●
321 16.549 CLIP; INSULATOR,FLOOR
EXC. INSPECTION ENGINE COVER<8GA> 08.021 ID=6.2 L=11.4 		8-97808-623-0 15 1 0712- ● ●
324 16.545 FINISHER; FLOOR PANEL
INSPECTION ENGINE COVER<8GA> (A) L=140 		8-97892-742-0 02 1 0712- ● ●
324 16.545 FINISHER; FLOOR PANEL
(A) L=140 		8-97892-742-0 02 1 0712- ● ●
324 16.545 FINISHER; FLOOR PANEL
16.570 (B) L=73 SERVICED BY L=190 		1-71998-300-0 02 1 0712- ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 0712- ● ●
337 16.545 SEAL; CLIP HOLE
INSPECTION ENGINE COVER<8GA> OD=32 BLACK 		8-98031-126-0 01 1 0712- ● ●
337 16.545 SEAL; CLIP HOLE
OD=32 BLACK 		8-98031-126-0 08 1 0712- ● ● ● ●
337 16.545 SEAL; CLIP HOLE
16.165 OD=25 BLACK 		1-76798-019-0 23 1 0712- ● ●
337 16.545 SEAL; CLIP HOLE
02.580 OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0712- ● ●
364 16.545 FINISHER; ENG COVER SIDE
INSPECTION ENGINE COVER<8GA> L=1100 		8-97892-744-0 01 1 0712- ● ●
364 16.545 FINISHER; ENG COVER SIDE
L=1100 		8-97892-744-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 (A) OD=25 BLACK 		1-76798-019-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
INSPECTION ENGINE COVER<8GA> 16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 03 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
16.165 (B) OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0712- ● ●
370 16.549 SEAL; LOCATION HOLE
16.545 (C) OD=32 BLACK 		8-98031-126-0 01 1 0712- ● ●
417 16.549 NUT; POP
INSPECTION ENGINE COVER<8GA> 09.786 M6 POP NUT 		8-98013-752-0 01 1 0712- ● ●
417 16.549 NUT; POP
09.786 M6 POP NUT 		8-98013-752-0 01 1 0712- ● ●
418 16.549 SEAL; PROTECTOR 8-98090-192-1 01 1 0712- ● ● ● ●
418 16.549 SEAL; PROTECTOR 8-98090-191-1 01 1 0712- ● ● ● ●
419 09.786 RIVET; ENG COVER
INSPECTION ENGINE COVER<8GA> 		8-98065-262-0 01 1 0712- ● ●
419 09.786 RIVET; ENG COVER 8-98065-262-0 01 1 0712- ● ●
420 09.786 WASHER; ENG COVER
INSPECTION ENGINE COVER<8GA> 02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0712- ● ●
420 09.786 WASHER; ENG COVER
02.335 ID=5.3 OD=16 		0-91614-705-0 01 1 0712- ● ●
