◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NNR ▶ 51155 - NNR/NPR EU-L EXC.EU5 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

6-75 — MAT AND CARPET (#49860) — 44 parça

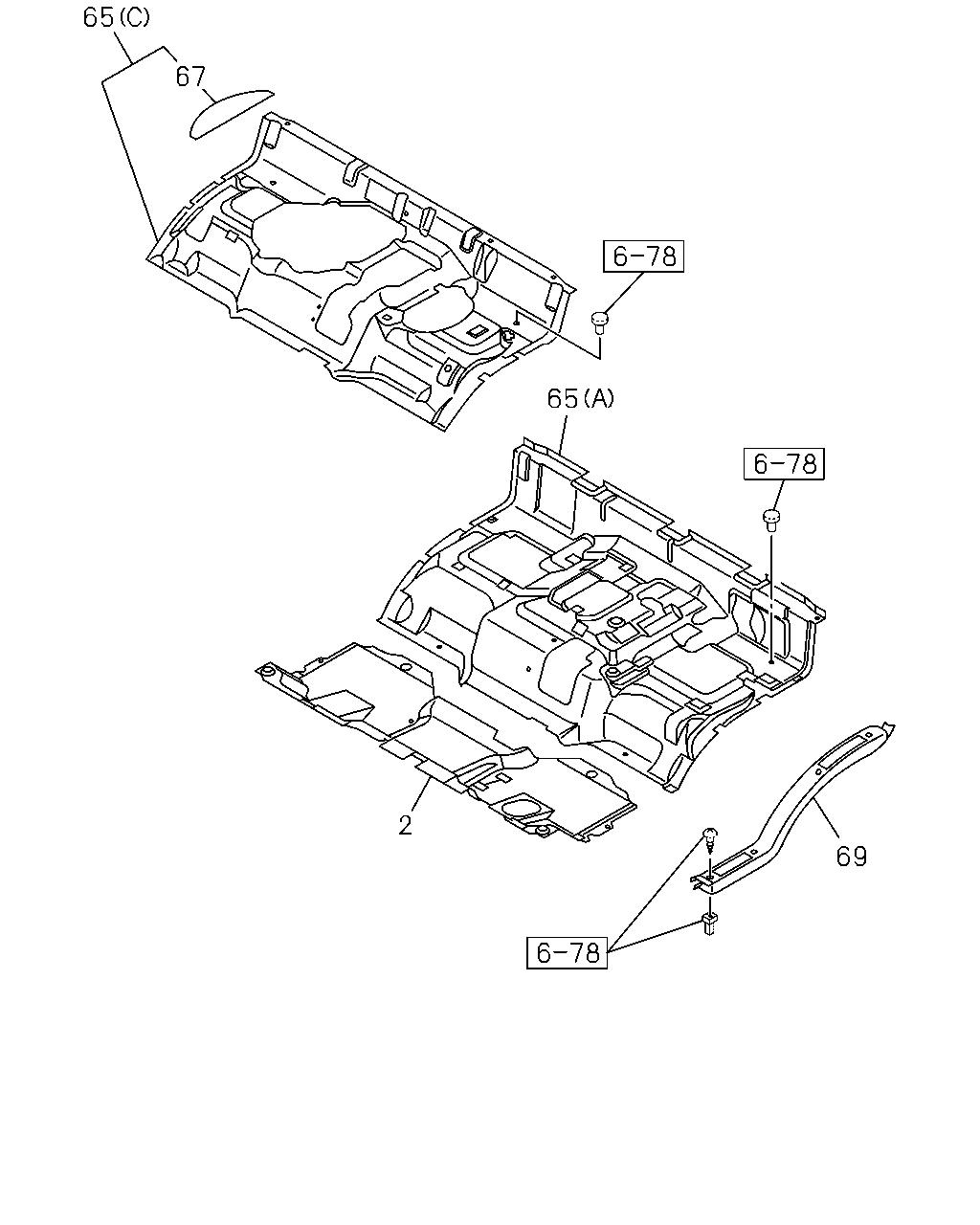

65 67 65 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0712-	●	●	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-2	01	1	0712-0804	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0805-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97415-682-1	01	1	0805-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-128-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-515-0	01	1	0712-0712	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (C) GRAY	8-98112-607-4	01	1	0801-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (C) GRAY	8-97425-115-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-97405-996-2	01	1	0712-0712			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (D) GRAY	8-98112-608-4	01	1	0801-1303			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (D) GRAY	8-97425-116-0	01	1	1304-			●	●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97408-863-0	01	1	0805-0904	●	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0805-0904			●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0712-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0712-	●	●	●	●

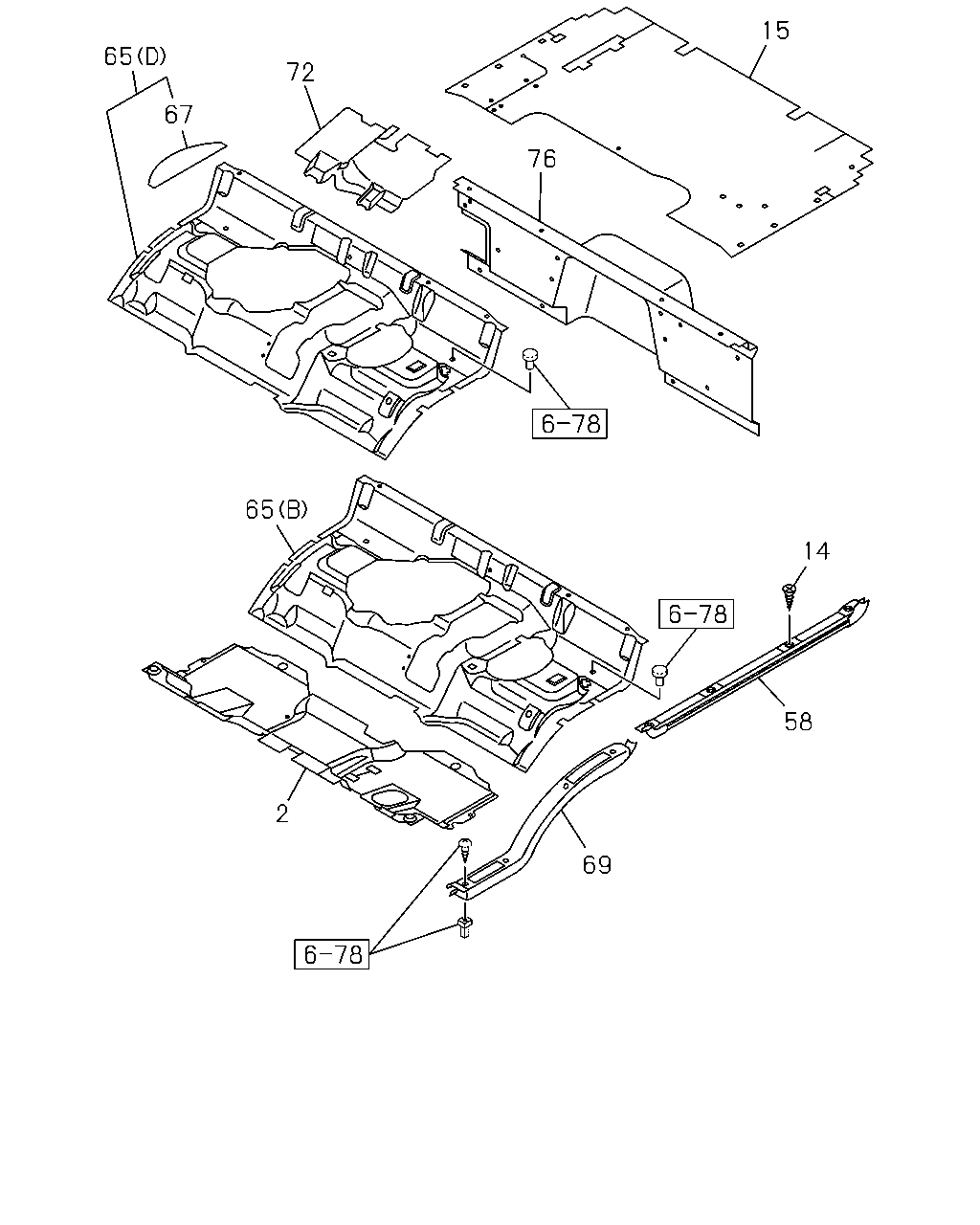

15 65 72 67 76 65 14 58 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	16.800 MAT; FLOOR GRAY	8-97405-979-4	01	1	0712-	●	●	●	●
14	16.870 SCREW; PLATE 04.681 M5X12 TAPPING	0-72180-512-0	08	1	0712-			●	●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) GRAY	8-97412-601-2	01	1	0712-			●	●
15	16.800 MAT; FLOOR REAR 4JJ1-TCS ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) GRAY	8-97412-603-2	01	1	0712-			●	●
15	16.800 MAT; FLOOR REAR 4HK1-TCS ENG(RJS) GRAY	8-97412-602-1	01	1	0712-				●
58	08.153 PLATE; GUARD,RR FLOOR MAT GRAY	8-97405-981-1	02	1	0712-			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-2	01	1	0712-0804	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-889-4	01	1	0805-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR EXC. SUSPENSION SEAT<SA3>,INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-127-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A)	8-97415-682-1	01	1	0805-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR SUSPENSION SEAT<SA3> EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97425-128-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-515-0	01	1	0712-0712	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (C) GRAY	8-98112-607-4	01	1	0801-1303	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> (C) GRAY	8-97425-115-0	01	1	1304-	●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (B) GRAY	8-97405-996-2	01	1	0712-0712			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (D) GRAY	8-98112-608-4	01	1	0801-1303			●	●
65	16.802 MAT ASM; SILENCER,CAB FLOOR (D) GRAY	8-97425-116-0	01	1	1304-			●	●
67	16.549 LID; COVER INSPECTION ENGINE COVER<8GA> EXC. SUSPENSION SEAT<SA3> GRAY	8-97408-863-0	01	1	0805-0904	●	●
67	16.549 LID; COVER GRAY	8-97408-863-0	01	1	0805-0904			●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0712-	●	●	●	●
69	16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0712-	●	●	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0712-0809			●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97405-998-3	01	1	0810-0911	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97405-998-3	01	1	0810-0911			●	●
72	16.800 MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-599-1	01	1	0912-	●	●
72	16.800 MAT; SILENCER,ENG COVER GRAY	8-97417-599-1	01	1	0912-			●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4JJ1-TCS ENG(LFB) GRAY	8-97412-599-1	01	1	0712-			●	●
76	16.800 MAT; FLOOR,REINF,CAB RR MTG 4HK1-TCS ENG(RJS) GRAY	8-97412-604-1	01	1	0712-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
