4-15 — FRONT FINAL DRIVE (#49855) — 92 parça

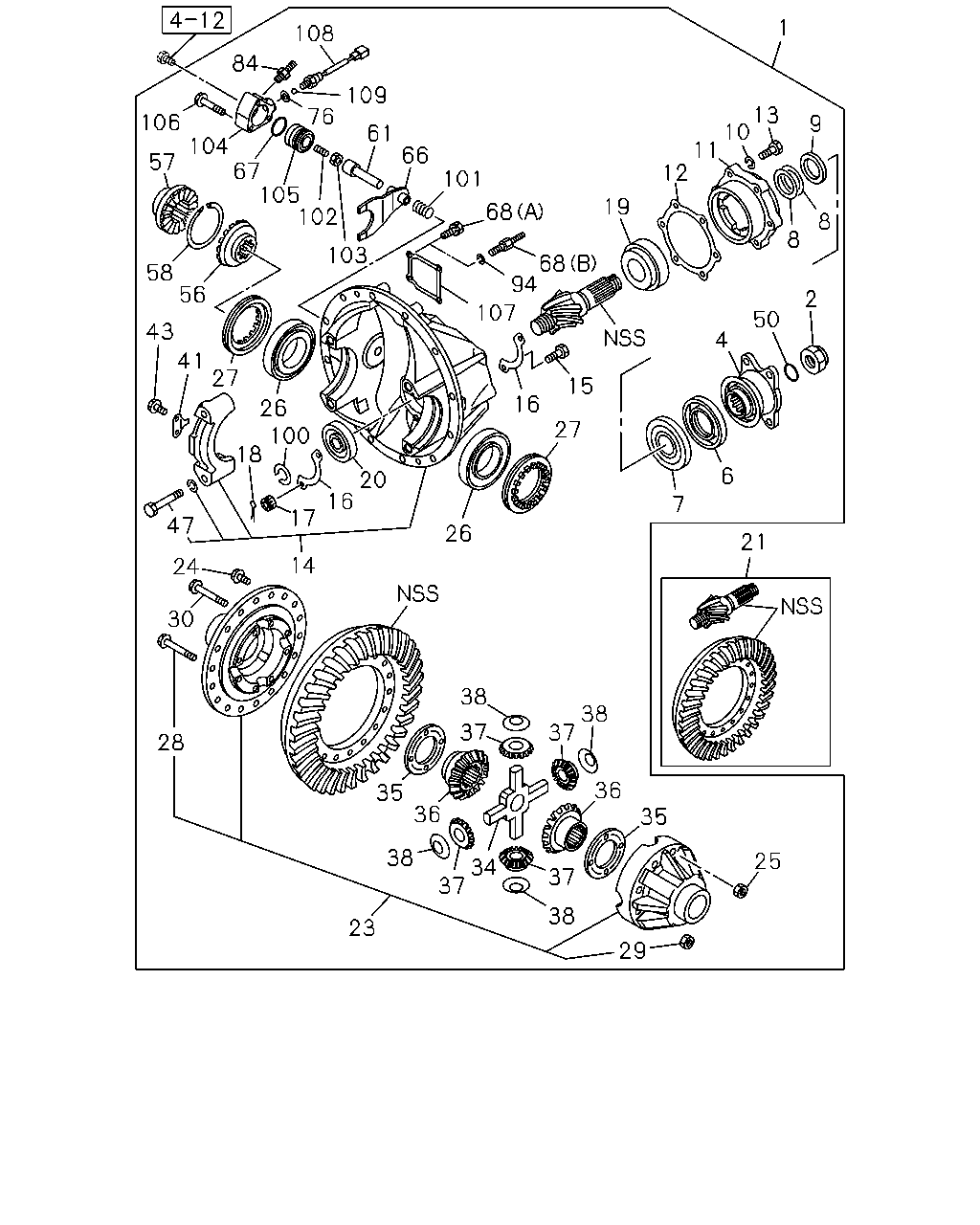

çizim 149131
1 108 84 109 13 10 76 106 9 61 104 67 105 102 11 12 66 57 101 19 68 8 8 68 94 58 56 2 107 50 43 4 41 27 15 16 26 100 27 18 6 20 16 7 17 47 26 21 14 24 30 38 38 37 37 28 36 35 36 35 38 25 34 37 37 38 23 29 103
BalonParca AdiParca NoAdetTipApplied Date
1 DRIVE ASM; FINAL,FRT
39/6 		1-41003-384-0 01 1 1011-
2 NUT; FINAL DRIVE PINION
M36 FLANGE 		1-09449-083-0 01 1 1011-
4 COUPLING; FINAL DRIVE PINION 1-37245-415-0 01 1 1011-
6 SEAL; OIL,FINAL PINION
NOK 		1-09625-484-1 01 1 1011-
6 SEAL; OIL,FINAL PINION
TKK 		1-09625-637-0 01 1 1011-
7 BEARING; PINION,OUTER
JTEKT 		5-09812-062-1 01 1 1011-
7 BEARING; PINION,OUTER
NSK 		5-09812-063-0 01 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.60 		1-41229-179-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.61 		1-41229-180-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.62 		1-41229-181-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.63 		1-41229-182-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.64 		1-41229-183-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.65 		1-41229-184-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.66 		1-41229-185-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.67 		1-41229-186-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.68 		1-41229-187-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.69 		1-41229-188-0 AR 1 1011-
8 SHIM; PINION,FINAL DRIVE
T=1.70 		1-41229-189-0 AR 1 1011-
9 COLLAR; DIST,PINION
T=10.7 		1-36355-031-0 01 1 1011-
9 COLLAR; DIST,PINION
T=10.90 		1-36355-033-0 01 1 1011-
9 COLLAR; DIST,PINION
T=11.10 		1-36355-035-0 01 1 1011-
9 COLLAR; DIST,PINION
T=11.30 		1-36355-037-0 01 1 1011-
9 COLLAR; DIST,PINION
T=11.50 		1-36355-039-0 01 1 1011-
9 COLLAR; DIST,PINION
T=11.70 		1-36355-041-0 01 1 1011-
9 COLLAR; DIST,PINION
T=11.9 		1-36355-043-0 01 1 1011-
9 COLLAR; DIST,PINION
T=12.10 		1-36355-045-0 01 1 1011-
9 COLLAR; DIST,PINION
T=12.30 		1-36355-047-0 01 1 1011-
10 WASHER; LK,FINAL PINION
ID=12.2 		0-91510-812-0 06 1 1011-
11 CAGE; FINAL PINION 1-41151-027-0 01 1 1011-
12 SHIM; FINAL PINION CAGE
T=0.50 		1-41154-021-1 AR 1 1011-
12 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-051-1 AR 1 1011-
12 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-052-1 AR 1 1011-
12 SHIM; FINAL PINION CAGE
T=1.00 		1-41154-053-1 AR 1 1011-
13 BOLT; FINAL PINION CAGE
M12X40 		9-02361-240-0 06 1 1011-
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 1-41110-122-0 01 1 1011-
15 BOLT; RET
M8X35 W/PIN HOLE 		1-09042-046-0 02 1 1011-
16 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 1011-
17 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 1011-
18 PIN; SPLIT,RET 0-81122-012-0 02 1 1011-
19 BEARING; PINION,INNER
NSK 		1-09812-041-2 01 1 1011-
19 BEARING; PINION,INNER
JTEKT 		1-09812-042-1 01 1 1011-
20 BEARING; FINAL DRIVE PINION
NSK 		1-09810-073-2 01 1 1011-
20 BEARING; FINAL DRIVE PINION
JTEKT 		1-09810-074-1 01 1 1011-
21 GEAR SET; FINAL DRIVE,FRT
39/6 		1-41210-394-2 01 1 1011-
23 CAGE ASM; DIFF,FINAL DRIVE 1-41510-335-0 01 1 1011-
24 BOLT; FINAL DRIVE GEAR
M16X34.5 FLANGE 		9-09802-575-1 16 1 1011-
25 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 1011-
26 BEARING; DIFF CAGE
NSK ID=70 OD=125 T=26.3 		1-09812-058-1 01 1 1011-
26 BEARING; DIFF CAGE
NSK ID=85 OD=130 T=29 		1-09812-088-0 01 1 1011-
26 BEARING; DIFF CAGE
JTEKT ID=85 OD=130 T=29 		1-09812-089-0 01 1 1011-
26 BEARING; DIFF CAGE
JTEKT ID=70 OD=125 T=26.3 		1-09812-249-0 01 1 1011-
27 NUT; ADJ,DIFF CAGE
M128 H=22 		1-41121-013-0 01 1 1011-
27 NUT; ADJ,DIFF CAGE
M138 H=30 		1-41121-054-0 01 1 1011-
28 BOLT; DIFF CAGE SETTING
M14X112 FLANGE 		1-09070-057-1 04 1 1011-
29 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 04 1 1011-
30 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 04 1 1011-
34 PIN; CROSS,DIFF PINION 1-41521-050-2 01 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-061-0 AR 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-062-0 AR 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-063-0 AR 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-064-0 AR 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-080-0 AR 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-081-0 AR 1 1011-
35 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-082-0 AR 1 1011-
36 GEAR; SIDE,DIFF
Z=16 		1-41561-149-0 02 1 1011-
37 GEAR; PINION DIFF
Z=10 		1-41551-049-0 04 1 1011-
38 WASHER; THRUST,PINION GEAR
ID=29 OD=60 		1-41562-119-0 04 1 1011-
41 PLATE; LK,ADJ NUT
T=2.3 		9-41124-015-0 02 1 1011-
43 BOLT; LK PLATE
M8X12 FLANGE 		8-94479-696-1 04 1 1011-
47 BOLT; BRG CAP
M16X100 FLANGE 		1-09070-047-0 04 1 1011-
50 GASKET; FLANGE,FINAL PINION
ID=37.5 T=4 		1-09623-582-0 01 1 1011-
56 CLUTCH; CLAW,FRT DIFF 1-41266-025-0 01 1 1011-
57 SLEEVE; CLU,FRT DIFF 1-41266-027-0 01 1 1011-
58 RING; SNAP,CLAW CLU 1-09588-186-0 01 1 1011-
61 ROD; SHIFT 1-41271-014-0 01 1 1011-
66 FORK; SHIFT 1-41271-015-0 01 1 1011-
67 GASKET; PISTON
ID=43.7 		9-09561-344-0 01 1 1011-
68 BOLT; COVER
(A) M8X16 W/LK WASHER 		0-50540-816-0 04 1 1011-1203
68 BOLT; COVER
(B) M6X14,M8X17 L=42 		5-09309-006-1 04 1 1204-
76 GASKET; SWITCH
ID=14.2 		8-94462-114-0 01 1 1011-
84 CONNECTOR; HOSE
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1011-
94 WASHER; COVER
ID=8.2 		1-09985-177-0 04 1 1204-
100 RING; SNAP,PILOT BRG
OD=34.2 		1-09588-214-0 01 1 1011-
101 SPRING; RETUN,DIFF LK 1-09580-507-0 01 1 1011-
102 SCREW; SET,DIFF LK
M12X31 		1-09120-021-0 01 1 1011-
103 NUT
M12 		0-91111-512-0 01 1 1011-
104 CYLINDER; DIFF LK 1-41279-021-0 01 1 1011-
105 PISTON; CHAMBER,DIFF LK 1-41279-020-0 01 1 1011-
106 BOLT
M8X60 FLANGE 		0-28050-860-0 03 1 1011-
107 COVER; CARRIER,DIFF LK 1-41117-005-0 01 1 1011-
108 SWITCH; STROKE 1-82340-534-0 01 1 1011-
109 BALL 9-00097-010-0 01 1 1011-
