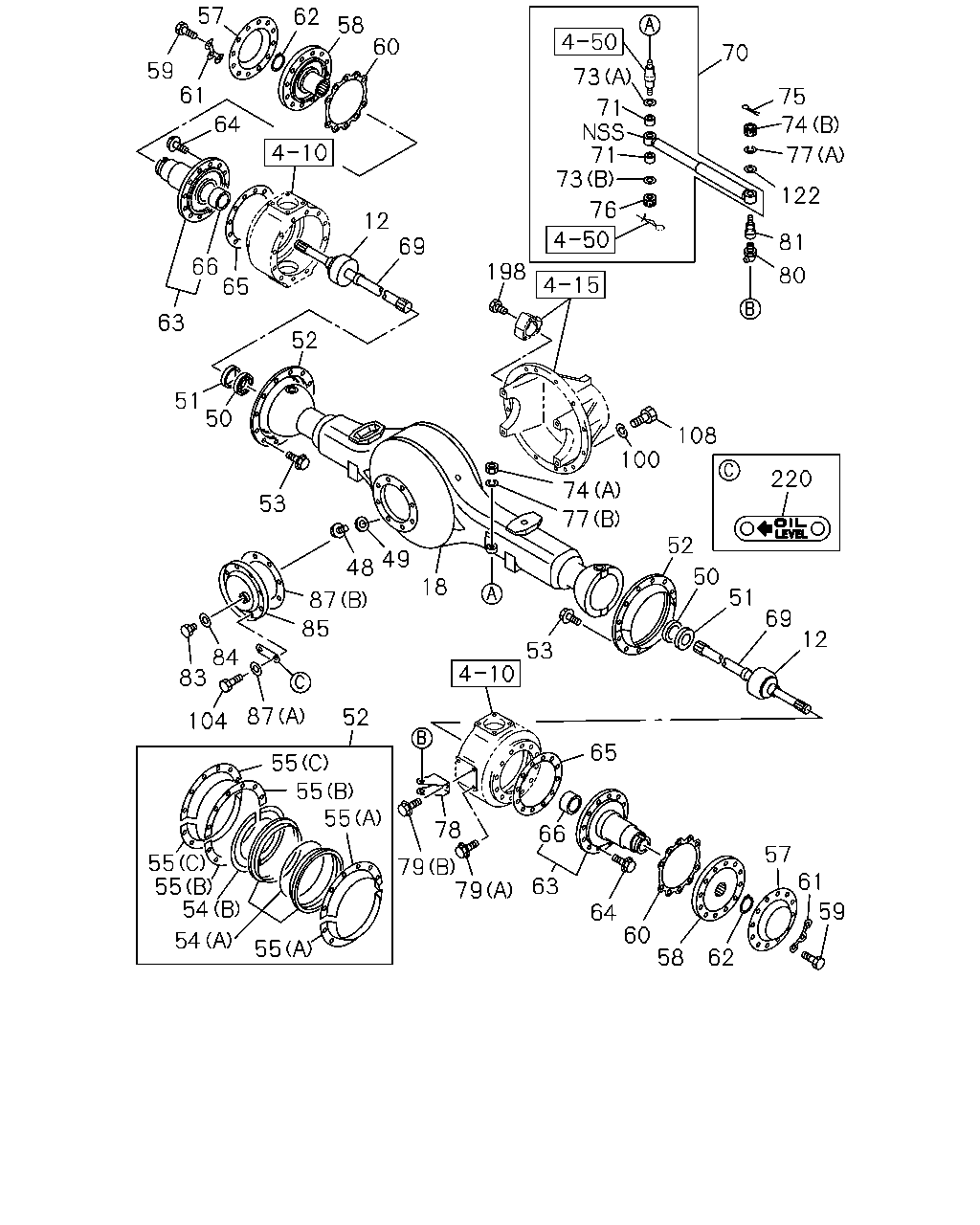

4-12 — FRONT DRIVE SHAFT (#49854) — 126 parça

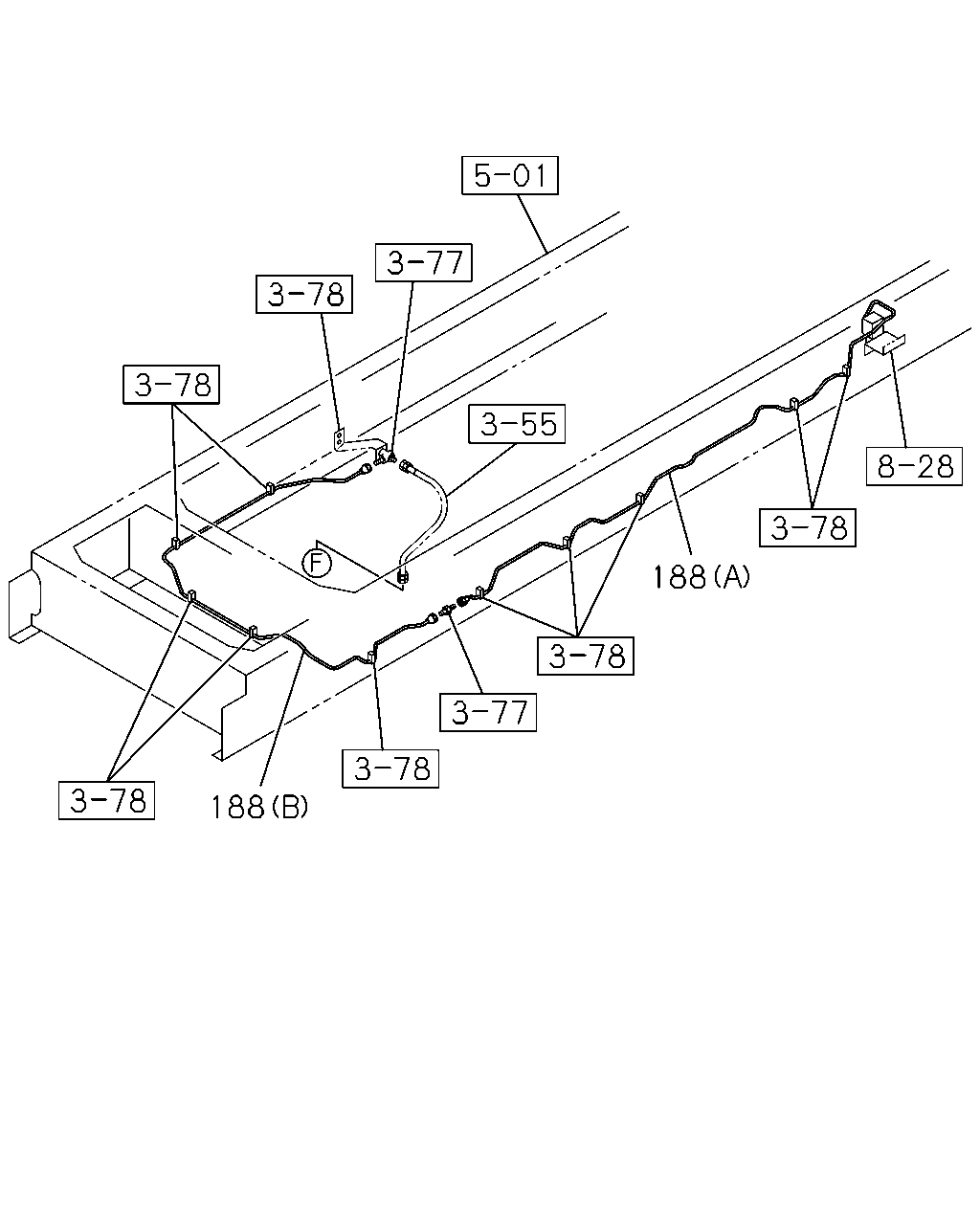

188 188

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	188	PIPE; AIR,DIFF LOCK (A) L=2166 SERVICED BY L=2200	1-47428-824-0	01	1	1011-
	188	PIPE; AIR,DIFF LOCK (B) L=2049 SERVICED BY L=2200	1-47428-824-0	01	1	1011-

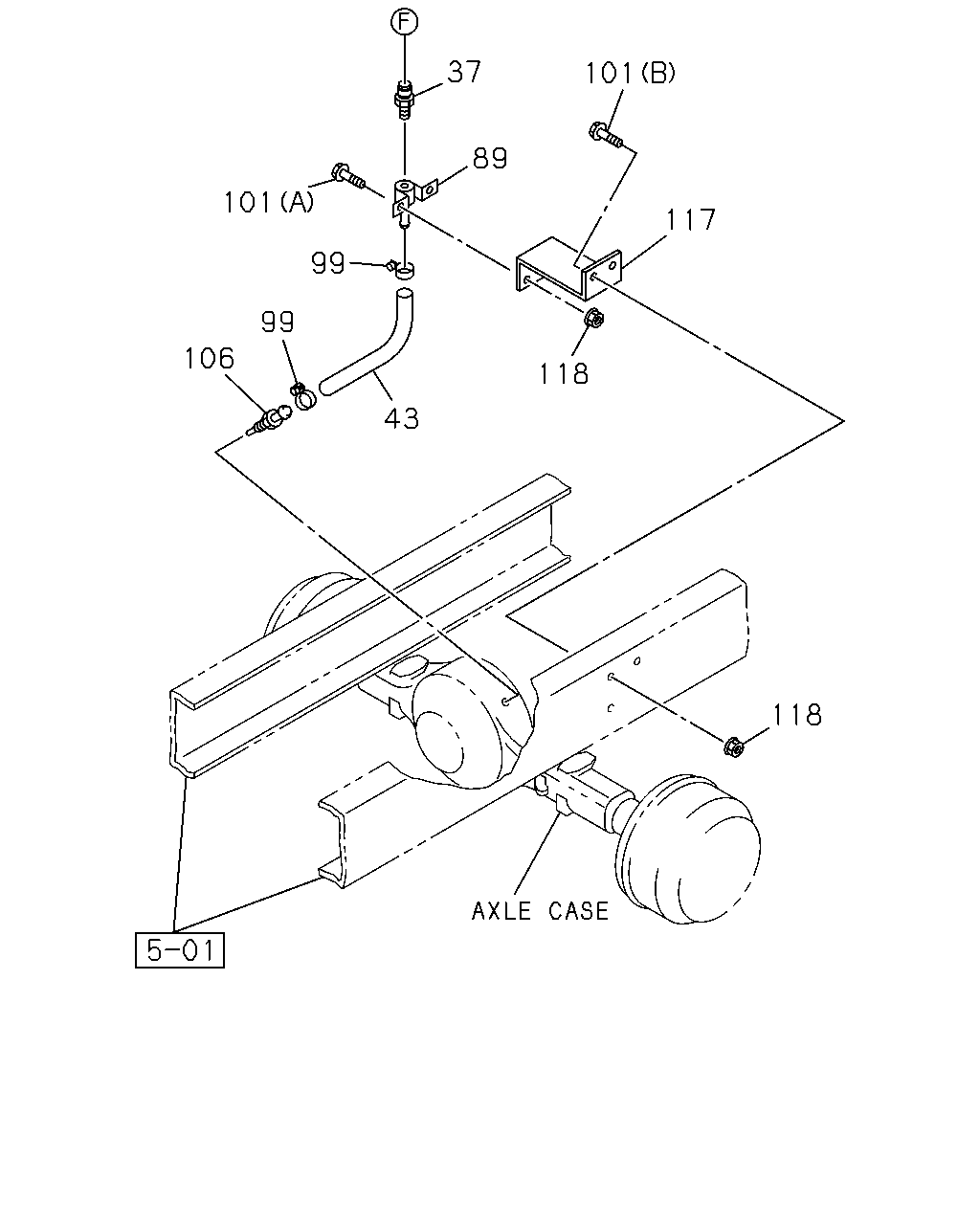

37 101 89 101 117 99 99 106 118 43 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	BREATHER; FRT AXLE CASE	9-36122-013-0	01	1	1011-
43	HOSE; RUBBER,AIR BREATHER L=440 SERVICED BY L=3000	0-02857-300-0	01	1	1011-
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	1011-1306
89	ADAPTER; AIR BREATHER	1-09669-066-0	01	1	1307-
89	ADAPTER; AIR BREATHER CONVERTING INTO 6X6<BCC>	1-09669-066-0	01	1	1307-
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	1011-
99	CLIP; RUBBER HOSE ID=15	1-09704-018-1	01	1	1011-
101	BOLT; BRKT,ADAPTER (A) M8X20 FLANGE	0-28050-820-0	02	1	1011-
101	BOLT; BRKT,ADAPTER (B) M8X25 FLANGE	0-28650-825-0	02	1	1011-
106	CONNECTOR; RUBBER HOSE	1-09669-081-0	01	1	1011-
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	1011-1306
117	BRACKET; ADAPTER,AIR BREATHER	1-42129-203-0	01	1	1307-
117	BRACKET; ADAPTER,AIR BREATHER CONVERTING INTO 6X6<BCC>	1-42129-203-0	01	1	1307-
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	1011-
118	NUT; BRKT,ADAPTER M8 FLANGE	0-91180-108-0	02	1	1011-

57 62 58 60 70 59 61 73 75 71 71 73 64 74 77 122 76 12 81 69 66 65 198 80 63 52 51 50 108 74 100 220 53 77 52 49 48 50 18 51 87 69 85 12 53 84 83 87 52 104 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	1011-
18	CASE; FRT AXLE	8-98082-671-3	01	1	1011-1108
18	CASE; FRT AXLE	8-98200-134-0	01	1	1109-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1011-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1011-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1011-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1011-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1011-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1011-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1011-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1011-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1011-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1011-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1011-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1011-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1011-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1011-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1011-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1011-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1011-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1011-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	8-98082-198-0	02	1	1011-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1011-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1011-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1011-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1011-
69	SHAFT; AXLE,FRT INNER	8-98082-680-2	01	1	1011-
69	SHAFT; AXLE,FRT INNER	8-98082-681-2	01	1	1011-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1011-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1011-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1011-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1011-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1011-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1011-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1011-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1011-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1011-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1011-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1011-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1011-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1011-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1011-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1011-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1011-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1011-
85	COVER; AXLE CASE	9-42141-059-0	01	1	1011-1108
87	GASKET; COVER,AXLE CASE (A) ID=10.2 OD=19	9-09572-010-0	08	1	1011-1108
87	GASKET; COVER,AXLE CASE (B)	9-42142-026-2	01	1	1011-1108
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1011-
104	BOLT; COVER,AXLE CASE M10X16	9-09800-874-0	08	1	1011-1108
108	BOLT; FRT FINAL DRIVE M12X60	0-10956-260-0	04	1	1011-
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	06	1	1011-
108	BOLT; FRT FINAL DRIVE M12X105	8-97029-869-0	02	1	1011-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1011-
198	PLUG; COVER M12X9	9-99202-312-0	01	1	1011-1304
198	PLUG; COVER M12X9	0-92002-412-0	01	1	1305-
220	PLATE	9-83996-444-1	01	1	1011-1108

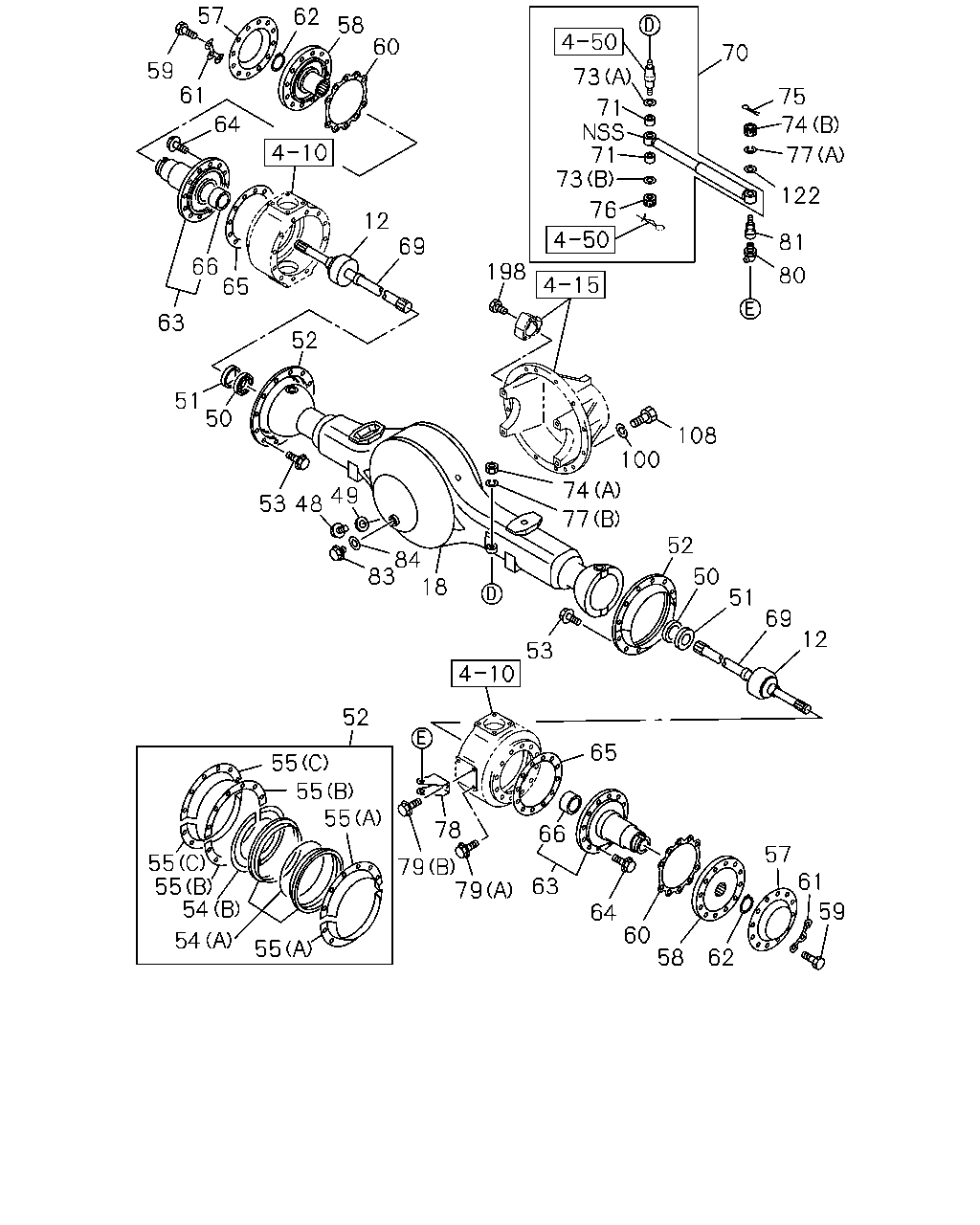

57 62 58 60 70 59 61 73 75 71 71 73 64 74 77 122 76 12 81 69 66 65 198 80 63 52 51 50 108 74 100 49 77 52 84 83 18 50 51 69 12 53 52 65 55 55 55 78 66 55 55 54 57 61 79 79 63 59 64 60 58 54 55 62 53 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM	1-43330-018-0	02	1	1011-
18	CASE; FRT AXLE	8-98082-671-3	01	1	1011-1108
18	CASE; FRT AXLE	8-98200-134-0	01	1	1109-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1011-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1011-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	1011-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	1011-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	1011-
53	BOLT; OIL SEAL M8X12 FLANGE	0-28050-812-0	20	1	1011-
53	BOLT; OIL SEAL M8X16 FLANGE	0-28050-816-0	04	1	1011-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	1011-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	1011-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	1011-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	1011-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	1011-
57	COVER; FLANGE,FRT AXLE SHAFT	9-42313-116-0	02	1	1011-
58	FLANGE; AXLE SHAFT,FRT	1-42312-028-0	02	1	1011-
59	BOLT; FLANGE,FRT AXLE SHAFT M12X45	9-09804-239-1	20	1	1011-
60	GASKET; FLANGE,FRT AXLE SHAFT	1-42175-001-0	02	1	1011-
61	PLATE; LK,FLANGE	1-43319-005-0	08	1	1011-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	1011-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	8-98082-198-0	02	1	1011-
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1011-
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1011-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	1011-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	1011-
69	SHAFT; AXLE,FRT INNER	8-98082-680-2	01	1	1011-
69	SHAFT; AXLE,FRT INNER	8-98082-681-2	01	1	1011-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51630-207-0	01	1	1011-
71	BUSHING; RUB,LWR,FRT S/ABS	9-51631-037-0	02	1	1011-
73	WASHER; LWR,FRT S/ABS (A)	9-51679-010-0	01	1	1011-
73	WASHER; LWR,FRT S/ABS (B)	9-51679-011-0	01	1	1011-
74	NUT; S/ABS (A) M16	0-91110-516-0	01	1	1011-
74	NUT; S/ABS (B) M12	0-91116-512-0	01	1	1011-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	1011-
76	NUT; LWR,FRT S/ABS	9-51631-083-0	01	1	1011-
77	WASHER; LK,S/ABS (A) ID=12.2	0-91510-512-0	01	1	1011-
77	WASHER; LK,S/ABS (B) ID=16.2	0-91510-516-0	01	1	1011-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	1011-
79	BOLT; BRKT (A) M12X20 FLANGE	0-28051-220-0	02	1	1011-
79	BOLT; BRKT (B) M12X25 FLANGE	0-28051-225-0	02	1	1011-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1011-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	1011-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	1011-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	1011-
100	WASHER; LK,FRT FINAL DRIVE ID=12.2	0-91510-812-0	12	1	1011-
108	BOLT; FRT FINAL DRIVE M12X60	0-10956-260-0	04	1	1011-
108	BOLT; FRT FINAL DRIVE M12X35	0-20951-235-0	06	1	1011-
108	BOLT; FRT FINAL DRIVE M12X105	8-97029-869-0	02	1	1011-
122	WASHER; S/ABS ID=17 OD=30	0-91610-516-0	01	1	1011-
198	PLUG; COVER M12X9	9-99202-312-0	01	1	1011-1304
198	PLUG; COVER M12X9	0-92002-412-0	01	1	1305-
