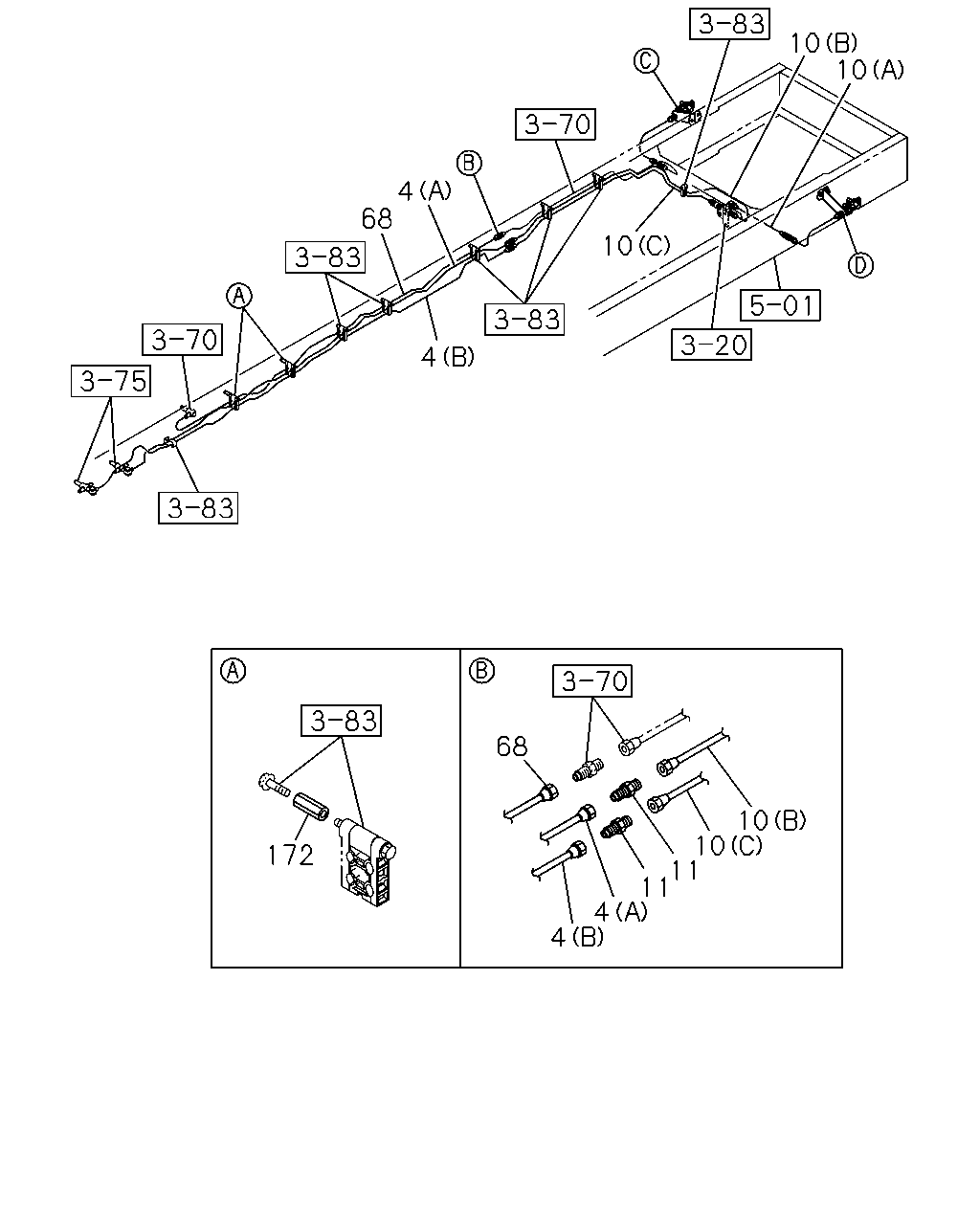

3-80 — BRAKE PIPING; TRAILER (#49849) — 23 parça

81 29 84 3 56 18 16 121 10 19 42 81 29 84 18 3 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	NUT; COCK M16	0-91111-516-0	02	1	1011-
10	PIPE; AIR,UNION TO DBL CHECK VLV (A) L=305	8-98141-746-0	01	1	1011-
10	PIPE; AIR,UNION TO DBL CHECK VLV (B) L=1685 SERVICED BY L=1700	1-47428-880-0	01	1	1011-
10	PIPE; AIR,UNION TO DBL CHECK VLV (C) L=1345 SERVICED BY L=1400	1-47428-878-0	01	1	1011-
16	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	1011-
18	NUT; UNION M16	0-91111-516-0	02	1	1011-
19	UNION; AIR PIPE M16 L=74	0-92123-310-0	01	1	1011-
29	CONNECTOR; COCK	1-09650-121-1	02	1	1011-
42	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	1011-
56	PIPE; AIR,UNION TO COCK (A) L=330	8-98152-579-0	01	1	1011-
56	PIPE; AIR,UNION TO COCK (B) L=338	8-98152-587-0	01	1	1011-
81	COCK; AIR COUPLING RED	1-47478-466-1	01	1	1011-
81	COCK; AIR COUPLING YELLOW	1-47478-467-1	01	1	1011-
84	BRACKET; COUPLER	8-98154-702-0	02	1	1011-
121	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	1011-

10 10 4 68 10 4 68 10 10 11 11 172 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	PIPE; AIR,UNION TO UNION (A) L=2567 SERVICED BY L=2600	1-47428-884-0	01	1	1011-
4	PIPE; AIR,UNION TO UNION (B) L=2826 SERVICED BY L=2900	1-47428-885-0	01	1	1011-
10	PIPE; AIR,UNION TO DBL CHECK VLV (A) L=305	8-98141-746-0	01	1	1011-
10	PIPE; AIR,UNION TO DBL CHECK VLV (B) L=1685 SERVICED BY L=1700	1-47428-880-0	01	1	1011-
10	PIPE; AIR,UNION TO DBL CHECK VLV (C) L=1345 SERVICED BY L=1400	1-47428-878-0	01	1	1011-
11	UNION; AIR PIPE M16 L=42	0-92123-010-0	02	1	1011-
68	PIPE; AIR,UNION TO UNION L=2272 SERVICED BY L=2500	1-47428-883-0	01	1	1011-
172	SPACER	9-14149-158-0	02	1	1011-
