3-52 — BRAKE PIPING; OIL,FRONT (#49842) — 23 parça

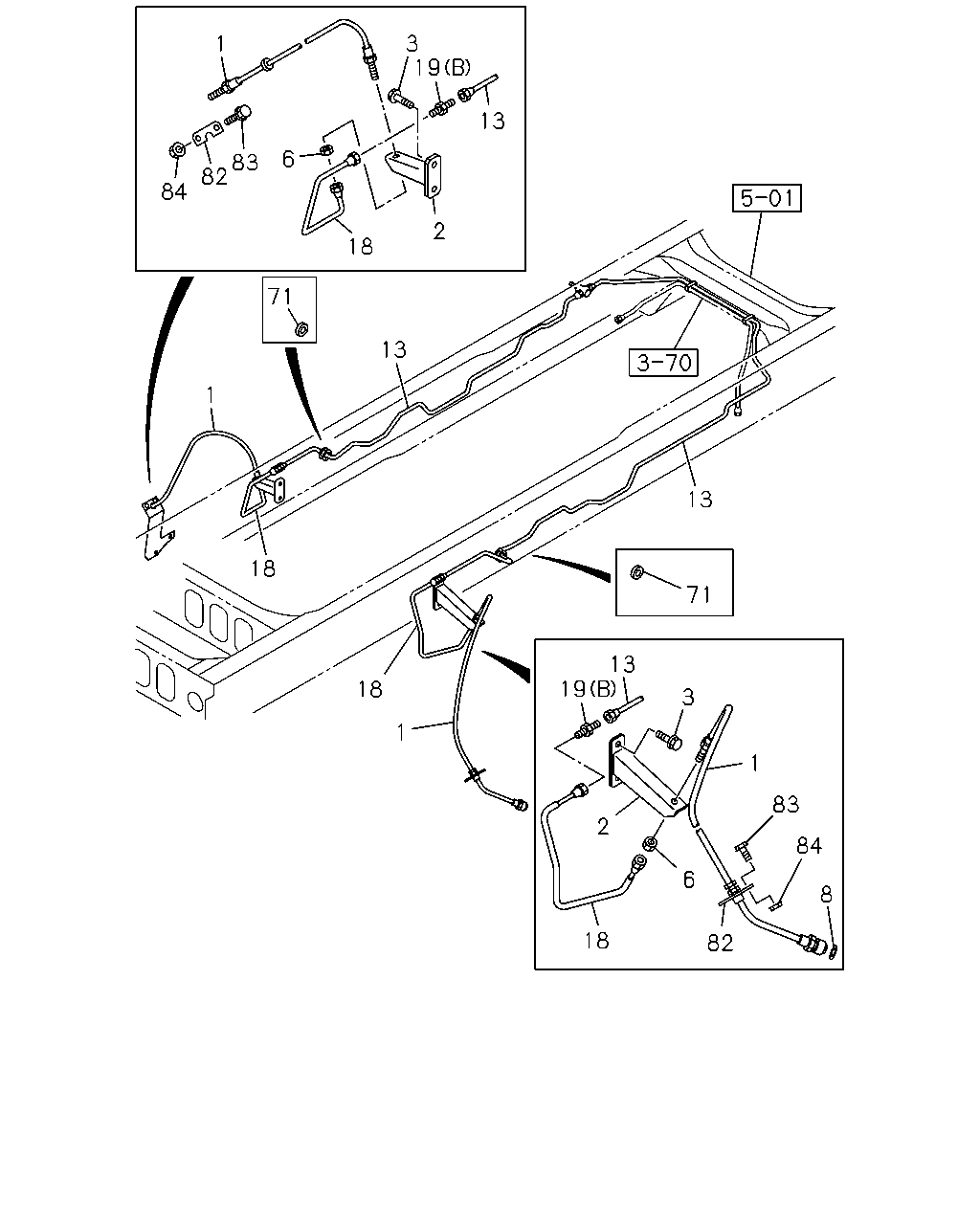

1 3 19 13 6 83 82 84 2 18 71 13 1 13 18 71 13 19 18 3 1 1 83 2 84 6 8 18 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=838	8-97623-930-0	02	1	1011-
2	BRACKET; FLEX HOSE,FRT BRK	8-97623-926-1	01	1	1011-
2	BRACKET; FLEX HOSE,FRT BRK	8-98130-817-0	01	1	1011-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1011-
6	NUT; FLEX HOSE,FRT BRK M12	9-09840-280-0	02	1	1011-
8	GASKET; FLEX HOSE,FRT BRK CONVERTING INTO 6X6<BCC> ID=9 OD=17	9-09920-472-0	01	1	1307-
8	GASKET; FLEX HOSE,FRT BRK ID=9 OD=17	9-09920-472-0	02	1	1011-
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-
13	PIPE; OIL,UNION TO UNION L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1011-
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=417	8-98111-592-1	01	1	1011-
18	PIPE; OIL,UNION TO FRT FLEX HOSE L=389	8-98130-856-0	01	1	1011-
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1011-
82	PLATE; FLEX HOSE	1-47476-241-1	02	1	1011-
83	BOLT; PLATE M8X20 FLANGE	0-28650-820-0	04	1	1011-
84	NUT; PLATE M8 FLANGE	0-91180-108-0	04	1	1011-

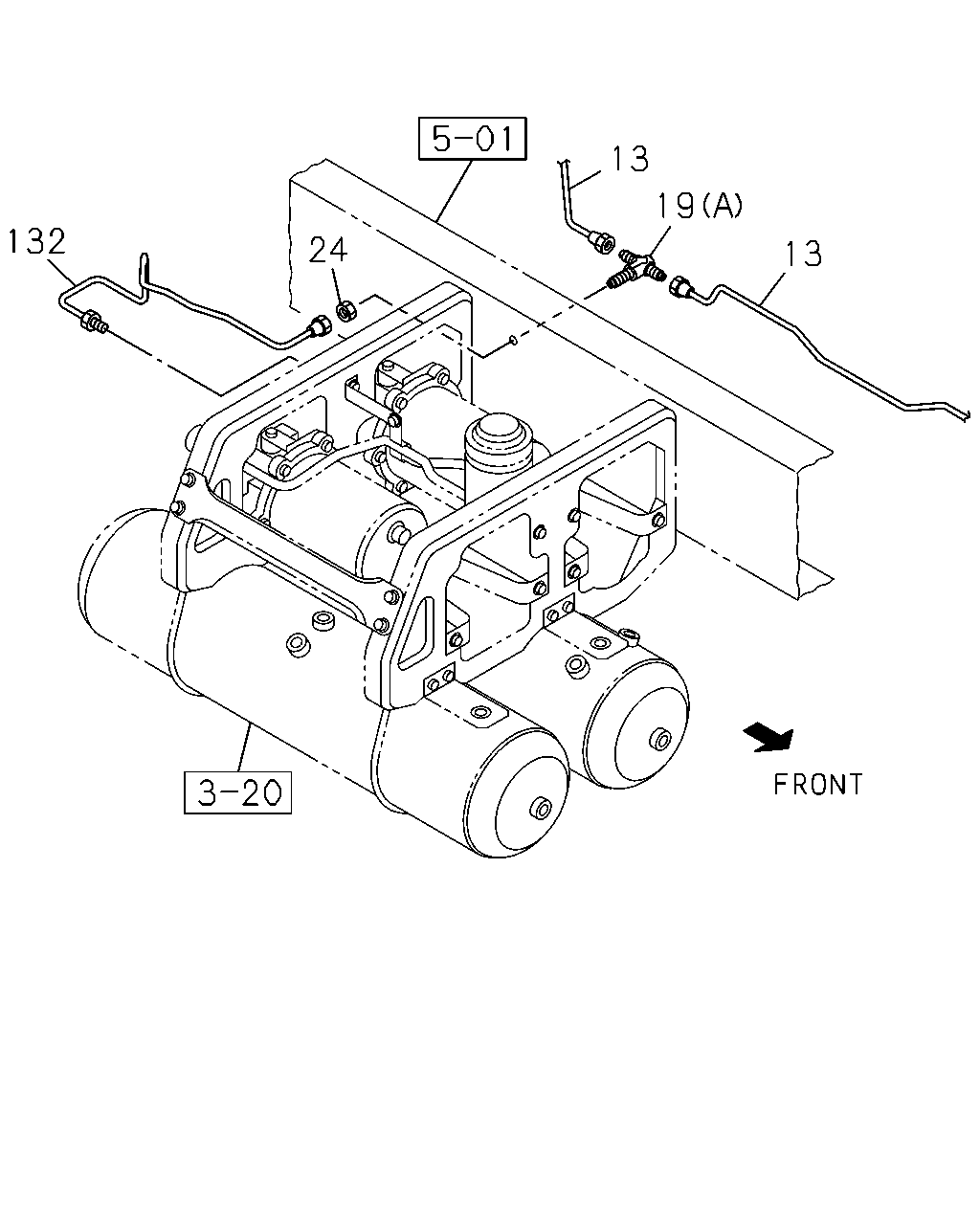

13 19 24 132 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION L=1518 SERVICED BY L=1620	1-47428-736-0	01	1	1011-
13	PIPE; OIL,UNION TO UNION L=2882 SERVICED BY L=2900	1-47428-744-0	01	1	1011-
19	UNION; OIL PIPE (B) M12 L=40	0-92113-006-0	02	1	1011-
19	UNION; OIL PIPE (A) M12 3WAY	0-92138-606-0	01	1	1011-
24	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1011-
132	PIPE; OIL,BRK,HYD UNIT L=678 SERVICED BY L=700	1-47428-727-0	01	1	1011-
