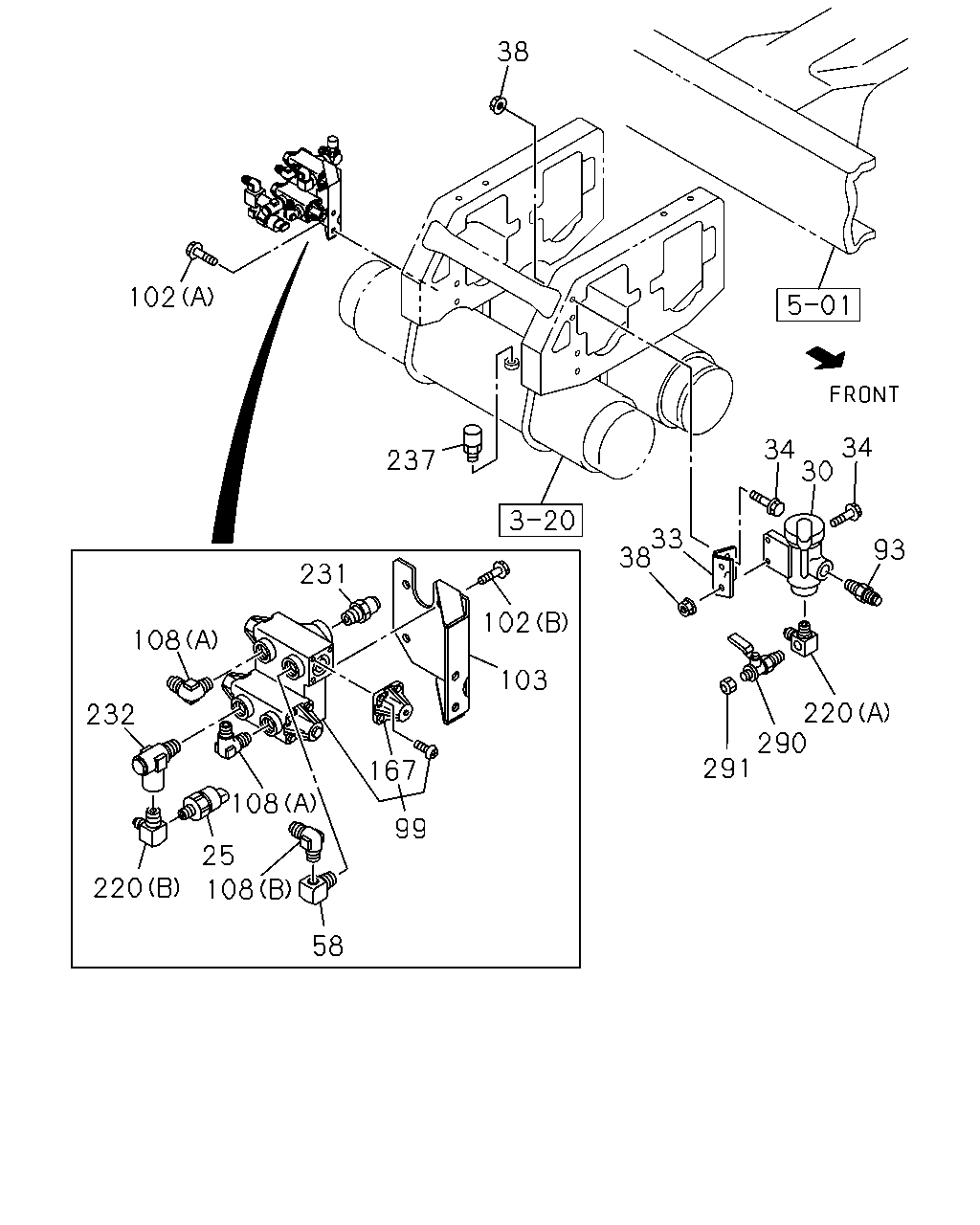

3-22 — AIR CONTROL PARTS (#49836) — 25 parça

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1011-

38 34 34 93 30 220 290 291 33 38 237 102 231 102 103 167 99 58 108 220 108 25 232 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	SWITCH; PRESSURE STAMP 5.5	8-97609-249-0	01	1	1011-
30	GOVERNOR; AIR CONT	1-48350-093-2	01	1	1011-
33	BRACKET; GOV,AIR CONT	8-98120-459-1	01	1	1011-
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1011-
34	BOLT; BRKT,GOV M8X25 FLANGE	0-28650-825-0	02	1	1011-
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	1011-
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	1011-
58	ADAPTER PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	1011-
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	1011-
99	VALVE; PROTECTION	1-48110-288-3	01	1	1011-
102	BOLT; PROTECTION VALVE (B) M8X16 FLANGE	0-28050-816-0	02	1	1011-
102	BOLT; PROTECTION VALVE (A) M10X25 FLANGE	0-28651-025-0	02	1	1011-
103	BRACKET; PROTECTION VALVE	8-98111-527-1	01	1	1011-
108	CONNECTOR; ELBOW (B) M16 & PT1/4 ELBOW	0-92134-310-0	01	1	1011-
108	CONNECTOR; ELBOW (A) M16 & PT3/8 ELBOW	1-09650-438-0	02	1	1011-
167	COVER; VALVE	1-48119-625-0	04	1	1011-1506
220	CONNECTOR; 3WAY (A) PT1/4 & M12 ELBOW	1-09656-666-0	01	1	1011-
220	CONNECTOR; 3WAY (B)	1-09656-698-0	01	1	1011-
231	CONNECTOR; NYLON TUBE M20 & PT1/2 STRAIGHT	1-09650-249-1	01	1	1011-
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY	8-98032-527-0	01	1	1011-
237	VALVE; SAFETY	1-48320-012-2	01	1	1011-
290	COCK; AIR,INFLATOR	1-09680-099-0	01	1	1011-
291	CAP; AIR COCK	9-48319-102-0	01	1	1011-

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	241	REPAIR KIT; PROTECTION VALVE	1-85576-451-1	01	1	1011-1506
