Isuzu WW
▶
TRUCKS
▶
FTS
▶
11434 - FTS(PAKISTAN)S-TIRE
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

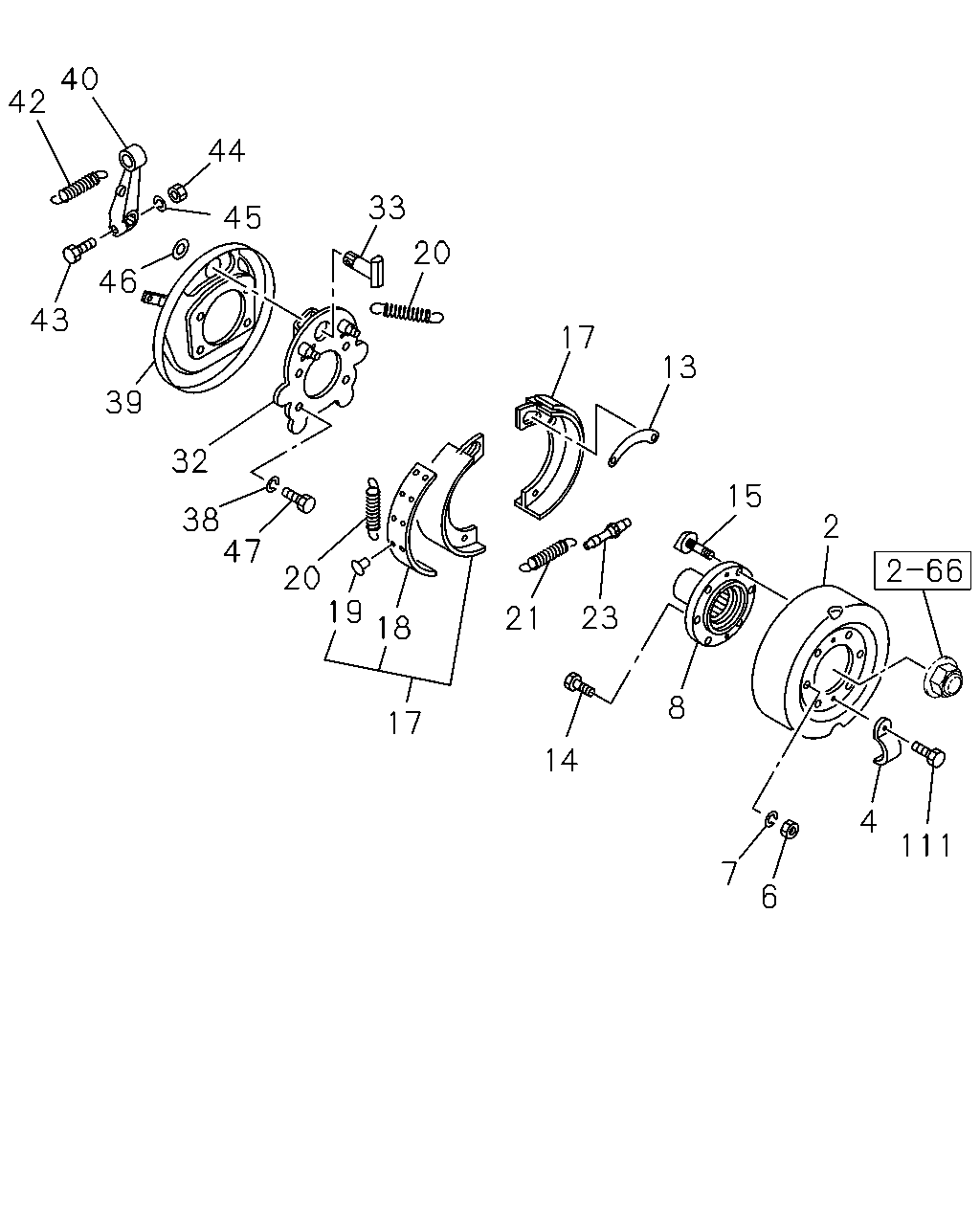

3-08 — PARKING BRAKE
(#49832) — 26 parça
40
42
44
33
45
20
46
43
17
13
39
32
15
38
47
2
20
19
23
21
18
8
17
14
4
111
7
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
DRUM; PARKING BRK
1-46211-026-1
01
1
1011-
4
COVER; ADJ HOLE
8-98031-861-0
02
1
1011-
6
NUT; FLANGE
M16
0-91110-516-0
02
1
1011-
7
WASHER; LK,FLANGE
ID=16.2
0-91510-516-0
02
1
1011-
8
FLANGE; PARKING BRK
1-37243-213-0
01
1
1011-
13
BRACE; PARKING BRK
9-46239-002-0
01
1
1011-
14
BOLT; DRUM TO FLANGE
M16X38
1-46219-010-0
02
1
1011-
15
BOLT; FLANGE
M16X55
8-98023-172-0
04
1
1011-
17
SHOE; PARKING BRK
1-46220-022-1
02
1
1011-
18
LINING; BRK,PARKING
1-46225-023-0
02
1
1011-
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
1011-
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
1011-
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
1011-
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
1011-
32
PLATE; SUPPORT,PARKING BRK
1-46213-033-0
01
1
1011-
33
SHAFT; CAM,PARKING BRK
9-46251-069-0
01
1
1011-
38
WASHER; LK,SUPPORT PLATE
ID=16.2
0-91510-516-0
04
1
1011-
39
COVER; DUST,PARKING BRK
1-46213-061-0
01
1
1011-
40
LEVER; CM/SHF,PARKING BRK
1-46252-021-0
01
1
1011-
42
SPRING; RETURN,LEVER
1-09583-073-0
01
1
1011-
43
BOLT; LEVER TO CM/SHF
0-10811-045-0
01
1
1011-
44
NUT; LEVER TO CM/SHF
M10
0-91111-510-0
01
1
1011-
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
0-91510-510-0
04
1
1011-
46
WASHER; LEVER
9-09855-362-0
01
1
1011-
47
BOLT; SUPPORT PLATE
M16X40
9-09804-155-0
04
1
1011-
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50540-820-0
02
1
1011-
