Isuzu WW
▶
TRUCKS
▶
FTS
▶
11434 - FTS(PAKISTAN)S-TIRE
▶
2 - Clutch, Transmission, Trans Axle
▶
2-75 - TRANSFER CONTROL
▶

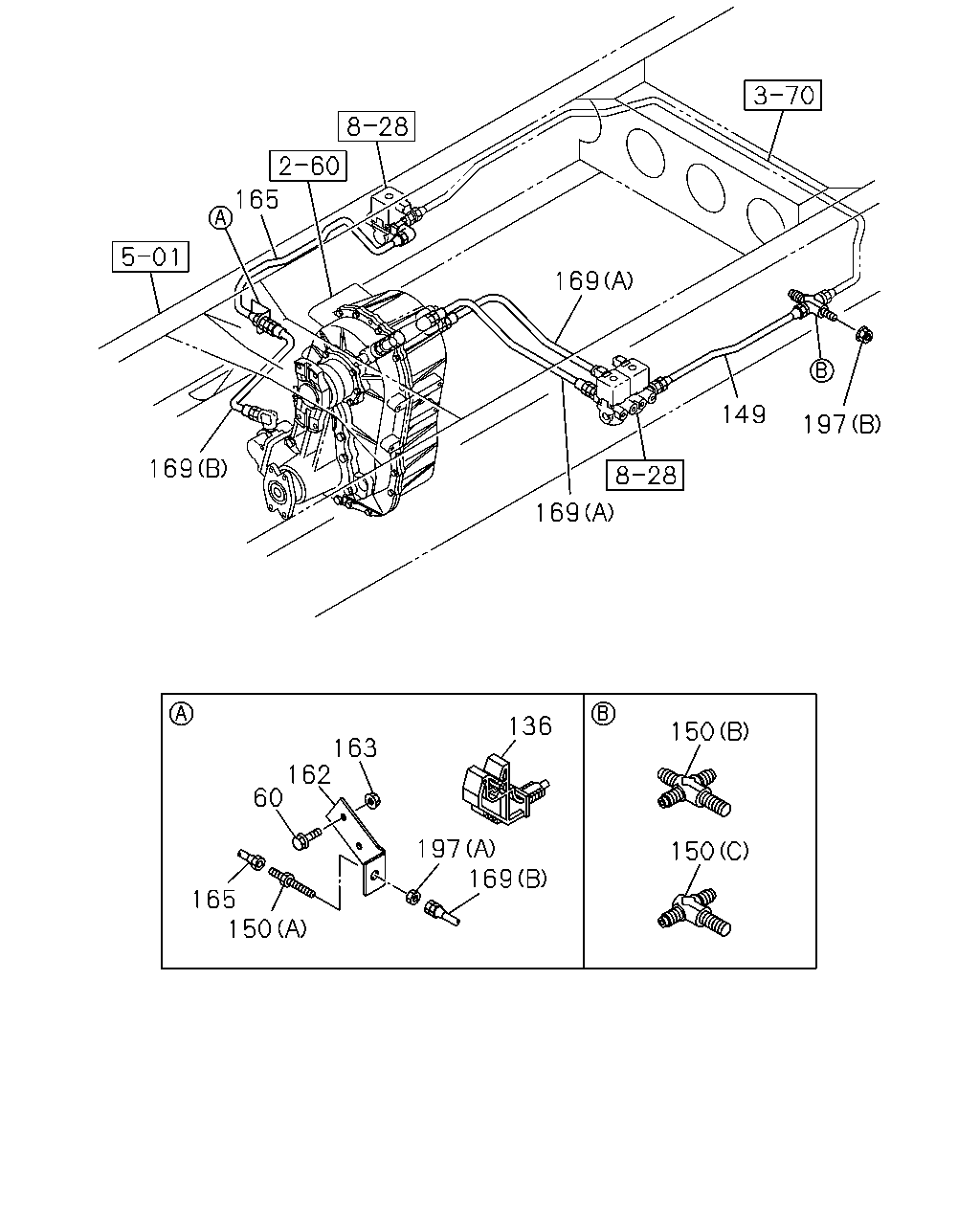

2-75 — TRANSFER CONTROL
(#49827) — 13 parça
165
169
149
197
169
169
136
150
163
162
60
197
169
150
165
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
1011-
136
CLIP; AIR PIPE
ID=6.35
1-09701-247-1
01
1
1011-
149
PIPE; AIR,MAG VLV TO UNION
L=358
8-98152-687-0
01
1
1011-
150
UNION; AIR PIPE
DIFF LOCK<C3N> (B) M12
0-92138-306-0
01
1
1011-
150
UNION; AIR PIPE
(A) M12 L=66.5
0-92113-306-0
01
1
1011-
150
UNION; AIR PIPE
EXC. DIFF LOCK<C3N> (C) M12 3WAY
1-09654-137-2
01
1
1011-
162
BRACKET; FLEX HOSE,TRANSFER
8-98115-642-0
01
1
1011-
163
NUT; BRKT,FLEX HOSE
M8 FLANGE
0-91180-108-0
02
1
1011-
165
PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800
1-47428-812-0
01
1
1011-
169
HOSE; FLEX,TRANSFER CONT
(B) L=340
1-09363-617-0
01
1
1011-
169
HOSE; FLEX,TRANSFER CONT
(A) L=360
1-09363-637-0
02
1
1011-
197
NUT; UNION
(B) M12
0-91111-512-0
01
1
1011-
197
NUT; UNION
(A) M12
9-09840-280-0
01
1
1011-
