Isuzu WW
▶
TRUCKS
▶
FTS
▶
11434 - FTS(PAKISTAN)S-TIRE
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶
2-60 — TRANSFER
(#49823) — 20 parça
◀
[260A] REPAIR KIT (2 parça)

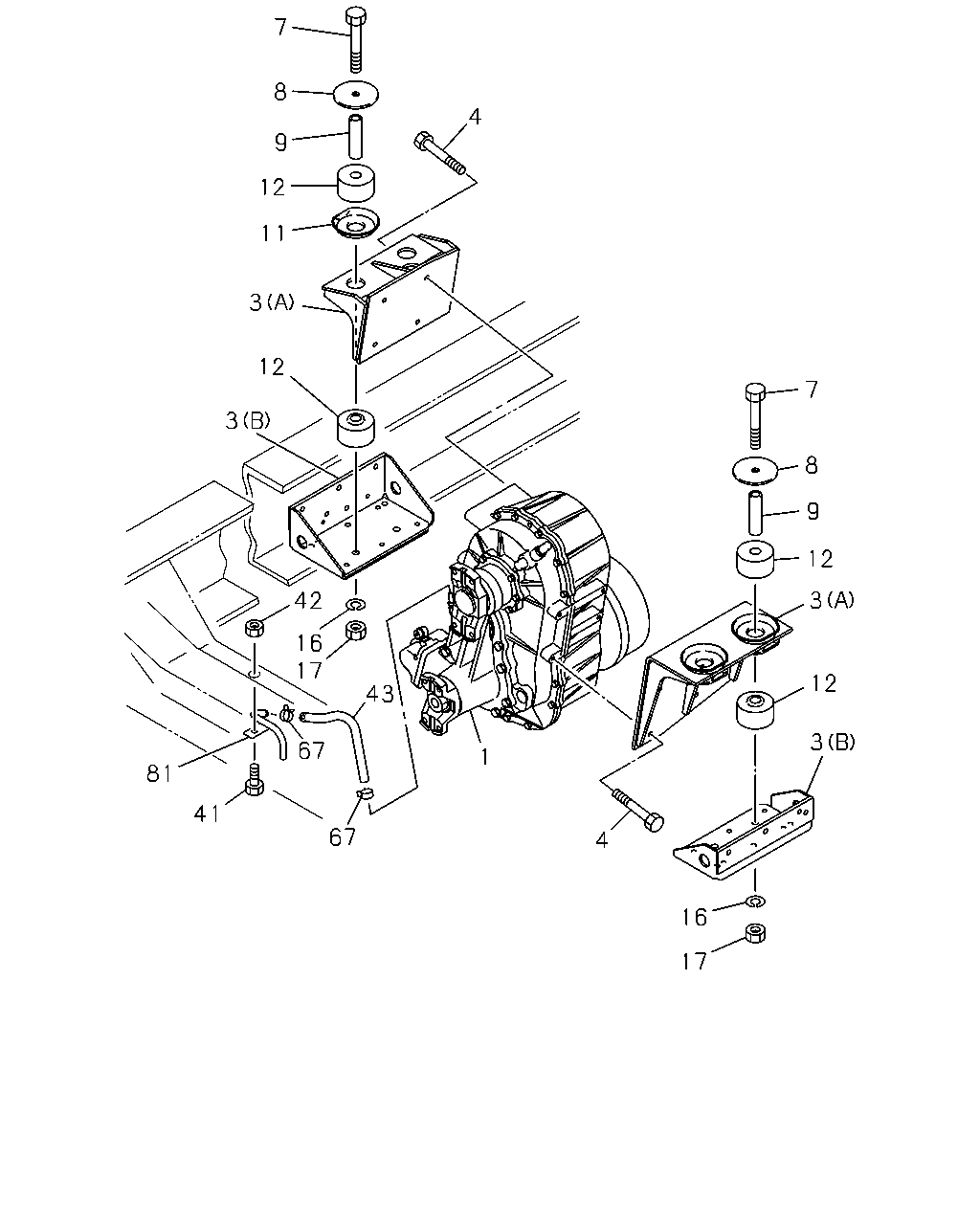

[260A] TRANSFER FIXING (18 parça)
▶
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; TRANSFER OVERHAUL
1-87831-339-0
01
1
1011-1312
2
REPAIR KIT; TRANSFER OVERHAUL
1-87831-462-0
01
1
1401-
7
8
4
9
12
11
3
12
7
3
8
9
12
3
42
16
17
12
43
3
67
1
81
41
67
4
16
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSFER ASM
1-36000-737-0
01
1
1011-
3
BRACKET; TRANSFER
(B)
8-97615-988-3
01
1
1011-
3
BRACKET; TRANSFER
(B)
8-97628-322-0
01
1
1011-
3
BRACKET; TRANSFER
(A)
8-98094-081-1
01
1
1011-
3
BRACKET; TRANSFER
(A)
8-98164-977-0
01
1
1011-
4
BOLT; BRKT TO TRANSFER
M12X25 FLANGE
0-28151-225-0
08
1
1011-
7
BOLT; CUSHION RUBBER
1-09000-239-1
04
1
1011-
8
PLATE; CUSHION RUBBER
1-09503-134-0
04
1
1011-
9
PIECE; DIST,CUSHION RUBBER
1-36181-002-0
04
1
1011-
11
SEAT; CUSHION RUBBER
1-36189-070-0
02
1
1011-
12
RUBBER; CUSHION,LWR,TRANSFER
1-36189-040-1
08
1
1011-
16
WASHER; LK,CUSHION RUBBER
ID=16.2
0-91510-616-0
04
1
1011-
17
NUT; CUSHION RUBBER
M16
0-91110-516-0
04
1
1011-
41
BOLT; BRKT,BREATHER
M8X25 FLANGE
0-28650-825-0
01
1
1011-
42
NUT; BRKT,BREATHER
M8 FLANGE
0-91180-108-0
02
1
1011-
43
HOSE; RUBBER,BREATHER
L=325 SERVICED BY L=1800
1-09360-320-0
01
1
1011-
67
CLIP; BAND
ID=14
1-09704-102-0
02
1
1011-
81
PIPE; BREATHER
1-49115-033-0
01
1
1011-
