◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11434 - FTS(PAKISTAN)S-TIRE ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#49819) — 28 parça

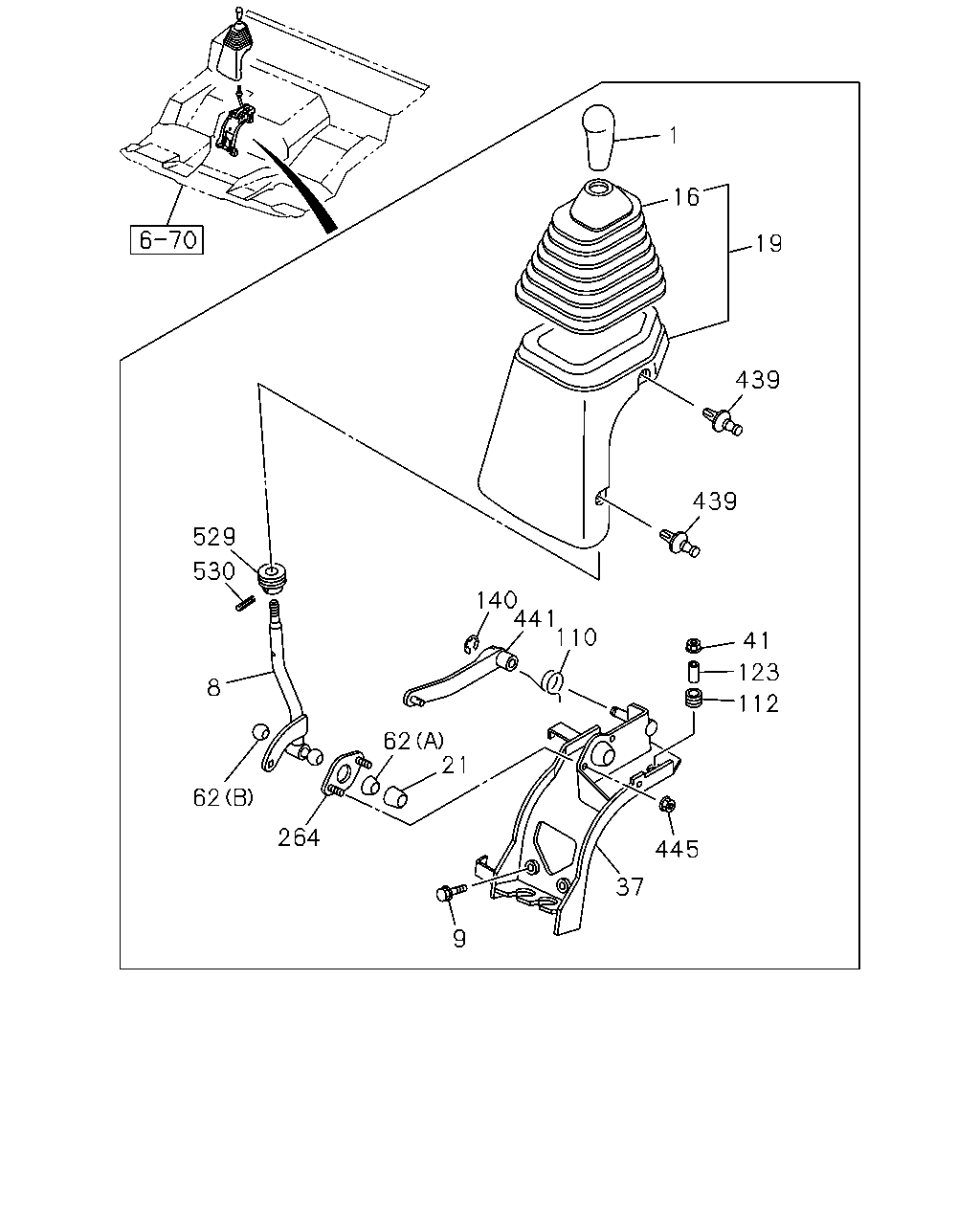

çizim 149042
1 16 19 439 439 529 530 140 441 110 41 123 8 112 62 21 62 264 445 37 9
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 1011-
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1011-1112
8 LEVER; CHANGE 8-98071-282-0 01 1 1201-
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-455-0 01 1 1011-1112
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1011-
16 BOOT; CHANGE LEVER 1-79998-751-4 01 1 1011-
19 COVER; CHANGE LEVER
GRAY 		8-97407-954-0 01 1 1011-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1011-
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-302-0 01 1 1011-1112
37 BRACKET; CHANGE LEVER SUPPORT 8-98071-302-0 01 1 1201-
37 BRACKET; CHANGE LEVER SUPPORT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-444-0 01 1 1011-1112
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 1011-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1011-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 1011-
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1011-1112
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 1201-
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 1011-1112
112 RUBBER; CUSHION 1-33619-442-0 04 1 1011-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1011-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1011-
264 PLATE; COVER 1-33619-430-0 01 1 1011-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1011-
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1011-1112
441 LEVER; SELECT 8-98071-283-0 01 1 1201-
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		8-98093-449-0 01 1 1011-1112
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1011-
529 RING; BOOT 1-33619-504-0 01 1 1011-
530 PIN; SPRING 1-33619-505-0 01 1 1011-
