2-05 — CLUTCH PIPING (#49811) — 24 parça

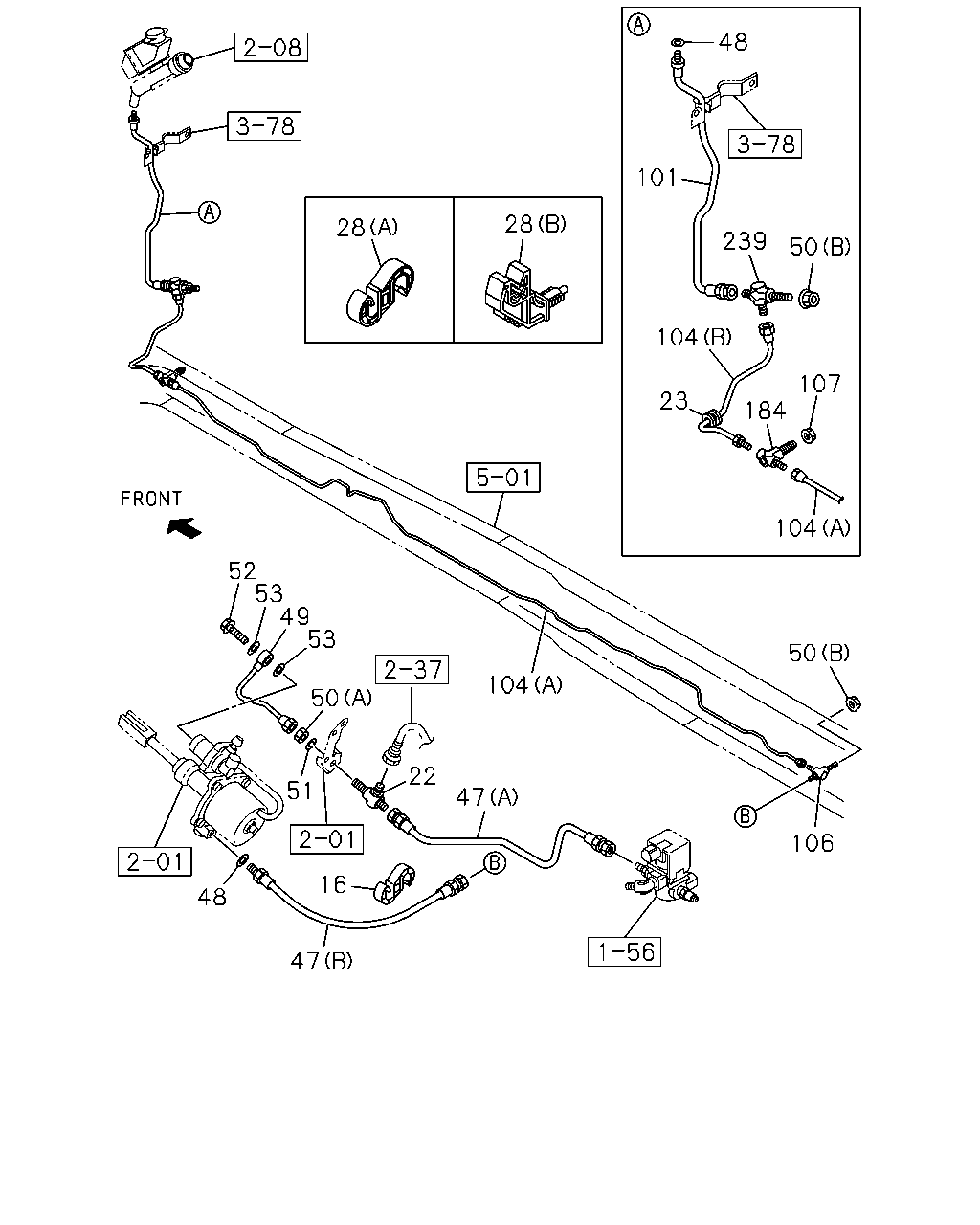

çizim 149037
48 101 28 28 239 50 104 107 23 184 104 52 53 49 53 50 104 50 22 51 47 106 16 48 47
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1011-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1011-
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1011-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 04 1 1011-
28 CLIP; OIL PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1011-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=340 		1-09363-617-0 01 1 1011-
47 HOSE; FLEX,CLU CONT
(B) L=530 		8-98072-348-0 01 1 1011-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=420 		1-09363-633-0 01 1 1011-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1011-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 1011-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1011-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1011-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1011-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1011-
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 1011-
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 1011-1312
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 1011-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 1011-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 1011-
106 UNION; OIL PIPE
M12 2WAY 		1-09654-059-2 01 1 1011-
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1011-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1011-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1011-
