Isuzu WW
▶
TRUCKS
▶
FTS
▶
11434 - FTS(PAKISTAN)S-TIRE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#49801) — 45 parça
◀

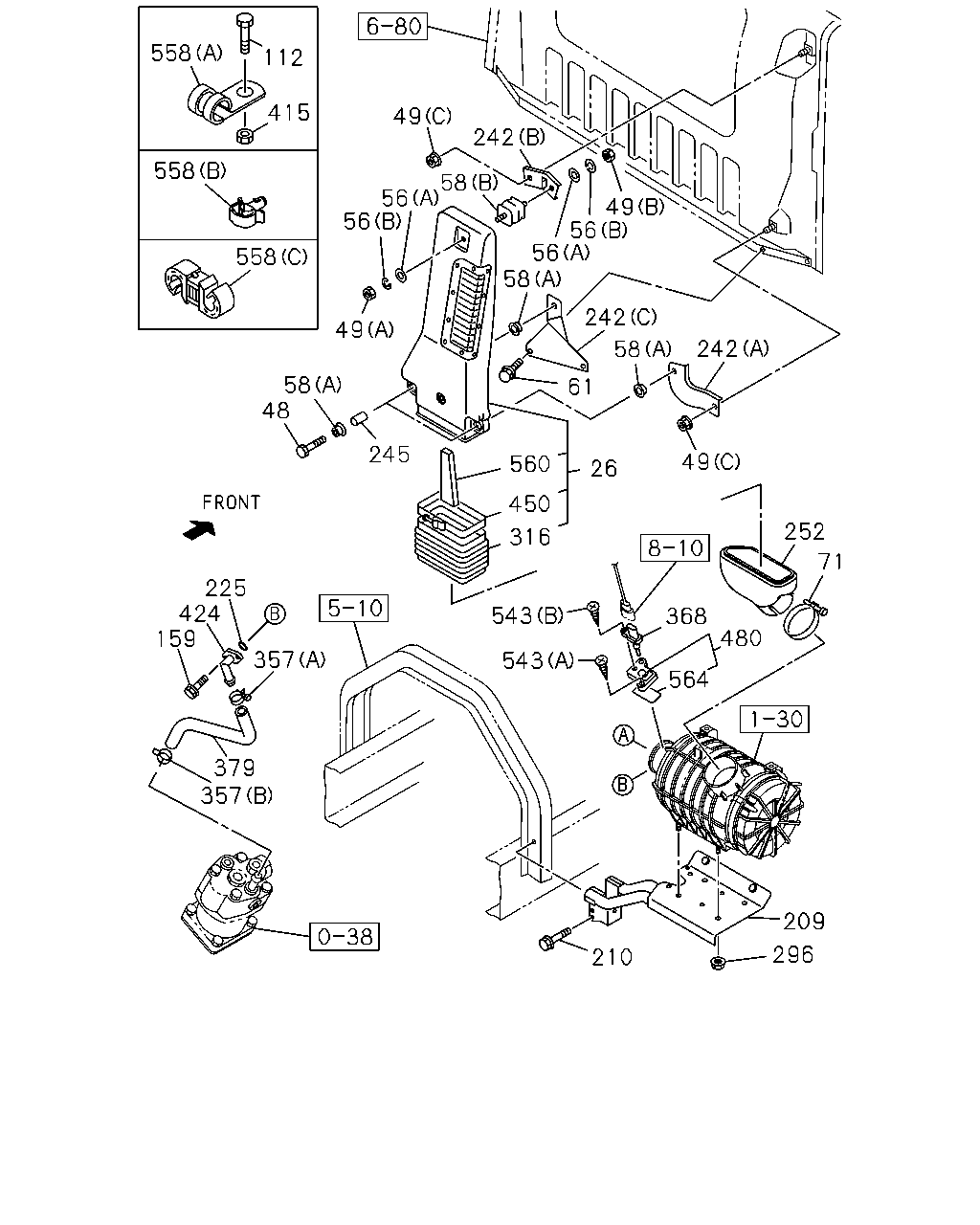

[131A] DUCT FIXING (38 parça)

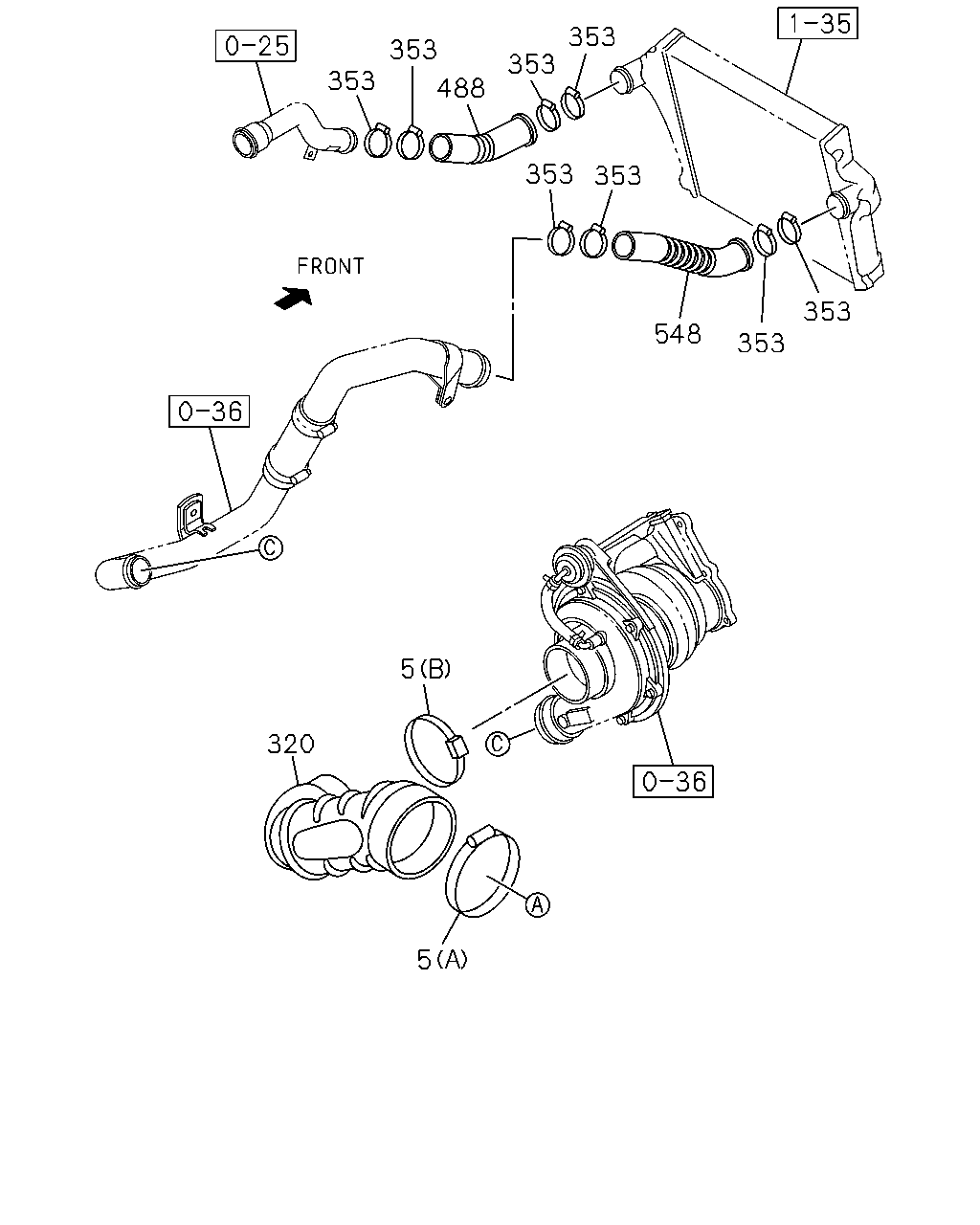

[131A] PIPING (7 parça)
▶
558
112
415
49
242
58
558
56
56
49
56
56
58
558
242
49
242
58
61
58
48
245
49
560
26
450
252
316
71
225
424
159
543
368
480
357
543
564
379
357
209
296
210
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1011-
48
BOLT; AIR DUCT
M10X26
1-09030-044-1
02
1
1011-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1011-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1011-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1011-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1011-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1011-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1011-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1011-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1011-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1011-
112
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
03
1
1011-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1011-
209
BRACKET; ACL
PAK
8-98021-995-1
01
1
1011-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
04
1
1011-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1011-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1011-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1011-
242
BRACKET; AIR DUCT
(A)
8-98019-304-1
01
1
1011-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1011-
252
DUCT; AIR INT
8-98012-861-1
01
1
1011-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1011-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1011-
357
CLIP; RUBBER HOSE
(A) ID=26
1-09707-091-0
01
1
1011-
357
CLIP; RUBBER HOSE
(B) ID=29.5
8-97354-979-0
01
1
1011-
368
SENSOR; TEMP
8-98065-377-0
01
1
1011-
379
HOSE; RUBBER
8-97619-196-0
01
1
1011-
415
NUT; CLIP
M8 FLANGE
0-91180-108-0
03
1
1011-
424
PIPE; AIR,INL
8-98081-834-0
01
1
1011-
450
CLAMP; HOSE
9-09915-504-1
01
1
1011-
480
ADAPTER
8-98086-417-0
01
1
1011-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1011-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1011-
558
CLIP; AIR FLOW SENSOR
(A) ID=15 L=28
1-09701-216-0
03
1
1011-
558
CLIP; AIR FLOW SENSOR
(C) ID=10 & 15
1-09709-279-1
01
1
1011-
558
CLIP; AIR FLOW SENSOR
(B) ID=5-12 L=14.5
1-09987-221-0
01
1
1011-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1011-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1011-
353
353
353
353
488
353
353
353
548
353
5
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
(A) ID=110-130
8-98133-359-0
01
1
1011-
5
CLIP; AIR DUCT
(B) ID=90-110
8-98133-365-0
01
1
1011-
320
HOSE; CONN,ACL
8-98073-260-0
01
1
1011-
353
CLIP; RUBBER HOSE
ID=55-75
8-98133-349-0
08
1
1011-
488
HOSE; RUBBER,PIPE
8-98050-686-0
01
1
1011-
548
HOSE; RUBBER,TURBO TO INL PIPE
8-98050-685-0
01
1
1011-1101
548
HOSE; RUBBER,TURBO TO INL PIPE
PAK
8-98181-975-1
01
1
1102-
