Isuzu WW
▶
TRUCKS
▶
FTS
▶
11434 - FTS(PAKISTAN)S-TIRE
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-10 - RADIATOR
▶

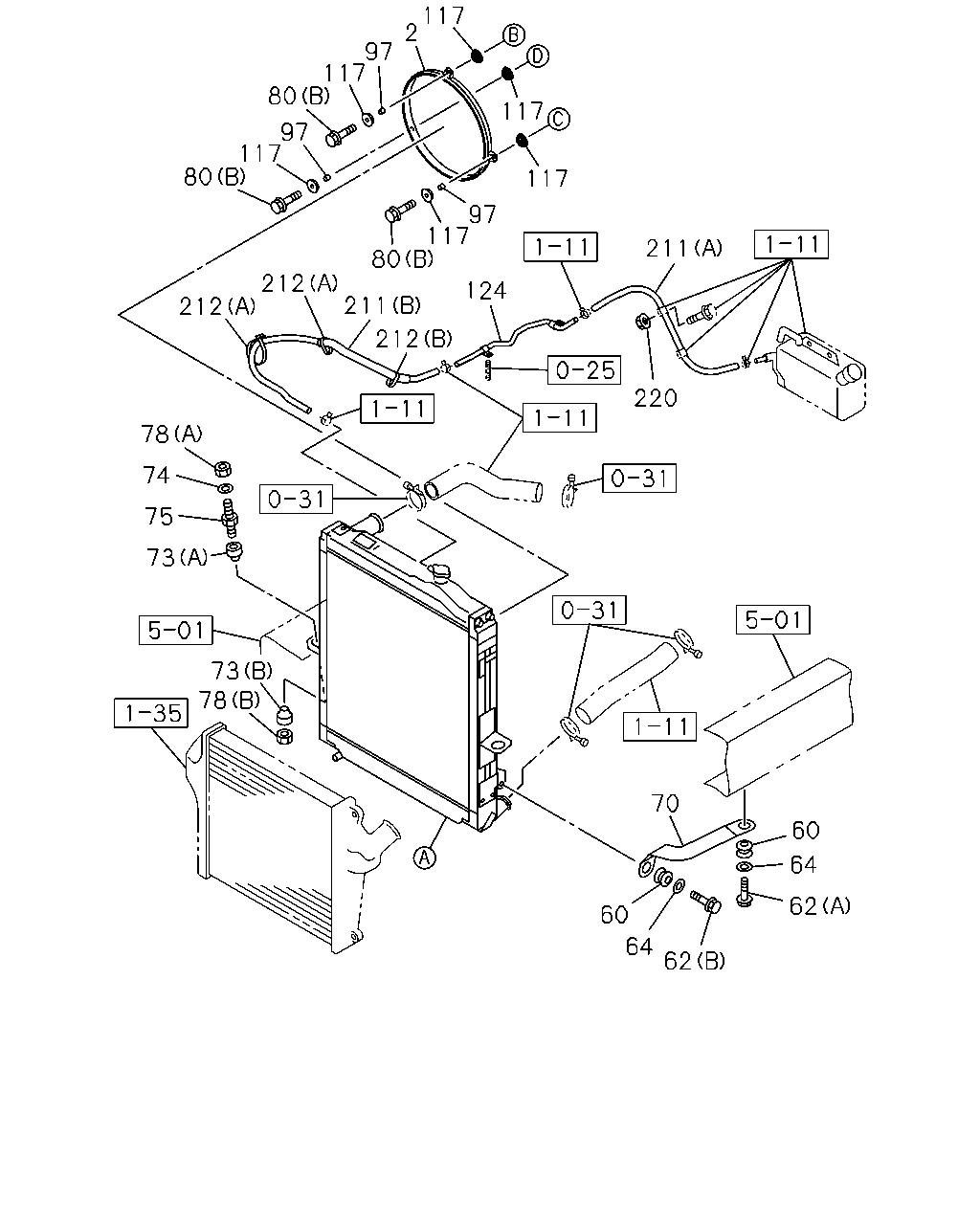

1-10 — RADIATOR
(#49798) — 81 parça
◀
[110A] NO.1 (23 parça)
[110A] NO.2 (23 parça)
[110A] NO.3 (28 parça)
[110A] NO.4 (7 parça)
▶
117
2
97
117
80
117
97
117
80
117
97
117
80
211
212
211
124
212
212
220
78
74
75
73
73
78
70
60
64
62
60
64
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GUIDE; FAN
8-94393-779-1
01
1
1011-
60
GROMMET
1-09332-117-0
04
1
1011-
62
BOLT; STAY
(A) M8X30
1-09009-020-1
02
1
1011-
62
BOLT; STAY
(B) M8X26
1-09009-175-0
02
1
1011-
64
WASHER; STAY TO RAD
ID=12.5 OD=26
0-91610-612-0
04
1
1011-
70
STAY; RAD
PAK
8-98055-806-0
01
1
1011-
70
STAY; RAD
PAK
8-98055-807-0
01
1
1011-
73
RUBBER; CUSHION,RAD MTG
(A) T=14
1-21467-004-0
02
1
1011-
73
RUBBER; CUSHION,RAD MTG
(B) T=24
1-21467-011-1
02
1
1011-
74
WASHER; PL,CUSHION RUBBER
ID=11 OD=54
1-09503-154-2
02
1
1011-
75
BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5
1-21466-007-3
02
1
1011-
78
NUT; CUSHION RUBBER
(A) M10 FLANGE
0-91180-210-0
02
1
1011-
78
NUT; CUSHION RUBBER
(B) M12 FLANGE
0-91180-212-0
02
1
1011-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1011-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1011-
97
TUBE; DIST,FAN GUIDE
9-09651-072-0
03
1
1011-
117
RUBBER; MTG,FAN GUIDE
OD=32
8-94395-766-0
06
1
1011-
124
PIPE; WATER,TANK TO RAD
8-97611-022-1
01
1
1011-
211
HOSE; RAD TO PIPE
(B) L=940
8-98073-544-0
01
1
1011-
211
HOSE; RAD TO PIPE
(A) L=560
8-98119-375-0
01
1
1011-
212
CLIP; HOSE
(A) L=250
5-09707-030-1
02
1
1011-
212
CLIP; HOSE
(B) L=140
5-09707-031-1
01
1
1011-
220
NUT; CLIP
M8 FLANGE
0-91180-108-0
01
1
1011-

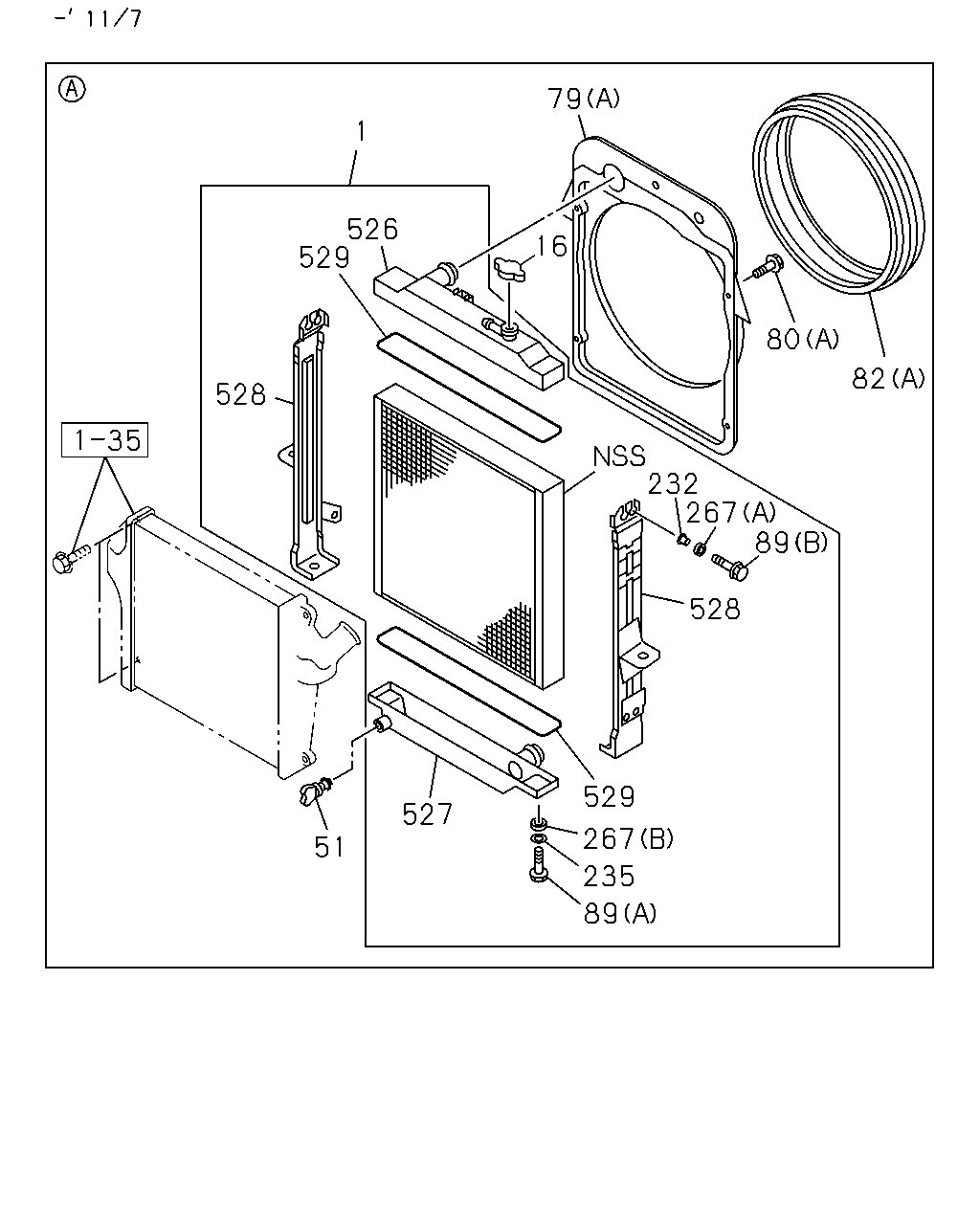

79
526
529
528
51
527
529
267
235
89
528
89
267
232
82
80
16
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98098-561-0
01
1
1011-1107
1
RADIATOR ASM
8-98190-403-0
01
1
1108-1503
1
RADIATOR ASM
8-98309-945-0
01
1
1504-
16
CAP; RAD
8-98096-226-0
01
1
1011-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1011-
79
GUIDE; FAN,RAD
(A)
8-98053-097-0
01
1
1011-1107
79
GUIDE; FAN,RAD
(A)
8-98190-310-0
01
1
1108-1503
79
GUIDE; FAN,RAD
(B)
8-98273-633-0
01
1
1504-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1011-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1011-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1011-1503
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1504-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1011-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1011-
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1011-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1011-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1011-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1011-
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1011-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
1011-
528
PLATE; SIDE,RADIATOR CORE
8-98010-372-4
01
1
1011-
528
PLATE; SIDE,RADIATOR CORE
8-98098-554-0
01
1
1011-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1011-

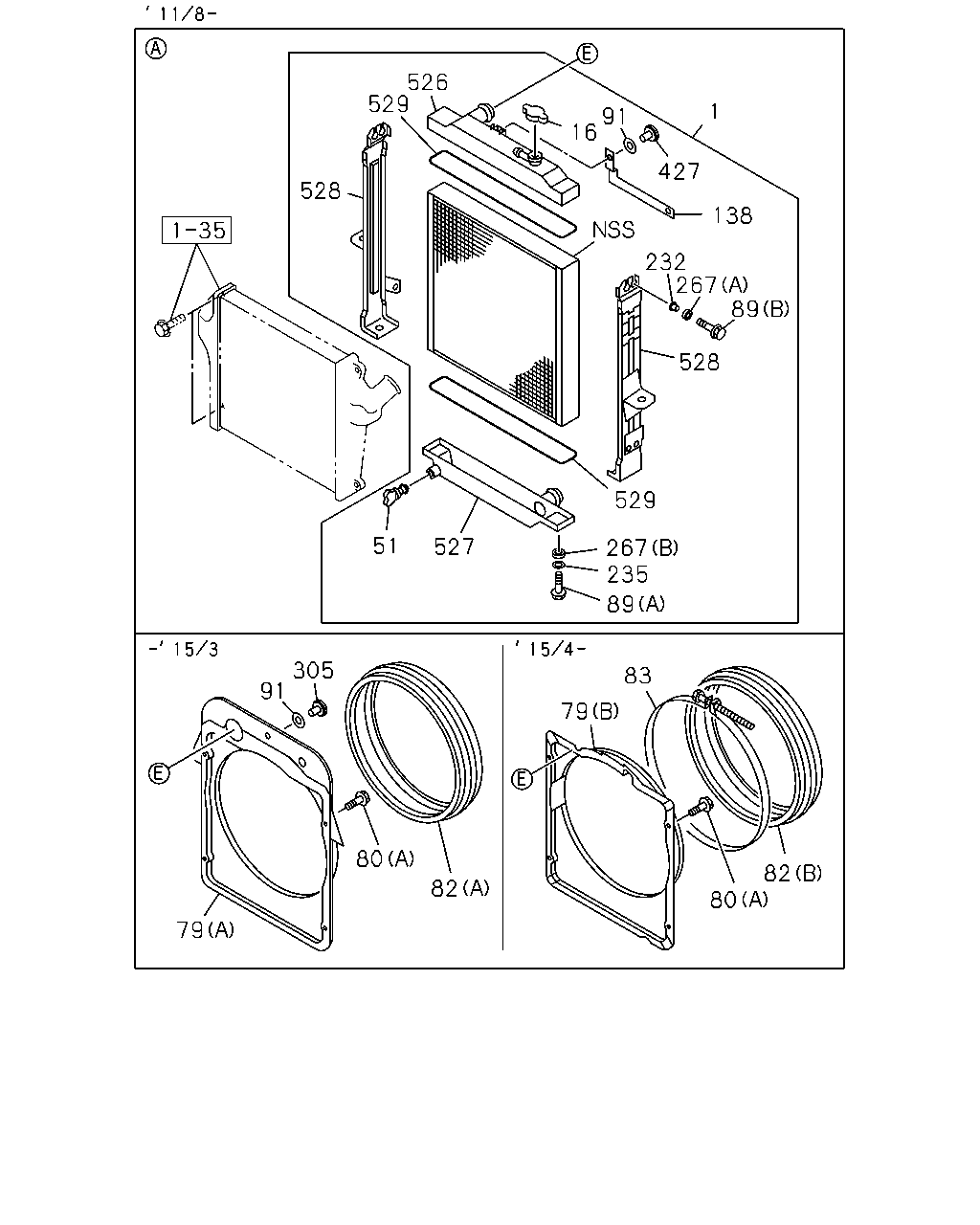

138
1
427
91
16
526
529
528
527
51
529
267
235
89
83
79
82
80
82
80
79
305
91
267
232
89
528
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIATOR ASM
8-98098-561-0
01
1
1011-1107
1
RADIATOR ASM
8-98190-403-0
01
1
1108-1503
1
RADIATOR ASM
8-98309-945-0
01
1
1504-
16
CAP; RAD
8-98096-226-0
01
1
1011-
51
PLUG; DRAIN
W/GASKET
8-97171-437-0
01
1
1011-
79
GUIDE; FAN,RAD
(A)
8-98053-097-0
01
1
1011-1107
79
GUIDE; FAN,RAD
(A)
8-98190-310-0
01
1
1108-1503
79
GUIDE; FAN,RAD
(B)
8-98273-633-0
01
1
1504-
80
BOLT; FAN GUIDE
(A) M8X12 FLANGE
0-28050-812-0
04
1
1011-
80
BOLT; FAN GUIDE
(B) M8X30 FLANGE
0-28650-830-0
03
1
1011-
82
COVER; FAN,RAD
(A)
8-98004-211-0
01
1
1011-1503
82
COVER; FAN,RAD
(B)
8-98293-253-0
01
1
1504-
83
CLIP; FAN COVER
1-09707-177-2
01
1
1504-
89
BOLT
(A) M6X12 FLANGE
0-28050-612-0
02
1
1011-
89
BOLT
(B) M8X25 W/PL WASHER
1-21469-153-0
04
1
1011-
91
WASHER; PL
1-21469-111-0
02
1
1108-1503
138
BRACKET; CLIP
8-98190-314-0
01
1
1108-1503
232
COLLAR; DIST,CUSHION RUBBER
8-98141-232-0
04
1
1011-
235
WASHER; CUSHION RUBBER
1-21469-133-0
02
1
1011-
267
RUBBER; CUSHION
(A)
1-21469-130-0
04
1
1011-
267
RUBBER; CUSHION
(B)
1-21469-131-0
02
1
1011-
305
CLIP; FAN COVER TO FAN GUIDE
1-09470-009-0
01
1
1108-1503
427
CLIP; FAN GUIDE
1-09470-009-0
01
1
1108-1503
526
TANK; UPR,RADIATOR CORE
8-98004-202-2
01
1
1011-
527
TANK; LWR,RADIATOR CORE
8-98004-203-0
01
1
1011-
528
PLATE; SIDE,RADIATOR CORE
8-98010-372-4
01
1
1011-
528
PLATE; SIDE,RADIATOR CORE
8-98098-554-0
01
1
1011-
529
GASKET; CORE,RADIATOR
8-98004-206-0
02
1
1011-
87
96
96
486
87
87
96
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
STAY; FAN GUIDE
(B)
8-94393-776-1
01
1
1011-
87
STAY; FAN GUIDE
(C)
8-94393-778-2
01
1
1011-
87
STAY; FAN GUIDE
(A)
8-97602-988-0
01
1
1011-
96
BOLT; STAY FIX
(B) M8X16 FLANGE
0-28050-816-0
02
1
1011-
96
BOLT; STAY FIX
(A) M10X16 FLANGE
0-28151-016-0
02
1
1011-
100
RUBBER; MTG
8-98148-109-0
01
1
1011-
486
NUT; MTG RUBBER
M8 FLANGE
0-91180-108-0
01
1
1011-
