◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11434 - FTS(PAKISTAN)S-TIRE ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-39 - AIR COMPRESSOR; BRAKE ▶
0-39 — AIR COMPRESSOR; BRAKE (#49786) — 26 parça

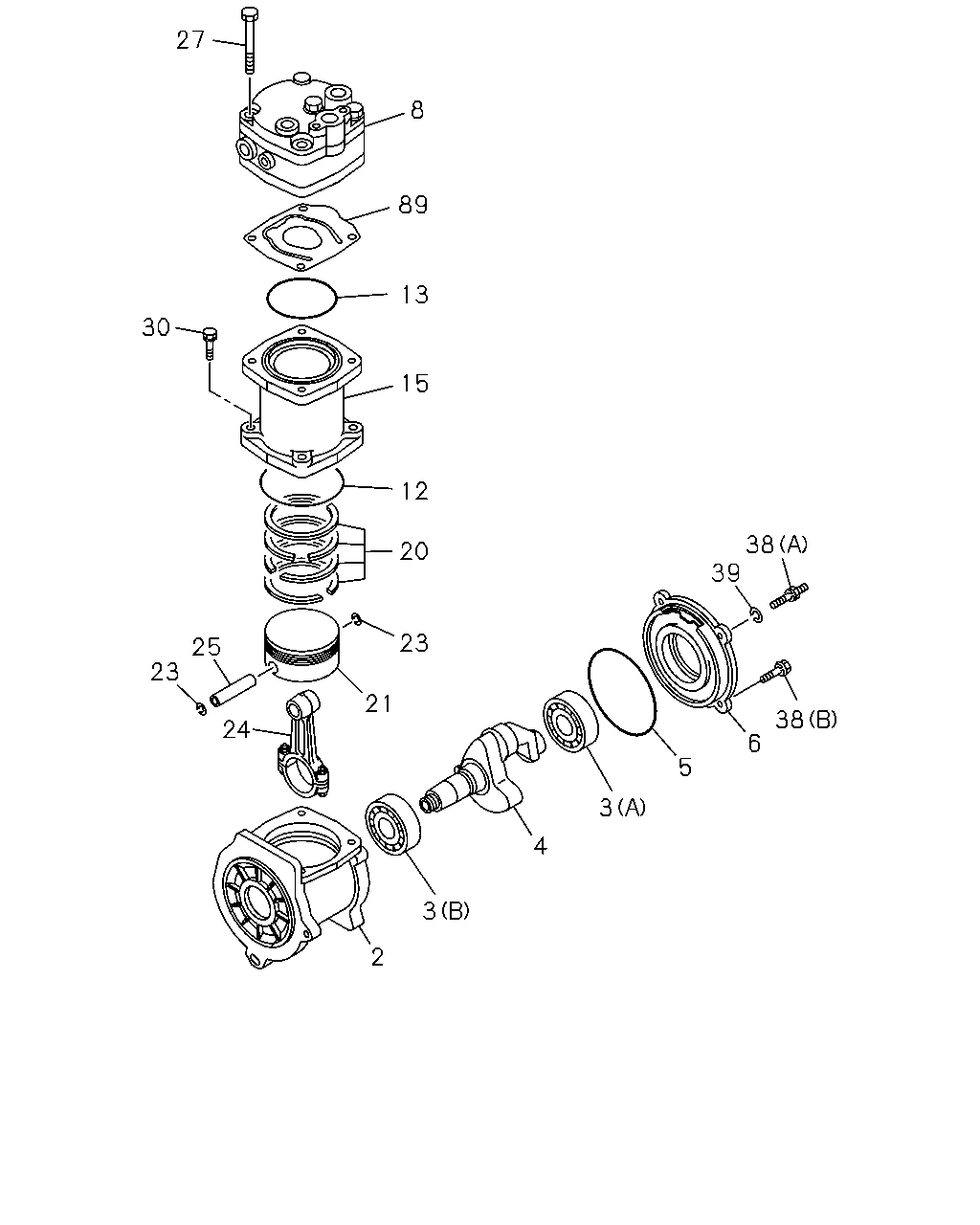

çizim 148991
27 8 89 13 15 12 30 20 23 21 25 23 24 2 3 4 3 5 6 38 39 38
BalonParca AdiParca NoAdetTipApplied Date
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 1011-
3 BEARING; AIR CMPR
(A) 		9-00006-206-0 01 1 1011-
3 BEARING; AIR CMPR
(B) 		9-00090-152-0 01 1 1011-
4 CRANKSHAFT; AIR CMPR 1-19171-096-0 01 1 1011-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 1011-1107
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108-
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 1011-
8 HEAD ASM; CYL,AIR CMPR 8-97619-779-1 01 1 1011-1012
8 HEAD ASM; CYL,AIR CMPR 8-98167-014-0 01 1 1101-
12 GASKET; AIR CMPR 1-09623-539-0 01 1 1011-1107
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-
13 GASKET; AIR CMPR 1-09623-615-0 01 1 1011-1107
13 GASKET; AIR CMPR 8-98048-640-0 01 1 1108-
15 CYLINDER; AIR CMPR 8-98038-668-0 01 1 1011-
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 1011-
21 PISTON; AIR CMPR 1-19161-027-0 01 1 1011-
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 1011-
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 1011-
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 1011-
27 BOLT; HD
M10X80 		8-98038-666-0 04 1 1011-1012
27 BOLT; HD
M10X75 		8-98167-018-0 04 1 1101-
30 BOLT; CYL TO CRANKCASE
M10X25 		8-98038-763-0 04 1 1011-
38 BOLT; COVER FIX
(A) 		8-97617-894-0 02 1 1011-
38 BOLT; COVER FIX
(B) M8X20 		8-97617-895-0 02 1 1011-
39 WASHER; LK,COVER FIX 8-97617-893-0 02 1 1011-
89 VALVE; SUCTION 1-19119-045-0 01 1 1011-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
