Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-27B - EXHAUST MANIFOLD
▶

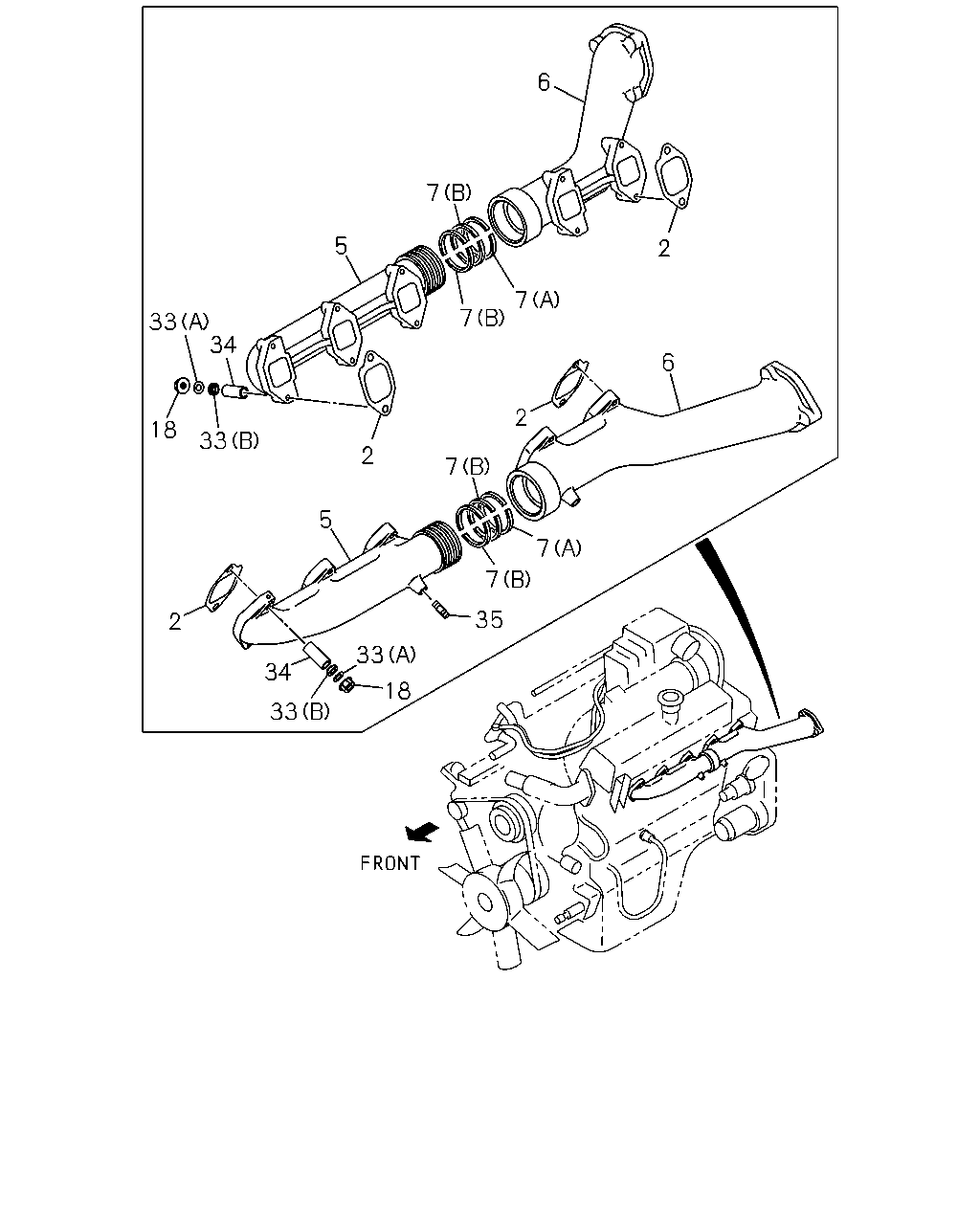

0-27B — EXHAUST MANIFOLD
(#4977) — 22 parça
Tümü
A - 10PE1S
B - 10PE1N
6
7
5
2
7
7
33
34
6
2
18
33
2
7
5
7
7
35
2
33
34
18
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
10
1
9606-9905
●
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-185-0
10
1
9906-
●
5
MANIFOLD; EXH,FRT
1-14141-859-4
02
1
9606-9905
●
5
MANIFOLD; EXH,FRT
1-14141-859-4
02
1
9906-
●
6
MANIFOLD; EXH,RR
1-14141-840-2
01
1
9606-9905
●
6
MANIFOLD; EXH,RR
1-14141-840-2
01
1
9906-
●
6
MANIFOLD; EXH,RR
1-14141-875-2
01
1
9606-9905
●
6
MANIFOLD; EXH,RR
1-14141-875-2
01
1
9906-
●
7
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
9606-9905
●
7
RING; SEAL,EXH MANIF
(A)
1-14149-201-0
02
1
9906-
●
7
RING; SEAL,EXH MANIF
(B)
9-14149-026-0
04
1
9606-9905
●
7
RING; SEAL,EXH MANIF
(B)
9-14149-026-0
04
1
9906-
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
20
1
9606-9905
●
18
NUT; EXH MANIF
M10 FLANGE
0-91150-210-0
20
1
9906-
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
20
1
9606-9905
●
33
WASHER; EXH MANIF
(A) T=2.2
1-09556-015-0
20
1
9906-
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
20
1
9606-9905
●
33
WASHER; EXH MANIF
(B) T=5.5
1-14149-042-0
20
1
9906-
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
20
1
9606-9905
●
34
COLLAR; DIST,EXH MANIF
L=43
1-14149-048-1
20
1
9906-
●
35
STUD; BRKT
M8X16 L=28
9-04110-816-0
01
1
9606-9905
●
35
STUD; BRKT
M8X16 L=28
9-04110-816-0
01
1
9906-
●
