Isuzu WW
▶
TRUCKS
▶
FORWARD
▶
11413 - FORWARD1500(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#49761) — 30 parça
◀

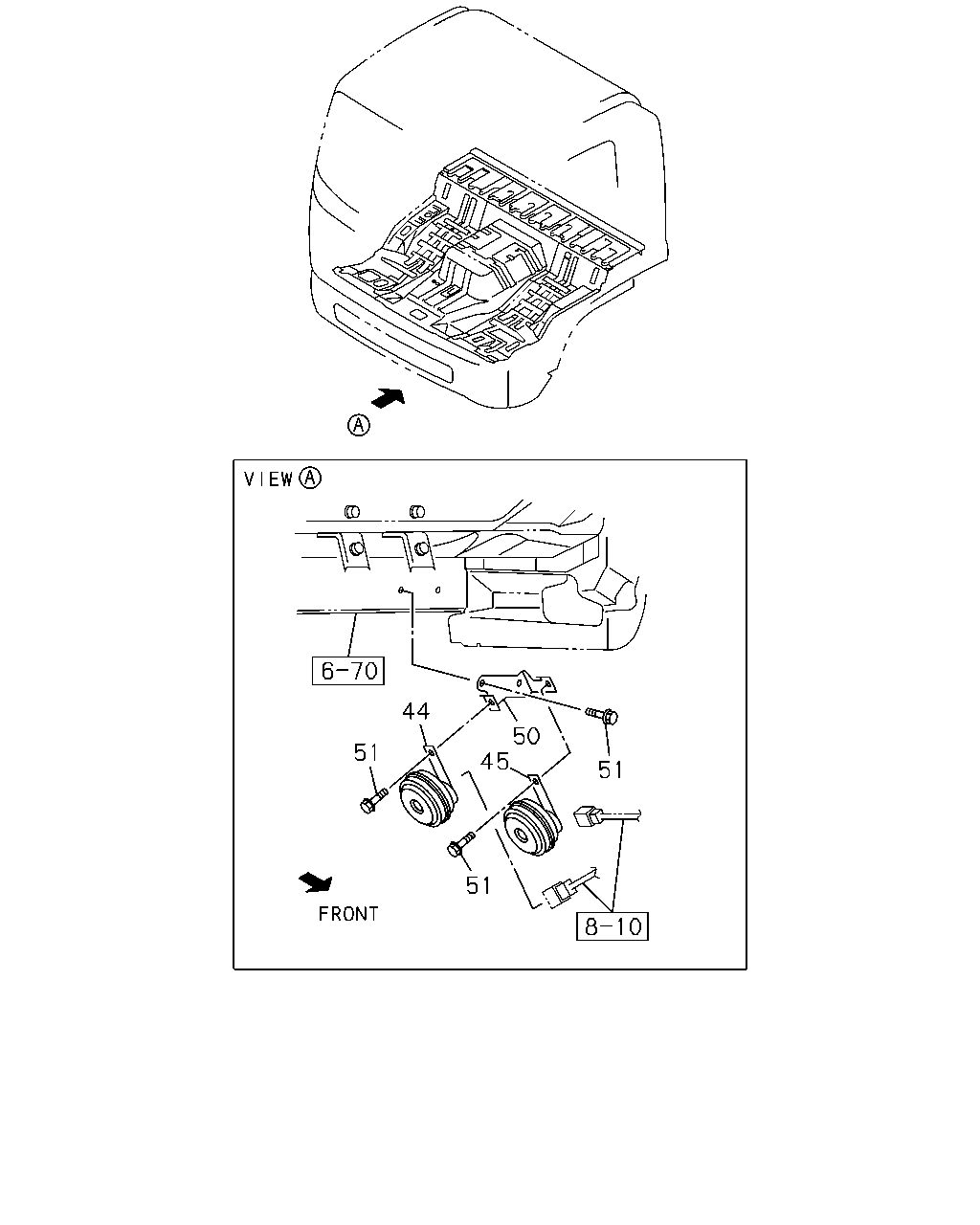

[828A] FRONT SIDE NO.2 (5 parça)

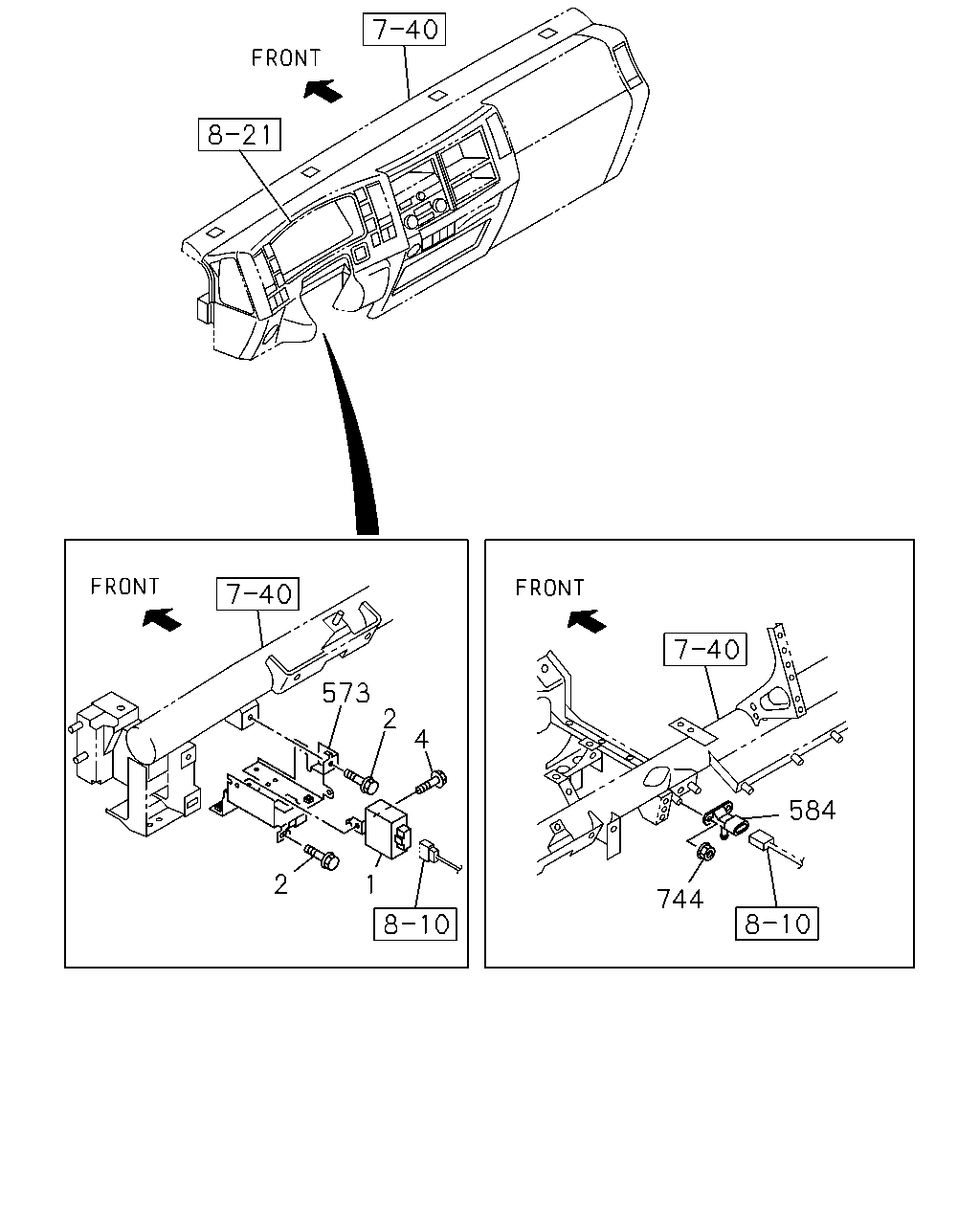

[828A] FRONT SIDE NO.1 (6 parça)

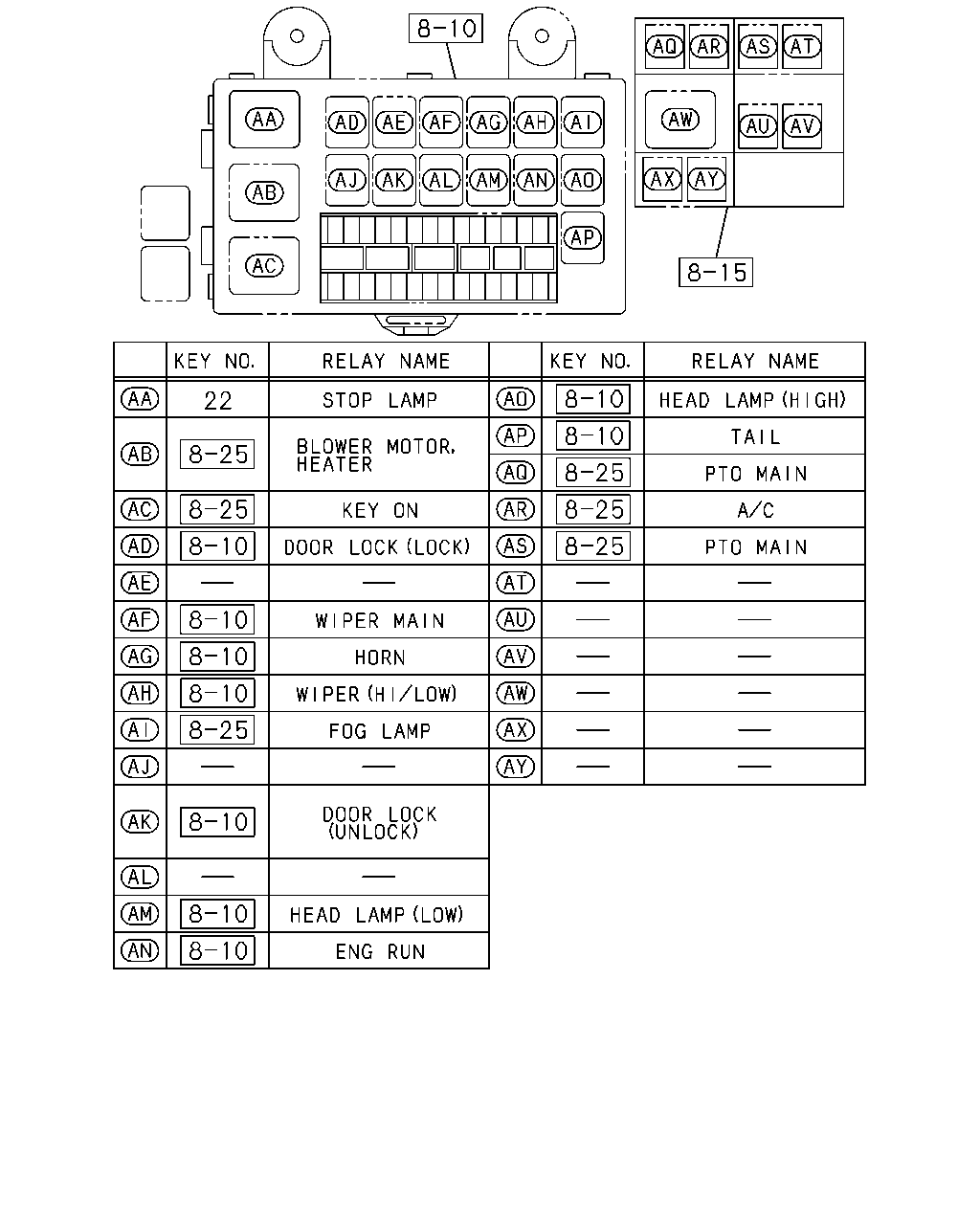

[828A] RELAY;CAB HARNESS (1 parça)
[828A] RELAY;FRAME HARNESS (2 parça)

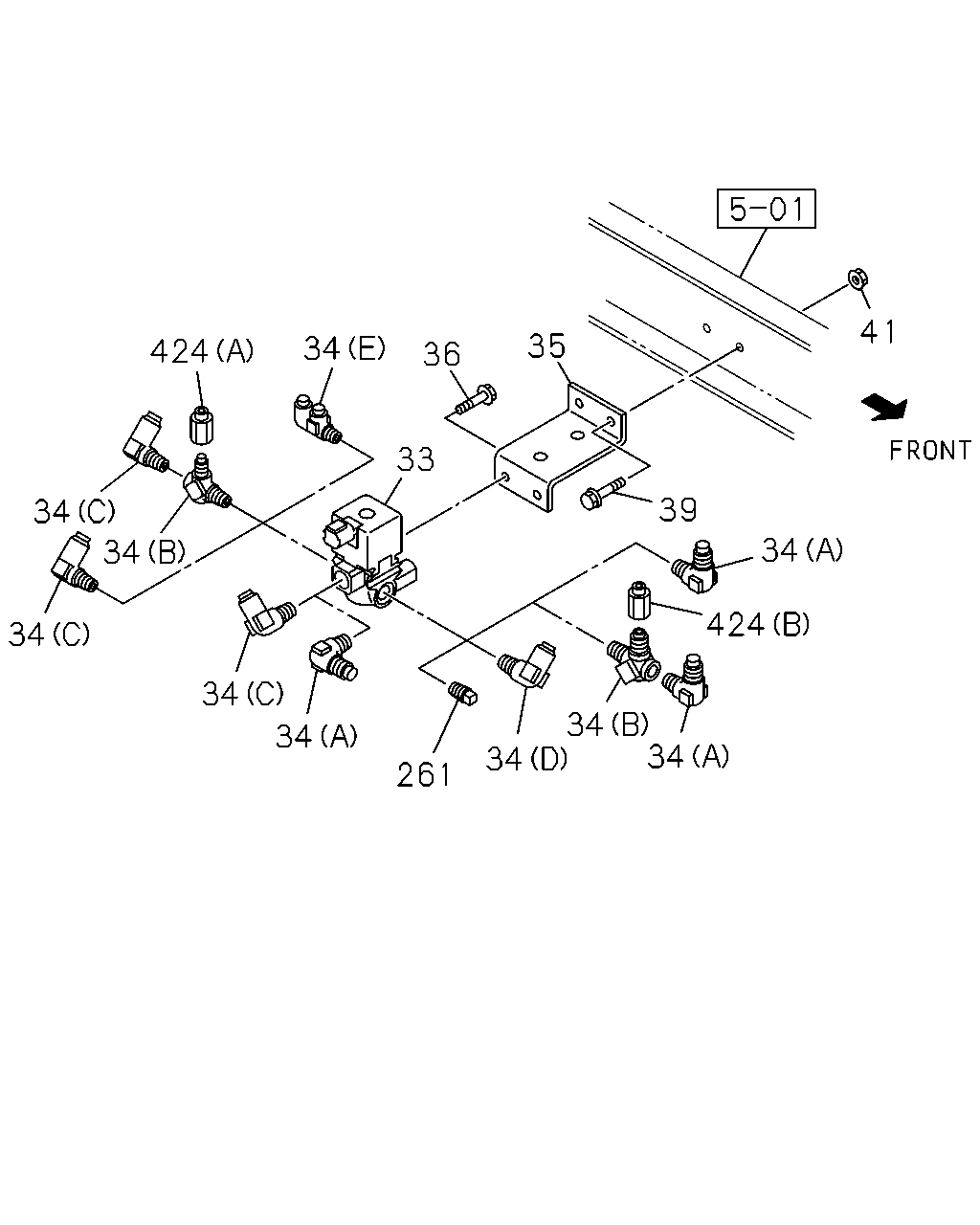

[828A] VALVE;PTO (16 parça)
▶
44
50
45
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
8-98022-022-0
01
1
1106-
45
HORN; LOW NOTE
8-98022-023-0
01
1
1106-
50
BRACKET; HORN
8-97616-529-2
01
1
1106-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1106-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1106-
573
2
4
584
2
1
744
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
1106-
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
1106-
4
SCREW; FLASHER UNIT
BOLT M6X16 FLANGE
0-28650-616-0
01
1
1106-
573
BRACKET; FLASHER UNIT
8-97616-351-3
01
1
1106-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1106-
744
NUT; SENSOR
M6 FLANGE
0-91180-106-0
02
1
1106-
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1106-
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A MITUBA
8-97238-540-0
01
1
1106-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
41
35
34
424
36
33
39
34
34
34
424
34
34
34
34
34
34
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
1-82563-871-2
01
1
1106-
34
CONNECTOR; MAG VLV,INL PORT
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1106-
34
CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. RIGID SEAT WO/ARM REST<TAZ> (D) DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
1106-
34
CONNECTOR; MAG VLV,INL PORT
PTO ZF TRANS RR(BDM) (C) DIN8 & R1/4 ELBOW
1-09660-956-0
02
1
1106-
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
1106-1111
34
CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO WO/LEVER(SH5) (E) DIN13X2 & PT1/4 DOUBLE ELBOW
8-98179-708-0
01
1
1112-
34
CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY
1-09656-586-1
01
1
1106-1111
34
CONNECTOR; MAG VLV,INL PORT
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 & PT1/4 3WAY
1-09656-586-1
01
1
1106-1111
34
CONNECTOR; MAG VLV,INL PORT
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M12 & PT1/4 3WAY
1-09656-586-1
01
1
1112-
35
BRACKET; MAG VLV,PTO CONT
8-98154-633-0
01
1
1106-
36
BOLT; MAG VLV,PTO CONT
M8X20 FLANGE
0-28650-820-0
02
1
1106-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE
0-28650-835-0
02
1
1106-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE
0-91180-108-0
02
1
1106-
261
PLUG; MAG VLV
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) RIGID SEAT WO/ARM REST<TAZ> PT1/4
9-99204-513-0
01
1
1106-
424
ADAPTER
TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1106-1111
424
ADAPTER
ZF9S1110 M/T(Y5E) PTO ZF TRANS RR(BDM) EXC. RIGID SEAT WO/ARM REST<TAZ> (B) DIN6 & M12 STRAIGHT
1-09661-379-0
01
1
1106-
