◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#49760) — 19 parça

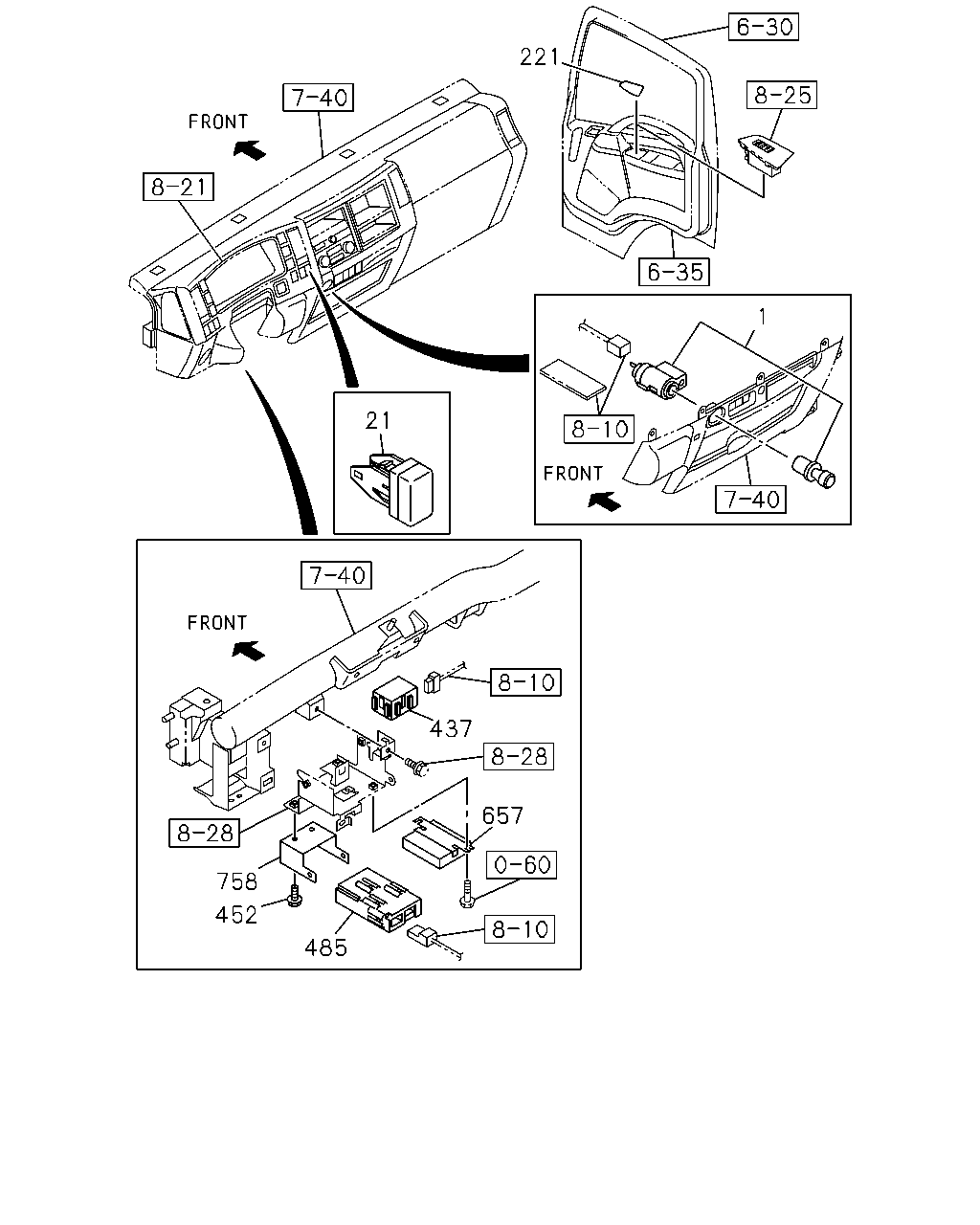

çizim 145135
221 1 21 758 452 485 437 657
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-98142-962-0 01 1 1106-
21 COVER; HOLE 8-98025-954-1 01 1 1106-
221 COVER; HOLE,DOOR LOCK SW 8-98029-915-2 01 1 1106-
221 COVER; HOLE,DOOR LOCK SW 8-98029-916-2 01 1 1106-
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1106-
452 BOLT; BRKT
ZF9S1110 M/T(Y5E) M6X16 FLANGE 		0-28650-616-0 02 1 1106-
485 CONTROL UNIT; SPEED SENSOR
ZF9S1110 M/T(Y5E) 		1-80190-063-0 01 1 1106-
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1106-1401
657 CONTROL UNIT; MIMAMORI 8-98260-912-0 01 1 1402-
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR
ZF9S1110 M/T(Y5E) 		8-98048-743-1 01 1 1106-
çizim 145378
68 69 264 507 507
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1106-
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 1106-
264 BRACKET; CONT UNIT 8-97616-354-5 01 1 1106-
507 CONNECTOR 1-82690-666-0 01 1 1106-

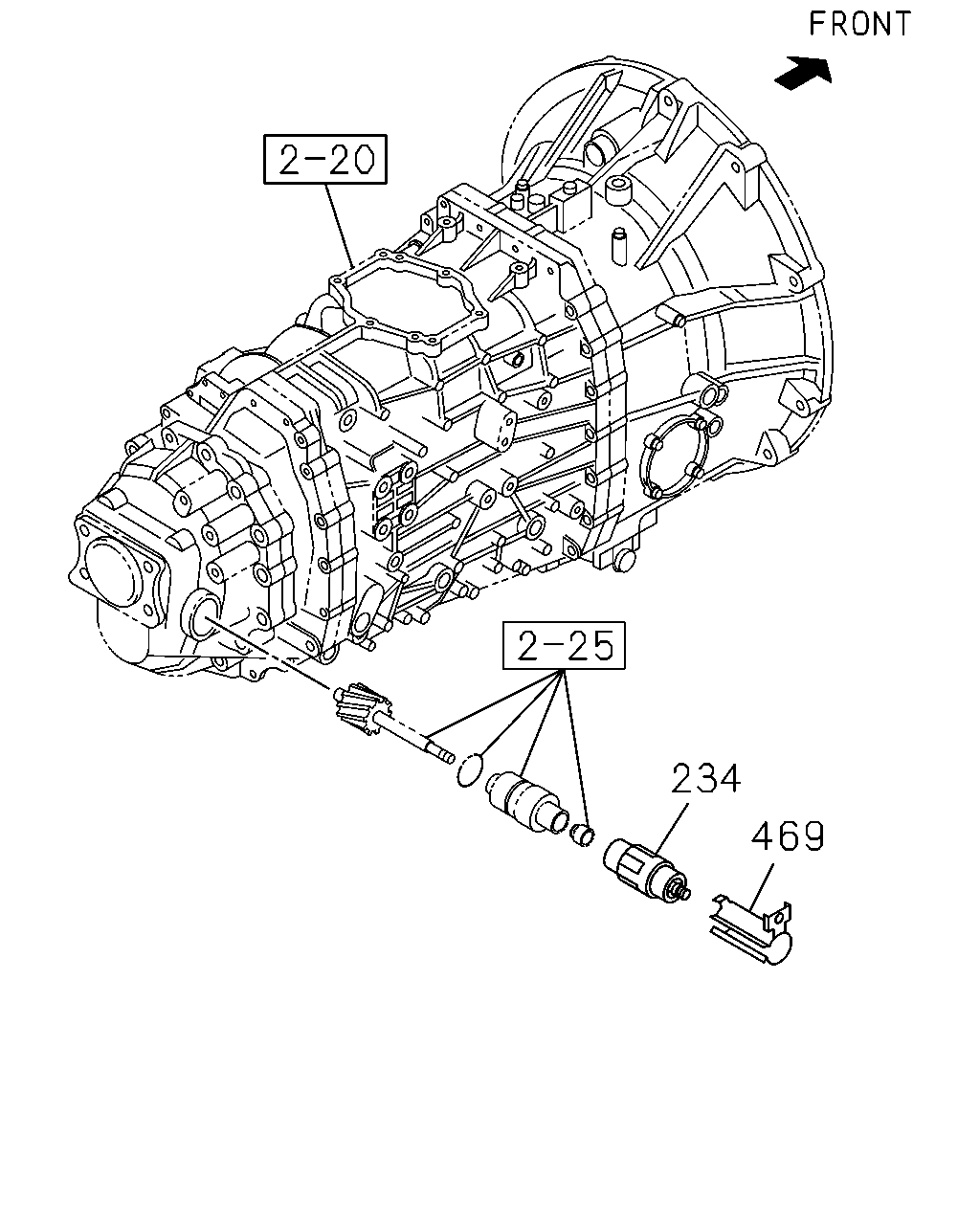

çizim 145416
234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
MZW6P M/T(RSZ) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 1106-
469 PROTECTOR; SPEED SENSOR
MZW6P M/T(RSZ) 		8-98119-901-0 01 1 1106-

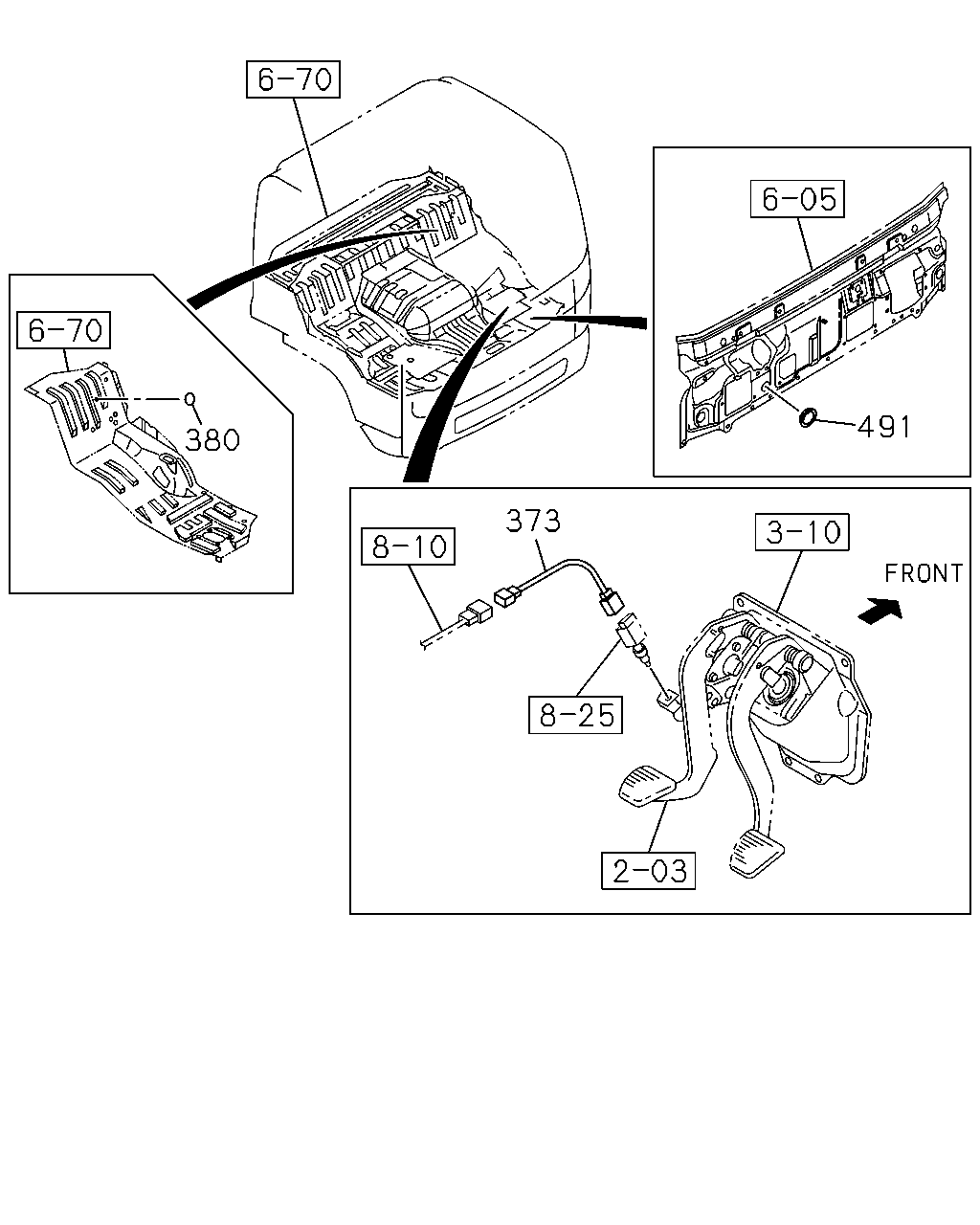

çizim 145419
491 380 373
BalonParca AdiParca NoAdetTipApplied Date
373 HARNESS; CLU SWITCH 8-98110-720-0 01 1 1106-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1106-
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
