8-15 — FIXING PARTS; WIRING HARNESS (#49757) — 191 parça
çizim 145375
137 137 308 308 308 308 312 324 335 428
BalonParca AdiParca NoAdetTipApplied Date
137 BRACKET; HARNESS CLAMP
(B) 		8-97614-728-1 01 1 1106-
137 BRACKET; HARNESS CLAMP
(A) 		8-97624-013-0 01 1 1106-
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1106-
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 1106-
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 1106-
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 1106-
312 BRACKET; CLIP HARNESS 8-97609-110-1 01 1 1106-
324 BRACKET; CLIP 1-47479-430-0 02 1 1212-1212
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 1106-
428 BRACKET 8-97620-514-0 01 1 1106-

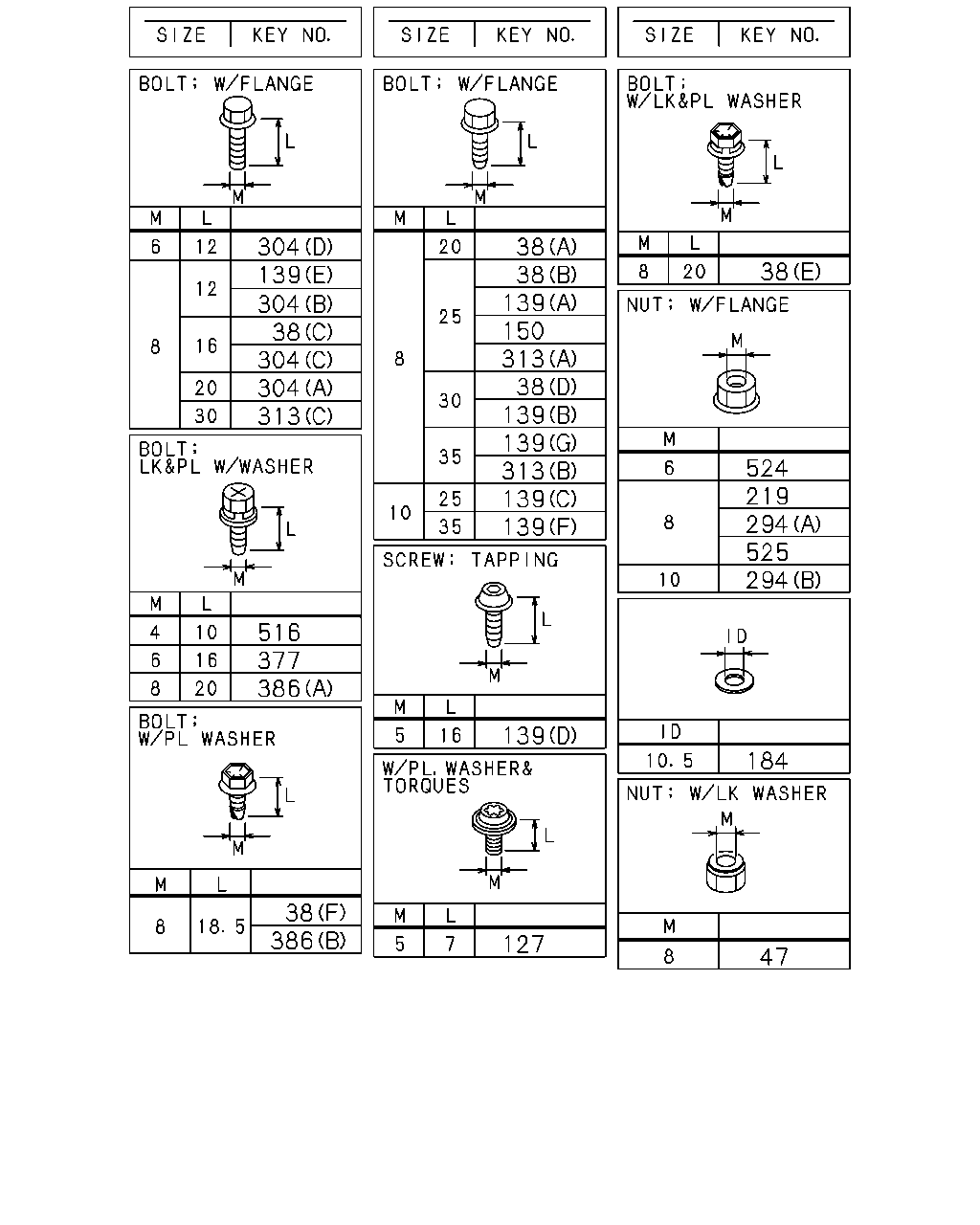

çizim 145376
304 304 139 38 304 304 313 516 377 386 38 386 38 139 313 38 150 38 139 139 313 139 524 38 139 139 127 47 294 219 525 294 184
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1106-
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 1106-
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 1106-
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 1106-1201
38 BOLT; CLIP,HARNESS
(F) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202-
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 02 1 1106-
47 NUT; GEN TERMINAL
M8 W/LK WASHER 		8-94279-050-0 01 1 1409-
127 SCREW; FACIA HARNESS CLIP
M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 1106-
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 1106-
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1106-
139 BOLT; BRKT
MZW6P M/T(RSZ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 1106-
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1106-
139 BOLT; BRKT
(G) M8X35 FLANGE 		0-28650-835-0 01 1 1106-
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 1106-
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 02 1 1106-
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1106-
150 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 1106-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 1106-
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 1106-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 1106-
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 1106-
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 1106-
304 BOLT; ENG HARNESS CLIP
(D) M6X12 FLANGE 		0-28050-612-0 01 1 1106-
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 02 1 1106-
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 1106-
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1106-
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 1106-
313 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 1106-
313 BOLT; BRKT
(B) M8X35 FLANGE 		0-28650-835-0 01 1 1106-
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 1106-
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 1106-1202
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203-
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 1106-
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1106-
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 1106-
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 1106-
çizim 145377
14 14 16 48 206 217 225 14 1 1 538 178 503 530
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 1106-
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 1106-
14 CLIP; BAND,HARNESS
(C) L=350 		1-09707-183-0 01 1 1106-
14 CLIP; BAND,HARNESS
(A) L=250 		5-09707-030-1 13 1 1106-1205
14 CLIP; BAND,HARNESS
(A) L=250 		8-98216-430-0 13 1 1206-
14 CLIP; BAND,HARNESS
(B) L=140 		5-09707-031-1 01 1 1106-1109
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 		1-09700-843-0 02 1 1106-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1106-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1106-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1106-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1106-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1106-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1106-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1106-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1106-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 01 1 1106-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) (C) ID=11 L=61 		1-09700-484-0 01 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 1106-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 02 1 1106-
48 CLIP; FRAME HARNESS
(J) ID=35 L=50 		1-09701-214-0 01 1 1106-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 03 1 1106-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1106-1201
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=15 L=65 		1-09700-466-0 04 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=15 L=65 		1-09700-466-0 07 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 10 1 1106-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 1106-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40 		1-09701-014-0 01 1 1106-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 02 1 1106-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1106-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 01 1 1106-
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 1106-
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 1106-
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 08 1 1106-
503 CONNECTOR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) 		1-82690-668-0 01 1 1106-
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 1106-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306-
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 1106-1305
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306-
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 1106-

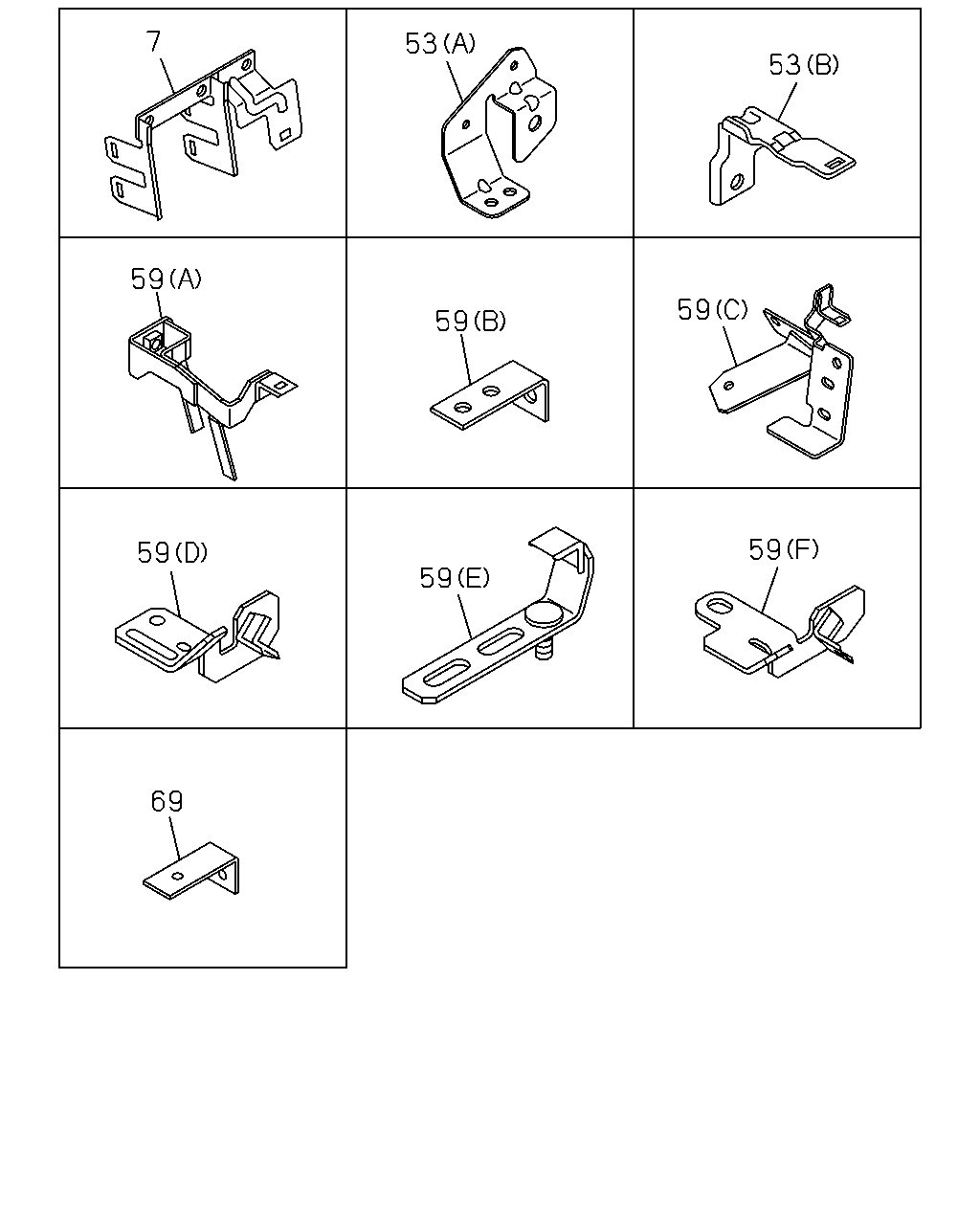

çizim 145380
7 53 53 59 59 59 59 69 59 59
BalonParca AdiParca NoAdetTipApplied Date
7 BRACKET; CONNECTOR 8-98090-846-0 01 1 1106-
53 BRACKET; HARNESS
(B) 		8-98052-458-0 01 1 1106-
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98084-699-0 01 1 1106-
59 BRACKET; FRAME HARNESS
(B) L=62 		1-21464-170-2 01 1 1106-
59 BRACKET; FRAME HARNESS
(A) 		8-97609-264-2 01 1 1106-
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 1106-1502
59 BRACKET; FRAME HARNESS
(F) 		8-98254-592-0 01 1 1503-
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 1106-
59 BRACKET; FRAME HARNESS
(C) 		8-98107-611-0 01 1 1106-
69 BRACKET; CLIP
MZW6P M/T(RSZ) L=55 		1-47475-304-0 01 1 1106-

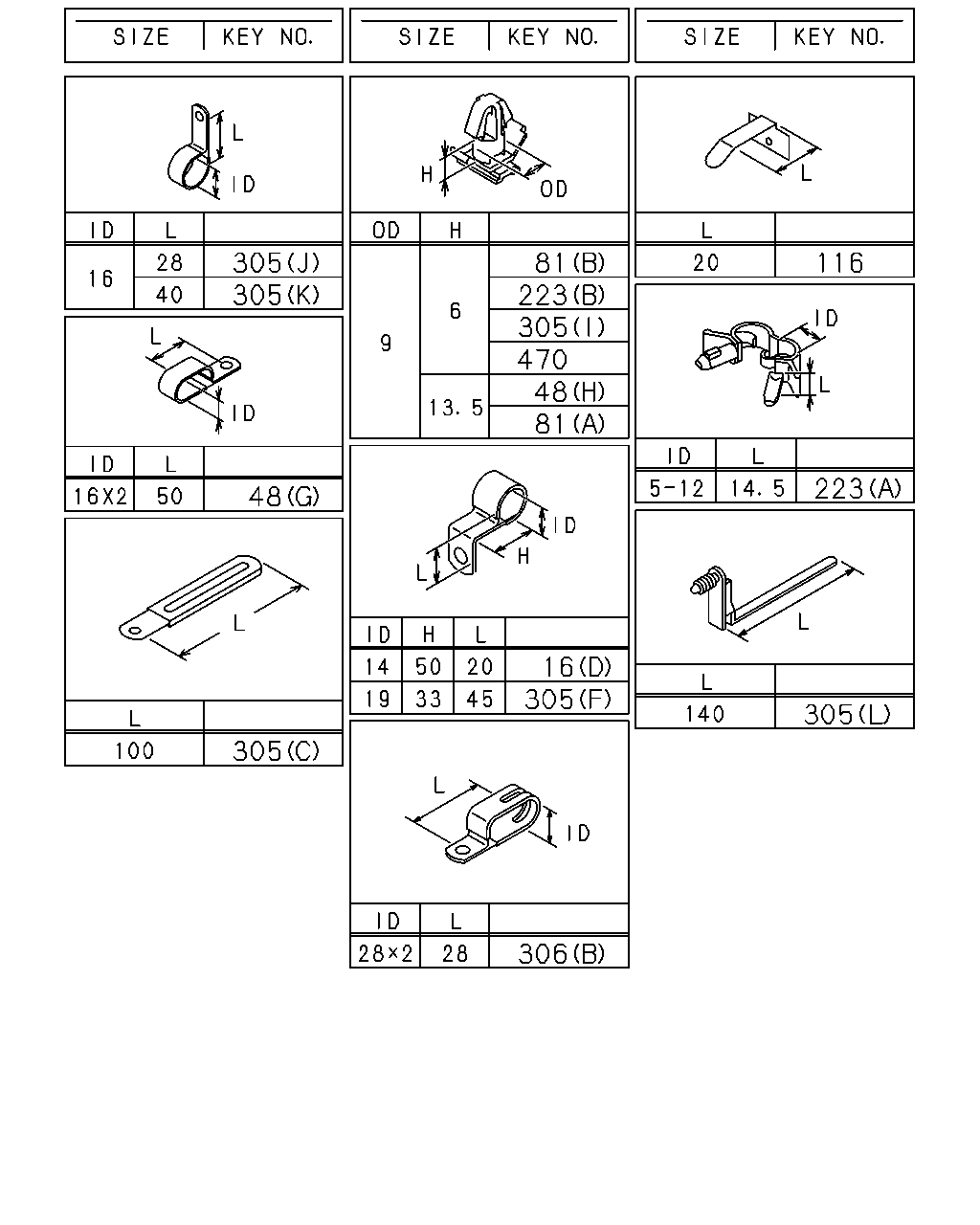

çizim 145402
305 305 81 223 305 470 48 81 116 223 48 16 305 305 305 306
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 		1-09700-843-0 02 1 1106-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1106-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1106-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1106-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1106-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1106-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1106-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1106-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1106-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 01 1 1106-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) (C) ID=11 L=61 		1-09700-484-0 01 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 1106-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 02 1 1106-
48 CLIP; FRAME HARNESS
(J) ID=35 L=50 		1-09701-214-0 01 1 1106-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 03 1 1106-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1106-1201
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=15 L=65 		1-09700-466-0 04 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=15 L=65 		1-09700-466-0 07 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 10 1 1106-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 1106-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40 		1-09701-014-0 01 1 1106-
81 CLIP; HARNESS
MZW6P M/T(RSZ) (B) OD=9 H=6 		1-09709-178-0 01 1 1106-
81 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (A) OD=9 H=13.5 		1-09709-180-0 01 1 1106-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 1106-1201
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1202-
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 1106-
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 1106-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1106-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1106-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1106-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1106-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1106-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1106-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1106-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1106-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1106-
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1106-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1106-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1106-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1106-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1106-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 1106-
çizim 145404
305 48 305 305 306 48 16 305 16 48 213 48 48 48 48 48 305 305 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(D) ID=14 H=50 L=20 		1-09700-843-0 02 1 1106-
16 CLIP; HARNESS
(G) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 1106-
16 CLIP; HARNESS
(H) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 1106-
16 CLIP; HARNESS
(F) L=250 		5-09707-030-1 04 1 1106-
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 1106-
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 1106-
16 CLIP; HARNESS
(E) L=40.6 		8-97229-357-0 02 1 1106-
16 CLIP; HARNESS
(C) 		8-98052-679-0 02 1 1106-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 01 1 1306-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 1106-
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 01 1 1106-
48 CLIP; FRAME HARNESS
MZW6P M/T(RSZ) (C) ID=11 L=61 		1-09700-484-0 01 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 01 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 03 1 1106-
48 CLIP; FRAME HARNESS
(E) ID=28 L=78 		1-09700-858-0 02 1 1106-
48 CLIP; FRAME HARNESS
(J) ID=35 L=50 		1-09701-214-0 01 1 1106-
48 CLIP; FRAME HARNESS
(D) ID=33 L=83 		1-09701-291-0 03 1 1106-
48 CLIP; FRAME HARNESS
(F) L=140 		5-09707-031-1 02 1 1106-
48 CLIP; FRAME HARNESS
(K) ID=20 L=70 		1-09700-485-0 02 1 1106-1201
48 CLIP; FRAME HARNESS
(A) ID=15 L=65 		1-09700-466-0 02 1 1202-
48 CLIP; FRAME HARNESS
(H) OD=9 H=13.5 		1-09709-180-0 01 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (A) ID=15 L=65 		1-09700-466-0 04 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 3900MM(39W) (K) ID=20 L=70 		1-09700-485-0 05 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (A) ID=15 L=65 		1-09700-466-0 07 1 1106-
48 CLIP; FRAME HARNESS
WHEEL BASE 5500MM(55W) (K) ID=20 L=70 		1-09700-485-0 10 1 1106-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (G) ID=16X2 L=50 		0-95325-586-0 01 1 1106-
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (I) ID=14.5 L=40 		1-09701-014-0 01 1 1106-
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 1106-
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 1106-
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 1106-
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 01 1 1106-
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 1106-
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 1106-
305 CLIP; ENG HARNESS
(F) ID=19 H=33 L=45 		1-09701-045-0 01 1 1106-
305 CLIP; ENG HARNESS
(I) OD=9 H=6 		1-09709-178-0 01 1 1106-
305 CLIP; ENG HARNESS
(H) ID=11 L=45 		8-94296-897-1 01 1 1106-
305 CLIP; ENG HARNESS
(C) L=100 		8-94443-021-1 01 1 1106-
305 CLIP; ENG HARNESS
(L) L=140 		8-97122-360-0 01 1 1106-
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 1106-
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60) (G) ID=21 L=47.5 		8-94178-108-0 01 1 1106-
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 1106-
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 1106-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
