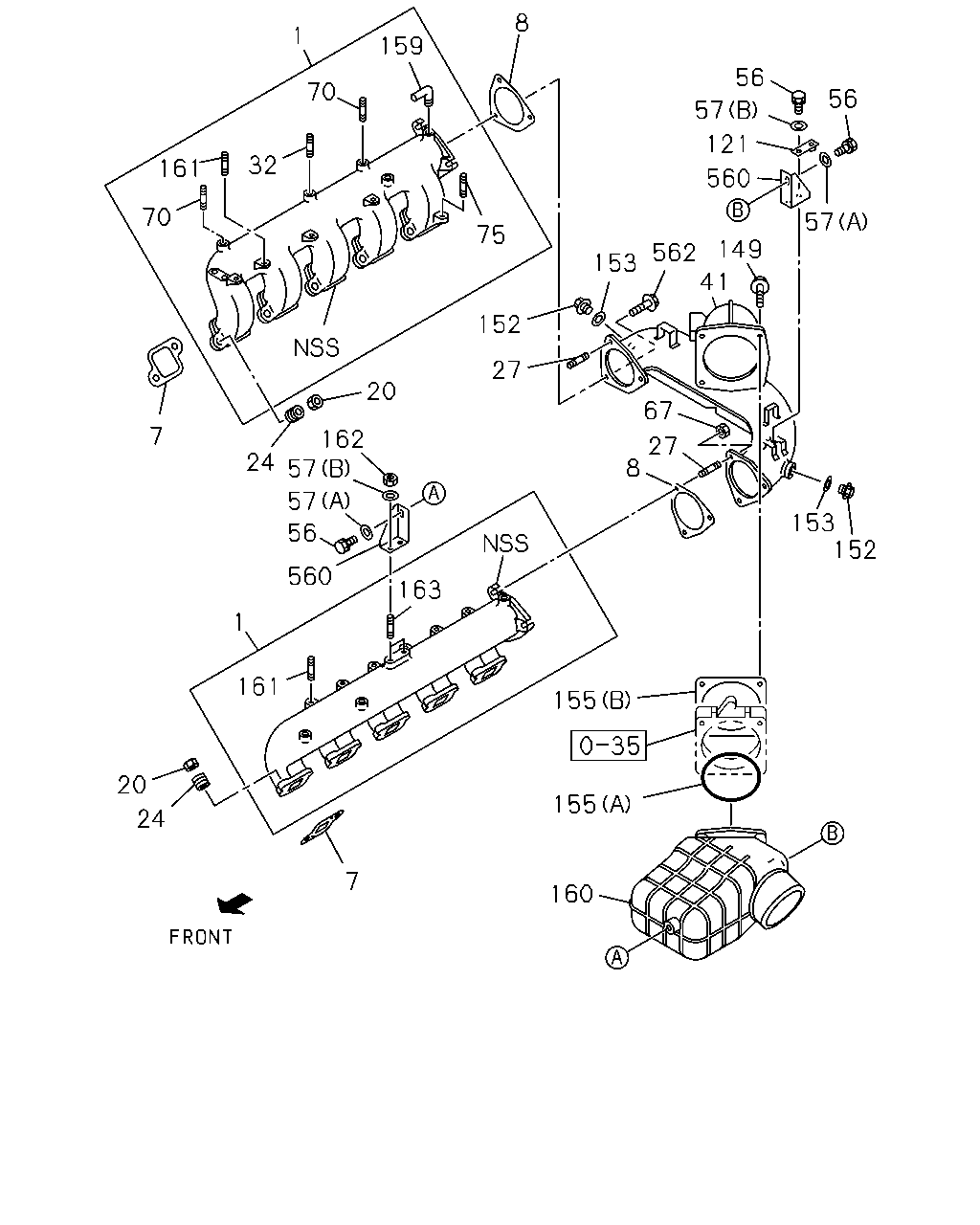

1 |
MANIFOLD; INL
RH BANK
|
1-14112-583-1 |
01 |
1 |
9606-9905 |
● |
|
| |
1 |
MANIFOLD; INL
RH BANK
|
1-14112-583-1 |
01 |
1 |
9906- |
|
● |
| |
1 |
MANIFOLD; INL
LH BANK
|
1-14112-584-2 |
01 |
1 |
9606-9905 |
● |
|
| |
1 |
MANIFOLD; INL
LH BANK
|
1-14112-584-2 |
01 |
1 |
9906- |
|
● |
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14115-026-0 |
10 |
1 |
9606-9905 |
● |
|
| |
7 |
GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14115-026-0 |
10 |
1 |
9906- |
|
● |
| |
8 |
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14117-078-0 |
02 |
1 |
9606-9905 |
● |
|
| |
8 |
GASKET; INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
|
1-14117-078-0 |
02 |
1 |
9906- |
|
● |
| |
20 |
NUT; INL MANIF
M10 FLANGE
|
0-91150-110-0 |
20 |
1 |
9606-9905 |
● |
|
| |
20 |
NUT; INL MANIF
M10 FLANGE
|
0-91150-110-0 |
20 |
1 |
9906- |
|
● |
| |
24 |
SPRING; INL MANIF
|
1-09580-156-0 |
20 |
1 |
9606-9905 |
● |
|
| |
24 |
SPRING; INL MANIF
|
1-09580-156-0 |
20 |
1 |
9906- |
|
● |
| |
27 |
STUD; INL MANIF
M10X35 L=55
|
9-04311-035-0 |
03 |
1 |
9606-9905 |
● |
|
| |
27 |
STUD; INL MANIF
M10X35 L=55
|
9-04311-035-0 |
03 |
1 |
9906- |
|
● |
| |
32 |
STUD; INL PIPE
M8X16 L=28
|
9-04110-816-0 |
01 |
1 |
9606-9905 |
● |
|
| |
32 |
STUD; INL PIPE
M8X16 L=28
|
9-04110-816-0 |
01 |
1 |
9906- |
|
● |
| |
41 |
DUCT; INT COVER
|
1-14134-204-2 |
01 |
1 |
9606-9905 |
● |
|
| |
41 |
DUCT; INT COVER
|
1-14134-204-2 |
01 |
1 |
9906- |
|
● |
| |
56 |
BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
04 |
1 |
9606-9905 |
● |
|
| |
56 |
BOLT; STAY AIR DUCT
M10X20 W/LK&PL WASHER
|
0-50141-020-0 |
04 |
1 |
9906- |
|
● |
| |
57 |
WASHER; PL
(A)
ID=10.5 OD=22
|
9-09160-610-0 |
02 |
1 |
9606-9905 |
● |
|
| |
57 |
WASHER; PL
(A)
ID=10.5 OD=22
|
9-09160-610-0 |
02 |
1 |
9906- |
|
● |
| |
57 |
WASHER; PL
(B)
ID=10.5 OD=26
|
9-09160-710-0 |
04 |
1 |
9606-9905 |
● |
|
| |
57 |
WASHER; PL
(B)
ID=10.5 OD=26
|
9-09160-710-0 |
04 |
1 |
9906- |
|
● |
| |
67 |
NUT; INL DUCT
M10 FLANGE
|
0-91150-110-0 |
03 |
1 |
9606-9905 |
● |
|
| |
67 |
NUT; INL DUCT
M10 FLANGE
|
0-91150-110-0 |
03 |
1 |
9906- |
|
● |
| |
70 |
STUD; WATER PIPE
M8X16 L=28
|
9-04110-816-0 |
02 |
1 |
9606-9905 |
● |
|
| |
70 |
STUD; WATER PIPE
M8X16 L=28
|
9-04110-816-0 |
02 |
1 |
9906- |
|
● |
| |
75 |
STUD; BRKT,AIR PIPE
M10X16 L=31
|
9-04411-016-0 |
01 |
1 |
9606-9905 |
● |
|
| |
75 |
STUD; BRKT,AIR PIPE
M10X16 L=31
|
9-04411-016-0 |
01 |
1 |
9906- |
|
● |
| |
121 |
BRACKET
L=65
|
1-47476-513-0 |
01 |
1 |
9606-9905 |
● |
|
| |
121 |
BRACKET
L=65
|
1-47476-513-0 |
01 |
1 |
9906- |
|
● |
| |
149 |
BOLT; INT SHUTTER
M10X60 FLANGE
|
0-28081-060-0 |
04 |
1 |
9606-9905 |
● |
|
| |
149 |
BOLT; INT SHUTTER
M10X60 FLANGE
|
0-28081-060-0 |
04 |
1 |
9906- |
|
● |
| |
152 |
PLUG; INT DUCT
M22X12
|
1-09604-035-0 |
02 |
1 |
9606-9905 |
● |
|
| |
152 |
PLUG; INT DUCT
M22X12
|
1-09604-035-0 |
02 |
1 |
9906- |
|
● |
| |
153 |
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=22.5
|
9-09571-422-0 |
02 |
1 |
9606-9905 |
● |
|
| |
153 |
GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
ID=22.5
|
9-09571-422-0 |
02 |
1 |
9906- |
|
● |
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=125.4
|
1-13213-012-0 |
01 |
1 |
9606-9905 |
● |
|
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(A)
ID=125.4
|
1-13213-012-0 |
01 |
1 |
9906- |
|
● |
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
1-14117-072-0 |
01 |
1 |
9606-9905 |
● |
|
| |
155 |
GASKET; INL DUCT TO SHUTTER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
(B)
|
1-14117-072-0 |
01 |
1 |
9906- |
|
● |
| |
159 |
PIPE; VENTILATOR
|
1-14119-381-0 |
01 |
1 |
9606-9905 |
● |
|
| |
159 |
PIPE; VENTILATOR
|
1-14119-381-0 |
01 |
1 |
9906- |
|
● |
| |
160 |
DUCT; AIR
|
1-14134-139-4 |
01 |
1 |
9606-9905 |
● |
|
| |
160 |
DUCT; AIR
|
1-14134-139-4 |
01 |
1 |
9906- |
|
● |
| |
161 |
STUD; BRKT,INJ PUMP
M8X20 L=32
|
9-04110-820-0 |
08 |
1 |
9606-9905 |
● |
|
| |
161 |
STUD; BRKT,INJ PUMP
M8X20 L=32
|
9-04110-820-0 |
08 |
1 |
9906- |
|
● |
| |
162 |
NUT; STAY
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9606-9905 |
● |
|
| |
162 |
NUT; STAY
M10 FLANGE
|
0-91150-110-0 |
02 |
1 |
9906- |
|
● |
| |
163 |
STUD; BRKT,ENG SPD CONT
M10X20 L=35
|
9-04411-020-0 |
02 |
1 |
9606-9905 |
● |
|
| |
163 |
STUD; BRKT,ENG SPD CONT
M10X20 L=35
|
9-04411-020-0 |
02 |
1 |
9906- |
|
● |
| |
560 |
BRACKET; AIR PIPE
|
1-14119-336-0 |
02 |
1 |
9606-9905 |
● |
|
| |
560 |
BRACKET; AIR PIPE
|
1-14119-336-0 |
02 |
1 |
9906- |
|
● |
| |
562 |
BOLT; INL DUCT
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9606-9905 |
● |
|
| |
562 |
BOLT; INL DUCT
M10X40 FLANGE
|
0-28181-040-0 |
03 |
1 |
9906- |
|
● |
