7-40 — INSTRUMENT PANEL AND BOX (#49746) — 137 parça

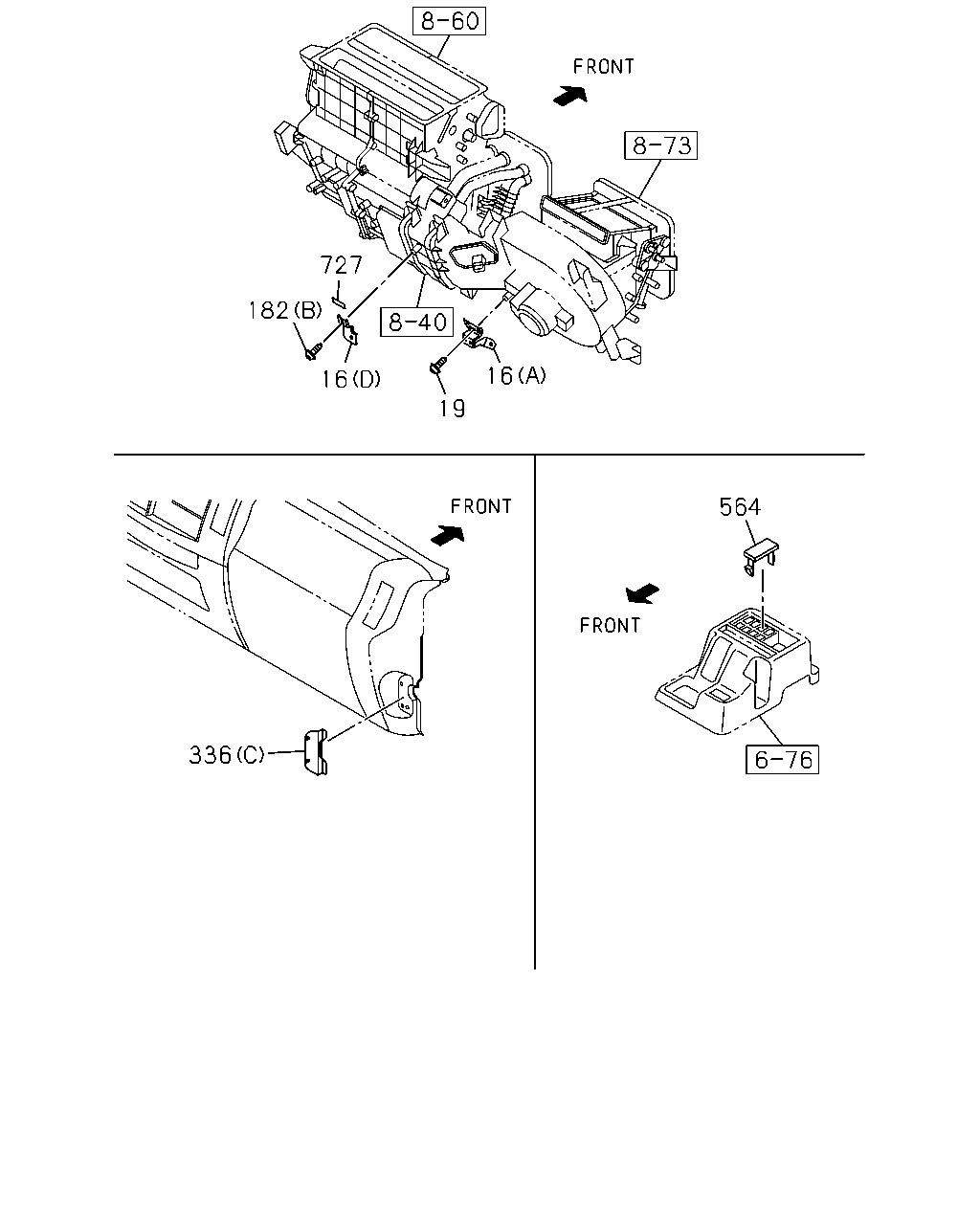

çizim 145360
727 182 16 19 16 564 336
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1106-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1106-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1106-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1106-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 1106-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1106-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1106-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1106-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1106-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1106-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1106-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1106-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1106-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1106-
564 COVER; SW 8-97043-732-1 06 1 1106-
727 SEAL; BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) 		8-98186-934-0 01 1 1209-

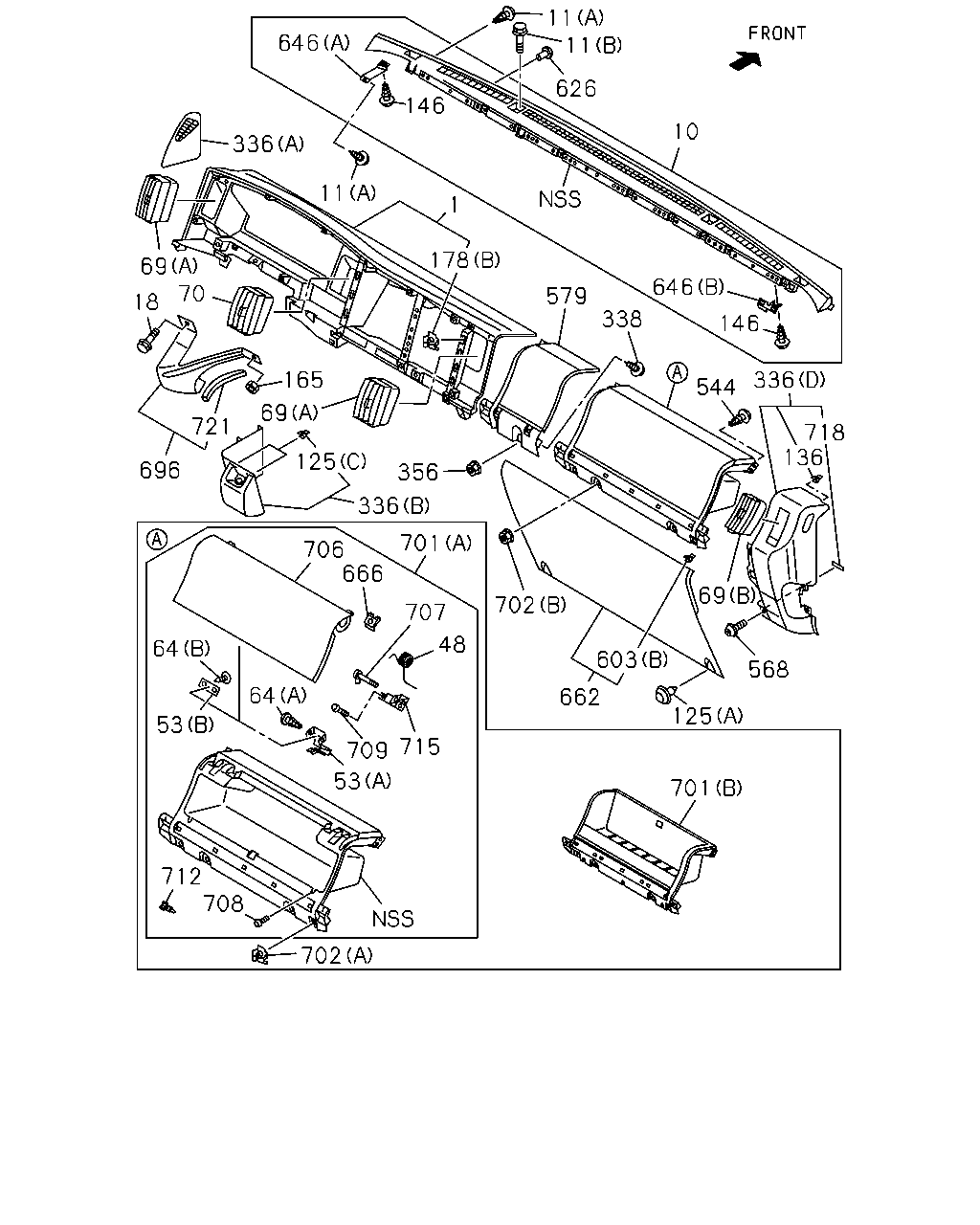

çizim 145399
646 146 626 11 11 10 646 544 336 146 718 136 69 568 603 125 701 662 702 48 707 701 356 336 706 64 709 53 702 708 712 715 666 64 53 696 721 69 165 70 69 336 18 11 1 178 579 125 338
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1106-
10 PANEL ASM; GARNISH
GRAY 		8-97422-098-1 01 1 1106-
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1106-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1106-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1106-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-986-0 01 1 1106-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-410-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1406-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-987-0 01 1 1106-1311
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-411-0 01 1 1312-1405
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1406-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1106-1405
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) 		8-98270-765-0 01 1 1406-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1106-1405
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (B) M4X85 		8-97926-404-0 02 1 1406-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1106-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1106-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1106-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1106-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1106-1504
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1106-
136 CLIP; INST COVER 8-98076-254-0 02 1 1106-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1106-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1106-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1106-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1106-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1106-
336 COVER; INST PANEL SIDE
(B) GRAY 		8-97409-780-3 01 1 1106-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97409-782-3 01 1 1106-1208
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1209-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1106-
338 SCREW; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1106-
356 NUT; COVER
M6 FLANGE 		0-91180-106-0 01 1 1106-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1106-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1106-
579 COVER; INST PNL
GRAY 		8-97411-560-2 01 1 1106-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1106-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1106-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1106-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1106-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1106-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1106-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-429-3 01 1 1106-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98038-450-0 04 1 1106-1311
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1312-
696 BRACKET; KNEE 8-98057-569-0 01 1 1106-1109
696 BRACKET; KNEE 8-98098-126-1 01 1 1110-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97415-540-6 01 1 1106-1405
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1406-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1106-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1106-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1106-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97415-541-0 01 1 1106-1405
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1406-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98035-730-1 02 1 1106-1311
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1312-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1106-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1106-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1106-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-928-0 01 1 1106-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1312-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98034-929-0 01 1 1106-1311
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1312-
718 SEAL; COVER 8-98185-153-0 01 1 1209-
721 FINISHER; BRKT,KNEE
L=95 		8-97995-992-0 01 1 1106-1109

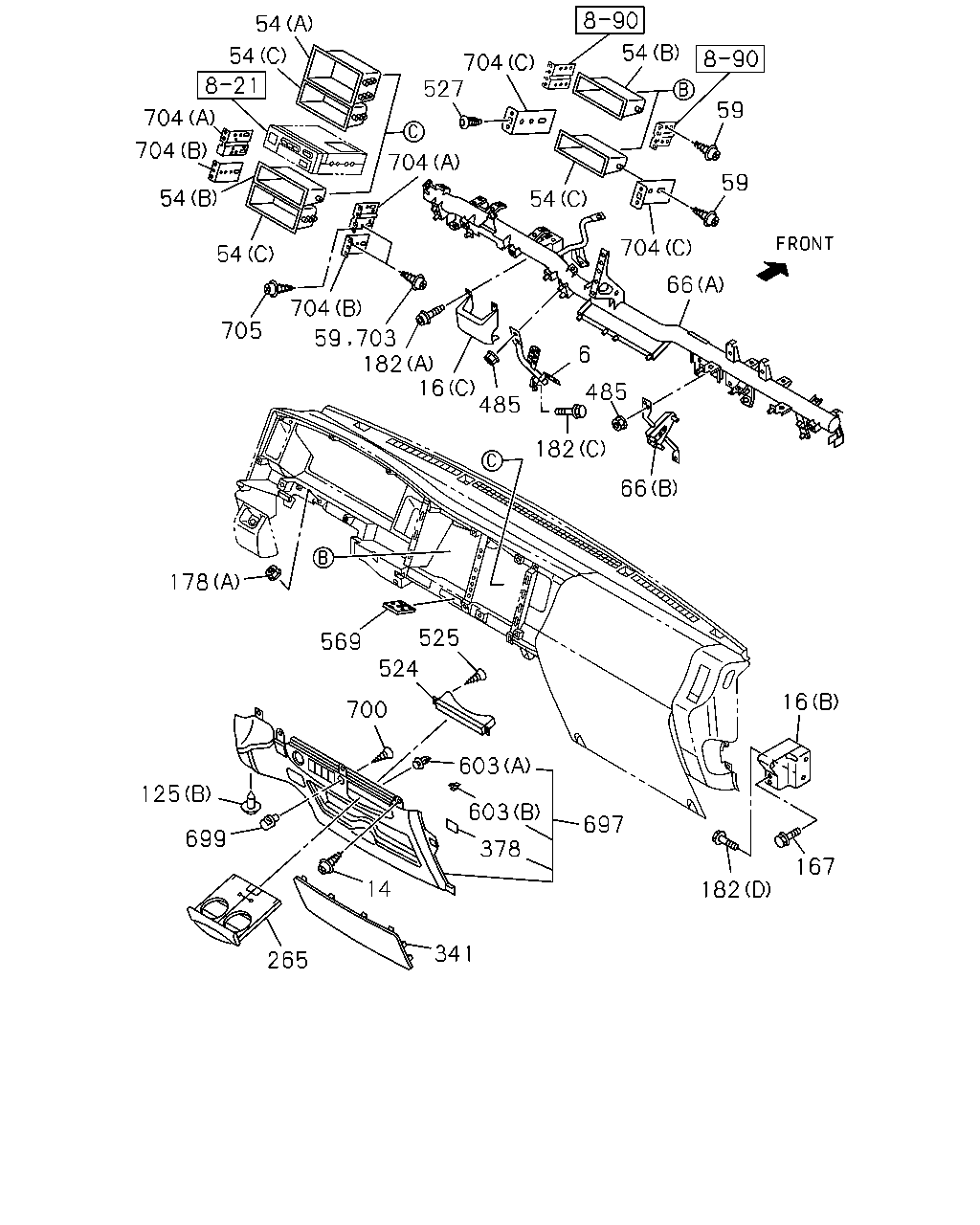

çizim 145411
54 54 704 704 54 54 705 704 182 703 16 182 485 66 6 66 485 704 54 704 527 704 54 59 59 178 569 524 700 525 603 603 378 697 16 167 182 14 699 125 341 265 59
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1106-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1106-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1106-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1106-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1106-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1106-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-529-1 01 1 1106-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1106-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1106-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1106-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1106-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1106-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1106-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1106-
66 REINFORCEMENT; INST PANEL
(B) 		8-97585-581-1 01 1 1106-
66 REINFORCEMENT; INST PANEL
(A) 		8-98069-419-7 01 1 1106-1406
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-611-0 01 1 1407-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1106-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1106-1504
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1505-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1106-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1106-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1106-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1106-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1106-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 03 1 1106-1111
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1112-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1106-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1106-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1106-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1106-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1106-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1106-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1106-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1106-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1106-
569 HOLDER; CARD 8-97410-276-1 01 1 1106-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1106-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1106-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1106-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1106-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1106-
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1106-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1106-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1106-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1106-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1106-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1106-1209
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1210-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1106-
