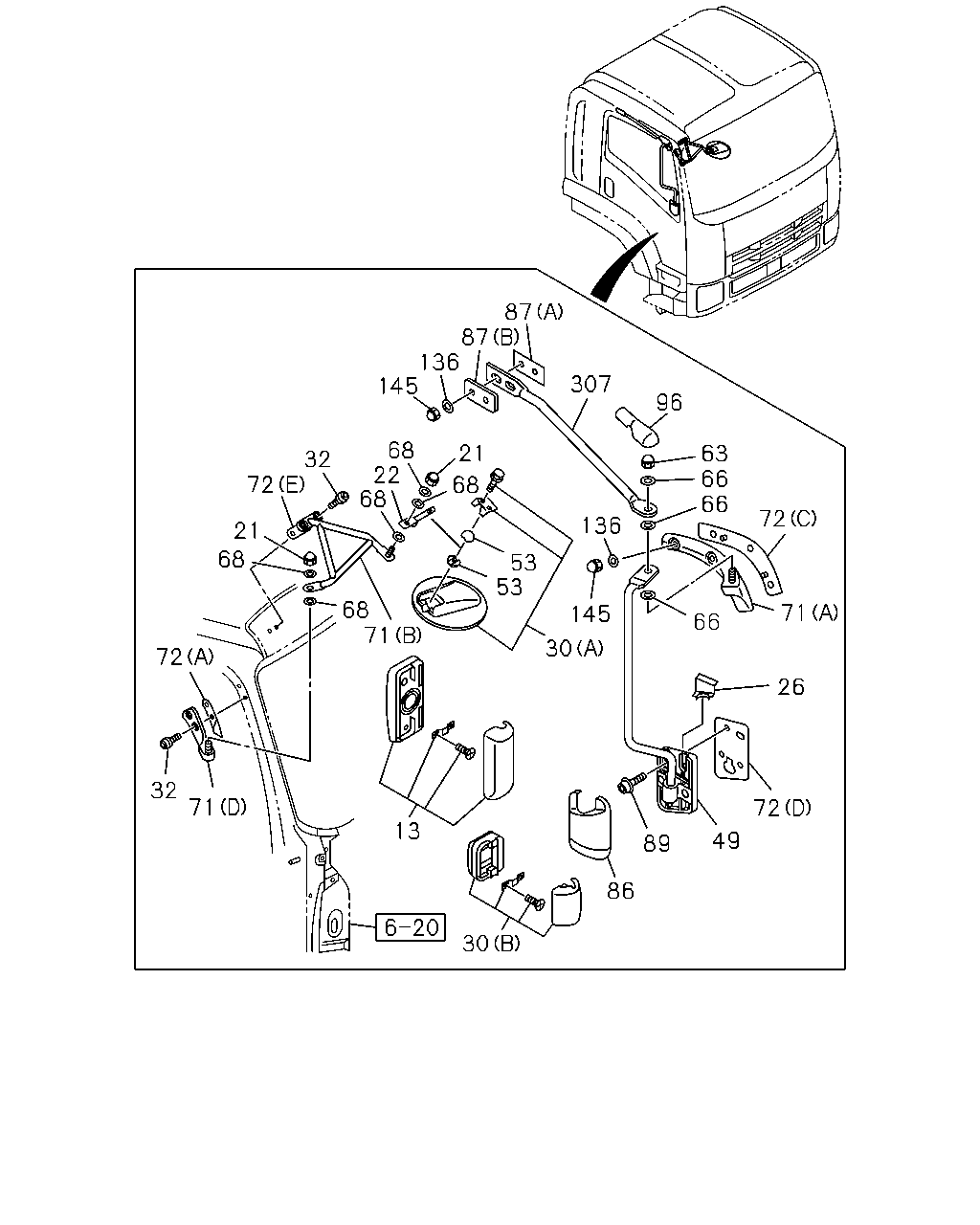

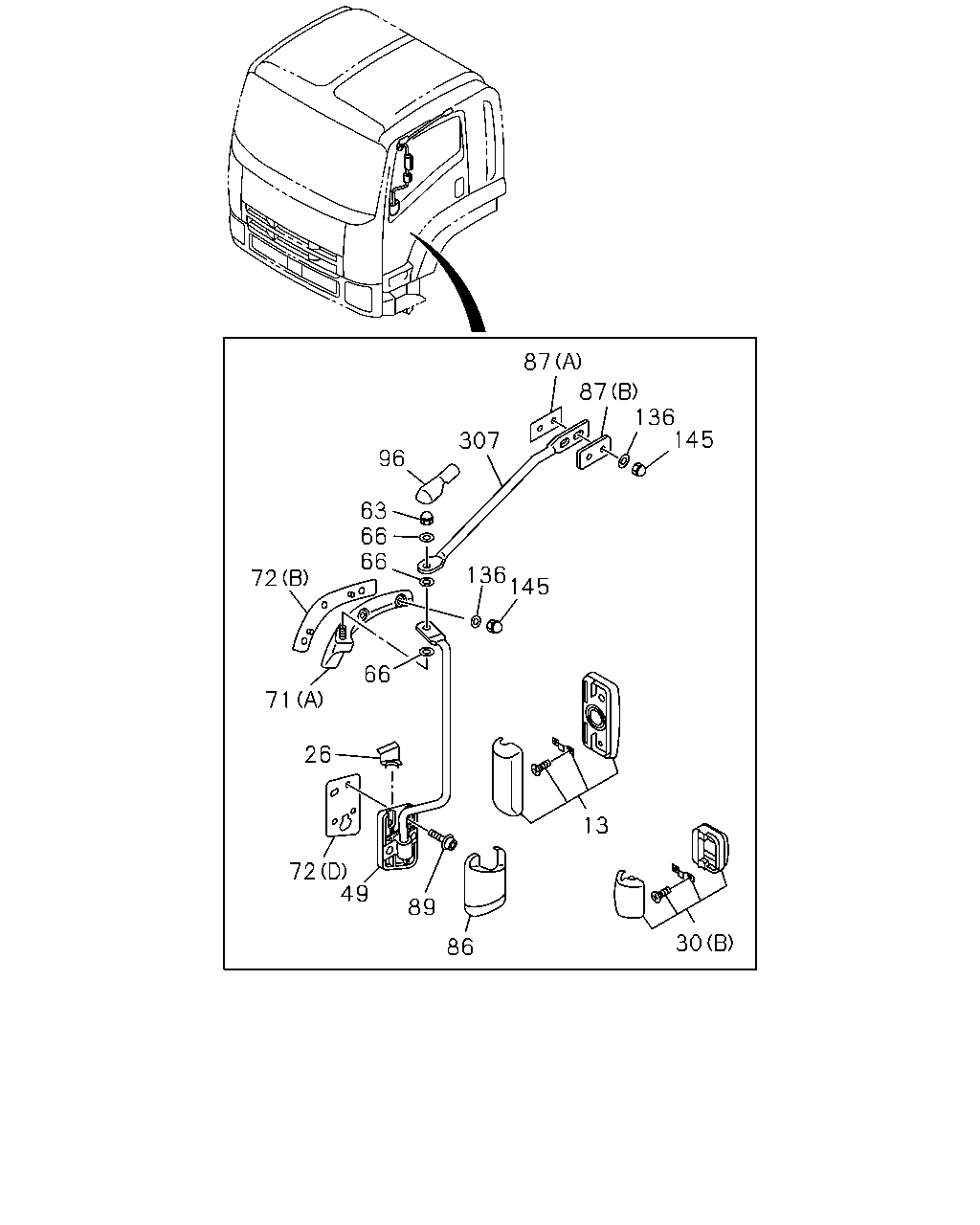

13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-992-1 |
01 |
1 |
1106- |
| |
13 |
MIRROR ASM; OUTSIDE RR VIEW
|
8-98055-991-1 |
01 |
1 |
1106- |
| |
21 |
NUT; MIRROR
MIRROR O/S UNDER VIEW<RR9>
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1106- |
| |
22 |
STAY; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
|
8-98092-493-0 |
01 |
1 |
1106- |
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-806-0 |
01 |
1 |
1106- |
| |
26 |
COVER; OUTSIDE MIRROR
|
8-98031-805-0 |
01 |
1 |
1106- |
| |
30 |
MIRROR; UNDER
(B)
|
8-98043-061-0 |
02 |
1 |
1106- |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(A)
|
8-98055-994-0 |
01 |
1 |
1106-1504 |
| |
30 |
MIRROR; UNDER
MIRROR O/S UNDER VIEW<RR9>
(A)
|
8-98309-725-0 |
01 |
1 |
1505- |
| |
32 |
SCREW; UNDER MIRROR
MIRROR O/S UNDER VIEW<RR9>
M8X26 W/PL WASHER
|
8-98067-249-2 |
04 |
1 |
1106- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98060-218-1 |
01 |
1 |
1106-1202 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-195-0 |
01 |
1 |
1203- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98064-777-1 |
01 |
1 |
1106-1202 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>
|
8-98166-194-0 |
01 |
1 |
1203- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98075-065-1 |
01 |
1 |
1106-1202 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98166-207-0 |
01 |
1 |
1203- |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98075-064-1 |
01 |
1 |
1106-1202 |
| |
49 |
STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>
|
8-98166-206-0 |
01 |
1 |
1203- |
| |
53 |
PIVOT; SIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
ID=19.1
|
1-71737-633-2 |
02 |
1 |
1106- |
| |
63 |
NUT; STAY
M10 CAP NUT
|
1-09984-134-0 |
02 |
1 |
1106- |
| |
66 |
WASHER; PL
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
06 |
1 |
1106- |
| |
68 |
WASHER; STAY
MIRROR O/S UNDER VIEW<RR9>
ID=10.5 OD=26 T=2.6
|
1-09985-204-0 |
04 |
1 |
1106- |
| |
71 |
BRACKET; OUTSIDE MIRROR
(C)
|
8-98039-277-2 |
02 |
1 |
1106-1202 |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-794-2 |
01 |
1 |
1106- |
| |
71 |
BRACKET; OUTSIDE MIRROR
(A)
|
8-98031-793-2 |
01 |
1 |
1106- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(D)
|
8-98064-775-0 |
01 |
1 |
1106- |
| |
71 |
BRACKET; OUTSIDE MIRROR
MIRROR O/S UNDER VIEW<RR9>
(B)
|
8-98092-491-3 |
01 |
1 |
1106- |
| |
72 |
SHEET
(B)
|
8-98031-797-0 |
01 |
1 |
1106- |
| |
72 |
SHEET
(C)
|
8-98031-796-0 |
01 |
1 |
1106- |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(E)
|
8-98060-225-1 |
01 |
1 |
1106- |
| |
72 |
SHEET
MIRROR O/S UNDER VIEW<RR9>
(A)
|
8-98064-773-0 |
01 |
1 |
1106- |
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98101-865-0 |
01 |
1 |
1106-1202 |
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98116-605-0 |
01 |
1 |
1203- |
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98101-864-0 |
01 |
1 |
1106-1202 |
| |
72 |
SHEET
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE
MIRROR RR VIEW MIDDLE ARM<8ML>
(D)
|
8-98116-604-0 |
01 |
1 |
1203- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-803-2 |
01 |
1 |
1106- |
| |
86 |
COVER; STAY,OUTSIDE MIRROR
|
8-98031-802-2 |
01 |
1 |
1106- |
| |
87 |
SPACER
(A)
|
8-98063-786-0 |
02 |
1 |
1106- |
| |
87 |
SPACER
(B)
|
8-98063-789-0 |
02 |
1 |
1106- |
| |
89 |
SCREW; BRKT,OUTSIDE MIRROR
M8X23
|
8-97310-216-1 |
08 |
1 |
1106- |
| |
96 |
CAP; MIRROR STAY
|
8-98080-173-0 |
02 |
1 |
1106- |
| |
136 |
WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6
|
1-09985-191-0 |
10 |
1 |
1106- |
| |
145 |
NUT; CAP,SUB STAY
M8 CAP NUT
|
8-98059-914-0 |
10 |
1 |
1106- |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-785-2 |
01 |
1 |
1106- |
| |
307 |
STAY; MIRROR SUPPORT
|
8-98063-784-2 |
01 |
1 |
1106- |
