◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#49743) — 11 parça
çizim 145329
35 49 160 6
BalonParca AdiParca NoAdetTipApplied Date
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> CAUTIONS SPANISH<YN1> 		8-98082-439-0 01 1 1106-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. CAUTIONS SPANISH<YN1> 		8-98082-437-0 01 1 1106-
35 PLATE; CAUTION,CAB
CAUTIONS SPANISH<YN1> 		8-98070-109-0 01 1 1106-
35 PLATE; CAUTION,CAB
EXC. CAUTIONS SPANISH<YN1> 		8-98065-363-0 01 1 1106-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS SPANISH<YN1> 		8-98069-841-0 01 1 1106-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS SPANISH<YN1> 		8-98122-354-0 01 1 1106-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) CAUTIONS SPANISH<YN1> 		8-98190-143-0 01 1 1106-
160 PLATE; CAUTION,TOWING
ZF9S1110 M/T(Y5E) EXC. CAUTIONS SPANISH<YN1> 		1-85888-737-1 01 1 1106-

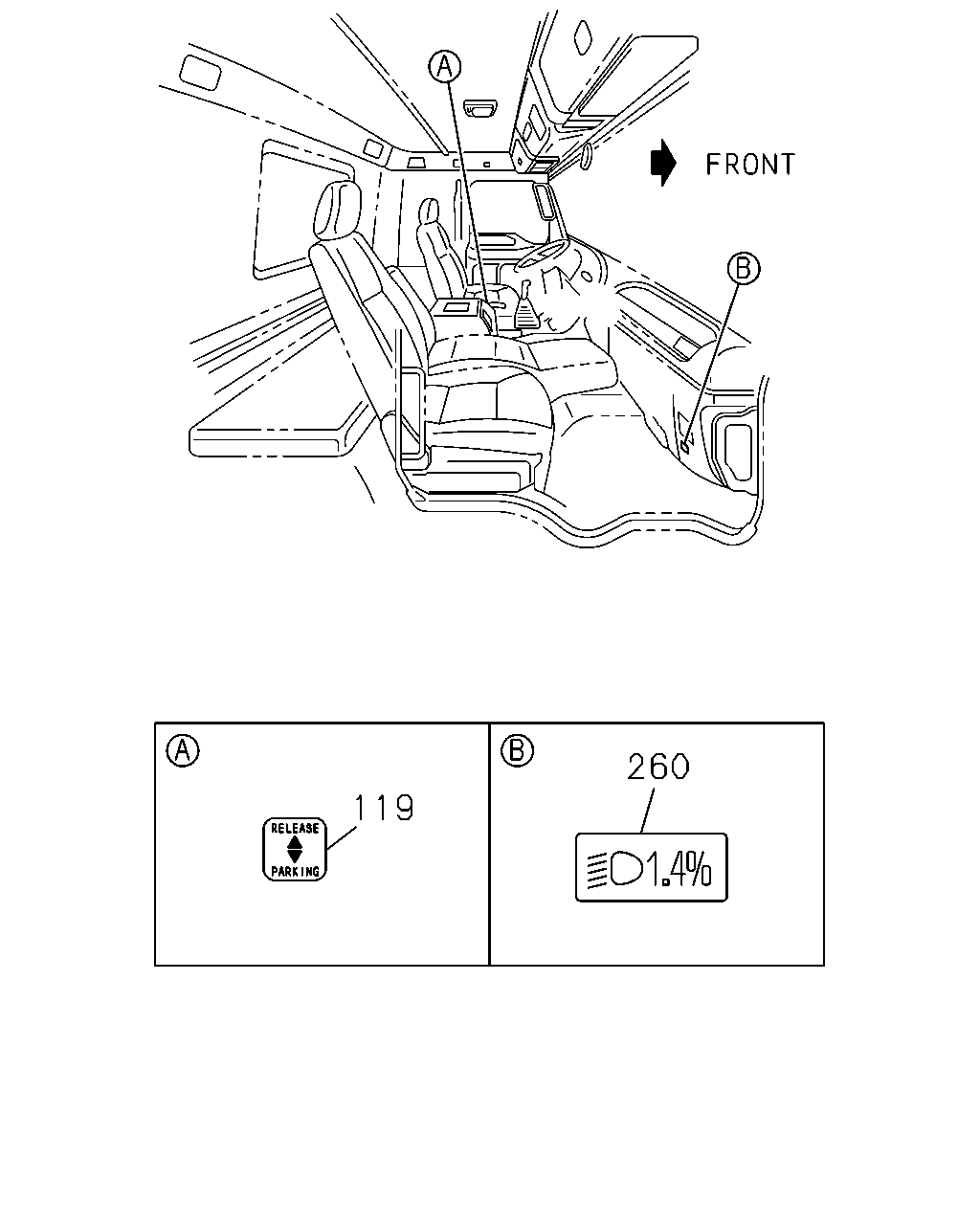

çizim 145409
260 119
BalonParca AdiParca NoAdetTipApplied Date
119 PLATE; CAUTION,HAND BRK LEVER
CAUTIONS SPANISH<YN1> 		1-85881-944-0 01 1 1106-
119 PLATE; CAUTION,HAND BRK LEVER
EXC. CAUTIONS SPANISH<YN1> 		1-85881-759-0 01 1 1106-
260 PLATE; CAUTION,HEAD LAMP LEVELING 8-98008-779-0 01 1 1106-
