◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FORWARD ▶ 11413 - FORWARD1500(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-60 - ROOF PANEL ▶
6-60 — ROOF PANEL (#49732) — 12 parça

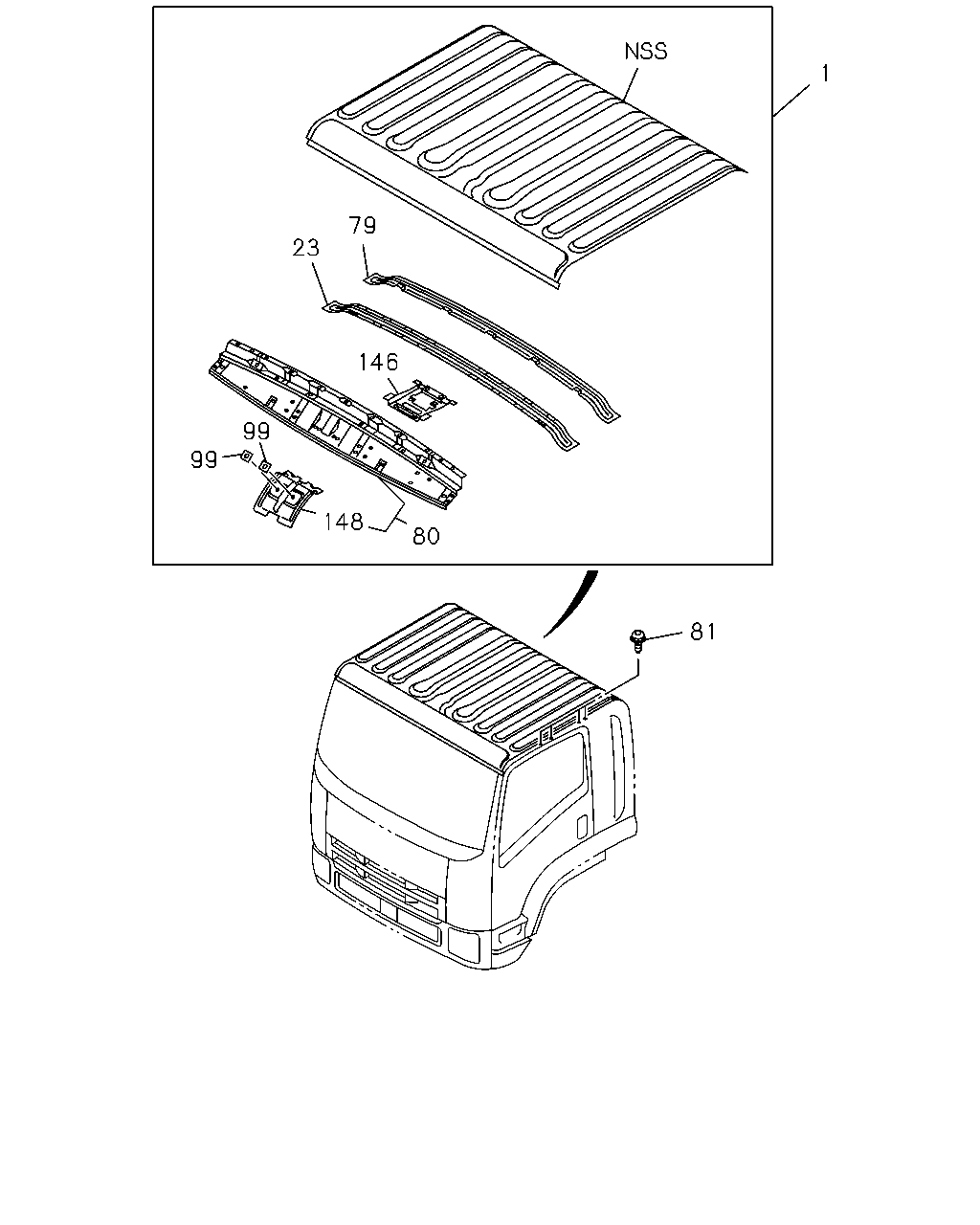

çizim 145125
1 79 23 146 99 99 148 80 81
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98151-763-0 01 1 1106-1308
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-484-0 01 1 1309-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98176-114-0 01 1 1106-1308
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98246-485-0 01 1 1309-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-316-0 01 1 1106-
79 REINFORCEMENT; ROOF PANEL,RR 8-97584-200-1 01 1 1106-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98047-271-1 01 1 1106-1308
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98246-472-0 01 1 1309-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1106-
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1106-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1106-
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-013-0 01 1 1106-
