◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NN ▶ 51239 - NN/NP/NQR-RHD EURO5 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-01 - PARTIAL ENGINE ▶
0-01 — PARTIAL ENGINE (#49724) — 12 parça

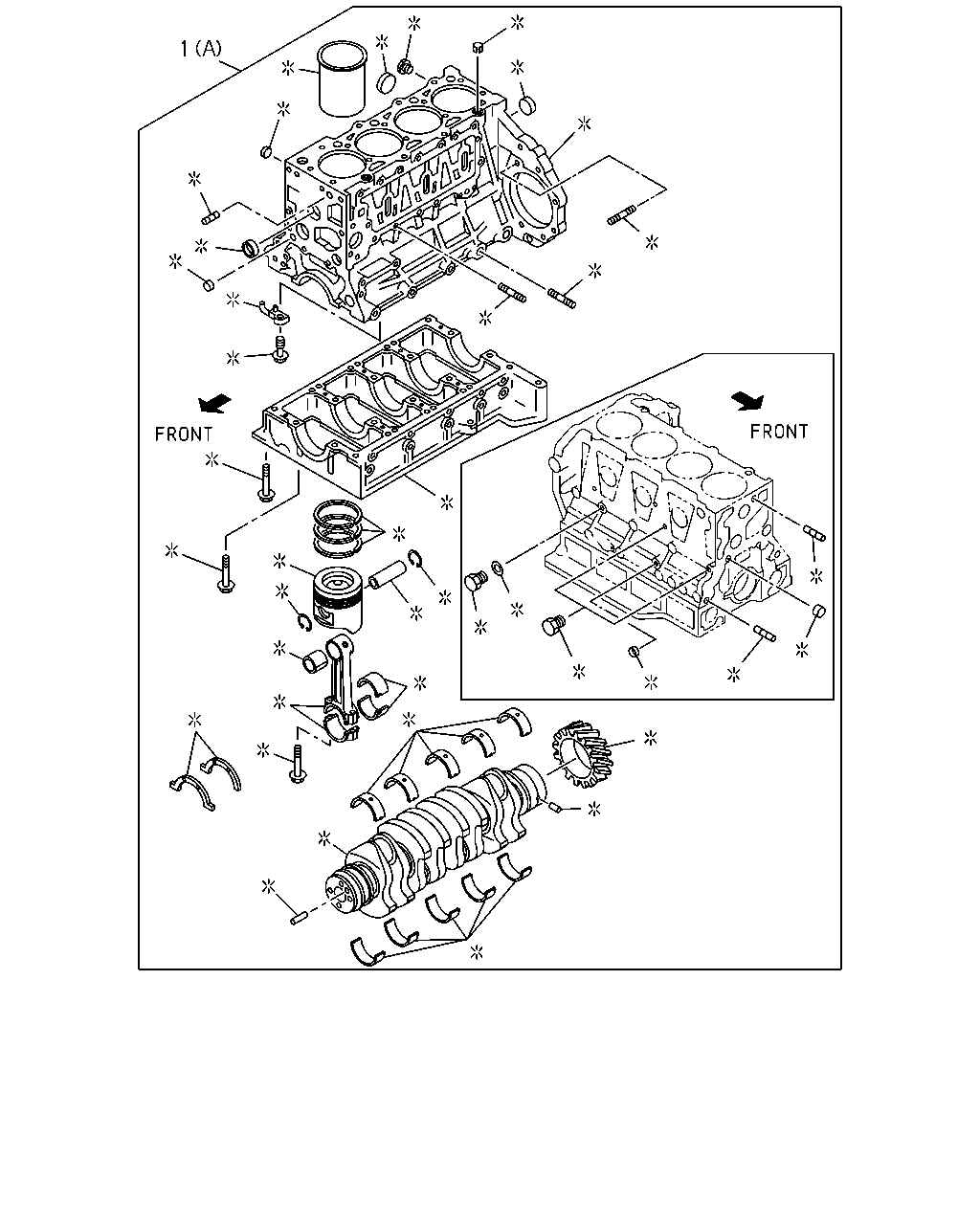

çizim 158730
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL
(B) 		5-87310-924-3 01 1 0907-1007 ●
1 00.033 ENGINE ASM; PARTIAL
(B) 		5-87311-111-5 01 1 1008-1409 ●
1 00.033 ENGINE ASM; PARTIAL
(B) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL
(A) 		5-87310-925-3 01 1 0905-0912 ● ●
1 00.033 ENGINE ASM; PARTIAL
(A) 		5-87311-093-6 01 1 1001-1312 ● ●
1 00.033 ENGINE ASM; PARTIAL
(A) 		5-87311-235-2 01 1 1401- ● ●

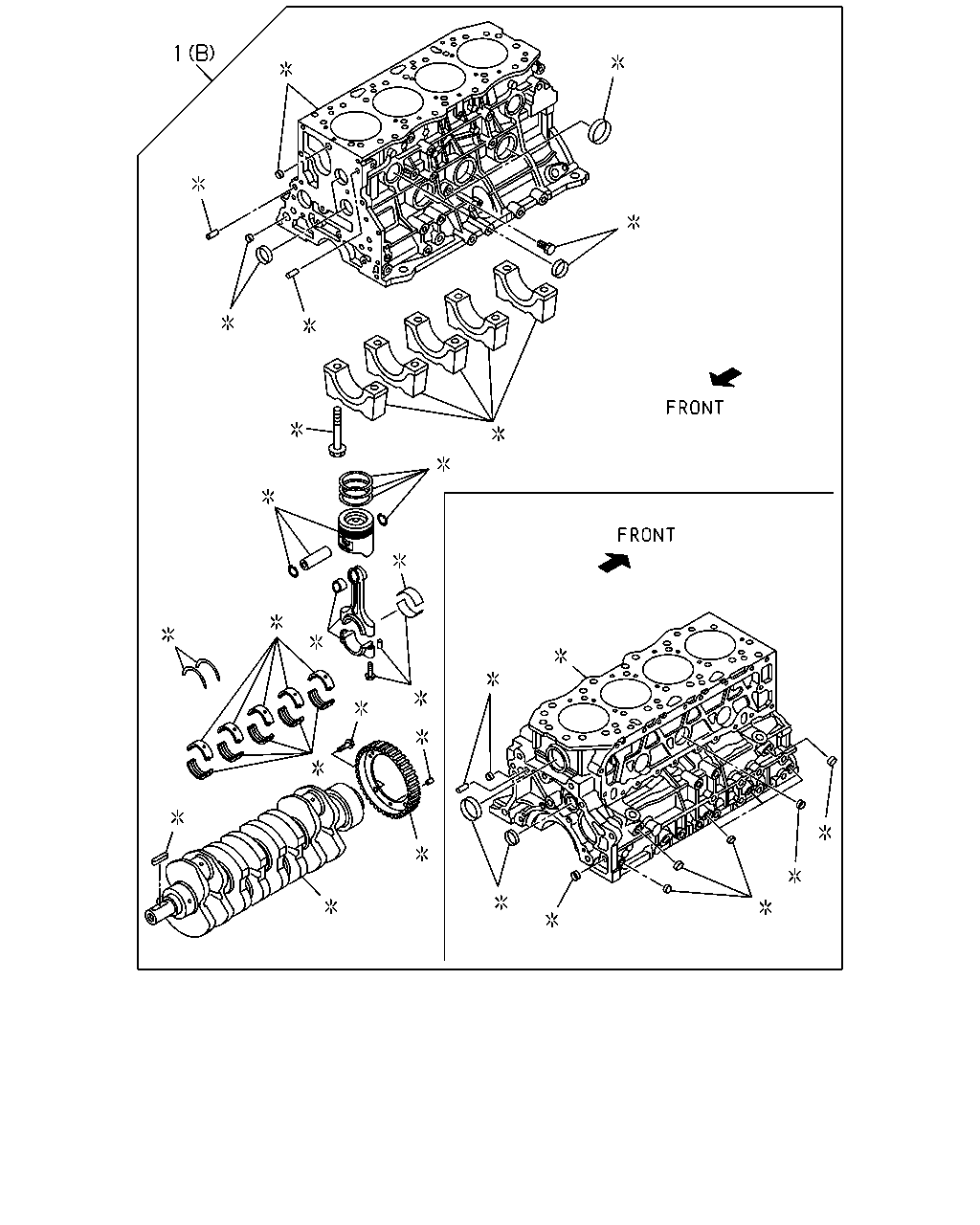

çizim 158939
1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.033 ENGINE ASM; PARTIAL
(B) 		5-87310-924-3 01 1 0907-1007 ●
1 00.033 ENGINE ASM; PARTIAL
(B) 		5-87311-111-5 01 1 1008-1409 ●
1 00.033 ENGINE ASM; PARTIAL
(B) 		5-87311-260-0 01 1 1410- ●
1 00.033 ENGINE ASM; PARTIAL
(A) 		5-87310-925-3 01 1 0905-0912 ● ●
1 00.033 ENGINE ASM; PARTIAL
(A) 		5-87311-093-6 01 1 1001-1312 ● ●
1 00.033 ENGINE ASM; PARTIAL
(A) 		5-87311-235-2 01 1 1401- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
