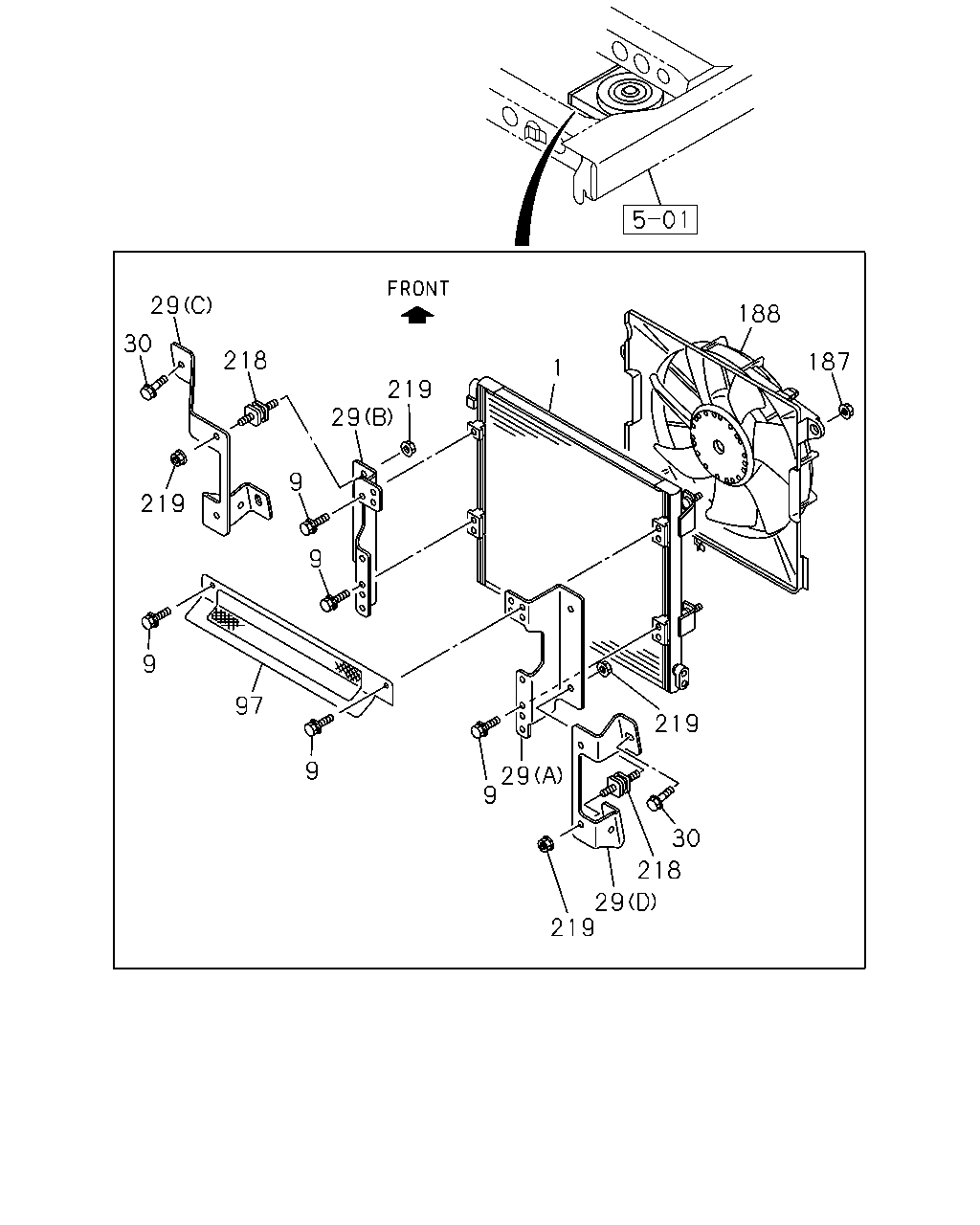

8-75 — CONDENSER (#49720) — 17 parça

5 29 188 30 218 187 1 219 29 9 219 9 9 97 219 9 29 9 30 218 29 219

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CONDENSER; A/C AIR CONDITIONER MANUAL CONT(C60)	8-98041-884-0	01	1	1201-	●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-865-0	01	1	1201-	●	●
9	BOLT; BRKT AIR CONDITIONER MANUAL CONT(C60) M6X14	1-83539-382-0	08	1	1201-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (A)	8-98041-893-0	01	1	1201-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (B)	8-98041-895-0	01	1	1201-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (C)	8-98041-896-1	01	1	1201-	●	●
29	BRACKET; SIDE AIR CONDITIONER MANUAL CONT(C60) (D)	8-98041-897-1	01	1	1201-	●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER MANUAL CONT(C60) M8X35 FLANGE	0-28650-835-0	04	1	1201-	●	●
97	NET; CONDENSER UNIT AIR CONDITIONER MANUAL CONT(C60)	8-98041-900-0	01	1	1201-	●	●
187	NUT; SHROUD AIR CONDITIONER MANUAL CONT(C60) M6	1-83539-354-0	04	1	1201-	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	1201-	●	●
218	CUSHION; CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-98041-898-0	04	1	1201-	●	●
219	NUT; CUSHION AIR CONDITIONER MANUAL CONT(C60) M8	1-83539-319-0	08	1	1201-	●	●

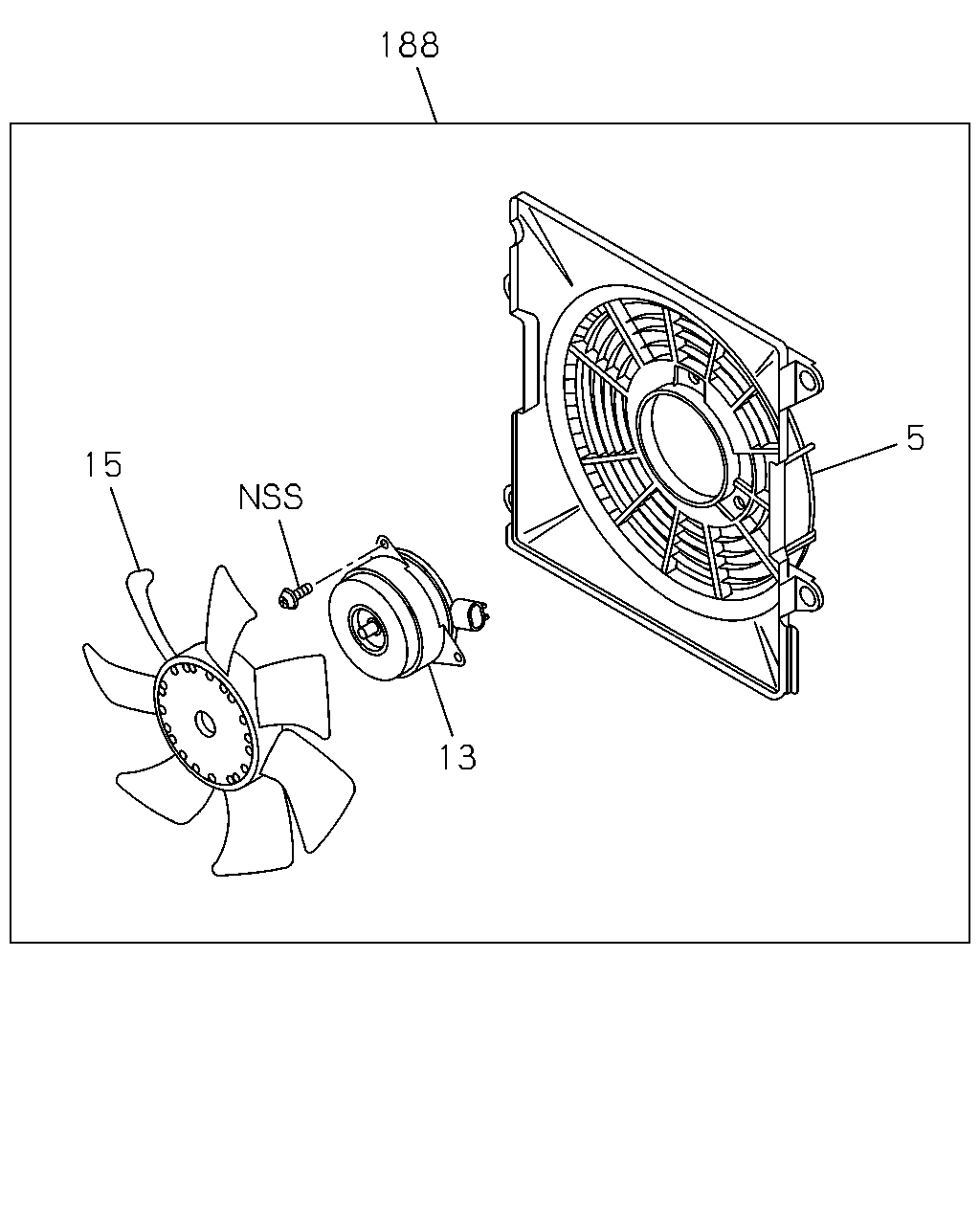

188 5 15 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	SHROUD; FAN MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-865-0	01	1	1201-	●	●
13	MOTOR; FAN AIR CONDITIONER MANUAL CONT(C60)	8-98157-044-0	01	1	1201-	●	●
15	FAN; MOTOR AIR CONDITIONER MANUAL CONT(C60)	8-98152-860-0	01	1	1201-	●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER MANUAL CONT(C60)	8-98041-889-0	01	1	1201-	●	●
