8-65 — CONTROL LEVER; HEATER AND AIR CON (#49717) — 42 parça

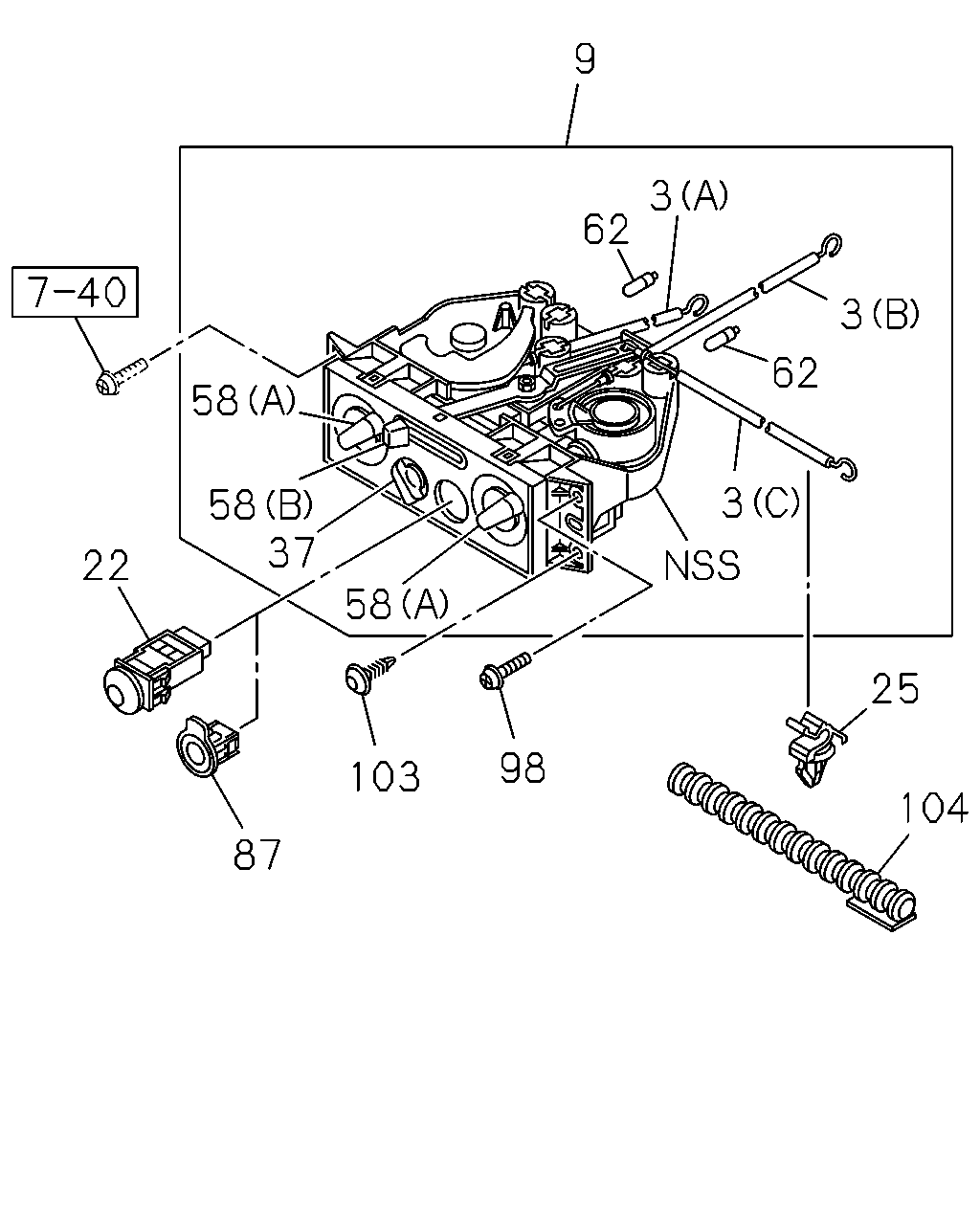

çizim 158527
9 3 62 3 62 58 3 58 37 58 22 25 98 103 104 87
BalonParca AdiParca NoAdetTipApplied Date A B
3 CABLE; HTR CONT LVR
(A) MODE 		8-98039-254-1 01 1 0811-0901 ●
3 CABLE; HTR CONT LVR
(A) MODE 		8-98039-254-1 01 1 0902-1112 ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE 		8-98039-254-1 01 1 1201- ● ●
3 CABLE; HTR CONT LVR
(B) MIX 		8-98039-255-1 01 1 0811-0901 ●
3 CABLE; HTR CONT LVR
(B) MIX 		8-98039-255-1 01 1 0902-1112 ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-255-1 01 1 1201- ● ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-256-1 01 1 0811-0901 ●
3 CABLE; HTR CONT LVR
(C) FRESH 		8-98039-256-1 01 1 0902-1112 ● ●
3 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) FRESH 		8-98039-256-1 01 1 1201- ● ●
9 LEVER ASM; HTR & A/C CONT 8-98067-881-1 01 1 0811-0901 ●
9 LEVER ASM; HTR & A/C CONT 8-98067-881-1 01 1 0902-1112 ● ●
9 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98067-881-1 01 1 1201- ● ●
22 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60) 		8-98021-982-0 01 1 1201- ● ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 01 1 0811-0901 ●
25 CLIP; CABLE,CONT LEVER
ID=4.8 		8-94128-483-0 01 1 0902-1112 ● ●
25 CLIP; CABLE,CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ID=4.8 		8-94128-483-0 01 1 1201- ● ●
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 0811-0901 ●
37 KNOB; SW,HTR CONT LVR 8-98037-368-0 01 1 0902-1112 ● ●
37 KNOB; SW,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98037-368-0 01 1 1201- ● ●
58 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 0811-0901 ●
58 KNOB; LVR,HTR CONT LVR
(A) 		8-98037-369-0 02 1 0902-1112 ● ●
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-369-0 02 1 1201- ● ●
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 0811-0901 ●
58 KNOB; LVR,HTR CONT LVR
(B) 		8-98037-370-0 01 1 0902-1112 ● ●
58 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98037-370-0 01 1 1201- ● ●
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 0811-0901 ●
62 BULB; HTR CONT LVR
24V 1.1W 		8-98037-371-0 02 1 0902-1112 ● ●
62 BULB; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 1.1W 		8-98037-371-0 02 1 1201- ● ●
87 CAP; A/C SWITCH 8-98006-089-0 01 1 0811-0901 ●
87 CAP; A/C SWITCH 8-98006-089-0 01 1 0902-1112 ● ●
87 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1201- ● ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0811-0901 ●
98 SCREW; CONT PANEL
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 0902-1101 ● ●
98 SCREW; CONT PANEL
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1102-1112 ● ●
98 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1201-1212 ● ●
98 SCREW; CONT PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 0811-0901 ●
103 CLIP
DARK GRAY 		8-97098-326-0 01 1 0902-1112 ● ●
103 CLIP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 1201- ● ●
104 GUIDE; CABLE 8-98071-970-0 01 1 0811-0901 ●
104 GUIDE; CABLE 8-98071-970-0 01 1 0902-1112 ● ●
104 GUIDE; CABLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98071-970-0 01 1 1201- ● ●
