◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#49716) — 218 parça

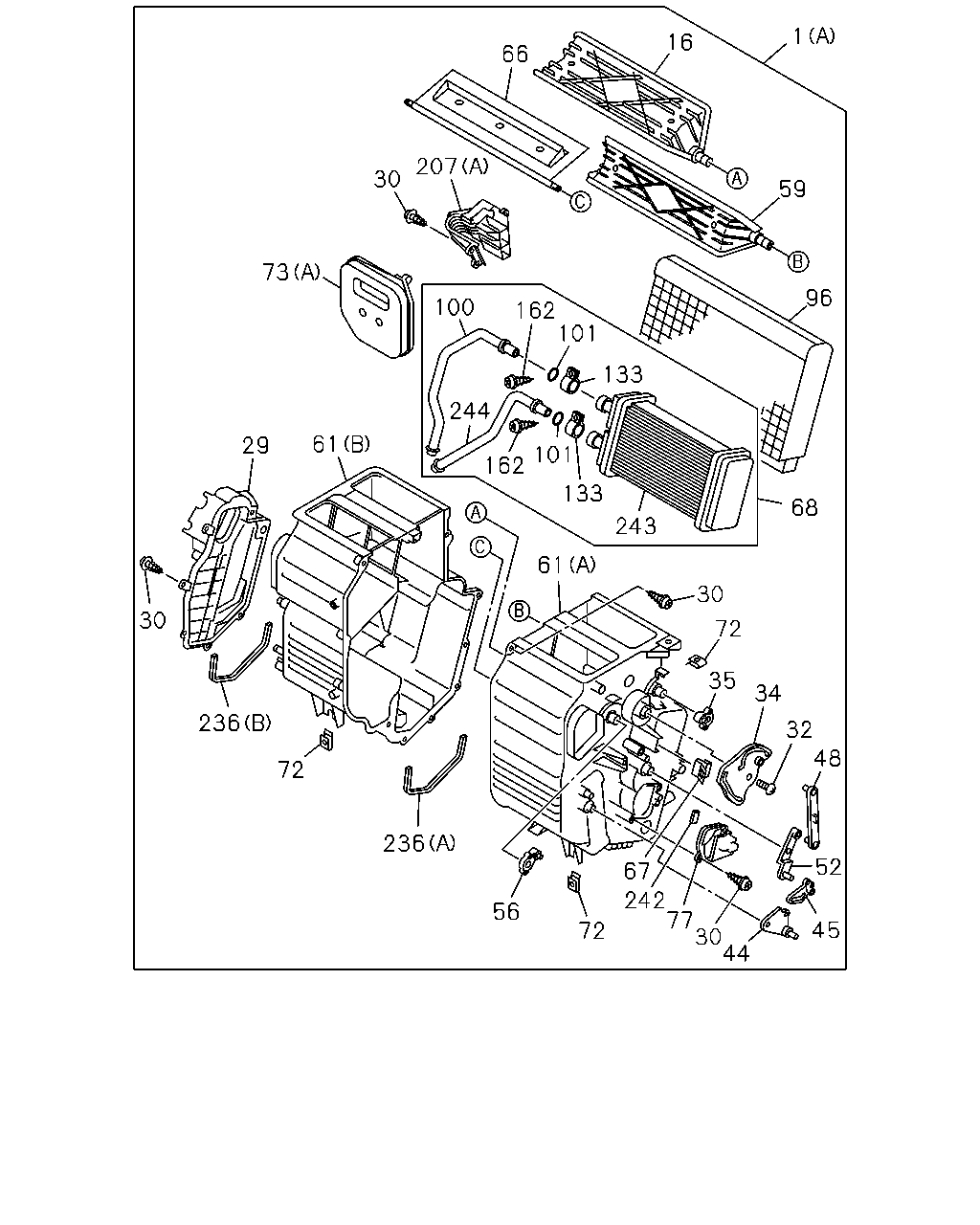

çizim 158544
1 16 66 207 30 59 73 96 100 162 101 133 244 61 29 101 162 133 68 243 61 30 30 72 35 34 236 32 48 72 236 52 67 242 77 30 44 56 45 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1201- ● ●
1 HEATER UNIT
(A) 		8-98031-740-3 01 1 0811-0901 ●
1 HEATER UNIT
(A) 		8-98031-740-3 01 1 0902-1112 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1201- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0811-0901 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0902-1112 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1201- ● ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 0811-0901 ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 0902-1112 ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1201- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1201- ● ●
30 SCREW; HTR UNIT
M4X16 TAPPING 		8-97957-708-0 28 1 0811-0901 ●
30 SCREW; HTR UNIT
M4X16 TAPPING 		8-97957-708-0 28 1 0902-1112 ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1201- ● ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0811-0901 ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0902-1112 ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1201- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0811-0901 ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0902-1112 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1201- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0811-0901 ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0902-1112 ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1201- ● ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0811-0901 ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0902-1112 ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1201- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0811-0901 ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0902-1112 ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1201- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 0811-0901 ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 0902-1112 ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1201- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0811-0901 ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0902-1112 ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1201- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0811-0901 ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0902-1112 ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1201- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0811-0901 ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0902-1112 ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1201- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0811-0901 ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0902-1112 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1201- ● ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0811-0901 ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0902-1112 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1201- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0811-0901 ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0902-1112 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1201- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 0811-0901 ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 0902-1112 ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1201- ● ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 0811-0901 ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 0902-1112 ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1201- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0811-0901 ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0902-1112 ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1201- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1201- ● ●
73 PLATE; HTR UNIT
(A) 		8-98048-817-0 01 1 0811-0901 ●
73 PLATE; HTR UNIT
(A) 		8-98048-817-0 01 1 0902-1112 ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1201- ● ●
77 COVER; HTR CASE 8-98047-482-0 01 1 0811-0901 ●
77 COVER; HTR CASE 8-98047-482-0 01 1 0902-1112 ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1201- ● ●
96 PLATE; HTR UNIT 8-98048-815-0 01 1 0811-0901 ●
96 PLATE; HTR UNIT 8-98048-815-0 01 1 0902-1112 ● ●
96 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1201- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0811-0901 ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0902-1112 ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1201- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0811-0901 ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0902-1112 ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1201- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 0811-0901 ●
133 CLIP; PIPE 8-98072-530-0 02 1 0902-1112 ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1201- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 0811-0901 ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 0902-1112 ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1201- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1201- ● ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0811-0901 ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0902-1112 ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1201- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0811-0901 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0902-1112 ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1201- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0811-0901 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0902-1112 ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1201- ● ●
242 GASKET; CASE 8-98048-816-0 01 1 0811-0901 ●
242 GASKET; CASE 8-98048-816-0 01 1 0902-1112 ● ●
242 GASKET; CASE
HEATER & DEFROSTER(C41) 		8-98048-816-0 01 1 1201- ● ●
243 CORE 8-98048-508-0 01 1 0811-0901 ●
243 CORE 8-98048-508-0 01 1 0902-1112 ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-508-0 01 1 1201- ● ●
244 PIPE; INLET 8-98048-511-0 01 1 0811-0901 ●
244 PIPE; INLET 8-98048-511-0 01 1 0902-1112 ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1201- ● ●
çizim 158563
234 235 207 235 41 236
BalonParca AdiParca NoAdetTipApplied Date A B
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-412-0 01 1 1201- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1201- ● ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0811-0901 ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0902-1112 ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1201- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1201- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) (A) ID=11.7 		8-97095-907-0 01 1 1201- ● ●
235 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) (B) ID=14.5 		8-97095-908-0 01 1 1201- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0811-0901 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0902-1112 ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1201- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0811-0901 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0902-1112 ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1201- ● ●

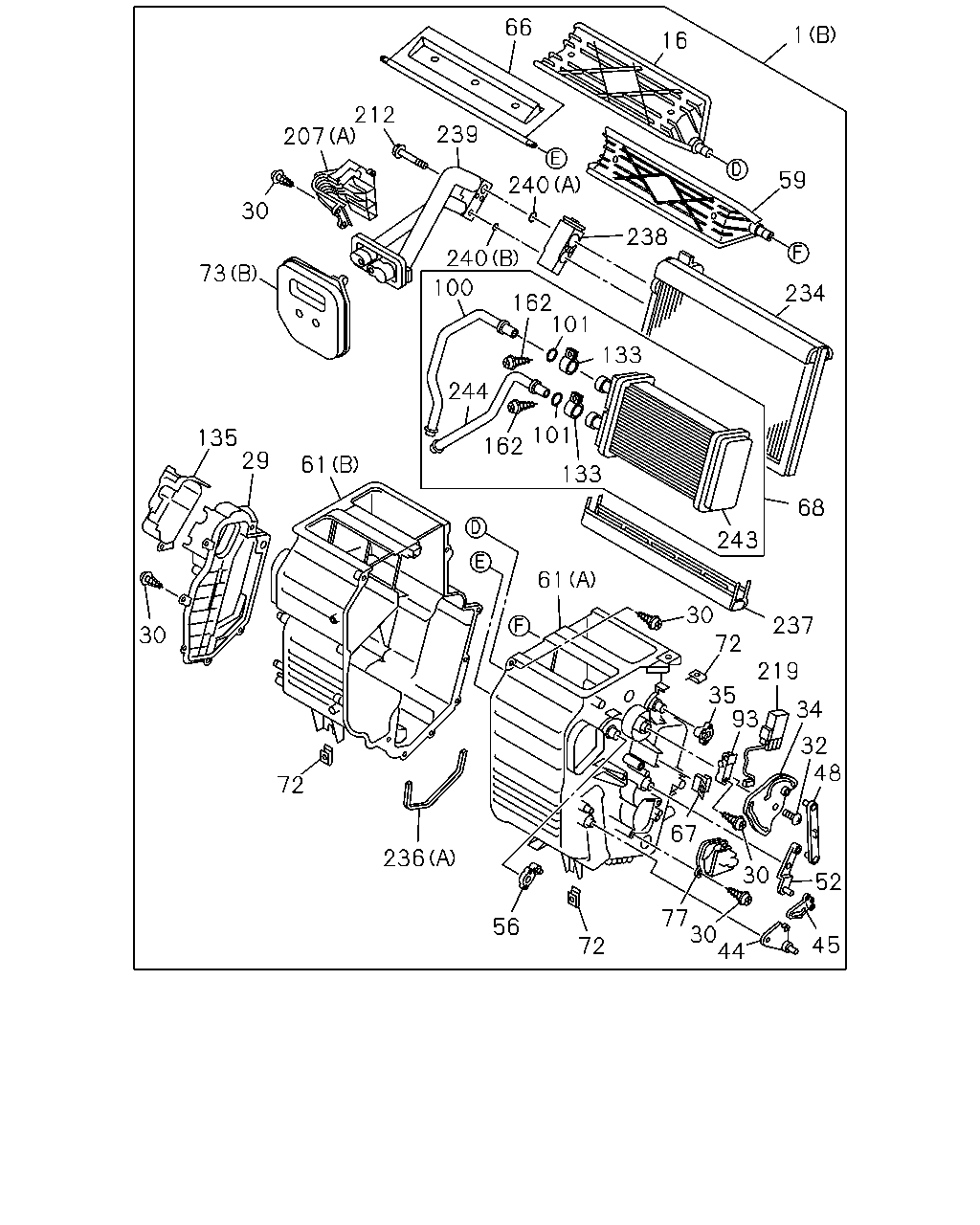

çizim 158569
66 1 16 212 239 207 240 59 30 238 240 73 100 234 162 101 133 244 101 135 29 162 61 133 68 243 61 30 72 237 30 219 35 93 34 32 48 72 67 236 30 52 77 30 44 56 45 72
BalonParca AdiParca NoAdetTipApplied Date A B
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98034-145-3 01 1 1201- ● ●
1 HEATER UNIT
(A) 		8-98031-740-3 01 1 0811-0901 ●
1 HEATER UNIT
(A) 		8-98031-740-3 01 1 0902-1112 ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C41) (A) 		8-98031-740-3 01 1 1201- ● ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0811-0901 ●
16 SHUTTER; HTR UNIT,CENTER UPR 8-98047-387-0 01 1 0902-1112 ● ●
16 SHUTTER; HTR UNIT,CENTER UPR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-387-0 01 1 1201- ● ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 0811-0901 ●
29 COVER; HTR UNIT 8-98047-480-0 01 1 0902-1112 ● ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-480-0 01 1 1201- ● ●
30 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M4X16 TAPPING 		8-97957-708-0 27 1 1201- ● ●
30 SCREW; HTR UNIT
M4X16 TAPPING 		8-97957-708-0 28 1 0811-0901 ●
30 SCREW; HTR UNIT
M4X16 TAPPING 		8-97957-708-0 28 1 0902-1112 ● ●
30 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 TAPPING 		8-97957-708-0 28 1 1201- ● ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0811-0901 ●
32 SCREW; HTR UNIT
M4X16 		8-98047-416-0 03 1 0902-1112 ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M4X16 		8-98047-416-0 03 1 1201- ● ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0811-0901 ●
34 LEVER; SHUTTER,HTR UNIT 8-98047-497-0 01 1 0902-1112 ● ●
34 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-497-0 01 1 1201- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0811-0901 ●
35 LEVER; SHUTTER,HTR UNIT 8-98047-500-0 01 1 0902-1112 ● ●
35 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-500-0 01 1 1201- ● ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0811-0901 ●
44 LEVER; SHUTTER,HTR UNIT 8-98047-502-0 01 1 0902-1112 ● ●
44 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-502-0 01 1 1201- ● ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0811-0901 ●
45 LEVER; SHUTTER,HTR UNIT 8-98047-503-0 01 1 0902-1112 ● ●
45 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-503-0 01 1 1201- ● ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 0811-0901 ●
48 LEVER; HTR UNIT 8-98047-391-0 01 1 0902-1112 ● ●
48 LEVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-391-0 01 1 1201- ● ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0811-0901 ●
52 LEVER; SHUTTER,HTR UNIT 8-98047-498-0 01 1 0902-1112 ● ●
52 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-498-0 01 1 1201- ● ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0811-0901 ●
56 LEVER; SHUTTER,HTR UNIT 8-98047-501-0 01 1 0902-1112 ● ●
56 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-501-0 01 1 1201- ● ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0811-0901 ●
59 SHUTTER; HTR UNIT,SIDE 8-98047-386-0 01 1 0902-1112 ● ●
59 SHUTTER; HTR UNIT,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-386-0 01 1 1201- ● ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0811-0901 ●
61 CASE; HTR UNIT
(A) 		8-98047-478-0 01 1 0902-1112 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-478-0 01 1 1201- ● ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0811-0901 ●
61 CASE; HTR UNIT
(B) 		8-98047-479-0 01 1 0902-1112 ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-479-0 01 1 1201- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0811-0901 ●
66 SHUTTER; HTR UNIT,CENTER LWR 8-98047-385-0 01 1 0902-1112 ● ●
66 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1201- ● ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 0811-0901 ●
67 CLIP; HTR UNIT 8-98047-417-0 02 1 0902-1112 ● ●
67 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1201- ● ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 0811-0901 ●
68 CORE; HTR UNIT 8-98074-122-0 01 1 0902-1112 ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98074-122-0 01 1 1201- ● ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0811-0901 ●
72 NUT; CASE,HTR UNIT
M6 		8-98047-428-0 03 1 0902-1112 ● ●
72 NUT; CASE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M6 		8-98047-428-0 03 1 1201- ● ●
73 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-491-0 01 1 1201- ● ●
73 PLATE; HTR UNIT
(A) 		8-98048-817-0 01 1 0811-0901 ●
73 PLATE; HTR UNIT
(A) 		8-98048-817-0 01 1 0902-1112 ● ●
73 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) (A) 		8-98048-817-0 01 1 1201- ● ●
77 COVER; HTR CASE 8-98047-482-0 01 1 0811-0901 ●
77 COVER; HTR CASE 8-98047-482-0 01 1 0902-1112 ● ●
77 COVER; HTR CASE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-482-0 01 1 1201- ● ●
93 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-427-0 01 1 1201- ● ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0811-0901 ●
100 PIPE; CORE,HTR UNIT 8-98072-532-0 01 1 0902-1112 ● ●
100 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-532-0 01 1 1201- ● ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0811-0901 ●
101 GASKET; CORE,HTR UNIT 8-98072-531-0 02 1 0902-1112 ● ●
101 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1201- ● ●
133 CLIP; PIPE 8-98072-530-0 02 1 0811-0901 ●
133 CLIP; PIPE 8-98072-530-0 02 1 0902-1112 ● ●
133 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1201- ● ●
135 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-481-0 01 1 1201- ● ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 0811-0901 ●
162 SCREW; CLIP FIX 8-98072-529-0 02 1 0902-1112 ● ●
162 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1201- ● ●
207 CLAMP; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-413-0 01 1 1201- ● ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0811-0901 ●
207 CLAMP; HTR UNIT
(A) 		8-98047-493-0 01 1 0902-1112 ● ●
207 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-493-0 01 1 1201- ● ●
212 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) M5X61 		8-98047-415-0 02 1 1201- ● ●
219 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1201- ● ●
234 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-120-1 01 1 1201- ● ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0811-0901 ●
236 GASKET; HEATER
(A) 		8-98047-420-0 01 1 0902-1112 ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-420-0 01 1 1201- ● ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0811-0901 ●
236 GASKET; HEATER
(B) 		8-98047-421-0 01 1 0902-1112 ● ●
236 GASKET; HEATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-421-0 01 1 1201- ● ●
237 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-382-0 01 1 1201- ● ●
238 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-383-0 01 1 1201- ● ●
239 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-504-0 01 1 1201- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) (B) ID=7.4 		8-97095-906-0 01 1 1201- ● ●
240 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) (A) ID=14.5 		8-97095-908-0 01 1 1201- ● ●
243 CORE 8-98048-508-0 01 1 0811-0901 ●
243 CORE 8-98048-508-0 01 1 0902-1112 ● ●
243 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-508-0 01 1 1201- ● ●
244 PIPE; INLET 8-98048-511-0 01 1 0811-0901 ●
244 PIPE; INLET 8-98048-511-0 01 1 0902-1112 ● ●
244 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-511-0 01 1 1201- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
