◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#49710) — 27 parça

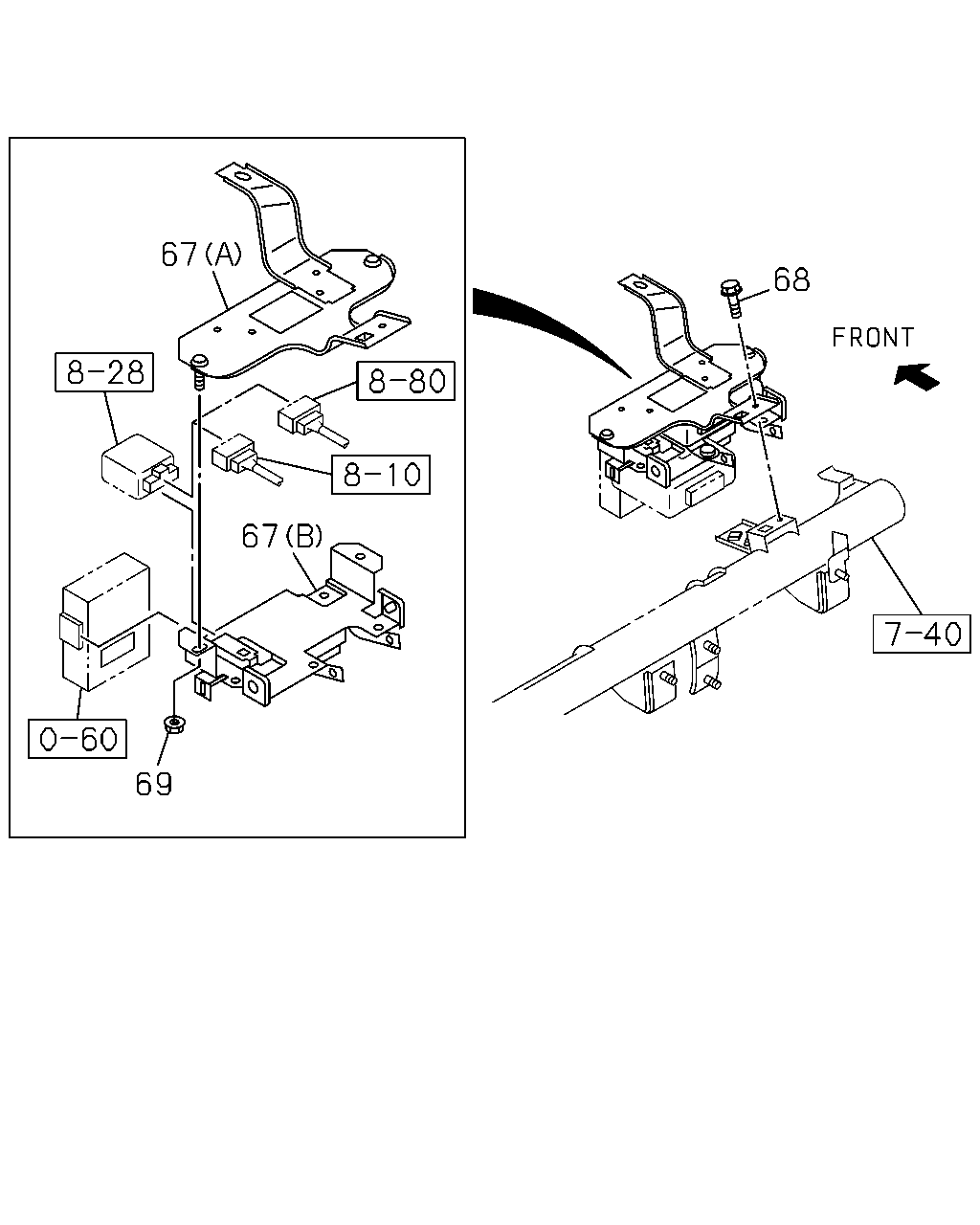

çizim 158511
67 67 69 68
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0811-0901 ●
67 BRACKET; CONT UNIT
(B) 		8-98022-206-2 01 1 0902-1111 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98203-057-0 01 1 1112-1207 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1208-1212 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98237-555-0 01 1 1301-1404 ● ●
67 BRACKET; CONT UNIT
(B) 		8-98217-377-0 01 1 1405- ● ●
67 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 0811-0901 ●
67 BRACKET; CONT UNIT
(A) 		8-98077-645-1 01 1 0902- ● ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 0811-0901 ●
68 BOLT; BRKT
M6X12 FLANGE 		0-28450-612-0 01 1 0902- ● ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
69 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0902- ● ●

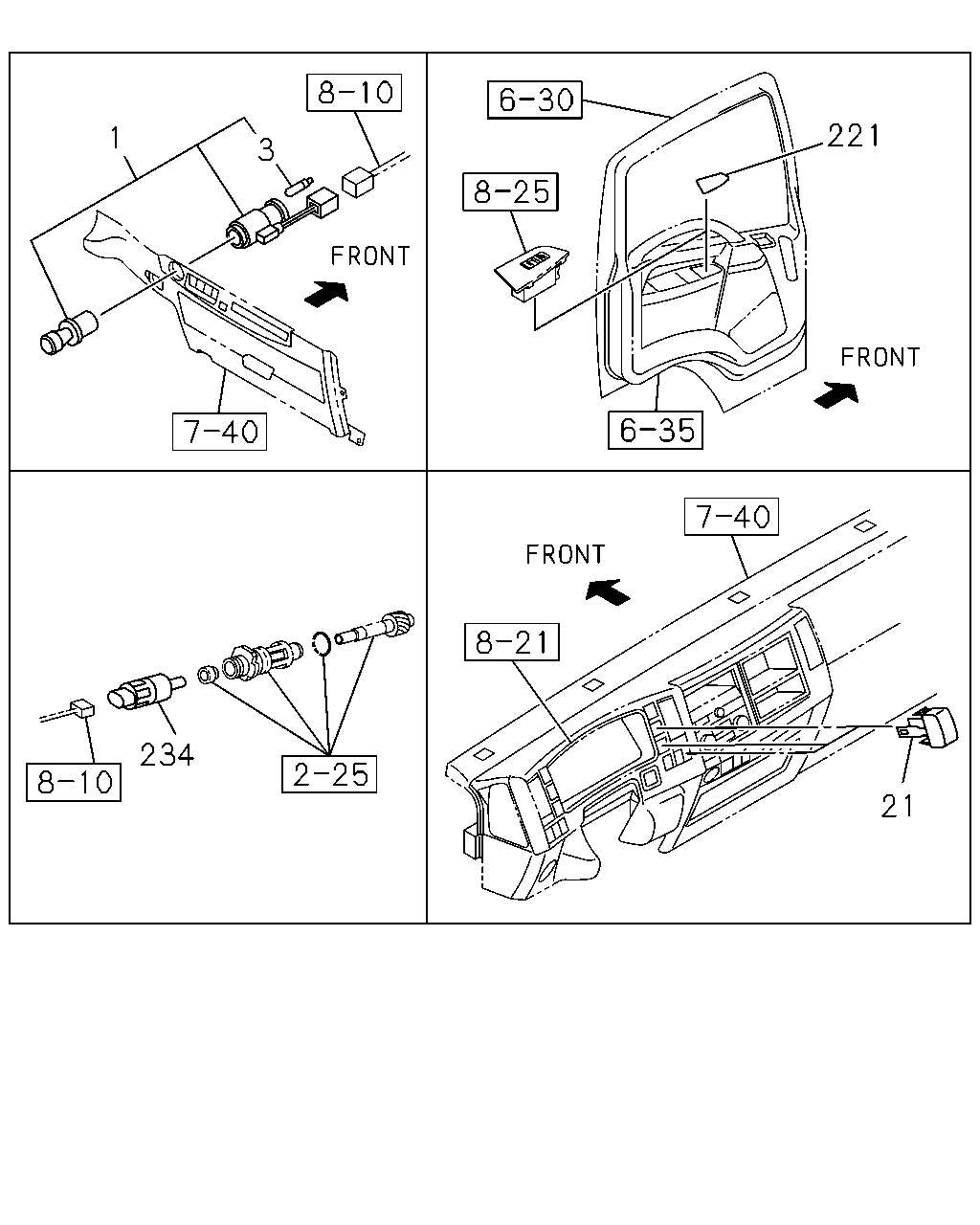

çizim 158526
221 1 3 234 21
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0811-0901 ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0902-0906 ● ●
1 LIGHTER; CIGAR 8-98142-962-0 01 1 0907- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0811-0901 ●
3 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0902-0906 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 0811-0901 ●
21 COVER; HOLE 8-98025-954-1 01 1 0902- ● ●
21 COVER; HOLE 8-98025-954-1 02 1 0811-0901 ●
21 COVER; HOLE 8-98025-954-1 02 1 0902- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0811-0901 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-915-2 01 1 0902- ● ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0811-0901 ●
221 COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32> 		8-98029-916-2 01 1 0902- ● ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0811-0901 ●
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
