◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20B - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20B — TIMING GEAR CASE AND FLYWHEEL HOUSING (#4971) — 198 parça

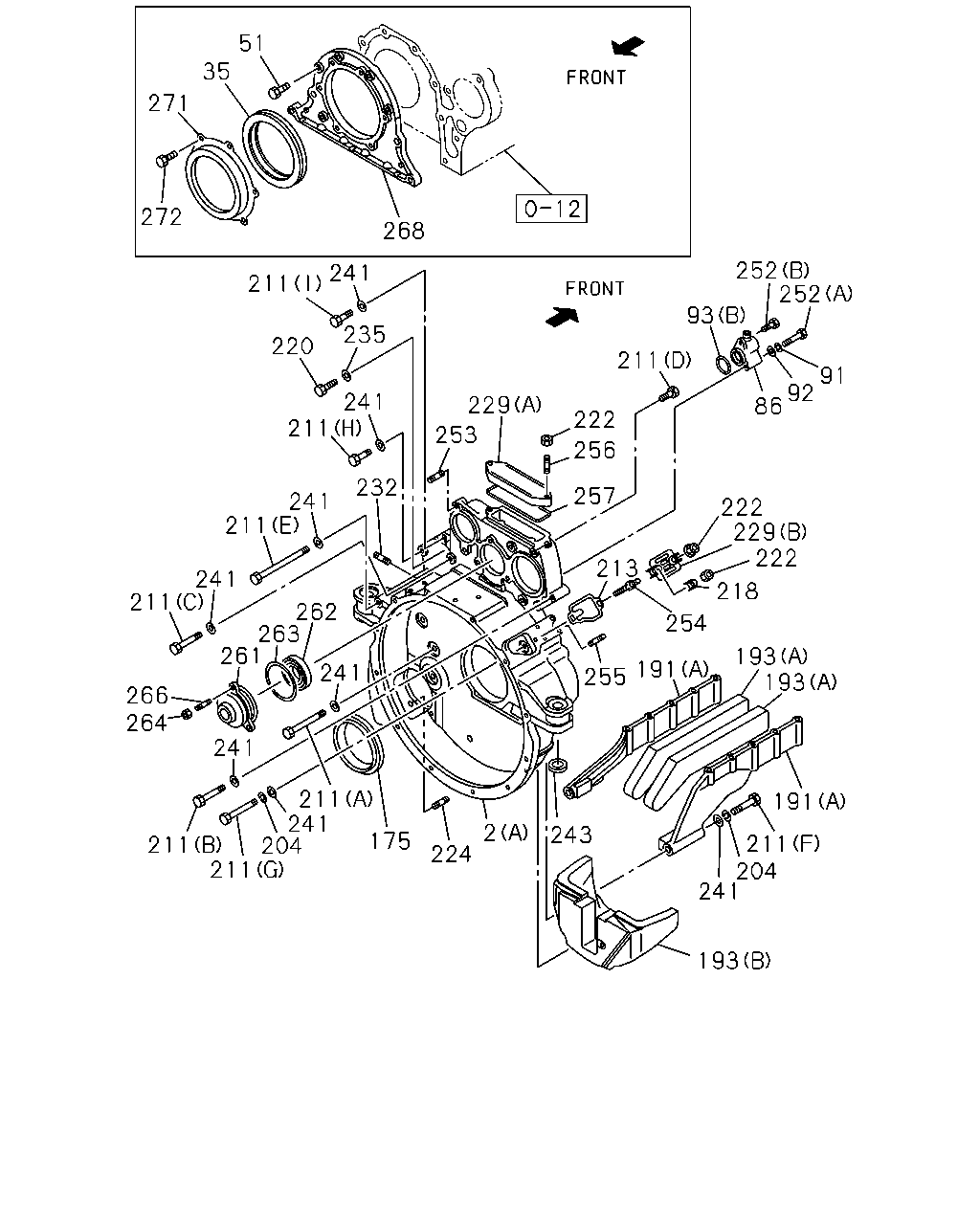

çizim 4862
51 35 271 272 268 252 252 241 211 93 235 220 211 91 92 86 241 211 229 222 253 256 232 257 241 211 222 229 222 213 241 211 218 262 263 261 254 193 193 191 241 255 266 264 241 211 241 211 204 211 191 2 243 175 211 204 241 224 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-453-5 01 1 9606-9905 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-453-5 01 1 9906-0004 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-619-0 01 1 0005-0007 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-630-0 01 1 0008- ●
2 HOUSING; FLYWHEEL
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (B) 		1-11341-452-4 01 1 9606-9905 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (B) 		1-11341-502-1 01 1 9906-0005 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (B) 		1-11341-603-0 01 1 0006- ●
2 HOUSING; FLYWHEEL
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (A) 		1-11341-450-4 01 1 9606-9905 ●
2 HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (A) 		1-11341-450-4 01 1 9906-0005 ●
2 HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (A) 		1-11341-597-0 01 1 0006- ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-529-2 01 1 9906-0004 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-618-0 01 1 0005-0007 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-632-0 01 1 0008- ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-2 01 1 9606-9905 ●
35 SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-524-3 01 1 9906- ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9606-9905 ●
51 BOLT; GEAR CASE COVER
M8X28 FLANGE 		0-28080-828-0 08 1 9906- ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9606-9905 ●
86 ELBOW; TACHOMETER DRIVE 1-85860-033-2 01 1 9906- ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9606-9609 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9610-9905 ●
91 WASHER; LK,ELBOW
ID=8.2 		9-09150-508-0 01 1 9906- ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9606-9609 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9610-9905 ●
92 WASHER; PL,ELBOW
ID=8.4 		9-09160-508-0 01 1 9906- ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7 		1-09623-416-0 01 1 9606-9609 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7 		1-09623-416-0 01 1 9610-9706 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7 		1-09623-416-0 01 1 9707-9905 ●
93 GASKET; ELBOW
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7 		1-09623-416-0 01 1 9906- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9606-9905 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09625-525-2 01 1 9906- ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9606-9905 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9906- ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9606-9905 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9906- ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-11349-169-0 01 1 9606-9905 ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO<SV1> (B) 		1-11349-169-0 01 1 9906- ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT<SV9> (B) 		1-19389-172-0 01 1 9606-9905 ●
193 SPACER; STAY TO OIL,PAN
(B) 		1-19389-172-0 01 1 9906- ●
193 SPACER; STAY TO OIL,PAN
ANTI NOISE EQUIPMENT<SV9> (A) 		1-19389-178-0 02 1 9606-9905 ●
193 SPACER; STAY TO OIL,PAN
(A) 		1-19389-178-0 02 1 9906- ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9606-9905 ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9906- ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9606-9905 ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9906- ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9606-9905 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9906- ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9606-9905 ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9906- ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9606-9905 ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9906- ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9606-9905 ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9906- ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9606-9905 ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9906- ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9606-9905 ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9906- ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (J) M10X22 FLANGE 		0-28181-022-0 01 1 9606-9905 ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> (J) M10X22 FLANGE 		0-28181-022-0 01 1 9906- ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X125 		9-09804-234-0 11 1 9606-9905 ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> (A) M14X125 		9-09804-234-0 11 1 9906- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO<SV1> (H) M14X55 		0-16806-455-0 01 1 9606-9905 ●
211 BOLT; HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (H) M14X55 		0-16806-455-0 01 1 9906- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO<SV1> (I) M10X28 FLANGE 		0-28181-028-0 01 1 9606-9905 ●
211 BOLT; HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (I) M10X28 FLANGE 		0-28181-028-0 01 1 9906- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO<SV1> (A) M14X125 		9-09804-234-0 09 1 9606-9905 ●
211 BOLT; HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (A) M14X125 		9-09804-234-0 09 1 9906- ●
213 POINTER; FLYWHEEL HSG
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> 		1-11342-019-0 01 1 9606-9905 ●
213 POINTER; FLYWHEEL HSG
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-11342-010-0 01 1 9606-9905 ●
213 POINTER; FLYWHEEL HSG 1-11342-010-0 01 1 9906- ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9606-9905 ●
218 WASHER; PL,COVER 1-11349-127-0 01 1 9906- ●
220 PLUG; GEAR CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-09604-066-1 01 1 9606-9905 ●
220 PLUG; GEAR CHECK HOLE 1-09604-066-1 01 1 9906- ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9606-9905 ●
222 NUT; COVER,TIMING CHECK HOLE
M8 FLANGE 		0-91150-108-0 04 1 9906- ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9606-9706 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9707-9905 ●
224 STUD; STARTER
M14X35 L=56 		9-04411-435-0 03 1 9906- ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9606-9905 ●
229 COVER; TIMING CHECK HOLE
(A) 		1-11349-118-2 01 1 9906- ●
229 COVER; TIMING CHECK HOLE
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (B) 		1-11349-143-0 01 1 9606-9905 ●
229 COVER; TIMING CHECK HOLE
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-11349-126-0 01 1 9606-9905 ●
229 COVER; TIMING CHECK HOLE
(B) 		1-11349-126-0 01 1 9906- ●
232 STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> M10X25 L=40 		9-04411-025-0 01 1 9606-9905 ●
232 STUD; OIL FILTER
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> M10X60 L=75 		9-04411-060-0 01 1 9606-9905 ●
232 STUD; OIL FILTER
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M10X25 L=40 		9-04411-025-0 02 1 9606-9905 ●
232 STUD; OIL FILTER
M10X25 L=40 		9-04411-025-0 02 1 9906- ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=12.2 		1-09630-084-0 01 1 9606-9905 ●
235 GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		1-09630-084-0 01 1 9906- ●
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9606-9905 ●
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9906- ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9606-9905 ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9906- ●
241 WASHER; PL,HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=10.5 OD=18 		9-09160-510-0 01 1 9606-9905 ●
241 WASHER; PL,HSG
ENGINE REAR PTO<SV1> ID=10.5 OD=18 		9-09160-510-0 01 1 9906- ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO<SV1> ID=10.5 OD=18 		9-09160-510-0 02 1 9606-9905 ●
241 WASHER; PL,HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> ID=10.5 OD=18 		9-09160-510-0 02 1 9906- ●
243 SEAT; ENG FOOT
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-11349-016-1 02 1 9606-9905 ●
243 SEAT; ENG FOOT 1-11349-016-1 02 1 9906- ●
252 BOLT; GEAR BOX
(A) M8X70 		0-10805-870-0 01 1 9606-9905 ●
252 BOLT; GEAR BOX
(A) M8X70 		0-10805-870-0 01 1 9906- ●
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9606-9905 ●
252 BOLT; GEAR BOX
(B) M8X22 W/LK&PL WASHER L=102 		1-09009-129-1 01 1 9906- ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9606-9905 ●
253 STUD; POWER STRG PUMP
M10X25 L=45 		9-04311-025-0 02 1 9906- ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9606-9706 ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9707-9905 ●
254 STUD; POINTER & COVER
M8X14,M8X14 L=33 		1-09300-058-1 02 1 9906- ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9606-9905 ●
255 STUD; RELAY LEVER BRKT
M8X16 L=28 		9-04110-816-0 04 1 9906- ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9606-9905 ●
256 STUD; COVER
M8X35 L=47 		9-04110-835-0 02 1 9906- ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9606-9905 ●
257 GASKET; TIMING CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11349-142-0 01 1 9906- ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9606-9905 ●
261 COVER; INJ PUMP COUPLING 1-11349-117-0 01 1 9906- ●
262 BEARING 1-09810-126-0 01 1 9606-9905 ●
262 BEARING 1-09810-126-0 01 1 9906- ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9606-9905 ●
263 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-422-0 01 1 9906- ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9606-9905 ●
264 NUT; COVER
M8 FLANGE 		0-91150-108-0 05 1 9906- ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9606-9905 ●
266 STUD; COVER & TACHO BOX
M8X20 L=32 		1-09305-005-0 03 1 9906- ●
268 COVER; FRT 1-11320-056-1 01 1 9606-9905 ●
268 COVER; FRT 1-11320-056-1 01 1 9906- ●
271 COVER; DUST 1-11329-004-0 01 1 9606-9905 ●
271 COVER; DUST 1-11329-004-0 01 1 9906- ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9606-9905 ●
272 BOLT; DUST COVER
M8X10 FLANGE 		0-28080-810-0 06 1 9906- ●

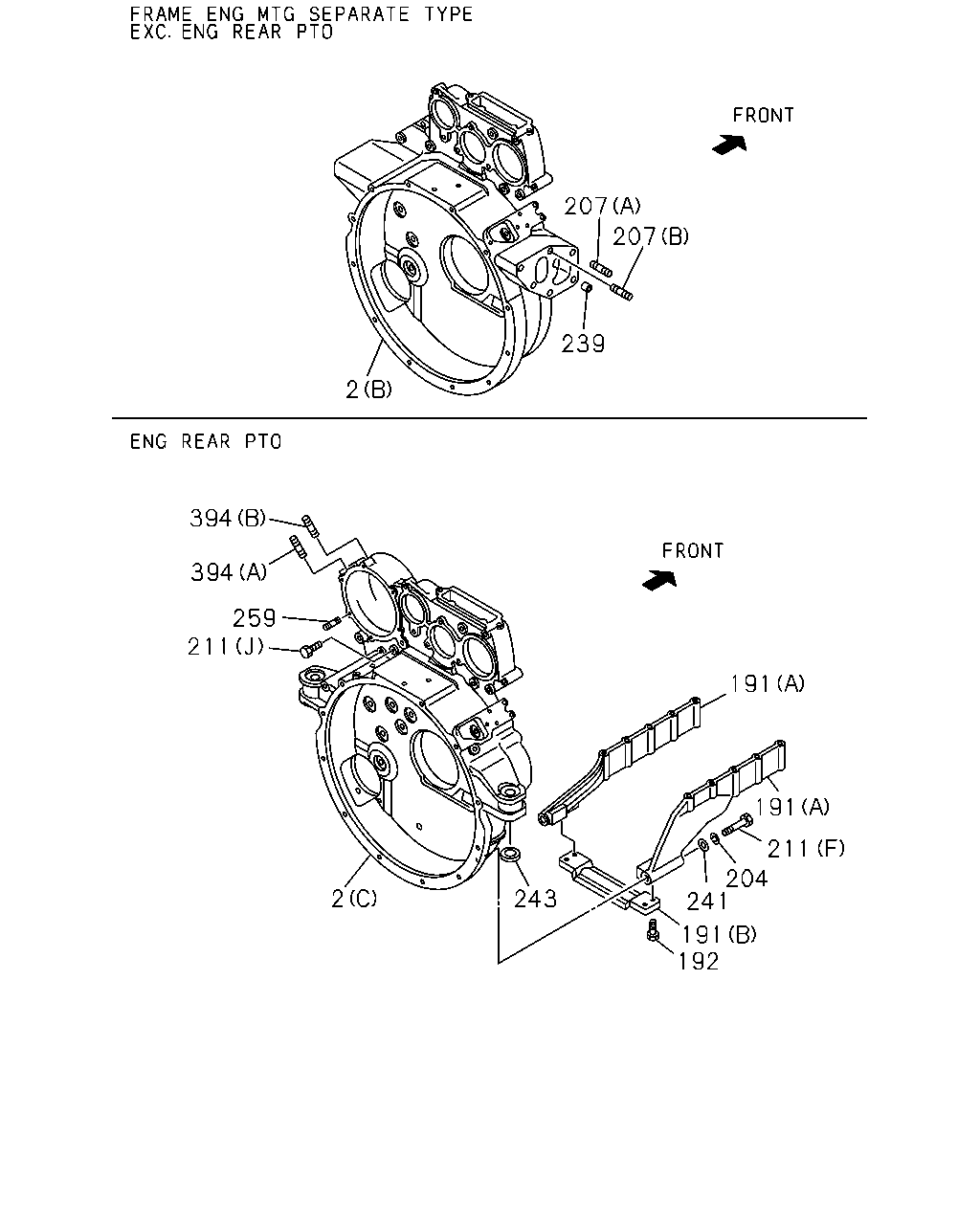

çizim 39594
207 207 239 2 394 394 259 211 191 191 211 204 241 2 243 191 192
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-453-5 01 1 9606-9905 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-453-5 01 1 9906-0004 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-619-0 01 1 0005-0007 ●
2 HOUSING; FLYWHEEL
ENGINE REAR PTO<SV1> EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-630-0 01 1 0008- ●
2 HOUSING; FLYWHEEL
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (B) 		1-11341-452-4 01 1 9606-9905 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (B) 		1-11341-502-1 01 1 9906-0005 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (B) 		1-11341-603-0 01 1 0006- ●
2 HOUSING; FLYWHEEL
EXC. FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (A) 		1-11341-450-4 01 1 9606-9905 ●
2 HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (A) 		1-11341-450-4 01 1 9906-0005 ●
2 HOUSING; FLYWHEEL
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),FRAME ENG MTG SEPARATE TYPE<SGM>,ENGINE REAR PTO<SV1> (A) 		1-11341-597-0 01 1 0006- ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-529-2 01 1 9906-0004 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-618-0 01 1 0005-0007 ●
2 HOUSING; FLYWHEEL
AIR COMPRESSOR HEAVY DUTY(E1Q) ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (C) 		1-11341-632-0 01 1 0008- ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9606-9905 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-167-0 01 1 9906- ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9606-9905 ●
191 STAY; FLYWHEEL HSG
(A) 		1-11349-168-0 01 1 9906- ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-11349-169-0 01 1 9606-9905 ●
191 STAY; FLYWHEEL HSG
ENGINE REAR PTO<SV1> (B) 		1-11349-169-0 01 1 9906- ●
192 BOLT; STAY TO HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M10X30 FLANGE 		0-28181-030-0 04 1 9606-9905 ●
192 BOLT; STAY TO HSG
ENGINE REAR PTO<SV1> M10X30 FLANGE 		0-28181-030-0 04 1 9906- ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9606-9905 ●
204 WASHER; LK,HSG
ID=10.2 		9-09150-510-0 01 1 9906- ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9606-9905 ●
204 WASHER; LK,HSG
ID=14.2 		9-09150-514-0 02 1 9906- ●
207 STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (B) M18X60 L=96 		9-04321-860-0 04 1 9606-9706 ●
207 STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (B) M18X60 L=96 		9-04321-860-0 04 1 9707-9905 ●
207 STUD; ENG FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> (A) M18X80 L=116 		9-04321-880-0 02 1 9606-9905 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9606-9905 ●
211 BOLT; HSG
(B) M14X75 		0-16806-475-0 01 1 9906- ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9606-9905 ●
211 BOLT; HSG
(C) M14X95 		0-16806-495-0 01 1 9906- ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9606-9905 ●
211 BOLT; HSG
(D) M10X25 FLANGE 		0-28181-025-0 02 1 9906- ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9606-9905 ●
211 BOLT; HSG
(E) M14X230 		1-09020-003-1 01 1 9906- ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9606-9905 ●
211 BOLT; HSG
(F) M14X155 		1-09020-008-1 02 1 9906- ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9606-9905 ●
211 BOLT; HSG
(G) M10X115 		9-09804-203-1 01 1 9906- ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (J) M10X22 FLANGE 		0-28181-022-0 01 1 9606-9905 ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> (J) M10X22 FLANGE 		0-28181-022-0 01 1 9906- ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M14X125 		9-09804-234-0 11 1 9606-9905 ●
211 BOLT; HSG
ENGINE REAR PTO<SV1> (A) M14X125 		9-09804-234-0 11 1 9906- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO<SV1> (H) M14X55 		0-16806-455-0 01 1 9606-9905 ●
211 BOLT; HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (H) M14X55 		0-16806-455-0 01 1 9906- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO<SV1> (I) M10X28 FLANGE 		0-28181-028-0 01 1 9606-9905 ●
211 BOLT; HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (I) M10X28 FLANGE 		0-28181-028-0 01 1 9906- ●
211 BOLT; HSG
EXC. ENGINE REAR PTO<SV1> (A) M14X125 		9-09804-234-0 09 1 9606-9905 ●
211 BOLT; HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> (A) M14X125 		9-09804-234-0 09 1 9906- ●
239 PIN; KNOCK,HSG TO FOOT
FRAME ENG MTG SEPARATE TYPE<SGM> EXC. ENGINE REAR PTO<SV1> 		1-43249-001-0 04 1 9606-9905 ●
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9606-9905 ●
241 WASHER; PL,HSG
ID=14 OD=30 T=6.0 		1-09503-057-0 13 1 9906- ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9606-9905 ●
241 WASHER; PL,HSG
ID=15 		9-09160-514-0 02 1 9906- ●
241 WASHER; PL,HSG
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=10.5 OD=18 		9-09160-510-0 01 1 9606-9905 ●
241 WASHER; PL,HSG
ENGINE REAR PTO<SV1> ID=10.5 OD=18 		9-09160-510-0 01 1 9906- ●
241 WASHER; PL,HSG
EXC. ENGINE REAR PTO<SV1> ID=10.5 OD=18 		9-09160-510-0 02 1 9606-9905 ●
241 WASHER; PL,HSG
EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1> ID=10.5 OD=18 		9-09160-510-0 02 1 9906- ●
243 SEAT; ENG FOOT
EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-11349-016-1 02 1 9606-9905 ●
243 SEAT; ENG FOOT 1-11349-016-1 02 1 9906- ●
259 STUD; PTO
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M10X35 L=55 		9-04311-035-0 06 1 9606-9905 ●
259 STUD; PTO
ENGINE REAR PTO<SV1> M10X35 L=55 		9-04311-035-0 06 1 9906- ●
394 STUD; SOLENOID VLV
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) M10X25 L=40 		9-04411-025-0 01 1 9606-9905 ●
394 STUD; SOLENOID VLV
ENGINE REAR PTO<SV1> (A) M10X25 L=40 		9-04411-025-0 01 1 9906- ●
394 STUD; SOLENOID VLV
ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) M10X35 L=50 		9-04411-035-0 01 1 9606-9905 ●
394 STUD; SOLENOID VLV
ENGINE REAR PTO<SV1> (B) M10X35 L=50 		9-04411-035-0 01 1 9906- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
