Isuzu WW
▶
TRUCKS
▶
ELF
▶
51205 - ELF200/300(MEXICO)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#49709) — 120 parça
Tümü
A - NMR6SN
B - NMR6SE
◀

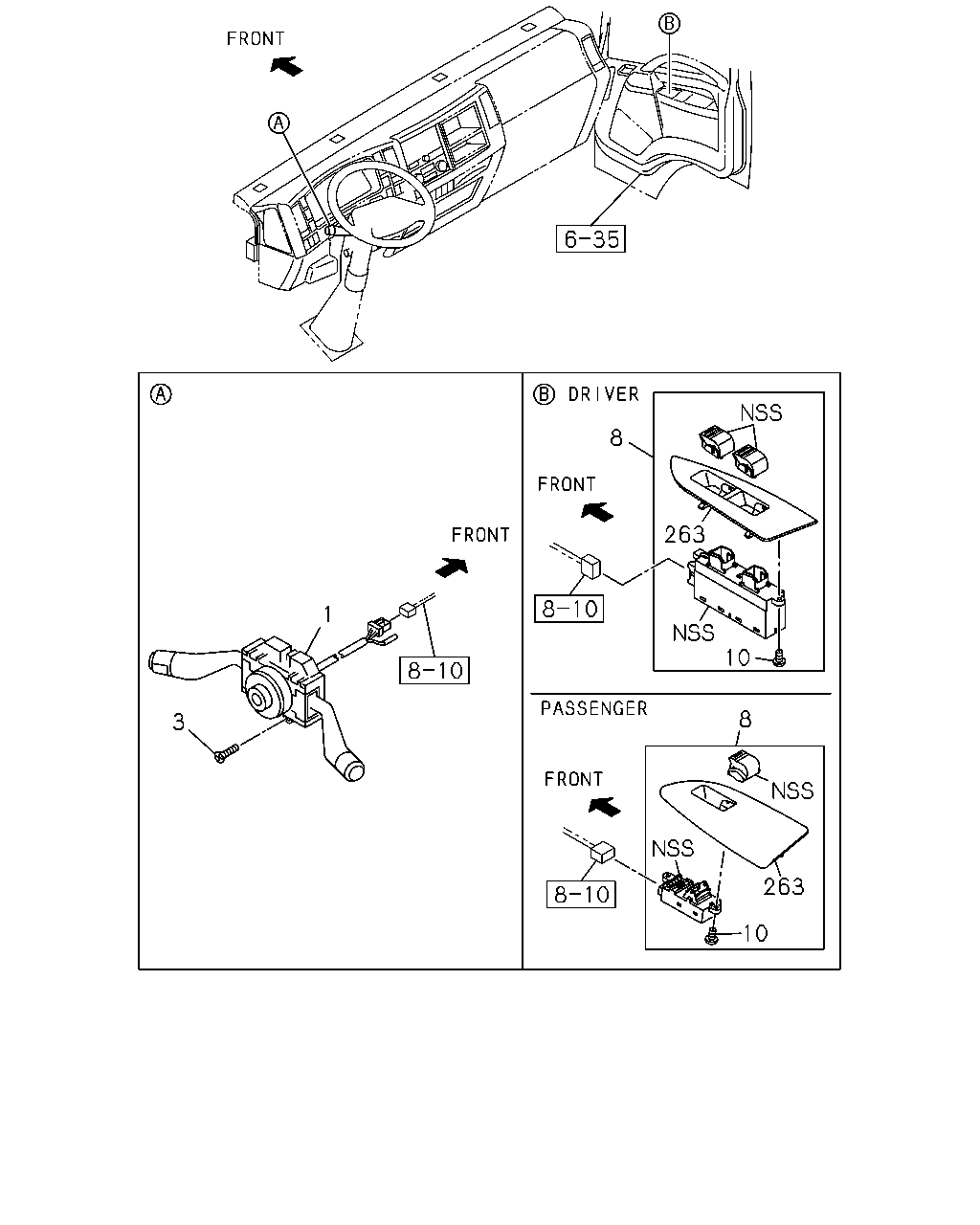

[825A] SWITCH;COMB AND WINDOW (23 parça)
[825A] RELAY;FRAME HARNESS (2 parça)
[825A] SWITCH;DOOR AND CLUTCH (35 parça)
[825A] -'12/4 RELAY;CAB HARNESS (11 parça)
[825A] SWITCH;INST PANEL (35 parça)
[825A] '12/5- RELAY;CAB HARNESS (12 parça)
[825A] RELAY;DOOR LK (2 parça)
▶
8
263
1
10
8
3
263
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98070-010-1
01
1
0811-0901
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98070-010-1
01
1
0902-1310
●
●
1
SWITCH; COMB
INTERMITTENT WIPER<C13>
8-98243-749-0
01
1
1311-
●
●
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98070-008-2
01
1
0811-0901
●
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98070-008-2
01
1
0902-1310
●
●
1
SWITCH; COMB
EXC. INTERMITTENT WIPER<C13>
8-98243-748-0
01
1
1311-
●
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0811-0901
●
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
0902-
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98129-845-0
01
1
0811-0901
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98129-845-0
01
1
0902-1001
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98159-544-0
01
1
1002-1509
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> DRIVER SIDE
8-98298-751-0
01
1
1510-
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98001-737-2
01
1
0811-0901
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98001-737-2
01
1
0902-1509
●
●
8
SWITCH; POWER WINDOW
POWER WINDOW FRT DOOR<A32> PASSENGER SIDE
8-98316-418-0
01
1
1510-
●
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
01
1
0811-0901
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
01
1
0902-
●
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
02
1
0811-0901
●
10
SCREW; POWER WINDOW SW
POWER WINDOW FRT DOOR<A32>
8-98153-865-0
02
1
0902-
●
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32>
8-98153-838-0
01
1
0811-0901
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32>
8-98153-838-0
01
1
0902-
●
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32>
8-98153-843-0
01
1
0811-0901
●
263
COVER; SW
POWER WINDOW FRT DOOR<A32>
8-98153-843-0
01
1
0902-
●
●
151
154
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
151
RELAY; HTR & A/C
AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1201-
●
●
154
RELAY; CONDENSER FAN
AIR CONDITIONER MANUAL CONT(C60) 24V 10A PANASONIC
8-97173-035-1
01
1
1201-
●
●

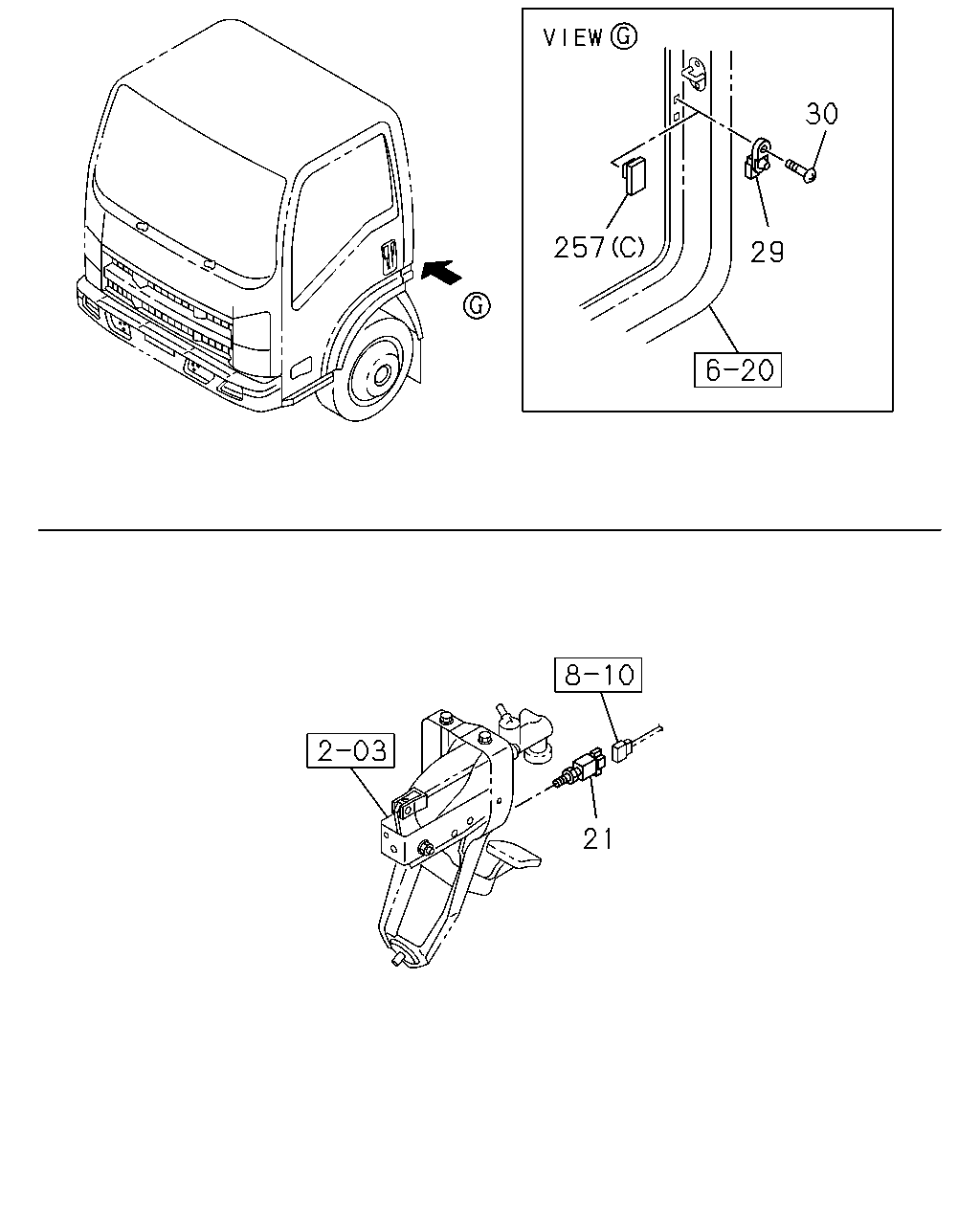

30
257
29
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
21
SWITCH; CLU
8-97358-248-0
01
1
0811-0901
●
21
SWITCH; CLU
8-97358-248-0
01
1
0902-
●
●
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0811-0901
●
29
SWITCH; DOOR
BLACK
8-98022-211-0
01
1
0902-
●
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0811-0901
●
30
SCREW; DOOR SW
M5X18
8-98047-201-0
01
1
0902-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0902-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0811-0901
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0902-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●

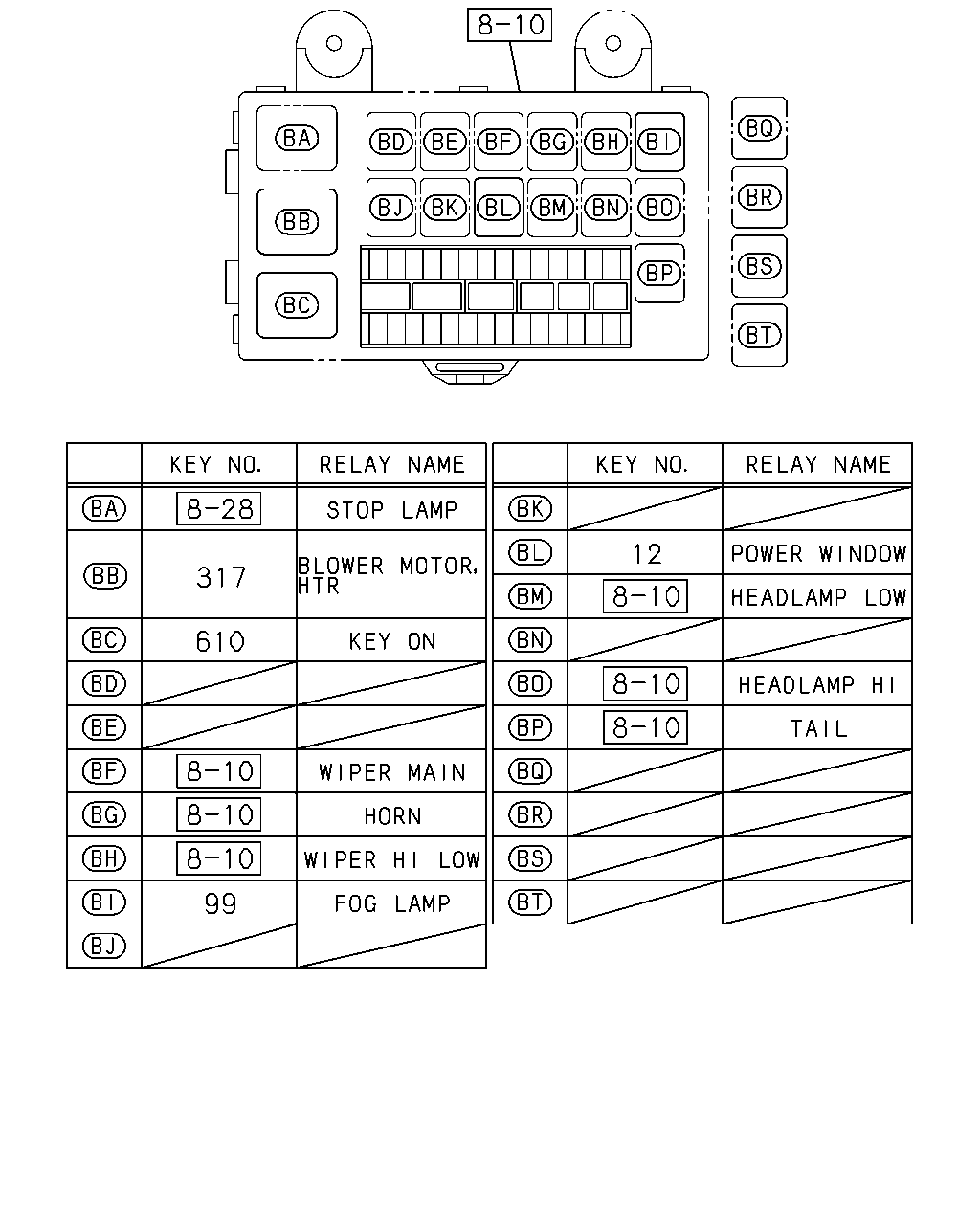

12
317
610
99
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0811-0901
●
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0902-
●
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0811-0901
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0902-
●
●
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-0901
●
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0902-1112
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1201-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-0901
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0902-1204
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●

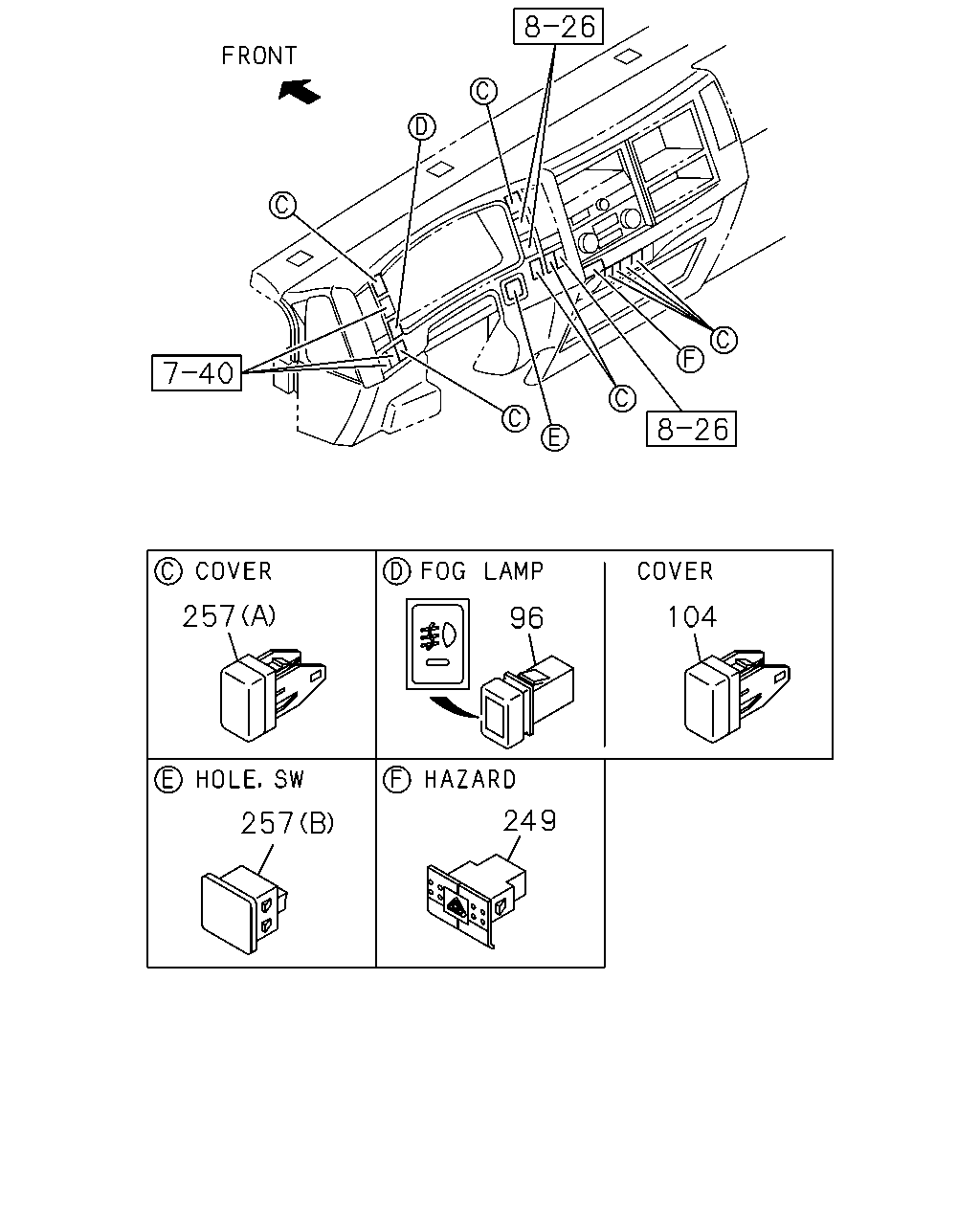

257
104
96
249
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
0811-0901
●
96
SWITCH; FOG LAMP
FOG LAMP<T96>
8-97387-031-4
01
1
0902-
●
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
0811-0901
●
104
COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96>
8-98025-954-1
01
1
0902-
●
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0811-0901
●
249
SWITCH; HAZARD
8-97386-922-1
01
1
0902-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
02
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0907-
●
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(B)
8-98029-914-1
01
1
0902-
●
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0811-0901
●
257
COVER; HOLE,SW
(C)
8-98029-917-0
01
1
0902-
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0811-0901
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●
257
COVER; HOLE,SW
(A)
8-98025-954-1
01
1
0902-0906
●
●

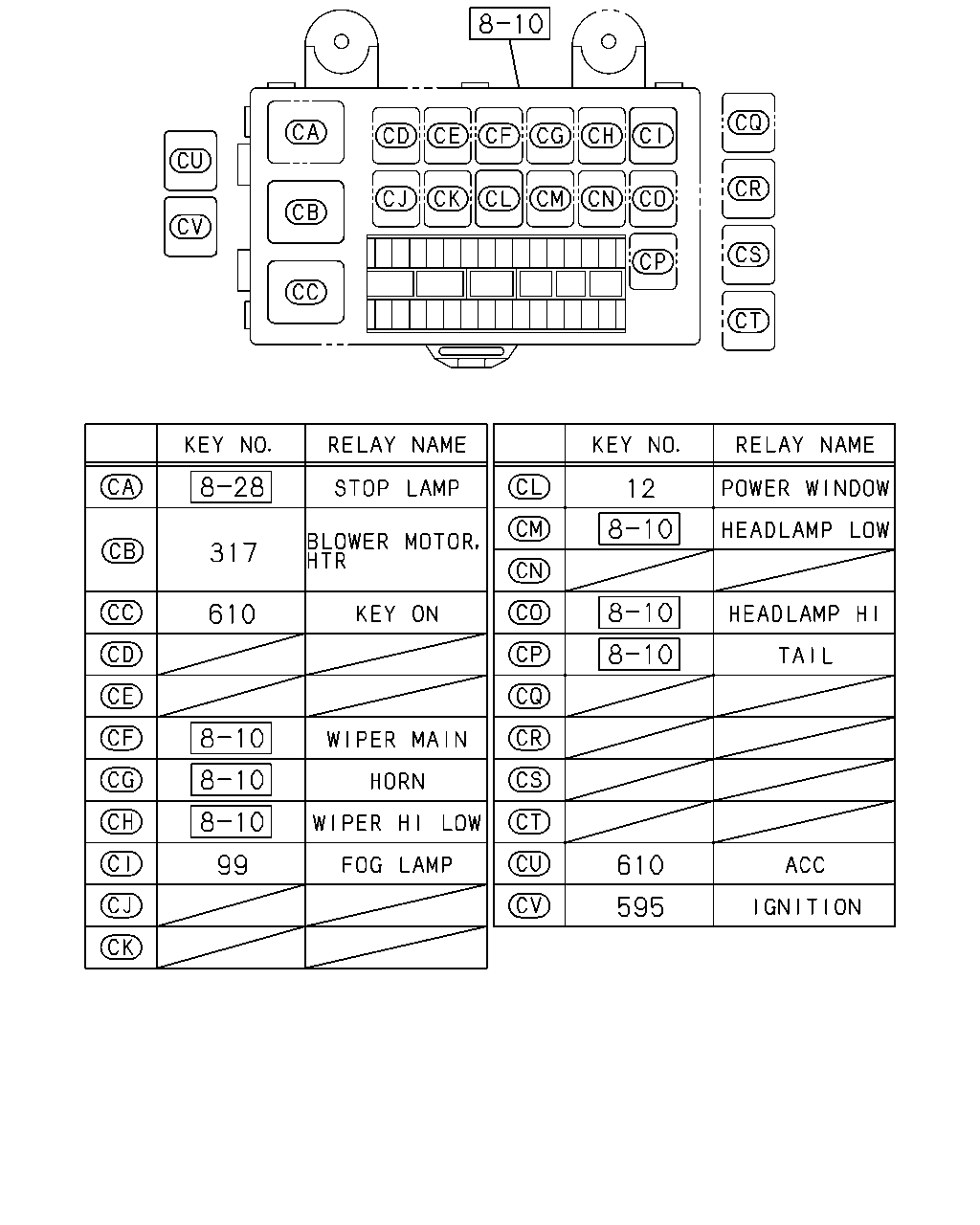

12
317
610
99
610
595
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0811-0901
●
12
RELAY; POWER WINDOW
POWER WINDOW FRT DOOR<A32> 24V 10A PANASONIC
8-97173-035-1
01
1
0902-
●
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0811-0901
●
99
RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A PANASONIC
8-97173-035-1
01
1
0902-
●
●
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-0901
●
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
0902-1112
●
●
317
RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1201-
●
●
595
RELAY; IGNITION
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0811-0901
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
0902-1204
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
610
RELAY; KEY ON
24V 12.5A PANASONIC
8-97262-933-0
01
1
1205-
●
●
39
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
0811-0901
●
39
RELAY; DOOR LK
AUTO DOOR LOCK<AU4>
8-98060-789-0
01
1
0902-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
