8-15 — FIXING PARTS; WIRING HARNESS (#49707) — 247 parça
çizim 158496
139 516 313 38 139 516 480 139 480 529 377 377 386 377 386 386 386 24 515 577 219 294 515 552 515 552 139
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0811-0901 ●
24 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0902-1409 ● ●
24 NUT; HARNESS
M6 FLANGE STAINLESS 		8-98297-112-0 01 1 1410- ● ●
38 BOLT; CLIP,HARNESS
EXC. KD PREPARATORY PACK<6HF> M8X12 FLANGE 		0-28050-812-0 01 1 0811-0901 ●
38 BOLT; CLIP,HARNESS
EXC. KD PREPARATORY PACK<6HF> M8X12 FLANGE 		0-28050-812-0 01 1 0902- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1201-1212 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		8-97108-669-0 01 1 0811-0901 ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		8-97108-669-0 01 1 0902- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0811-0901 ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0902- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0811-0901 ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0902- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0902- ● ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0811-0901 ●
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0902- ● ●
313 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0811-0901 ●
313 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0902- ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0811-0901 ●
377 BOLT; CAB EARTH
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0902-1004 ● ●
377 BOLT; CAB EARTH
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1005- ● ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0811-0901 ●
377 BOLT; CAB EARTH
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0902-1004 ● ●
377 BOLT; CAB EARTH
(A) M6X14 W/PL WASHER 		8-98164-836-0 01 1 1005- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0811-0901 ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0902-1004 ● ●
386 BOLT; GRAND HARNESS
(C) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1005- ● ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0811-0901 ●
386 BOLT; GRAND HARNESS
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0902-1004 ● ●
386 BOLT; GRAND HARNESS
(D) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1005- ● ●
480 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0902-1301 ●
480 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
480 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
480 BOLT; BRKT
(A) M6X25 FLANGE 		0-28650-625-0 01 1 0811-0901 ●
480 BOLT; BRKT
(A) M6X25 FLANGE 		0-28650-625-0 01 1 0902- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0811-0901 ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0902- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0811-0901 ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0902-1309 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		0-91180-108-0 01 1 0902-1309 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		0-91180-108-0 01 1 1310- ●
515 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
515 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 01 1 0902-1301 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE 		0-91180-110-0 01 1 0902-1301 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE 		0-91180-110-0 01 1 1302- ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0811-0901 ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0902- ● ●
516 BOLT; HARNESS
(A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0811-0901 ●
516 BOLT; HARNESS
(A) M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 01 1 0902- ● ●
516 BOLT; HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) M8X12 FLANGE 		0-28050-812-0 01 1 0811-0901 ●
516 BOLT; HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) M8X12 FLANGE 		0-28050-812-0 01 1 0902- ● ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0811-0901 ●
529 BOLT; RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-094-0 03 1 0902- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE 		0-91180-108-0 02 1 0902- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0902- ● ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0902- ● ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0902- ● ●

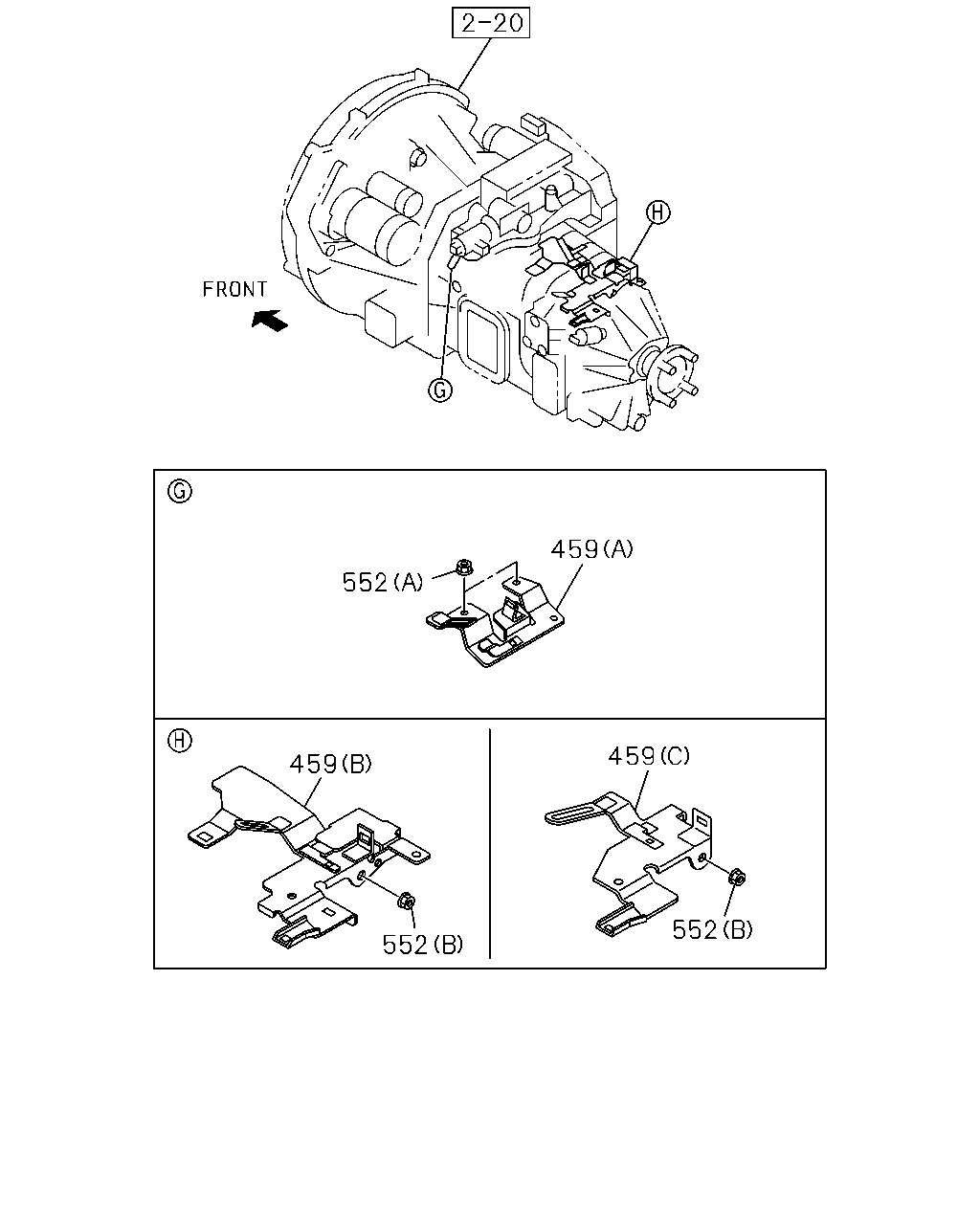

çizim 158501
459 552 459 459 552 552
BalonParca AdiParca NoAdetTipApplied Date A B
459 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 0811-0901 ●
459 BRACKET; SUPPORT,HARNESS
(A) 		8-98020-227-3 01 1 0902- ● ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98030-990-2 01 1 0811-0901 ●
459 BRACKET; SUPPORT,HARNESS
(B) 		8-98030-990-2 01 1 0902-1109 ● ●
459 BRACKET; SUPPORT,HARNESS
(C) 		8-98196-974-0 01 1 1110- ● ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
552 NUT; BRKT,HARNESS
(A) M8 FLANGE 		0-91180-108-0 02 1 0902- ● ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
552 NUT; BRKT,HARNESS
(B) M10 FLANGE 		0-91180-110-0 01 1 0902- ● ●
çizim 158505
22 22 617 488 22 16 16 16 22 22 48 16 22
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=6 & 10 		8-94154-844-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(B) ID=6 & 10 		8-94154-844-0 01 1 0902-1112 ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10 		8-94154-844-0 01 1 1201- ● ●
16 CLIP; HARNESS
(E) L=91 ID=8.5 		8-94329-956-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(E) L=91 ID=8.5 		8-94329-956-0 01 1 0902- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0902- ● ●
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0811-0901 ●
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0902- ● ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 0811-0901 ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 0902- ● ●
16 CLIP; HARNESS
(G) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(G) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0902- ● ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0811-0901 ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0902- ● ●
22 CLIP; ENG HARNESS
(F) L=119.5 		1-09707-197-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(F) L=119.5 		1-09707-197-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
(G) L=100 		5-09707-036-1 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(G) L=100 		5-09707-036-1 01 1 0902- ● ●
22 CLIP; ENG HARNESS
(D) ID=34 		8-98069-482-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(D) ID=34 		8-98069-482-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
(C) L=140 		5-09707-031-1 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) L=140 		5-09707-031-1 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(C) L=140 		5-09707-031-1 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) L=140 		5-09707-031-1 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3 		8-94167-742-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3 		8-94167-742-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) ID=13.2 & 14.5 		8-94475-649-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) ID=13.2 & 14.5 		8-94475-649-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (A) ID=12 & 6.8 		8-97125-842-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (A) ID=12 & 6.8 		8-97125-842-0 01 1 0902- ● ●
48 CLIP; FRAME HARNESS
ID=14 L=47 		5-09700-319-0 06 1 0902- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 2400MM(24W) ID=14 L=47 		5-09700-319-0 07 1 0811- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 3300MM(33W) ID=14 L=47 		5-09700-319-0 09 1 0811- ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0811-0901 ●
488 CLIP; CABLE,TRAILER
L=250 		5-09707-030-1 01 1 0902- ● ●
617 STRAP; BAND
L=140 		5-09707-031-1 01 1 1012-1106 ● ●

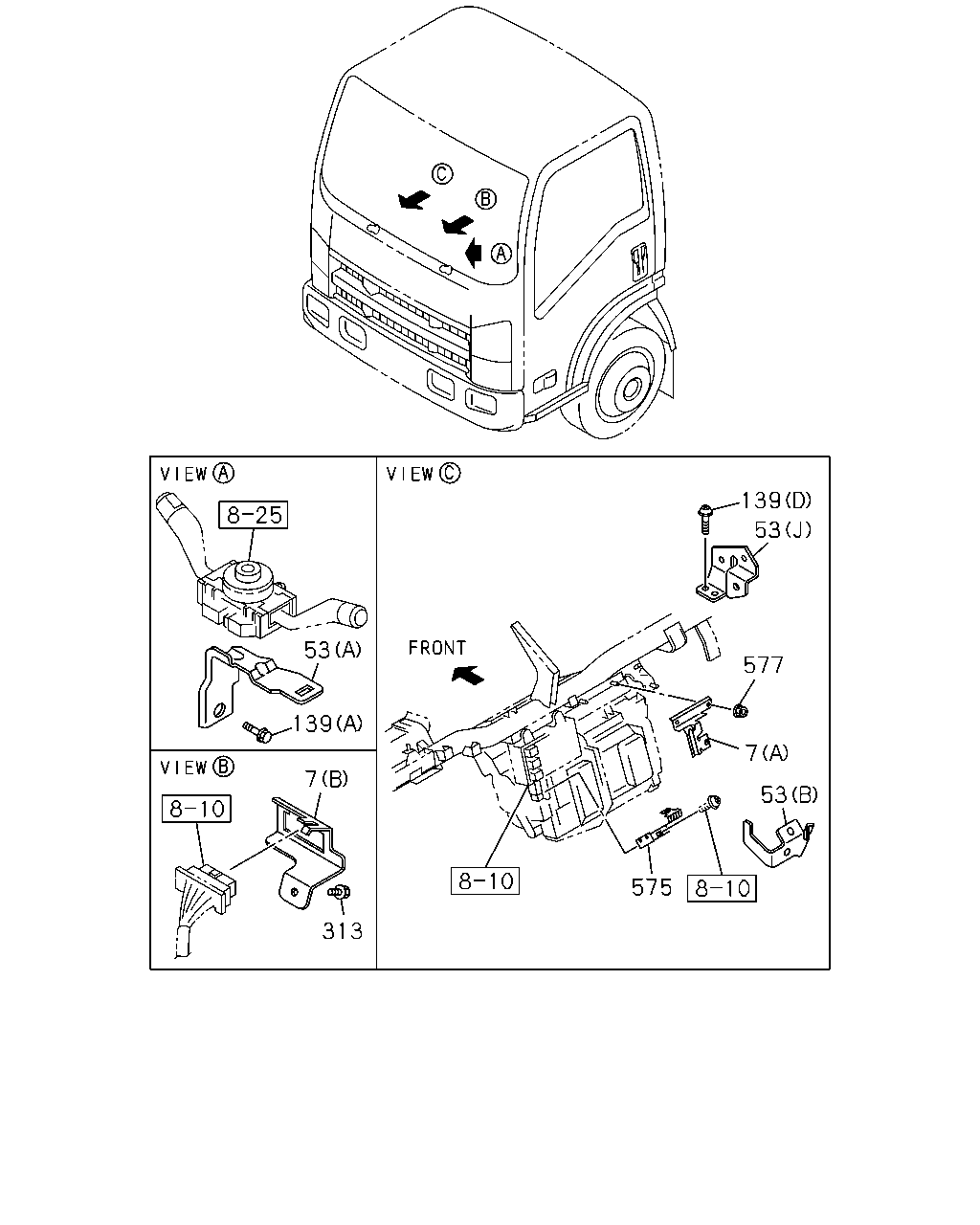

çizim 158507
139 53 53 577 139 7 7 53 575 313
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR
(B) 		8-98043-070-1 01 1 0811-0901 ●
7 BRACKET; CONNECTOR
(B) 		8-98043-070-1 01 1 0902- ● ●
7 BRACKET; CONNECTOR
(A) 		8-98056-073-3 01 1 0811-0901 ●
7 BRACKET; CONNECTOR
(A) 		8-98056-073-3 01 1 0902- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-699-0 01 1 1201- ● ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98033-918-2 01 1 0902-1301 ●
53 BRACKET; HARNESS
(I) 		8-98033-918-2 01 1 1302- ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98033-918-2 01 1 1302- ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 0902-1301 ●
53 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1302- ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1302- ●
53 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 0811-0901 ●
53 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 0902- ● ●
53 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 0811-0901 ●
53 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 0902- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0902- ● ●
53 BRACKET; HARNESS
(B) 		8-98074-502-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(B) 		8-98074-502-0 01 1 0902- ● ●
53 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 0811-0901 ●
53 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 0902- ● ●
53 BRACKET; HARNESS
(E) 		8-98105-778-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(E) 		8-98105-778-0 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98105-778-0 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98105-778-0 01 1 1302- ●
53 BRACKET; HARNESS
(F) 		8-98107-111-1 01 1 0811-0901 ●
53 BRACKET; HARNESS
(F) 		8-98107-111-1 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98107-111-1 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98107-111-1 01 1 1302- ●
53 BRACKET; HARNESS
(H) 		8-98111-813-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(H) 		8-98111-813-0 01 1 0902-1309 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98111-813-0 01 1 0902-1309 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98111-813-0 01 1 1310- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1201-1212 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		8-97108-669-0 01 1 0811-0901 ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		8-97108-669-0 01 1 0902- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0811-0901 ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0902- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0811-0901 ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0902- ● ●
313 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0811-0901 ●
313 BOLT; BRKT
M6X16 FLANGE 		0-28450-616-0 01 1 0902- ● ●
575 BRACKET; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98132-932-1 01 1 1201- ● ●
575 BRACKET; FUSE BOX 8-98054-320-2 01 1 0811-0901 ●
575 BRACKET; FUSE BOX 8-98054-320-2 01 1 0902-1112 ● ●
575 BRACKET; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98054-320-2 01 1 1201- ● ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0902- ● ●
577 NUT; FUSE BOX
M6 FLANGE 		0-91180-106-0 02 1 0902- ● ●

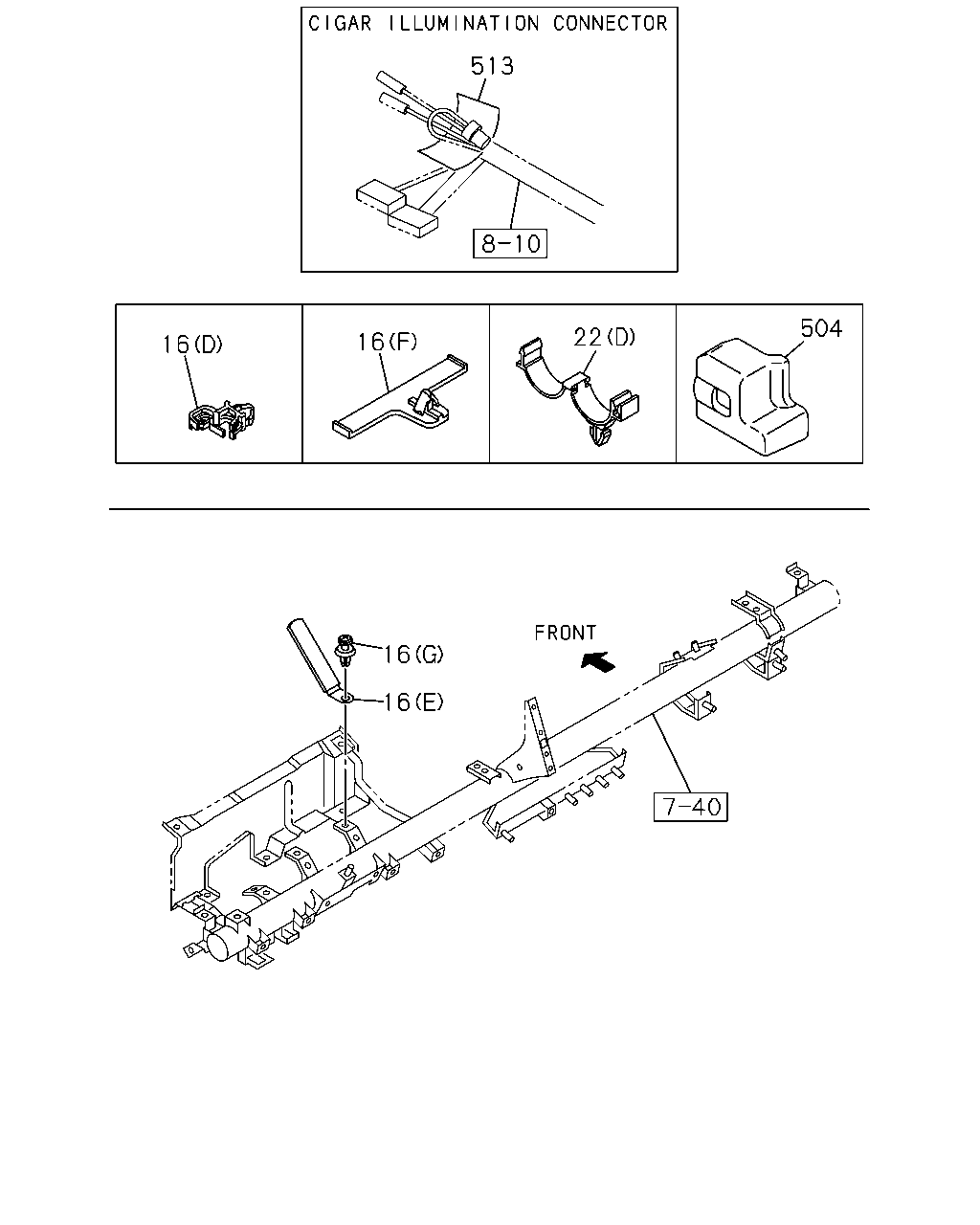

çizim 158513
513 504 22 16 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(B) ID=6 & 10 		8-94154-844-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(B) ID=6 & 10 		8-94154-844-0 01 1 0902-1112 ● ●
16 CLIP; HARNESS
EXC. AIR CONDITIONER MANUAL CONT(C60) (B) ID=6 & 10 		8-94154-844-0 01 1 1201- ● ●
16 CLIP; HARNESS
(E) L=91 ID=8.5 		8-94329-956-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(E) L=91 ID=8.5 		8-94329-956-0 01 1 0902- ● ●
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(D) ID=10 & 16 		8-94413-325-0 01 1 0902- ● ●
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0811-0901 ●
16 CLIP; HARNESS
(A) L=155 		8-97173-307-0 14 1 0902- ● ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 0811-0901 ●
16 CLIP; HARNESS
(C) L=40.6 		8-97229-357-0 02 1 0902- ● ●
16 CLIP; HARNESS
(G) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0811-0901 ●
16 CLIP; HARNESS
(G) D8.5X19 PUSH RIVET 		8-97857-210-0 01 1 0902- ● ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0811-0901 ●
16 CLIP; HARNESS
(F) 		8-98052-679-0 02 1 0902- ● ●
22 CLIP; ENG HARNESS
(F) L=119.5 		1-09707-197-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(F) L=119.5 		1-09707-197-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
(G) L=100 		5-09707-036-1 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(G) L=100 		5-09707-036-1 01 1 0902- ● ●
22 CLIP; ENG HARNESS
(D) ID=34 		8-98069-482-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(D) ID=34 		8-98069-482-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
(C) L=140 		5-09707-031-1 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) L=140 		5-09707-031-1 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
(C) L=140 		5-09707-031-1 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (C) L=140 		5-09707-031-1 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3 		8-94167-742-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (E) ID=6 & 8.3 		8-94167-742-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) ID=13.2 & 14.5 		8-94475-649-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (B) ID=13.2 & 14.5 		8-94475-649-0 01 1 0902- ● ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (A) ID=12 & 6.8 		8-97125-842-0 01 1 0811-0901 ●
22 CLIP; ENG HARNESS
EXC. KD PREPARATORY PACK<6HF> (A) ID=12 & 6.8 		8-97125-842-0 01 1 0902- ● ●
504 PROTECTOR; HARNESS
EXC. KD PREPARATORY PACK<6HF> 		8-98208-886-0 01 1 1201- ● ●
513 TAPE; SOFT,HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 130X80 		8-97304-373-0 01 1 1201- ● ●
513 TAPE; SOFT,HARNESS
70X45 		8-97304-372-0 01 1 0907-1309 ● ●

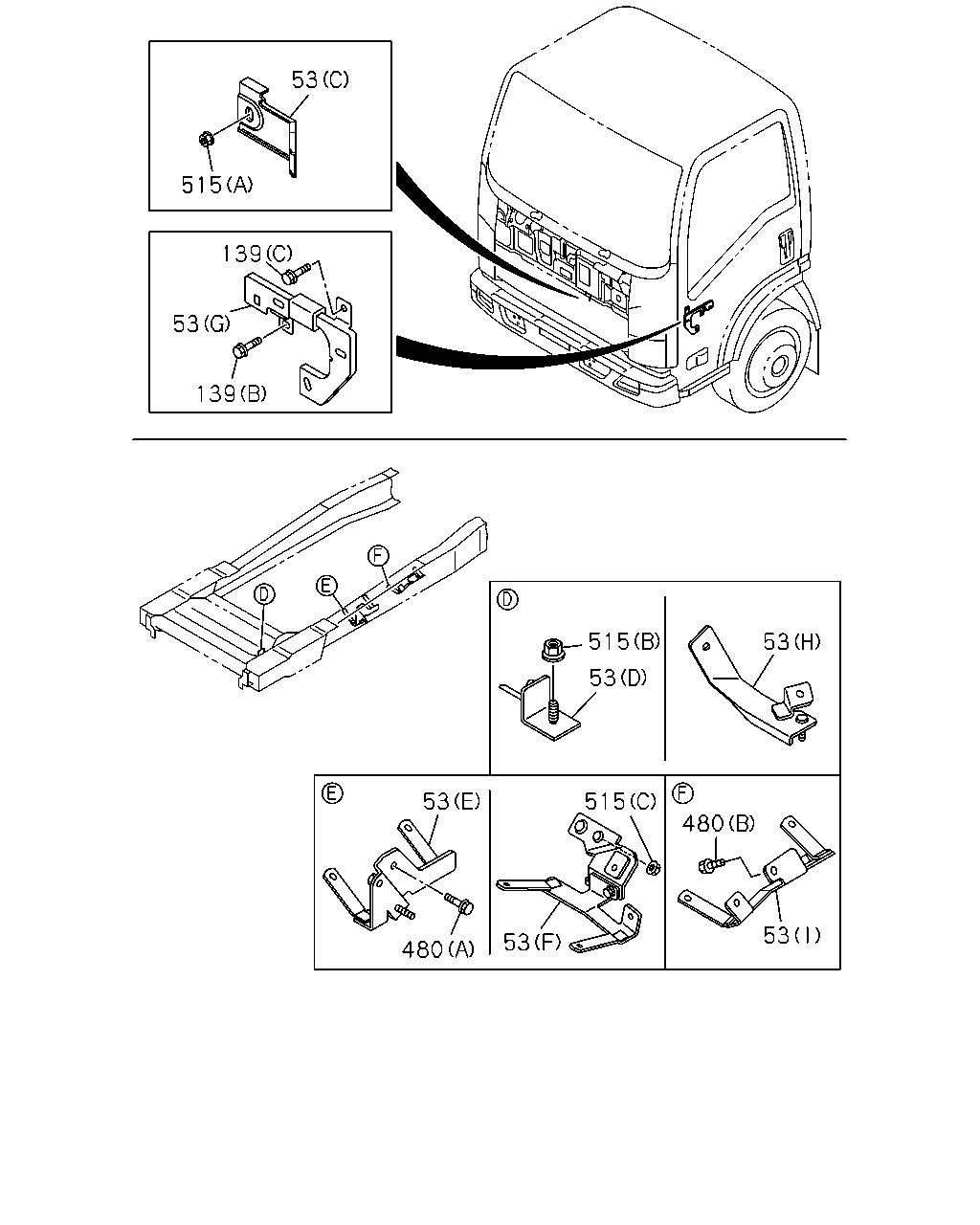

çizim 158517
53 515 139 53 139 515 53 53 53 515 480 53 53 480
BalonParca AdiParca NoAdetTipApplied Date A B
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (J) 		8-98084-699-0 01 1 1201- ● ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98033-918-2 01 1 0902-1301 ●
53 BRACKET; HARNESS
(I) 		8-98033-918-2 01 1 1302- ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (I) 		8-98033-918-2 01 1 1302- ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 0902-1301 ●
53 BRACKET; HARNESS
(E) 		8-98052-900-1 01 1 1302- ●
53 BRACKET; HARNESS
FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98052-900-1 01 1 1302- ●
53 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 0811-0901 ●
53 BRACKET; HARNESS
(C) 		8-98014-410-2 01 1 0902- ● ●
53 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 0811-0901 ●
53 BRACKET; HARNESS
(D) 		8-98032-016-1 01 1 0902- ● ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(A) 		8-98052-458-0 01 1 0902- ● ●
53 BRACKET; HARNESS
(B) 		8-98074-502-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(B) 		8-98074-502-0 01 1 0902- ● ●
53 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 0811-0901 ●
53 BRACKET; HARNESS
(G) 		8-98089-765-1 01 1 0902- ● ●
53 BRACKET; HARNESS
(E) 		8-98105-778-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(E) 		8-98105-778-0 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98105-778-0 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (E) 		8-98105-778-0 01 1 1302- ●
53 BRACKET; HARNESS
(F) 		8-98107-111-1 01 1 0811-0901 ●
53 BRACKET; HARNESS
(F) 		8-98107-111-1 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98107-111-1 01 1 0902-1301 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (F) 		8-98107-111-1 01 1 1302- ●
53 BRACKET; HARNESS
(H) 		8-98111-813-0 01 1 0811-0901 ●
53 BRACKET; HARNESS
(H) 		8-98111-813-0 01 1 0902-1309 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98111-813-0 01 1 0902-1309 ●
53 BRACKET; HARNESS
EXC. FRT INDEPENDENT SUSPENSION(FF0) (H) 		8-98111-813-0 01 1 1310- ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1201-1212 ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (D) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		8-97108-669-0 01 1 0811-0901 ●
139 BOLT; BRKT
(C) M6X12 FLANGE 		8-97108-669-0 01 1 0902- ● ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0811-0901 ●
139 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 01 1 0902- ● ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0811-0901 ●
139 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0902- ● ●
480 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0902-1301 ●
480 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
480 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(FF0) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1302- ●
480 BOLT; BRKT
(A) M6X25 FLANGE 		0-28650-625-0 01 1 0811-0901 ●
480 BOLT; BRKT
(A) M6X25 FLANGE 		0-28650-625-0 01 1 0902- ● ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0811-0901 ●
515 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 01 1 0902- ● ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0811-0901 ●
515 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 01 1 0902-1309 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		0-91180-108-0 01 1 0902-1309 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (B) M8 FLANGE 		0-91180-108-0 01 1 1310- ●
515 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 01 1 0811-0901 ●
515 NUT; BRKT
(C) M10 FLANGE 		0-91180-110-0 01 1 0902-1301 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE 		0-91180-110-0 01 1 0902-1301 ●
515 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(FF0) (C) M10 FLANGE 		0-91180-110-0 01 1 1302- ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0811-0901 ●
515 NUT; BRKT
(B) M8 FLANGE 		8-98040-024-0 01 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
