◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#49704) — 72 parça

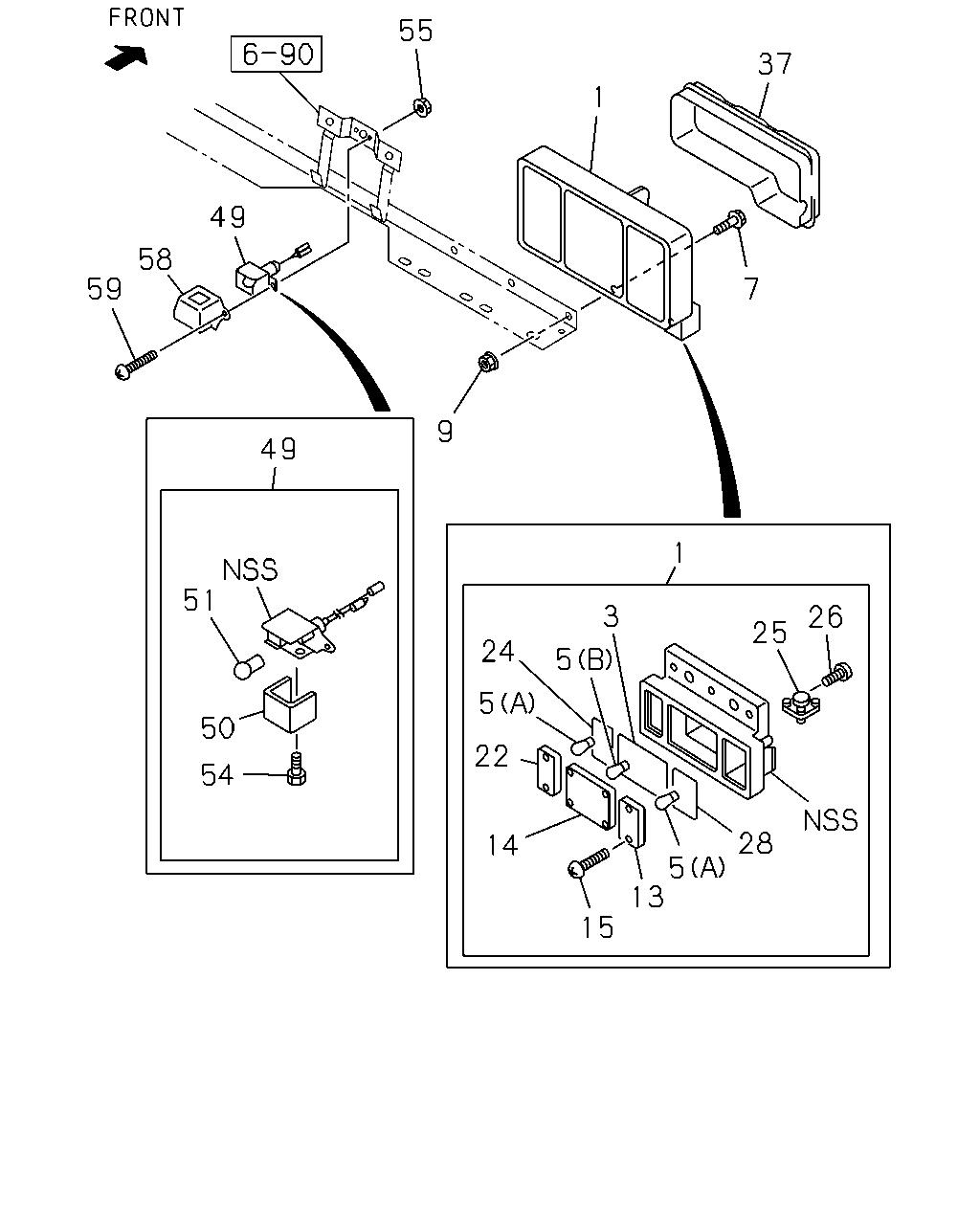

çizim 158509
55 37 1 49 58 59 7 9 49 1 51 3 26 25 24 5 5 50 22 54 28 14 5 13 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98034-328-0 01 1 0811-0901 ●
1 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98034-328-0 01 1 0902- ● ●
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0811-0901 ●
1 LAMP ASM; RR COMB 8-98034-325-0 01 1 0902- ● ●
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98034-324-0 01 1 0811-0901 ●
1 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98034-324-0 01 1 0902- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0811-0901 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0811-0901 ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0902- ● ●
3 GASKET; RR COMB LAMP 8-94257-505-0 01 1 0902- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0811-0901 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0811-0901 ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0902- ● ●
5 BULB; RR COMB LAMP
(A) 24V 21W 		1-82194-108-0 02 1 0902- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0811-0901 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0811-0901 ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0902- ● ●
5 BULB; RR COMB LAMP
(B) 24V 21/5W 		1-82194-109-0 01 1 0902- ● ●
7 SCREW; RR COMB LAMP
M6X20 		8-94402-623-0 04 1 0811-0901 ●
7 SCREW; RR COMB LAMP
M6X20 		8-94402-623-0 04 1 0902- ● ●
9 NUT; LAMP,RR COMB
M6 FLANGE 		5-09440-004-0 04 1 0811-0901 ●
9 NUT; LAMP,RR COMB
M6 FLANGE 		5-09440-004-0 04 1 0902- ● ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0811-0901 ●
13 LENS; TURN SIGNAL 8-94174-638-0 01 1 0902- ● ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0811-0901 ●
13 LENS; TURN SIGNAL 8-94174-639-0 01 1 0902- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0811-0901 ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 0902- ● ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0811-0901 ●
14 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 0902- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0811-0901 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0811-0901 ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0902- ● ●
15 SCREW; RR COMB LAMP
M4X20 TAPPING STAINLESS 		0-71190-420-0 08 1 0902- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0811-0901 ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0811-0901 ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0902- ● ●
22 LENS; BACKUP,RR COMB LAMP 8-94257-512-1 01 1 0902- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0811-0901 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0811-0901 ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0902- ● ●
24 GASKET; BACK,LAMP 8-94257-506-0 01 1 0902- ● ●
25 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 0811-0901 ●
25 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 0902- ● ●
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0811-0901 ●
26 SCREW; BACK HORN
BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 02 1 0902- ● ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0811-0901 ●
26 SCREW; BACK HORN
M4X14 TAPPING 		9-07076-414-0 01 1 0902- ● ●
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0811-0901 ●
26 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> M4X12 TAPPING 		9-07076-412-0 01 1 0902- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0811-0901 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0811-0901 ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0902- ● ●
28 GASKET; TURN,LAMP 8-94257-507-0 01 1 0902- ● ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0811-0901 ●
37 COVER; RR COMB LAMP 8-94128-858-4 01 1 0902- ● ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0811-0901 ●
37 COVER; RR COMB LAMP 8-94129-274-4 01 1 0902- ● ●
49 LAMP; LICENSE PLATE
24V 10W 		8-98029-477-0 01 1 0811-0901 ●
49 LAMP; LICENSE PLATE
24V 10W 		8-98029-477-0 01 1 0902- ● ●
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0811-0901 ●
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 0902- ● ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0811-0901 ●
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 0902- ● ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 01 1 0811-0901 ●
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 01 1 0902- ● ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 0811-0901 ●
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 0902- ● ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 0811-0901 ●
58 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 0902- ● ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 02 1 0811-0901 ●
59 SCREW; TAP,LICENSE LAMP BODY
M5X20 		9-93490-520-0 02 1 0902- ● ●
