◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#49702) — 32 parça

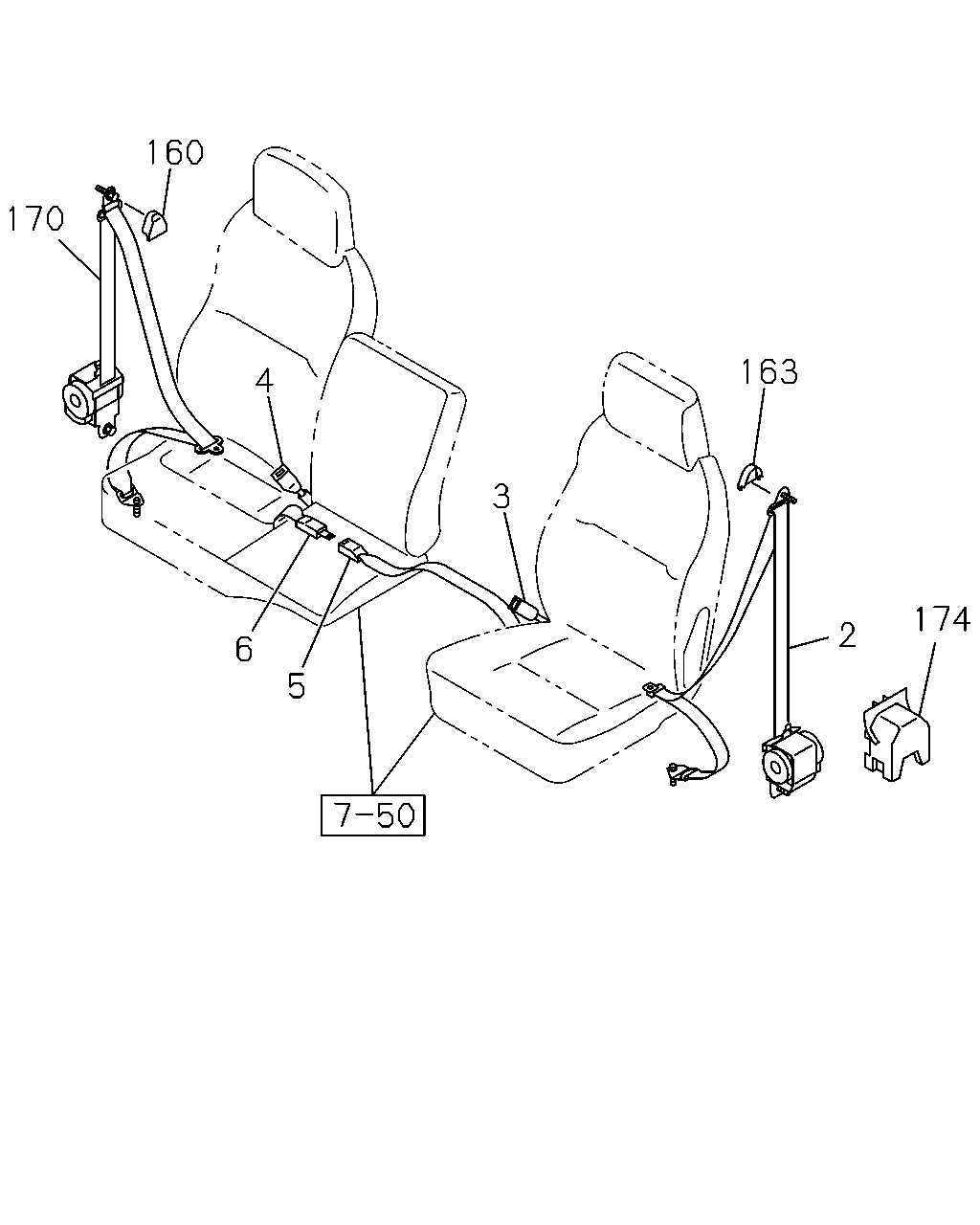

çizim 158484
160 170 163 4 3 174 2 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97414-693-1 01 1 0811-0901 ●
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97414-693-1 01 1 0902- ● ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97406-994-1 01 1 0811-0901 ●
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97406-994-2 01 1 0902- ● ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97409-471-0 01 1 0811-0901 ●
4 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY 		8-97409-471-0 01 1 0902- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97409-469-0 01 1 0811-0901 ●
5 BELT; CENTER SEAT,BUCKLE SIDE
GRAY 		8-97409-469-0 01 1 0902- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97414-694-0 01 1 0811-0901 ●
6 BELT; CENTER SEAT,TONGUE SIDE
GRAY 		8-97414-694-0 01 1 0902- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0811-0901 ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 0902- ● ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0811-0901 ●
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 0902- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97414-693-1 01 1 0811-0901 ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97414-693-1 01 1 0902- ● ●
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 0811-0901 ●
174 COVER; RETRACTOR,SEAT BELT 8-98039-376-1 01 1 0902- ● ●

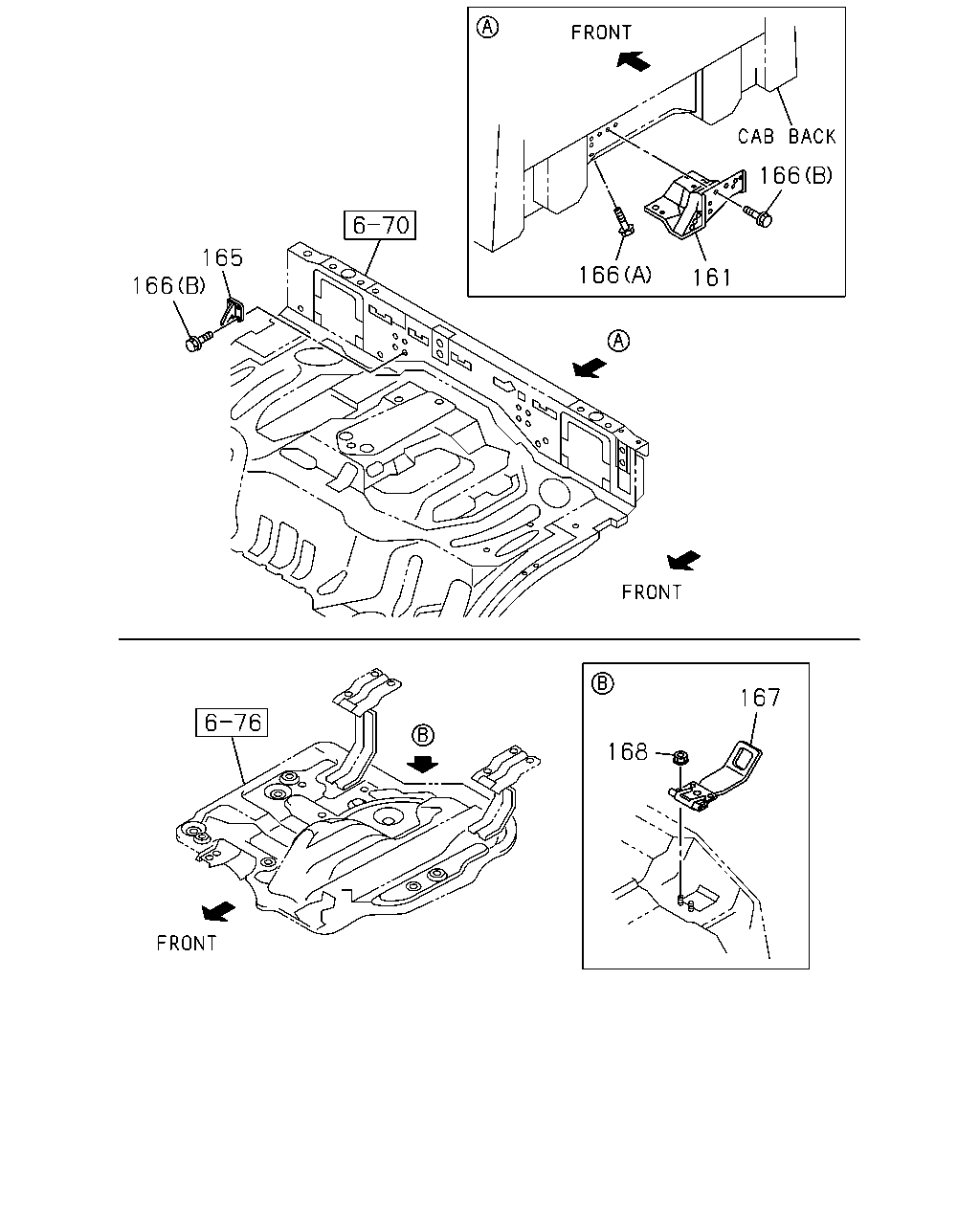

çizim 158557
166 165 166 166 161 167 168
BalonParca AdiParca NoAdetTipApplied Date A B
161 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98021-748-0 01 1 0811-0901 ●
161 REINFORCEMENT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98021-748-0 01 1 0902- ● ●
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0811-0901 ●
165 HOOK; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-98040-143-0 01 1 0902- ● ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0811-0901 ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0811-0901 ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0902- ● ●
166 BOLT; SEAT BELT ANCHOR
INSPECTION ENGINE COVER<8GA> (B) M8X25 FLANGE 		0-28650-825-0 04 1 0902- ● ●
166 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE 		0-28050-820-0 02 1 0811-0901 ●
166 BOLT; SEAT BELT ANCHOR
EXC. INSPECTION ENGINE COVER<8GA> (A) M8X20 FLANGE 		0-28050-820-0 02 1 0902- ● ●
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0811-0901 ●
167 PLATE; ANCHOR
INSPECTION ENGINE COVER<8GA> 		8-97589-140-0 01 1 0902- ● ●
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
168 NUT; ANCHOR PLATE
INSPECTION ENGINE COVER<8GA> M8 FLANGE 		0-91180-108-0 02 1 0902- ● ●
