Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#49701) — 212 parça

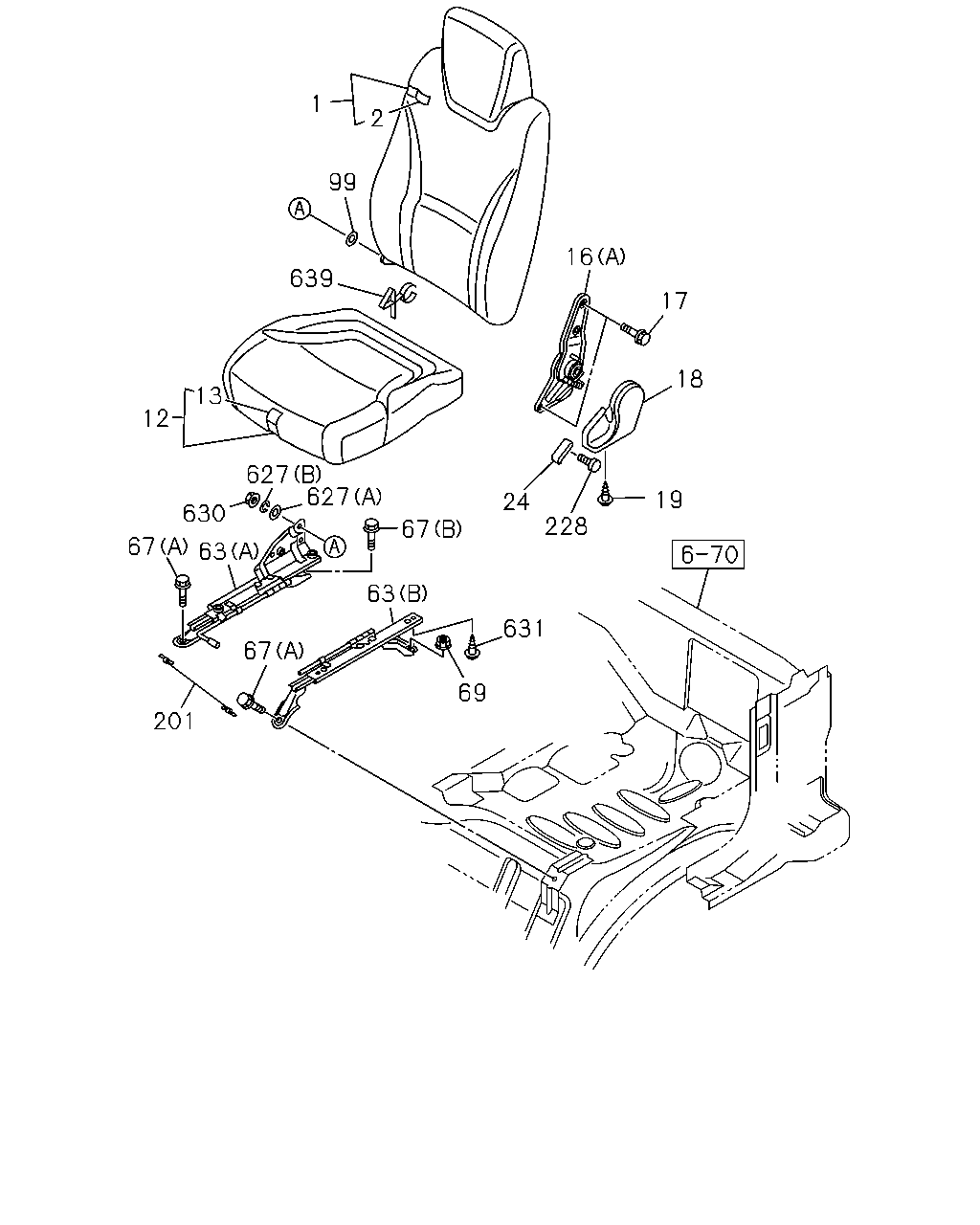

1 2 99 16 639 17 18 13 12 627 627 19 24 630 228 67 67 63 63 631 67 69 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BACK ASM; SEAT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97429-980-0	01	1	1501-	●	●
1	BACK ASM; SEAT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97465-002-0	01	1	1501-	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-357-4	01	1	0811-0901		●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-357-4	01	1	0902-1009	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-237-1	01	1	1010-1412	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-237-1	01	1	1501-	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-156-3	01	1	0811-0901		●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-156-3	01	1	0902-1009	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-236-1	01	1	1010-1412	●	●
1	BACK ASM; SEAT SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-236-1	01	1	1501-	●	●
1	BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-160-5	01	1	0811-0901		●
1	BACK ASM; SEAT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-160-7	01	1	0902-	●	●
1	BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-155-3	01	1	0811-0901		●
1	BACK ASM; SEAT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-155-5	01	1	0902-	●	●
2	COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97429-981-0	01	1	1501-	●	●
2	COVER; TRIM,FRT SEAT,BACK FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97465-004-0	01	1	1501-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-358-2	01	1	0811-0901		●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97409-358-2	01	1	0902-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-256-0	01	1	1010-1412	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-256-0	01	1	1501-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-157-1	01	1	0811-0901		●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-157-1	01	1	0902-1009	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-255-0	01	1	1010-1412	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-255-0	01	1	1501-	●	●
2	COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-038-1	01	1	0811-0901		●
2	COVER; TRIM,FRT SEAT,BACK SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-038-2	01	1	0902-	●	●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-152-1	01	1	0811-0901		●
2	COVER; TRIM,FRT SEAT,BACK EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-152-2	01	1	0902-	●	●
12	CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-011-0	01	1	1501-	●	●
12	CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-008-0	01	1	1501-	●	●
12	CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG>	8-97465-009-0	01	1	1501-	●	●
12	CUSHION; SEAT,FRT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-006-0	01	1	1501-	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-394-2	01	1	0811-0901		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-394-2	01	1	0902-1009	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-250-1	01	1	1010-1412	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-250-1	01	1	1501-	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-3	01	1	0811-0901		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-359-3	01	1	0902-0902	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-254-1	01	1	0903-1009	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1010-1412	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-243-1	01	1	1501-	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-712-1	01	1	0811-0901		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-712-1	01	1	0902-1009	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-249-1	01	1	1010-1412	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-249-1	01	1	1501-	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-158-2	01	1	0811-0901		●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-158-2	01	1	0902-0902	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-253-1	01	1	0903-1009	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-242-1	01	1	1010-1412	●	●
12	CUSHION; SEAT,FRT SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,SEAT FRT,LONG SIZE<7UG>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-242-1	01	1	1501-	●	●
12	CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-165-0	01	1	0811-0901		●
12	CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-165-0	01	1	0902-	●	●
12	CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-163-1	01	1	0811-0901		●
12	CUSHION; SEAT,FRT SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-163-3	01	1	0902-	●	●
12	CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-710-0	01	1	0811-0901		●
12	CUSHION; SEAT,FRT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-710-0	01	1	0902-	●	●
12	CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-153-1	01	1	0811-0901		●
12	CUSHION; SEAT,FRT EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-153-3	01	1	0902-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-017-0	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-014-0	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG>	8-97465-015-0	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-012-0	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-395-2	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-395-2	01	1	0902-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-270-1	01	1	1010-1412	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-270-1	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97409-360-3	01	1	0902-0902	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-262-0	01	1	0903-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1010-1412	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-262-1	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-713-1	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-713-1	01	1	0902-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1010-1412	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97421-269-1	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-159-2	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-159-2	01	1	0902-0902	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-261-0	01	1	0903-1009	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-261-1	01	1	1010-1412	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,SEAT FRT,LONG SIZE<7UG>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-261-1	01	1	1501-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-166-0	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-166-0	01	1	0902-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-1	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT FRT,LONG SIZE<7UG> EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-164-2	01	1	0902-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG> DARK GRAY	8-97414-711-0	01	1	0902-	●	●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-1	01	1	0811-0901		●
13	COVER; TRIM,FRT SEAT,CUSHION EXC. SEAT CLOTH<7FL>,SEAT FRT,LONG SIZE<7UG>, INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-154-2	01	1	0902-	●	●
16	ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0811-0901		●
16	ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0902-	●	●
16	ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0811-0901		●
16	ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0902-	●	●
17	BOLT; RECLINING M10X20	8-98062-661-0	04	1	0811-0901		●
17	BOLT; RECLINING M10X20	8-98062-661-0	04	1	0902-	●	●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0811-0901		●
18	COVER; RECLINING GRAY	8-97409-361-0	01	1	0902-	●	●
19	SCREW; COVER M5	8-98062-663-0	01	1	0811-0901		●
19	SCREW; COVER M5	8-98062-663-0	01	1	0902-	●	●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0811-0901		●
24	KNOB; RECLINING,FRT,SEAT GRAY	8-97409-362-0	01	1	0902-	●	●
63	ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0811-0901		●
63	ADJUSTER; SEAT SLIDE (A) INNER	8-98002-907-2	01	1	0902-	●	●
63	ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0811-0901		●
63	ADJUSTER; SEAT SLIDE (B) OUTER	8-98002-908-1	01	1	0902-	●	●
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0811-0901		●
67	BOLT; FRT SEAT TO BODY (A) M10X20 FLANGE	8-98055-941-0	02	1	0902-	●	●
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0811-0901		●
67	BOLT; FRT SEAT TO BODY (B) M10X30 FLANGE	8-98055-942-0	01	1	0902-	●	●
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0811-0901		●
69	NUT; FRT SEAT M10 FLANGE	8-98055-961-0	01	1	0902-	●	●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	0811-0901		●
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	0902-	●	●
201	CABLE; ADJ	8-98003-086-1	01	1	0811-0901		●
201	CABLE; ADJ	8-98003-086-1	01	1	0902-	●	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0811-0901		●
228	SCREW; KNOB M4	8-98062-662-0	01	1	0902-	●	●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0811-0901		●
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	0902-	●	●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0811-0901		●
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	0902-	●	●
630	NUT; CAP M8	8-98063-225-0	01	1	0811-0901		●
630	NUT; CAP M8	8-98063-225-0	01	1	0902-	●	●
631	BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0811-0901		●
631	BOLT; ADJ,SEAT OUTER M8X25 W/LK WASHER	8-98062-658-0	02	1	0902-	●	●
631	BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0811-0901		●
631	BOLT; ADJ,SEAT INNER M8X32 W/LK WASHER	8-98062-659-0	02	1	0902-	●	●
639	CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0811-0901		●
639	CLIP; SEAT INSPECTION ENGINE COVER<8GA>	8-98097-693-0	01	1	0902-	●	●

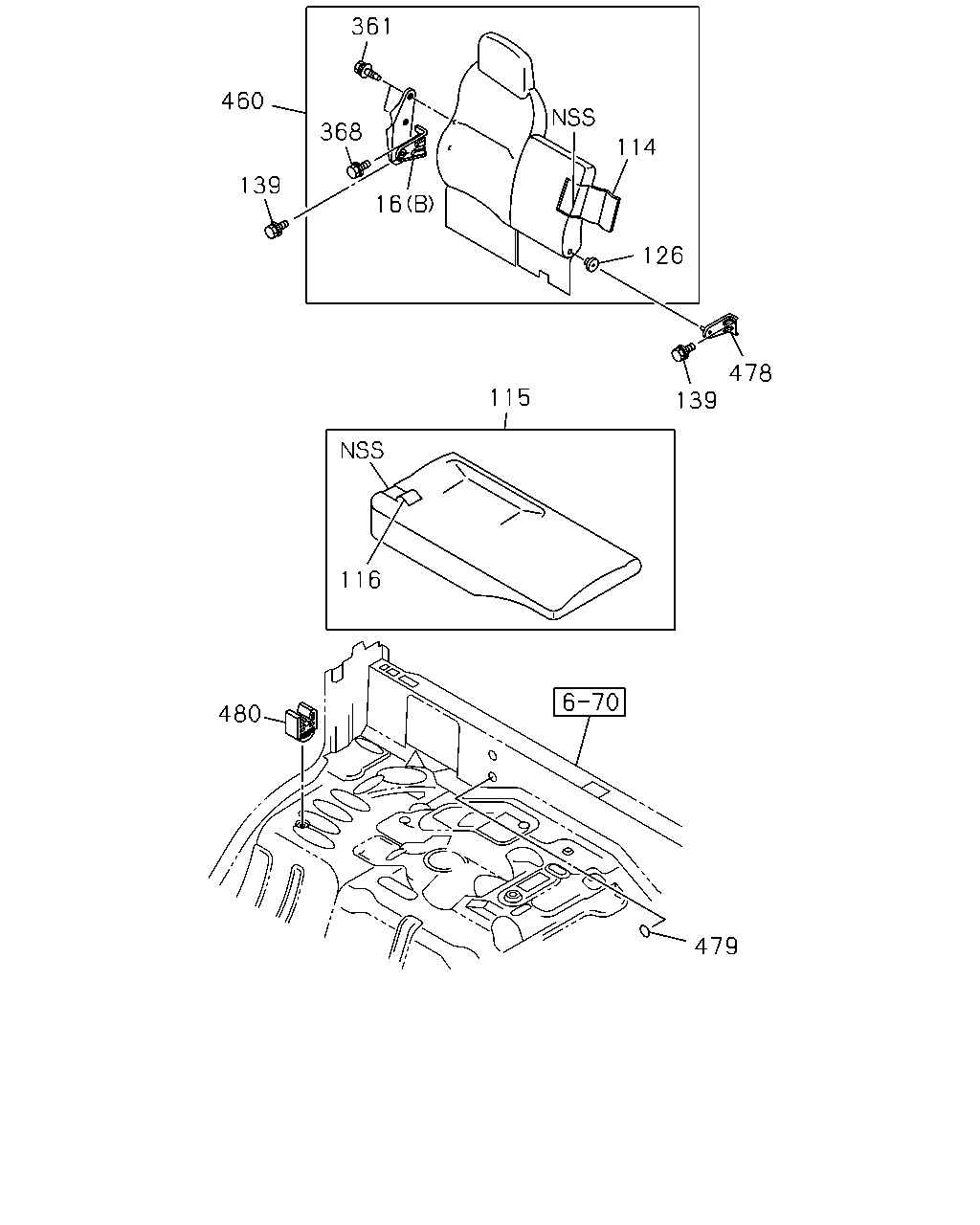

361 460 368 114 139 16 126 478 115 139 116 480 479

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0811-0901		●
16	ADJUSTER ASM; RECLINING (B) BLACK	8-97859-274-3	01	1	0902-	●	●
16	ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0811-0901		●
16	ADJUSTER ASM; RECLINING (A)	8-98005-418-1	01	1	0902-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-027-0	01	1	1501-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-028-0	01	1	1501-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-723-0	01	1	1001-1009	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-294-1	01	1	1010-1412	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-294-1	01	1	1501-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-722-0	01	1	1001-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97414-178-0	01	1	0811-0901		●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97414-178-0	01	1	0902-0912	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-178-0	01	1	1001-1009	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-293-1	01	1	1010-1412	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-293-1	01	1	1501-	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-177-0	01	1	0811-0901		●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-177-0	01	1	0902-0912	●	●
114	COVER; TRIM,PASSENGER SEAT,BACK INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-177-0	01	1	1001-	●	●
115	CUSHION ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-043-0	01	1	1501-	●	●
115	CUSHION ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-042-0	01	1	1501-	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-691-2	01	1	0811-0901		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-691-2	01	1	0902-0902	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-276-0	01	1	0903-1009	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-324-2	01	1	1010-1412	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-324-2	01	1	1501-	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-689-2	01	1	0811-0901		●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-689-2	01	1	0902-0902	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-275-0	01	1	0903-0912	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-708-0	01	1	1001-1009	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-323-1	01	1	1010-1412	●	●
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-323-1	01	1	1501-	●	●
115	CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-690-4	01	1	0811-0901		●
115	CUSHION ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-690-4	01	1	0902-	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-688-2	01	1	0811-0901		●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-688-2	01	1	0902-0912	●	●
115	CUSHION ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-707-1	01	1	1001-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-052-0	01	1	1501-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-051-0	01	1	1501-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-176-1	01	1	0811-0901		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-176-1	01	1	0902-0902	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-291-0	01	1	0903-1009	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-344-1	01	1	1010-1412	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-344-1	01	1	1501-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-174-1	01	1	0811-0901		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-174-1	01	1	0902-0902	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97416-290-0	01	1	0903-0912	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-737-0	01	1	1001-1009	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-343-1	01	1	1010-1412	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-343-1	01	1	1501-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-175-2	01	1	0811-0901		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97414-175-2	01	1	0902-	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-173-1	01	1	0811-0901		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97414-173-1	01	1	0902-0912	●	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-736-1	01	1	1001-	●	●
126	BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0811-0901		●
126	BUSHING; HINGE,RECLINING	8-98069-558-0	01	1	0902-	●	●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	02	1	0912-	●	●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	0811-0901		●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	03	1	0902-0911	●	●
139	BOLT; PASSENGER SEAT M8X20 W/PL WASHER	8-98031-841-0	01	1	0912-	●	●
361	BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0811-0901		●
361	BOLT; ADJ,RECLINING M8X18	8-94279-109-1	02	1	0902-	●	●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0811-0901		●
368	BOLT; SEAT M8X24.5 W/LK&PL WASHER	8-94279-217-0	01	1	0902-	●	●
460	BACK ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-020-0	01	1	1501-	●	●
460	BACK ASM; PASSENGER SEAT FACE LIFT MODEL<TX7> SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97465-021-0	01	1	1501-	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-694-0	01	1	1001-1009	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-281-2	01	1	1010-1412	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> EXC. FACE LIFT MODEL<TX7>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-281-2	01	1	1501-	●	●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL>,INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97418-693-1	01	1	1001-	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97411-693-3	01	1	0811-0901		●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97411-693-3	01	1	0902-0912	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97411-693-3	01	1	1001-1009	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> DARK GRAY	8-97421-280-2	01	1	1010-1412	●	●
460	BACK ASM; PASSENGER SEAT SEAT CLOTH<7FL> INSPECTION ENGINE COVER<8GA> EXC. FACE LIFT MODEL<TX7> DARK GRAY	8-97421-280-2	01	1	1501-	●	●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-692-3	01	1	0811-0901		●
460	BACK ASM; PASSENGER SEAT EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-692-3	01	1	0902-0912	●	●
460	BACK ASM; PASSENGER SEAT INSPECTION ENGINE COVER<8GA> EXC. SEAT CLOTH<7FL> DARK GRAY	8-97411-692-4	01	1	1001-	●	●
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-97868-187-0	01	1	0811-0901		●
478	BRACKET ASM; HINGE,PASSENGER SEAT	8-97868-187-0	01	1	0902-	●	●
479	PLUG; HINGE OD=25 BLACK	1-76798-019-0	02	1	0811-0901		●
479	PLUG; HINGE OD=25 BLACK	1-76798-019-0	02	1	0902-	●	●
480	CLIP; CUSHION	8-94279-977-0	05	1	0811-0901		●
480	CLIP; CUSHION	8-94279-977-0	05	1	0902-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
