Sayfa 0-20A - Isuzu EPC

0-20A — TIMING GEAR CASE AND FLYWHEEL HOUSING (#4970) — 272 parça

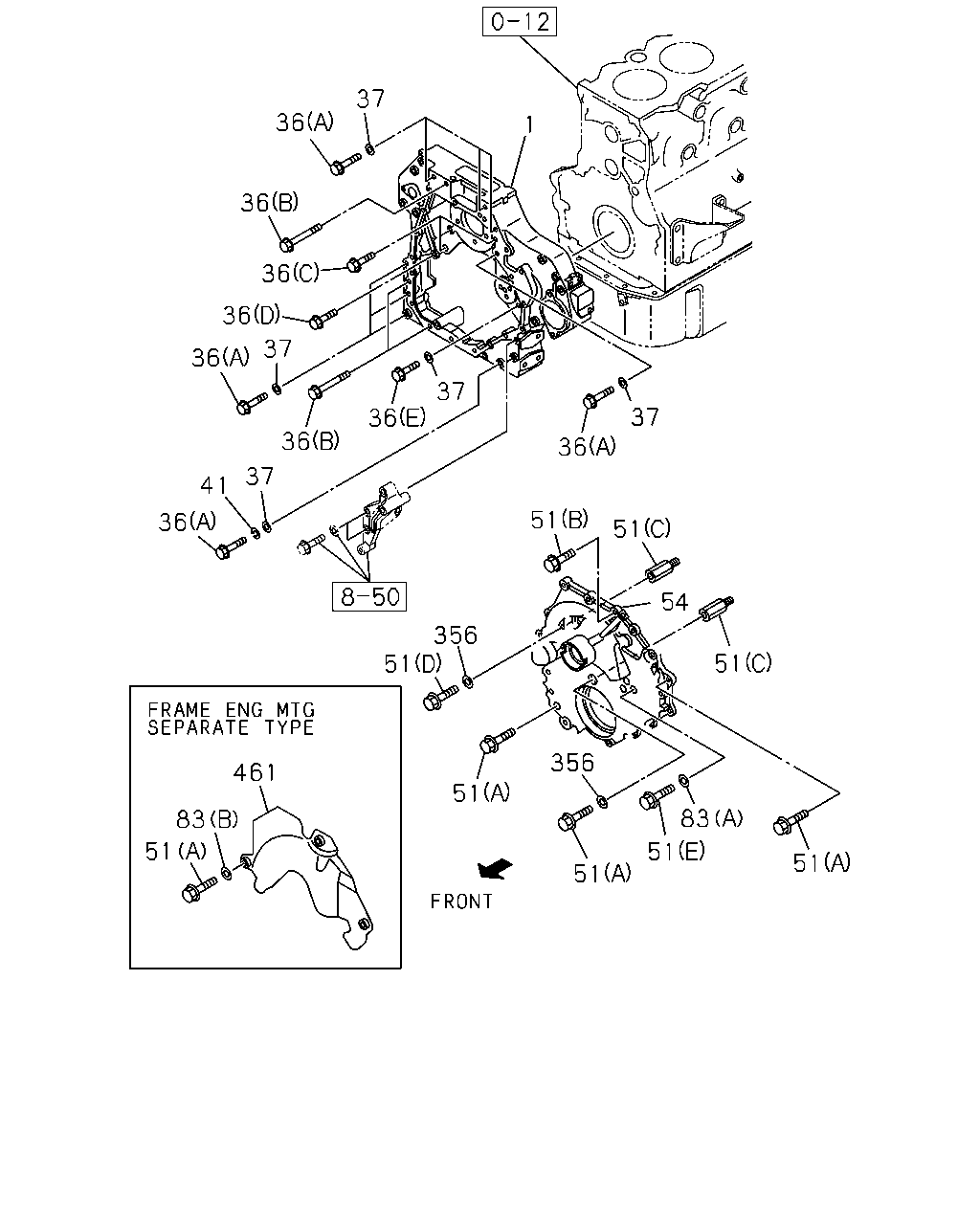

37 36 1 36 36 36 37 36 37 37 36 36 36 37 41 51 36 51 54 356 51 51 356 461 51 83 83 51 51 51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9606-9706	●
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9707-9905	●	●
1	CASE; TIMING GEAR	1-11310-053-4	01	1	9906-	●		●	●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	08	1	9611-9706	●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	08	1	9707-9905	●	●
36	BOLT; GEAR CASE HEATER & DEFROSTER(C41) (A) M14X110	1-09020-007-0	10	1	9906-	●		●	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	9606-9706	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	9707-9905	●	●
36	BOLT; GEAR CASE (C) M10X25 FLANGE	0-28181-025-0	04	1	9906-	●		●	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	9606-9610	●
36	BOLT; GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (D) M10X35 FLANGE	0-28181-035-0	01	1	9611-9702	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	9703-9706	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	9707-9905	●	●
36	BOLT; GEAR CASE (D) M10X35 FLANGE	0-28181-035-0	01	1	9906-	●		●	●
36	BOLT; GEAR CASE (A) M14X110	1-09020-007-0	10	1	9606-9609	●
36	BOLT; GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	10	1	9610-9905	●
36	BOLT; GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) (A) M14X110	1-09020-007-0	08	1	9906-	●		●	●
36	BOLT; GEAR CASE (B) M10X105	1-09020-014-1	03	1	9606-9608	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	9609-9706	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	9707-9905	●	●
36	BOLT; GEAR CASE (B) M10X100 FLANGE	0-28181-000-0	03	1	9906-	●		●	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	9606-9706	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	9707-9905	●	●
36	BOLT; GEAR CASE (E) M14X60	1-09020-146-0	01	1	9906-	●		●	●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9611-9706	●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9707-9905	●	●
37	WASHER; PL,GEAR CASE HEATER & DEFROSTER(C41) ID=15 OD=26	9-09164-514-0	11	1	9906-	●		●	●
37	WASHER; PL,GEAR CASE ID=10.5 OD=18	9-09160-510-0	03	1	9606-9608	●
37	WASHER; PL,GEAR CASE ID=14	9-09160-514-0	11	1	9606-9608	●
37	WASHER; PL,GEAR CASE ID=15 OD=26	9-09164-514-0	11	1	9609-9702	●
37	WASHER; PL,GEAR CASE EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	11	1	9703-9905	●
37	WASHER; PL,GEAR CASE AIR CONDITIONER MANUAL CONTROL(C60) ID=15 OD=26	9-09164-514-0	09	1	9906-	●		●	●
41	WASHER; LK,GEAR CASE ID=10.2	9-09150-510-0	03	1	9606-9608	●
41	WASHER; LK,GEAR CASE ID=14.2	9-09150-514-0	11	1	9606-9608	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9606-9706	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9707-9905	●	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	03	1	9906-				●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9606-9706	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9707-9905	●	●
51	BOLT; GEAR CASE COVER (B) M10X40 FLANGE	0-28181-040-0	01	1	9906-	●		●	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9606-9706	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9707-9905	●	●
51	BOLT; GEAR CASE COVER (C) M10X90	1-11329-024-1	03	1	9906-	●		●	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9606-9706	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9707-9905	●	●
51	BOLT; GEAR CASE COVER (D) M10X55 FLANGE	8-94399-863-1	02	1	9906-	●		●	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9606-9706	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9707-9905	●	●
51	BOLT; GEAR CASE COVER (E) M8X40	9-01065-840-0	03	1	9906-	●		●	●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	03	1	9707-9905		●
51	BOLT; GEAR CASE COVER (A) M10X30 FLANGE	0-28181-030-0	17	1	9906-	●		●	●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9606-9706	●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9707-9905	●	●
54	COVER; GEAR CASE	1-11320-096-7	01	1	9906-	●		●	●
83	WASHER; PL,COVER (A) ID=8.5 OD=20	5-09503-111-0	03	1	9606-9706	●
83	WASHER; PL,COVER (A) ID=8.5 OD=20	5-09503-111-0	03	1	9707-9905	●	●
83	WASHER; PL,COVER (A) ID=8.5 OD=20	5-09503-111-0	03	1	9906-	●		●	●
83	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	03	1	9707-9905		●
83	WASHER; PL,COVER (B) ID=10.5 OD=26	9-09160-710-0	03	1	9906-				●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9606-9706	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9707-9905	●	●
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0	9-09571-410-0	03	1	9906-	●		●	●
461	COVER; GEAR CASE COVER	1-19380-114-5	01	1	9707-9905		●
461	COVER; GEAR CASE COVER	1-19380-114-6	01	1	9906-				●

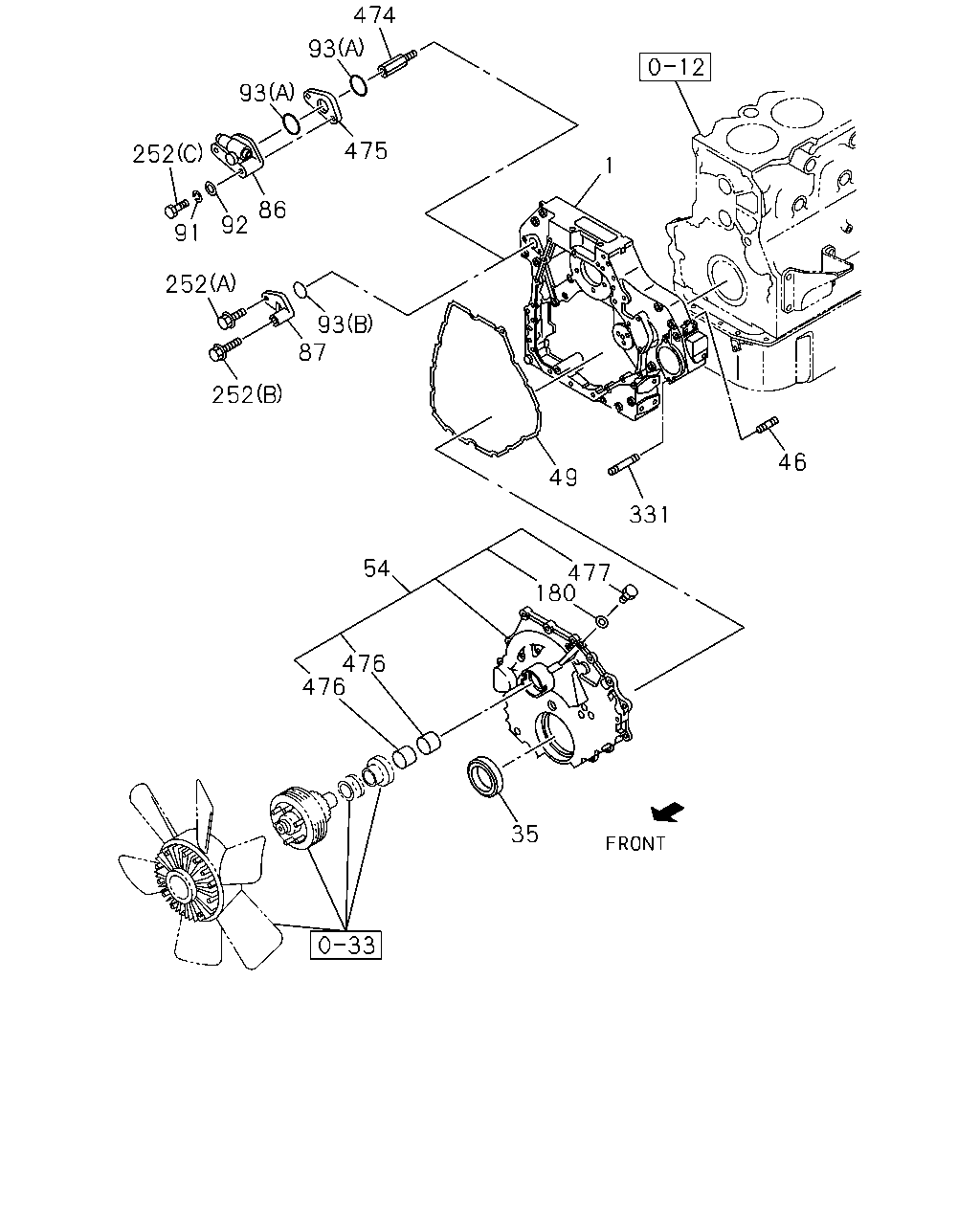

474 93 93 475 252 1 86 92 91 252 93 87 252 46 49 331 54 477 180 476 476 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9606-9706	●
1	CASE; TIMING GEAR	1-11310-053-3	01	1	9707-9905	●	●
1	CASE; TIMING GEAR	1-11310-053-4	01	1	9906-	●		●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-1	01	1	9606-9706	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-1	01	1	9707-9905	●	●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). SILVER	1-09625-556-2	01	1	9906-	●		●	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9606-9706	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9707-9905	●	●
46	STUD; BRG COVER,RR M14X45 L=66	9-04411-445-0	01	1	9906-	●		●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9606-9706	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9707-9905	●	●
49	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-11322-044-1	01	1	9906-	●		●	●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9606-9706	●
54	COVER; GEAR CASE	1-11320-096-5	01	1	9707-9905	●	●
54	COVER; GEAR CASE	1-11320-096-7	01	1	9906-	●		●	●
86	ELBOW; TACHOMETER DRIVE CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-85860-048-2	01	1	9606-9905	●
86	ELBOW; TACHOMETER DRIVE EXC. EURO2 SPECIFICATION<THN>	1-85860-048-2	01	1	9906-	●		●
87	COVER; TACHOMETER DRIVE 17 INCH CLUTCH(RF3)	1-11349-151-2	01	1	9610-9612	●
87	COVER; TACHOMETER DRIVE EURO2 SPECIFICATION<THN>	1-11349-151-2	01	1	9701-9706	●
87	COVER; TACHOMETER DRIVE EURO2 SPECIFICATION<THN>	1-11349-151-2	01	1	9707-9905	●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	9707-9905		●
87	COVER; TACHOMETER DRIVE EURO2 SPECIFICATION<THN>	1-11349-151-2	01	1	9906-			●
87	COVER; TACHOMETER DRIVE	1-11349-151-2	01	1	9906-				●
91	WASHER; LK,ELBOW ID=8.2	9-09150-508-0	01	1	9606-9609	●
91	WASHER; LK,ELBOW EXC. EURO2 SPECIFICATION<THN> ID=8.2	9-09150-508-0	01	1	9610-9905	●
91	WASHER; LK,ELBOW EXC. EURO2 SPECIFICATION<THN> ID=8.2	9-09150-508-0	01	1	9906-	●
92	WASHER; PL,ELBOW ID=8.4	9-09160-508-0	01	1	9606-9609	●
92	WASHER; PL,ELBOW EXC. EURO2 SPECIFICATION<THN> ID=8.4	9-09160-508-0	01	1	9610-9905	●
92	WASHER; PL,ELBOW EXC. EURO2 SPECIFICATION<THN> ID=8.4	9-09160-508-0	01	1	9906-	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). CLUTCH-15.5" TWIN PLATE SPICER(TEY) (A) ID=35.7	1-09623-416-0	02	1	9606-9905	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EURO2 SPECIFICATION<THN> (A) ID=35.7	1-09623-416-0	02	1	9906-	●		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN> (B) ID=35.7	1-09623-416-0	01	1	9610-9706	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=35.7	1-09623-416-0	01	1	9707-9905	●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7	1-09623-416-0	01	1	9707-9905		●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<THN>. (B) ID=35.7	1-09623-416-0	01	1	9906-			●
93	GASKET; ELBOW ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=35.7	1-09623-416-0	01	1	9906-				●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9606-9706	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9707-9905	●	●
180	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	9906-	●		●	●
252	BOLT; GEAR BOX CLUTCH-15.5" TWIN PLATE SPICER(TEY) (C) M8X80	0-10805-880-0	01	1	9606-9905	●
252	BOLT; GEAR BOX EXC. EURO2 SPECIFICATION<THN> (C) M8X80	0-10805-880-0	01	1	9906-	●		●
252	BOLT; GEAR BOX CLUTCH-15.5" TWIN PLATE SPICER(TEY) (C) M8X30 FLANGE	0-28080-830-0	01	1	9606-9905	●
252	BOLT; GEAR BOX EXC. EURO2 SPECIFICATION<THN> (C) M8X30 FLANGE	0-28080-830-0	01	1	9906-	●		●
252	BOLT; GEAR BOX 17 INCH CLUTCH(RF3) (A) M8X20 FLANGE	0-28080-820-0	01	1	9610-9612	●
252	BOLT; GEAR BOX EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28080-820-0	01	1	9701-9706	●
252	BOLT; GEAR BOX EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28080-820-0	01	1	9707-9905	●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28080-820-0	01	1	9707-9905		●
252	BOLT; GEAR BOX EURO2 SPECIFICATION<THN> (A) M8X20 FLANGE	0-28080-820-0	01	1	9906-			●
252	BOLT; GEAR BOX (A) M8X20 FLANGE	0-28080-820-0	01	1	9906-				●
252	BOLT; GEAR BOX 17 INCH CLUTCH(RF3) (B) M8X60 FLANGE	0-28080-860-0	01	1	9610-9612	●
252	BOLT; GEAR BOX EURO2 SPECIFICATION<THN> (B) M8X60 FLANGE	0-28080-860-0	01	1	9701-9706	●
252	BOLT; GEAR BOX EURO2 SPECIFICATION<THN> (B) M8X60 FLANGE	0-28080-860-0	01	1	9707-9905	●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28080-860-0	01	1	9707-9905		●
252	BOLT; GEAR BOX EURO2 SPECIFICATION<THN> (B) M8X60 FLANGE	0-28080-860-0	01	1	9906-			●
252	BOLT; GEAR BOX (B) M8X60 FLANGE	0-28080-860-0	01	1	9906-				●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9606-9706	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9707-9905	●	●
331	STUD; P/S PUMP M10X25 L=40	9-04411-025-0	02	1	9906-	●		●	●
474	ADAPTER; ELBOW DRIVE CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-12539-026-0	01	1	9606-9905	●
474	ADAPTER; ELBOW DRIVE EXC. EURO2 SPECIFICATION<THN>	1-12539-026-0	01	1	9906-	●		●
475	SPACER; ELBOW CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-85869-001-1	01	1	9606-9905	●
475	SPACER; ELBOW EXC. EURO2 SPECIFICATION<THN>	1-85869-001-1	01	1	9906-	●		●
476	BUSHING; COVER	1-09330-096-0	02	1	9606-9706	●
476	BUSHING; COVER	1-09330-096-0	02	1	9707-9905	●	●
476	BUSHING; COVER	1-09330-096-0	02	1	9906-	●		●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9606-9706	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9707-9905	●	●
477	PLUG; OIL HOLE M10X7	9-09202-310-0	01	1	9906-	●		●	●

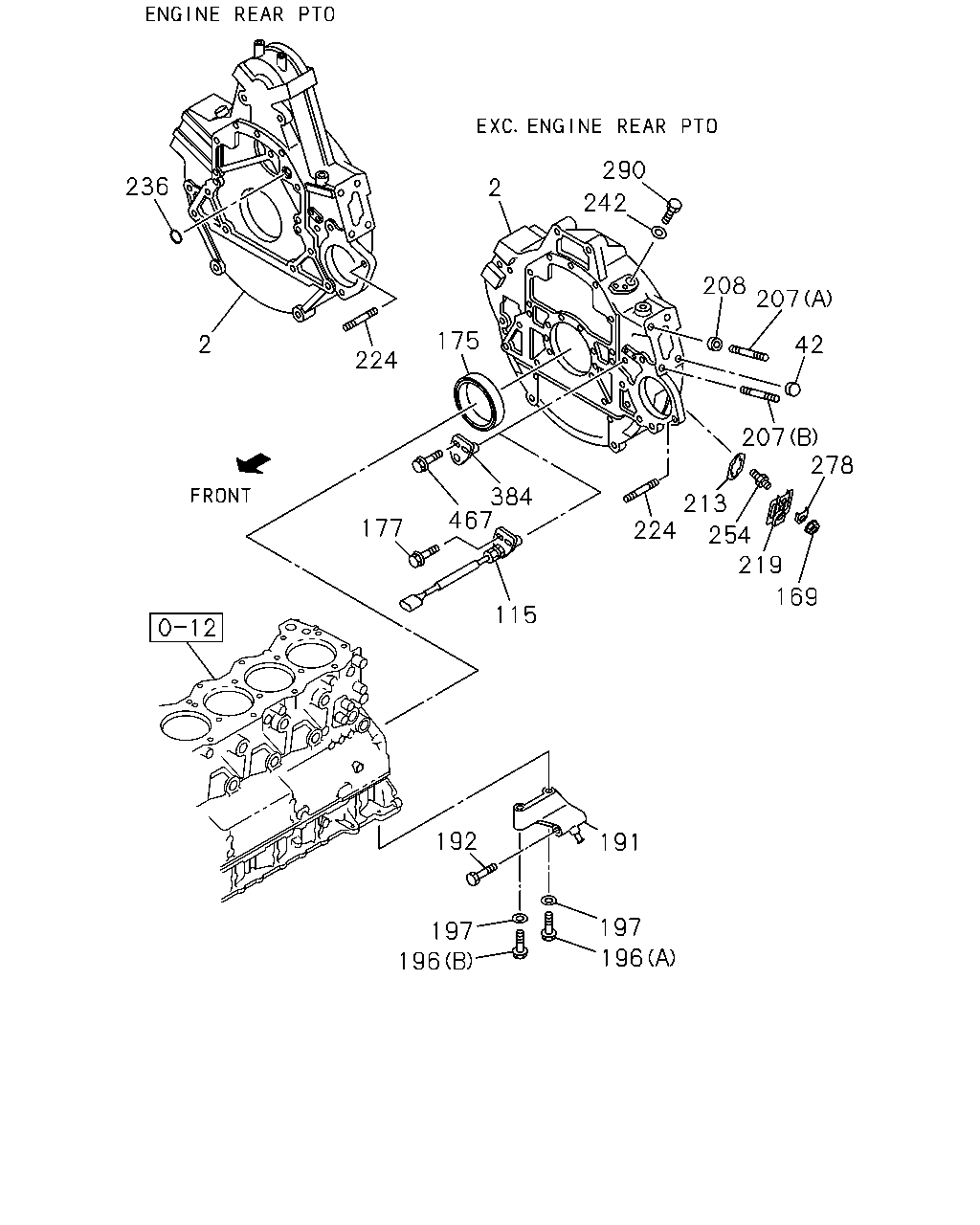

290 236 2 242 208 207 175 2 42 224 207 278 384 467 213 224 177 254 219 169 115 192 191 197 197 196 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	HOUSING; FLYWHEEL	1-11340-271-3	01	1	9606-9702	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-11340-271-3	01	1	9703-9706	●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-11340-271-6	01	1	9707-9905	●
2	HOUSING; FLYWHEEL	1-11340-271-6	01	1	9707-9905		●
2	HOUSING; FLYWHEEL	1-11340-271-8	01	1	9906-	●			●
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO<SV1>	1-11340-271-8	01	1	9906-			●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1>	1-11341-516-0	01	1	9703-9905	●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1>	1-11341-516-0	01	1	9906-0008			●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1>	1-11341-516-0	02	1	0009-0011			●
2	HOUSING; FLYWHEEL ENGINE REAR PTO<SV1>	1-11341-622-5	01	1	0012-			●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9606-9706	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9707-9905	●	●
42	DOWEL; GEAR CASE COVER	1-13119-004-0	01	1	9906-	●		●	●
115	SENSOR; REVOLUTION,ENG SPD 17 INCH CLUTCH(RF3)	1-81510-426-4	01	1	9610-9612	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	1-81510-426-4	01	1	9701-9706	●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	1-81510-426-4	01	1	9707-9905	●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-4	01	1	9707-9905		●
115	SENSOR; REVOLUTION,ENG SPD EURO2 SPECIFICATION<THN>	1-81510-426-6	01	1	9906-			●
115	SENSOR; REVOLUTION,ENG SPD	1-81510-426-6	01	1	9906-				●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9606-9706	●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9707-9905	●	●
169	NUT; COVER M8 FLANGE	0-91150-108-0	02	1	9906-	●		●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9606-9706	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9707-9905	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). GRAY	1-09625-557-1	01	1	9906-	●		●	●
177	BOLT; SENSOR 17 INCH CLUTCH(RF3) M8X16 FLANGE	0-28080-816-0	02	1	9610-9612	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9701-9706	●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9707-9905	●
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	9707-9905		●
177	BOLT; SENSOR EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9906-			●
177	BOLT; SENSOR M8X16 FLANGE	0-28080-816-0	02	1	9906-				●
191	STAY; FLYWHEEL HSG	1-11349-163-1	01	1	9606-9608	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9609-9706	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9707-9905	●	●
191	STAY; FLYWHEEL HSG	1-11349-196-1	01	1	9906-	●		●	●
191	STAY; FLYWHEEL HSG	1-11349-162-1	01	1	9606-9608	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9609-9706	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9707-9905	●	●
191	STAY; FLYWHEEL HSG	1-11349-195-1	01	1	9906-	●		●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9606-9706	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9707-9905	●	●
192	BOLT; STAY TO HSG M14X135	1-09020-055-0	02	1	9906-	●		●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	04	1	9606-9608	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	9609-9706	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	9707-9905	●	●
196	BOLT; STAY TO C/BL (B) M14X70	9-91666-470-0	02	1	9906-	●		●	●
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	9609-9706	●
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	9707-9905	●	●
196	BOLT; STAY TO C/BL (A) M14X100	9-91666-400-0	02	1	9906-	●		●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9606-9706	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9707-9905	●	●
197	WASHER; PL,STAY ID=15 OD=26	9-09164-514-0	06	1	9906-	●		●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9606-9706	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9707-9905	●	●
207	STUD; ENG FOOT (B) M18X60 L=96	9-04321-860-0	04	1	9906-	●		●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9606-9706	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9707-9905	●	●
207	STUD; ENG FOOT (A) M18X80 L=116	9-04321-880-0	04	1	9906-	●		●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9606-9706	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9707-9905	●	●
208	DOWEL; ENG FOOT	1-43249-001-0	04	1	9906-	●		●	●
213	POINTER; FLYWHEEL HSG	1-11327-042-0	01	1	9606-9611	●
213	POINTER; FLYWHEEL HSG	1-11327-045-0	01	1	9612-9706	●
213	POINTER; FLYWHEEL HSG	1-11327-045-0	01	1	9707-9905	●	●
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	9906-	●		●	●
219	COVER; POINTER	1-11349-131-0	01	1	9606-9706	●
219	COVER; POINTER	1-11349-131-0	01	1	9707-9905	●	●
219	COVER; POINTER	1-11349-131-0	01	1	9906-	●		●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9606-9706	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9707-9905	●	●
224	STUD; STARTER M14X35 L=56	9-04411-435-0	03	1	9906-	●		●	●
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO<SV1> ID=29.7	1-09623-273-0	01	1	9703-9905	●
236	GASKET; FLYWHEEL HSG ENGINE REAR PTO<SV1> ID=29.7	1-09623-273-0	01	1	9906-			●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO<SV1>. ID=20.5 OD=28.0	9-09571-420-0	01	1	9711-9905	●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). ID=20.5 OD=28.0	9-09571-420-0	01	1	9711-9905		●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	01	1	9906-	●			●
242	GASKET; PLUG ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO<SV1> ID=20.5 OD=28.0	9-09571-420-0	01	1	9906-			●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9606-9706	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9707-9905	●	●
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	9906-	●		●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9606-9706	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9707-9905	●	●
278	WASHER; COVER FIX	1-11349-127-0	01	1	9906-	●		●	●
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO<SV1> M20X10.5	9-09662-005-0	01	1	9711-9905	●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	9711-9905		●
290	PLUG; SENSOR HOLE M20X10.5	9-09662-005-0	01	1	9906-	●			●
290	PLUG; SENSOR HOLE EXC. ENGINE REAR PTO<SV1> M20X10.5	9-09662-005-0	01	1	9906-			●
384	PLATE CLUTCH-15.5" TWIN PLATE SPICER(TEY)	1-11343-007-0	01	1	9606-9905	●
384	PLATE EXC. EURO2 SPECIFICATION<THN>	1-11343-007-0	01	1	9906-	●		●
467	BOLT; PLATE CLUTCH-15.5" TWIN PLATE SPICER(TEY) M8X16 FLANGE	0-28080-816-0	02	1	9606-9905	●
467	BOLT; PLATE EXC. EURO2 SPECIFICATION<THN> M8X16 FLANGE	0-28080-816-0	02	1	9906-	●		●

241 241 211 211 211 241 205 241 255 211 492 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
205	NUT; HSG M14	9-99110-514-0	01	1	9606-9702	●
205	NUT; HSG EXC. ENGINE REAR PTO<SV1> M14	9-99110-514-0	01	1	9703-9706	●
205	NUT; HSG EXC. ENGINE REAR PTO<SV1> M14	9-99110-514-0	01	1	9707-9905	●
205	NUT; HSG M14	9-99110-514-0	01	1	9707-9905		●
205	NUT; HSG M14	9-99110-514-0	01	1	9906-	●			●
205	NUT; HSG EXC. ENGINE REAR PTO<SV1> M14	9-99110-514-0	01	1	9906-			●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9606-9702	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (A) M8X35 FLANGE	0-28080-835-0	08	1	9703-9706	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (A) M8X35 FLANGE	0-28080-835-0	08	1	9707-9905	●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9707-9905		●
211	BOLT; HSG (A) M8X35 FLANGE	0-28080-835-0	08	1	9906-	●			●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (A) M8X35 FLANGE	0-28080-835-0	08	1	9906-			●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9606-9702	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (B) M14X50	9-91666-450-0	02	1	9703-9706	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (B) M14X50	9-91666-450-0	02	1	9707-9905	●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9707-9905		●
211	BOLT; HSG (B) M14X50	9-91666-450-0	02	1	9906-	●			●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (B) M14X50	9-91666-450-0	02	1	9906-			●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9606-9702	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (C) M14X70	9-91666-470-0	02	1	9703-9706	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (C) M14X70	9-91666-470-0	02	1	9707-9905	●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9707-9905		●
211	BOLT; HSG (C) M14X70	9-91666-470-0	02	1	9906-	●			●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (C) M14X70	9-91666-470-0	02	1	9906-			●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9606-9702	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (D) M14X45	9-92361-445-0	10	1	9703-9706	●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (D) M14X45	9-92361-445-0	10	1	9707-9905	●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9707-9905		●
211	BOLT; HSG (D) M14X45	9-92361-445-0	10	1	9906-	●			●
211	BOLT; HSG EXC. ENGINE REAR PTO<SV1> (D) M14X45	9-92361-445-0	10	1	9906-			●
211	BOLT; HSG ENGINE REAR PTO<SV1> (A) M14X30 FLANGE	0-28791-430-0	01	1	9703-9905	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (A) M14X30 FLANGE	0-28791-430-0	01	1	9906-			●
211	BOLT; HSG ENGINE REAR PTO<SV1> (B) M14X40 FLANGE	0-28791-440-0	05	1	9703-9905	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (B) M14X40 FLANGE	0-28791-440-0	05	1	9906-			●
211	BOLT; HSG ENGINE REAR PTO<SV1> (C) M14X110 FLANGE	0-28996-411-0	11	1	9703-9905	●
211	BOLT; HSG ENGINE REAR PTO<SV1> (C) M14X110 FLANGE	0-28996-411-0	11	1	9906-			●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9606-9702	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO<SV1> ID=15 OD=26	9-09164-514-0	15	1	9703-9706	●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO<SV1> ID=15 OD=26	9-09164-514-0	15	1	9707-9905	●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9707-9905		●
241	WASHER; PL,HSG ID=15 OD=26	9-09164-514-0	15	1	9906-	●			●
241	WASHER; PL,HSG EXC. ENGINE REAR PTO<SV1> ID=15 OD=26	9-09164-514-0	15	1	9906-			●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9606-9706	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9707-9905	●	●
255	STUD; RELAY LEVER BRKT M12X30 L=48	9-94411-230-0	03	1	9906-	●		●	●
480	BOLT; COVER ENGINE REAR PTO<SV1> M8X30 FLANGE	0-28680-830-0	10	1	9703-9905	●
480	BOLT; COVER ENGINE REAR PTO<SV1> M8X30 FLANGE	0-28680-830-0	10	1	9906-			●
492	COVER; OIL SEAL ENGINE REAR PTO<SV1>	1-12363-042-0	01	1	9703-9905	●
492	COVER; OIL SEAL ENGINE REAR PTO<SV1>	1-12363-042-0	01	1	9906-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
