Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#497) — 593 parça

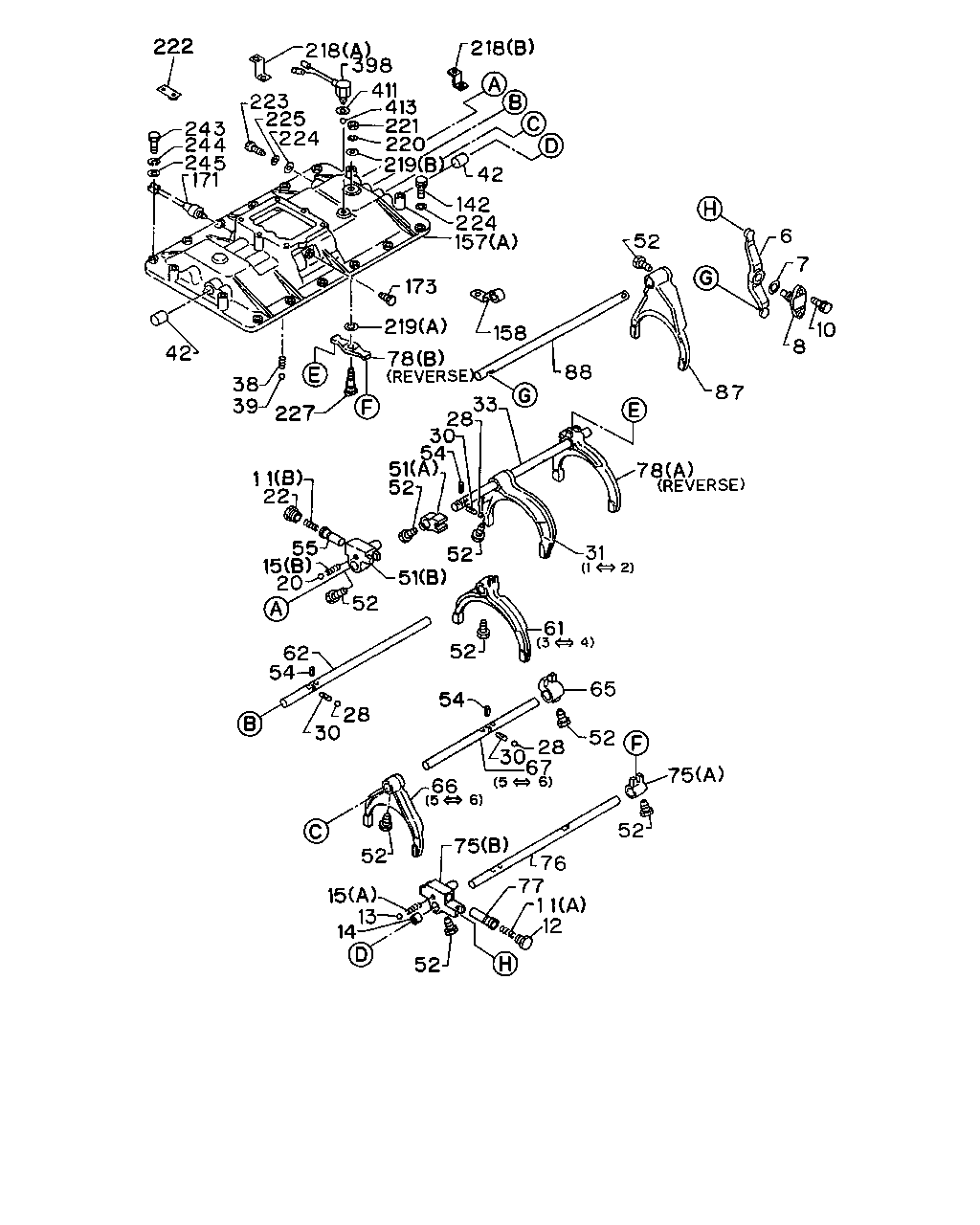

222 243 244 245 171 223 225 224 218 398 411 413 221 220 219 42 142 224 157 52 87 6 7 8 10 88 158 173 219 78 42 38 39 227 33 28 30 54 51 52 11 22 78 31 52 51 52 55 15 20 62 54 28 30 52 61 65 54 52 28 30 67 75 52 76 75 77 11 12 52 14 13 15 52 66 218

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	LEVER; RELAY	1-33511-233-1	01	1	8902-	●	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4 ID=24.4	1-09623-183-0	01	1	8902-	●	●
8	SPINDLE; REV & 7TH	1-33519-008-1	01	1	8902-	●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	9-01931-025-0	02	1	8902-9002	●	●
10	BOLT; SPINDLE M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9203	●
10	BOLT; SPINDLE M10X22	1-09033-005-0	02	1	9204-9205	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	9206-	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-420-0	01	1	8902-9001		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	8902-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	9002-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	8902-	●	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	8902-	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	8902-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	8902-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	8902-	●	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	8902-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-0	01	1	8902-	●	●
28	BALL; INTER LK	9-00097-501-0	04	1	8902-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	8902-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	8902-	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-293-1	01	1	8902-9010	●	●
33	ROD; SHIFT,LOW & 2ND	1-33531-352-0	01	1	9011-9603	●
33	ROD; SHIFT,LOW & 2ND	1-33531-426-1	01	1	9604-	●
38	SPRING; DETENT	1-09580-379-0	04	1	8902-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	8902-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	8902-	●	●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-256-2	01	1	8902-	●	●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-3	01	1	8902-	●	●
52	BOLT; SHIFT ARM M12X20 3-HOLE	1-09052-025-0	09	1	8902-9107	●	●
52	BOLT; SHIFT ARM M12X20 NO-HOLE	1-09052-032-1	09	1	9108-9512	●
52	BOLT; SHIFT ARM M12X20	1-09052-039-0	09	1	9601-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	8902-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	8902-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	8902-	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-290-1	01	1	8902-9603	●	●
62	ROD; SHIFT,3RD & 4TH	1-33531-428-1	01	1	9604-	●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-0	01	1	8902-	●	●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	8902-	●	●
67	ROD; SHIFT,5TH & 6TH	1-33531-291-1	01	1	8902-9603	●	●
67	ROD; SHIFT,5TH & 6TH	1-33531-429-1	01	1	9604-	●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	8902-	●	●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-3	01	1	8902-	●	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-294-1	01	1	8902-9603	●	●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-432-1	01	1	9604-	●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	8902-	●	●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	8902-	●	●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	8902-	●	●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	8902-	●	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-285-0	01	1	8902-9603	●	●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-433-1	01	1	9604-	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	12	1	8902-9001		●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	8902-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●
142	BOLT; QUAD BOX M10X60	9-01651-060-0	04	1	8902-9004	●	●
142	BOLT; QUAD BOX M10X60	0-16811-060-0	04	1	9005-9205	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	9-01991-035-0	04	1	8902-9002	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9003-9205	●
142	BOLT; QUAD BOX M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	11	1	9002-9002	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9003-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	13	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	02	1	9307-	●
142	BOLT; QUAD BOX M10X28	9-01971-028-0	04	1	8712-9002			●	●	●	●
142	BOLT; QUAD BOX M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-			●	●		●
157	BOX; QUAD,TRANS (B)	1-33541-342-0	01	1	8902-8907		●
157	BOX; QUAD,TRANS (B)	1-33541-393-0	01	1	8908-9001		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	8902-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●
157	BOX; QUAD,TRANS (C)	1-33541-388-1	01	1	9307-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9306	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-9306	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	8712-			●	●	●	●
158	CLIP; HARNESS ID=6	9-09917-391-0	01	1	8902-9306	●	●
158	CLIP; HARNESS L=36	8-94224-891-1	03	1	9307-	●
171	SWITCH; NEUTRAL	1-82440-044-2	01	1	8902-9009	●	●
171	SWITCH; NEUTRAL	1-82440-067-1	01	1	9010-9306	●
171	SWITCH; NEUTRAL	1-82440-081-2	01	1	9307-9509	●
171	SWITCH; NEUTRAL	1-82440-101-0	01	1	9510-	●
173	SCREW; SET,7TH TO REV	1-09000-446-0	01	1	8902-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-058-0	02	1	8902-9001		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	02	1	9002-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9307-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) L=65	1-47465-485-0	02	1	8712-			●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-123-1	01	1	9002-			●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-228-0	02	1	9002-			●	●	●	●
219	WASHER; PL,SPINDLE (B) ID=12.5 OD=26	9-09164-612-0	01	1	8902-9205	●	●
219	WASHER; PL,SPINDLE (A) ID=16.5	9-09857-042-0	01	1	8902-	●	●
220	WASHER; LK,SPINDLE ID=12.2	9-09150-512-0	01	1	8902-9205	●	●
221	NUT; SPINDLE M12	9-99110-412-0	01	1	8902-9205	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	9206-	●
222	BRACKET; CLIP	1-47465-485-0	01	1	8902-9001		●
222	BRACKET; CLIP L=65	1-47476-513-0	01	1	9002-9306	●
222	BRACKET; CLIP L=65	1-47476-513-0	02	1	9307-	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	8902-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	8902-	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	8902-9205	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	8712-			●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	8902-9205	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	8902-	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	8712-			●	●	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	8902-	●	●
243	BOLT; COVER M6X10	9-02050-610-0	01	1	8902-9001		●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	9-02050-610-0	01	1	9002-9005	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10	0-20800-610-0	01	1	9006-9205	●
243	BOLT; COVER EXC. ASSISTER SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	9206-9306	●
244	WASHER; LK,COVER ID=6.1	9-09150-506-0	01	1	8902-9001		●
244	WASHER; LK,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.1	9-09150-506-0	01	1	9002-9205	●
245	WASHER; PL,COVER ID=6.4 OD=14	9-09160-606-0	01	1	8902-9001		●
245	WASHER; PL,COVER EXC. ASSISTER SHIFT CONTROL<WX8> ID=6.4 OD=14	9-09160-606-0	01	1	9002-9205	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	8902-9306	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9307-	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	8712-			●	●	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14	9-09920-393-0	01	1	8902-9208	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	9209-	●
413	BALL; BACK SW	9-00097-013-0	01	1	8902-	●	●

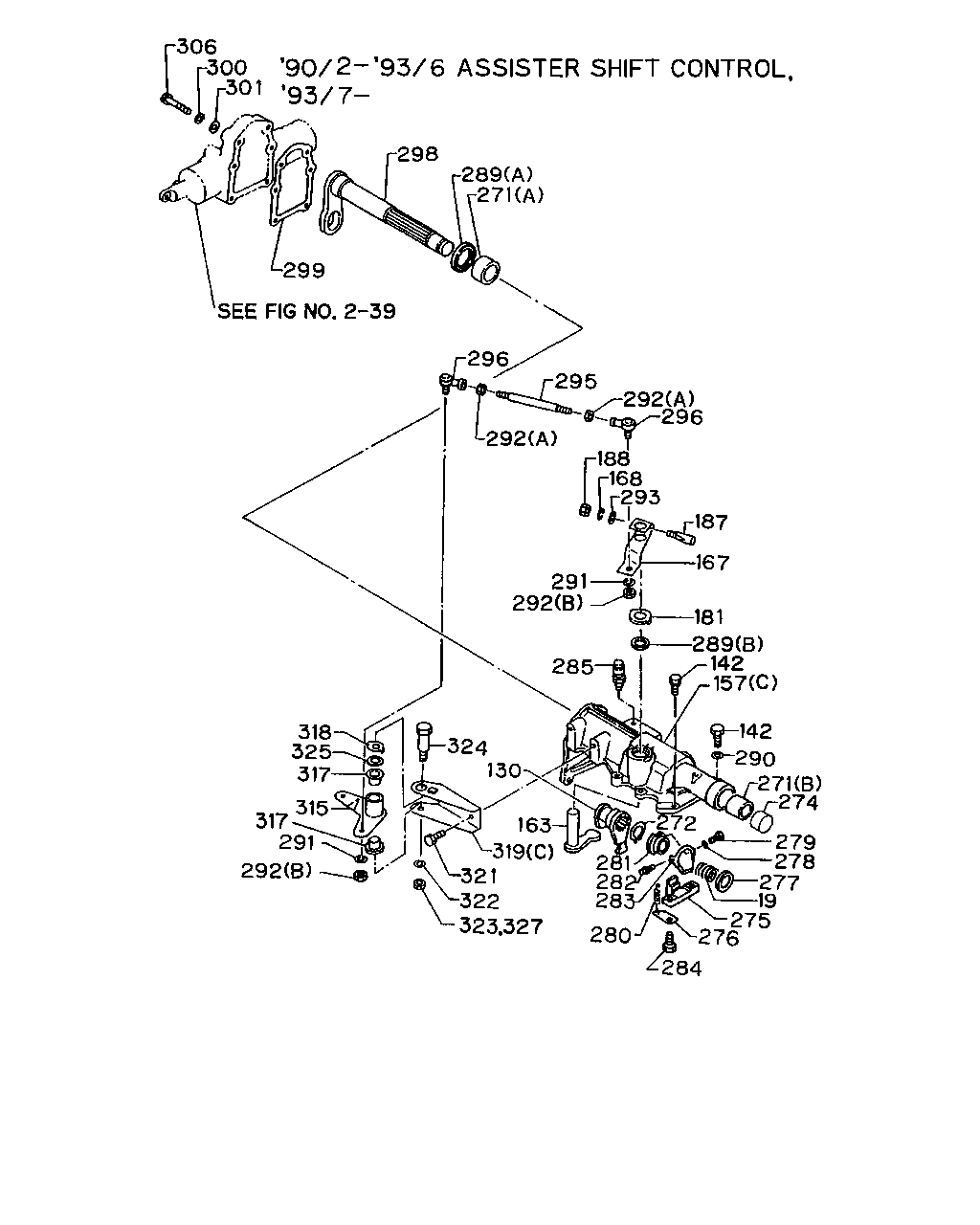

306 300 301 298 299 289 271 296 295 292 292 296 188 168 293 187 167 291 292 285 181 289 142 157 142 290 271 274 279 278 277 19 275 276 284 280 283 282 281 272 163 319 321 322 323 327 130 324 318 325 317 315 317 291 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	SPRING; COIL COMP	1-09580-431-0	01	1	8902-9205	●	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	8902-9001		●
130	LEVER; SHIFT,INTERNAL	1-33521-115-1	01	1	9307-9401	●
130	LEVER; SHIFT,INTERNAL	1-33521-125-0	01	1	9402-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9306	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-9306	●
130	LEVER; SHIFT,INTERNAL	1-33521-055-0	01	1	8712-			●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	12	1	8902-9001		●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	8902-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●
142	BOLT; QUAD BOX M10X60	9-01651-060-0	04	1	8902-9004	●	●
142	BOLT; QUAD BOX M10X60	0-16811-060-0	04	1	9005-9205	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	9-01991-035-0	04	1	8902-9002	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9003-9205	●
142	BOLT; QUAD BOX M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	11	1	9002-9002	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9003-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	13	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	02	1	9307-	●
142	BOLT; QUAD BOX M10X28	9-01971-028-0	04	1	8712-9002			●	●	●	●
142	BOLT; QUAD BOX M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-			●	●		●
157	BOX; QUAD,TRANS (B)	1-33541-342-0	01	1	8902-8907		●
157	BOX; QUAD,TRANS (B)	1-33541-393-0	01	1	8908-9001		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	8902-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●
157	BOX; QUAD,TRANS (C)	1-33541-388-1	01	1	9307-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9306	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-9306	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	8712-			●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	8712-	●	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-096-1	01	1	8902-	●	●
167	LEVER; SELECT,EXTERNAL 10PC1 STD ENG(10L)	1-33521-064-0	01	1	8712-9001					●
167	LEVER; SELECT,EXTERNAL 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33521-070-0	01	1	8712-9001				●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	9002-			●	●		●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	8712-	●	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	8712-	●	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	8712-	●	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	8712-9205	●	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-			●	●		●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	9002-9306	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	9307-	●
271	BUSHING; QUAD BOX ASSISTER SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	9002-9306	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	9307-	●
272	RING; SNAP,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-09588-175-0	01	1	9002-9306	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	9307-	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	8712-	●	●	●	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-011-0	01	1	8902-8910		●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	8911-9001		●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-031-1	01	1	9307-	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9002-9306	●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9002-9306	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	8902-	●	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	8902-	●	●
278	WASHER; LK,STOPPER ASSISTER SHIFT CONTROL<WX8> ID=5.1	9-09150-505-0	01	1	9002-9111	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8>	9-92050-508-0	01	1	9002-9005	●
279	BOLT; STOPPER ASSISTER SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	9006-9306	●
279	BOLT; STOPPER M5X8	0-20800-508-0	01	1	9307-	●
280	SPRING; COIL TENSION	1-09583-255-0	01	1	8902-9001		●
280	SPRING; COIL TENSION	1-09583-285-0	01	1	9307-	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9002-9306	●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9002-9306	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-015-0	01	1	8902-8908		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	8909-	●	●
282	BOLT; SPRING REAMER	1-33529-008-1	01	1	8902-8907		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	8908-	●	●
283	STOPPER; SHIFT SHAFT ASSISTER SHIFT CONTROL<WX8>	1-33529-032-0	01	1	9002-9306	●
283	STOPPER; SHIFT SHAFT	1-33529-032-0	01	1	9307-	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	8902-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	8712-9008	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●		●	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	8712-	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	8712-	●	●	●	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	8902-9205	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	8712-9205	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312			●	●		●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	8902-9205	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	8712-	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●		●	●		●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	8712-9312			●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	8712-	●	●	●	●	●	●
295	ROD; LINK,RELAY LEVER 10PC1 STD ENG(10L) L=130	1-33652-392-0	01	1	8712-9001					●
295	ROD; LINK,RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33652-329-0	01	1	8712-8809				●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	8810-9001		●
295	ROD; LINK,RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33652-393-0	01	1	8810-9001				●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●		●	●		●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●		●	●		●
296	ROD END L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	8902-9001		●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9307-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-9306	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-9306	●
298	SHAFT; SHIFT LEVER	1-33522-068-0	01	1	8712-			●	●	●	●
299	GASKET; QUAD BOX TO POWER ASSISTOR ALSO INCLUDED IN GASKET SET(M/T). ASSISTER SHIFT CONTROL<WX8>	1-33542-032-0	01	1	9002-9406	●
300	WASHER; LK,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	06	1	9002-9205	●
301	WASHER; PL,SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> ID=10.5 OD=18	9-09160-510-0	06	1	9002-9205	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	9307-	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	1-09040-062-1	02	1	9002-9205	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X82	1-09040-092-1	02	1	9206-9406	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	9-01656-050-0	02	1	9002-9004	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X50	0-16806-050-0	02	1	9005-9205	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	9206-9306	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	9-01656-085-0	02	1	9002-9004	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X85	0-16806-085-0	02	1	9005-9205	●
306	BOLT; SHIFT ASSISTOR ASSISTER SHIFT CONTROL<WX8> M10X80 FLANGE	0-28181-080-0	02	1	9206-9406	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	9407-	●
315	LEVER; SELECT	1-33651-417-0	01	1	8902-9001		●
315	LEVER; SELECT	1-33651-513-0	01	1	9307-	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-9306	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-9306	●
315	LEVER; SELECT 10PC1 STD ENG(10L)	1-33651-246-2	01	1	8712-9001					●
315	LEVER; SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33651-337-0	01	1	8712-9001				●	●
315	LEVER; SELECT	1-33651-337-0	01	1	9002-			●	●		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	8712-	●	●	●	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	8712-9001		●
318	WASHER; WAVE 10PC1 STD ENG(10L)	9-09855-315-0	01	1	8712-9001					●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●
319	BRACKET; SELECT LEVER (B)	1-33657-190-0	01	1	8712-9001		●
319	BRACKET; SELECT LEVER 10PC1 STD ENG(10L) (B)	1-33657-190-0	01	1	8712-9001					●
319	BRACKET; SELECT LEVER (C)	1-33657-447-0	01	1	9307-	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (C)	1-33657-447-0	01	1	9002-9306	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9002-9306	●
319	BRACKET; SELECT LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A)	1-33619-134-0	01	1	8712-9001				●	●
319	BRACKET; SELECT LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B)	1-33657-196-0	01	1	8712-9001				●	●
319	BRACKET; SELECT LEVER (B)	1-33657-196-0	01	1	9002-			●	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	8712-9001		●		●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9307-	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9205	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-9306	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004			●	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-9306	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306			●	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9307-			●	●		●
322	WASHER; LK ID=10.2	9-09150-510-0	03	1	8712-9001		●		●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●		●	●		●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	8712-	●	●	●	●	●	●
324	BOLT; SHAFT ASSISTER SHIFT CONTROL<WX8> L=61	1-33619-126-2	01	1	9002-9306	●
324	BOLT; SHAFT L=61	1-33619-126-2	01	1	9307-	●
325	SHIM; LEVER	1-33659-096-0	01	1	8712-9001		●
325	SHIM; LEVER 10PC1 STD ENG(10L)	1-33659-096-0	01	1	8712-9001					●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	02	1	8712-9001		●		●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9002-9205	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9002-9205	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9002-9205			●	●		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-9306	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	03	1	9206-			●	●		●

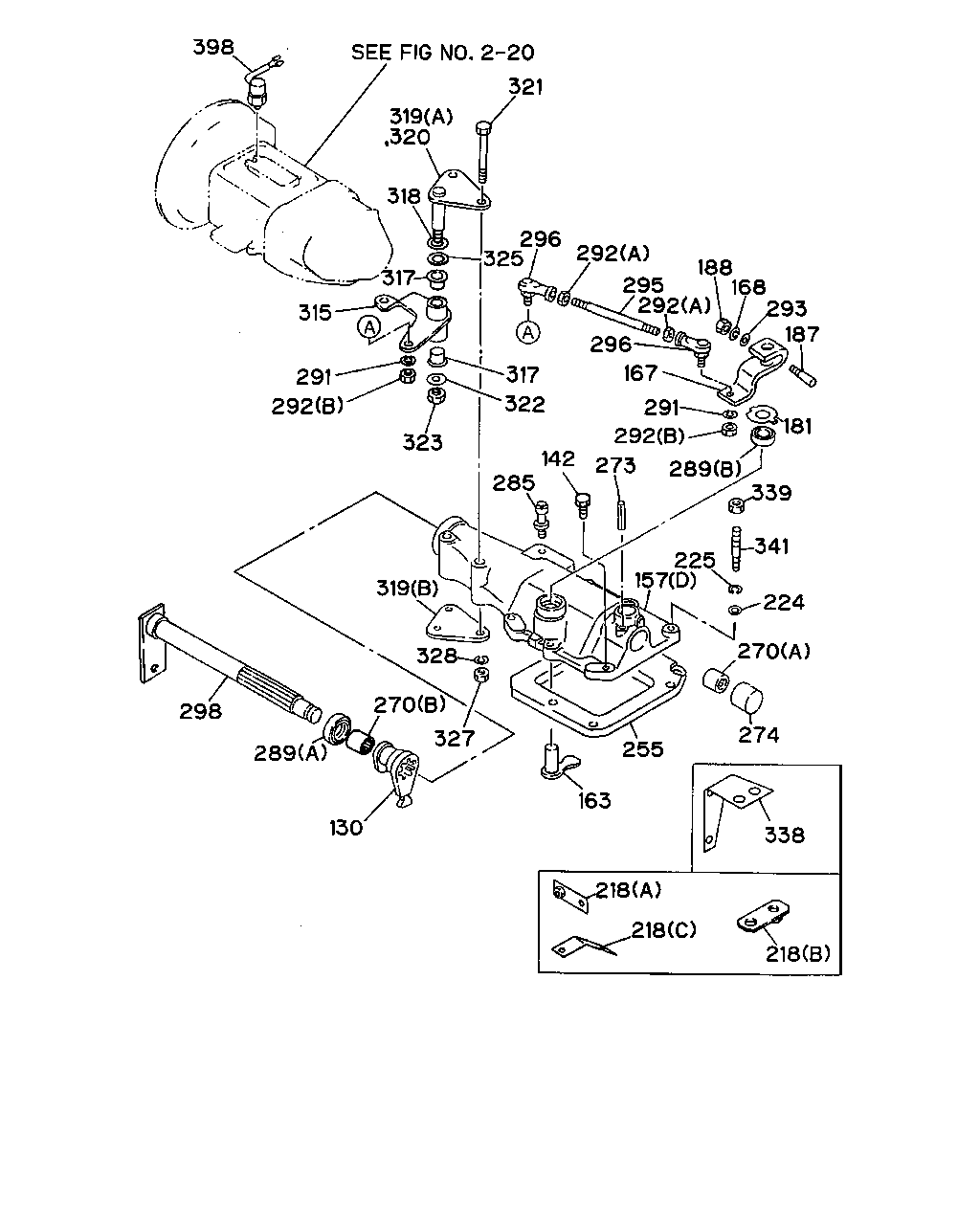

323 322 319 317 292 291 315 317 325 318 327 328 284 280 282 281 163 130 157 276 275 19 277 273 274 270 290 142 142 289 181 167 187 285 292 291 293 168 188 292 320 321 296 295 292 296 270 289 298

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	SPRING; COIL COMP	1-09580-431-0	01	1	8902-9205	●	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	9206-	●
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	8902-9001		●
130	LEVER; SHIFT,INTERNAL	1-33521-115-1	01	1	9307-9401	●
130	LEVER; SHIFT,INTERNAL	1-33521-125-0	01	1	9402-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9306	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-9306	●
130	LEVER; SHIFT,INTERNAL	1-33521-055-0	01	1	8712-			●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	12	1	8902-9001		●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	8902-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●
142	BOLT; QUAD BOX M10X60	9-01651-060-0	04	1	8902-9004	●	●
142	BOLT; QUAD BOX M10X60	0-16811-060-0	04	1	9005-9205	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	9-01991-035-0	04	1	8902-9002	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9003-9205	●
142	BOLT; QUAD BOX M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	11	1	9002-9002	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9003-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	13	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	02	1	9307-	●
142	BOLT; QUAD BOX M10X28	9-01971-028-0	04	1	8712-9002			●	●	●	●
142	BOLT; QUAD BOX M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-			●	●		●
157	BOX; QUAD,TRANS (B)	1-33541-342-0	01	1	8902-8907		●
157	BOX; QUAD,TRANS (B)	1-33541-393-0	01	1	8908-9001		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	8902-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●
157	BOX; QUAD,TRANS (C)	1-33541-388-1	01	1	9307-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9306	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-9306	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	8712-			●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	8712-	●	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-096-1	01	1	8902-	●	●
167	LEVER; SELECT,EXTERNAL 10PC1 STD ENG(10L)	1-33521-064-0	01	1	8712-9001					●
167	LEVER; SELECT,EXTERNAL 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33521-070-0	01	1	8712-9001				●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	9002-			●	●		●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	8712-	●	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	8712-	●	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	8712-	●	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	8712-9205	●	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-			●	●		●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	8712-9001		●		●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	8712-9001		●		●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9002-9306	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9002-9306			●	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9002-9306	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9002-9306			●	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9002-9306	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9002-9306			●	●		●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9307-			●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9307-			●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9307-			●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	8712-9001		●		●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9002-9306	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9002-9306			●	●		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9307-			●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	8712-	●	●	●	●	●	●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-011-0	01	1	8902-8910		●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-027-0	01	1	8911-9001		●
275	BLOCK; OBSTRUCT,QUAD BOX	1-33529-031-1	01	1	9307-	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTER SHIFT CONTROL<WX8>	1-33529-031-1	01	1	9002-9306	●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8>	1-33529-027-0	01	1	9002-9306	●
276	PLATE; SPRING RET	1-33529-010-0	01	1	8902-	●	●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	8902-	●	●
280	SPRING; COIL TENSION	1-09583-255-0	01	1	8902-9001		●
280	SPRING; COIL TENSION	1-09583-285-0	01	1	9307-	●
280	SPRING; COIL TENSION ASSISTER SHIFT CONTROL<WX8>	1-09583-285-0	01	1	9002-9306	●
280	SPRING; COIL TENSION EXC. ASSISTER SHIFT CONTROL<WX8>	1-09583-255-0	01	1	9002-9306	●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-015-0	01	1	8902-8908		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	8909-	●	●
282	BOLT; SPRING REAMER	1-33529-008-1	01	1	8902-8907		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	8908-	●	●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	8902-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	8712-9008	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●		●	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	8712-	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	8712-	●	●	●	●	●	●
290	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	8902-9205	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	8712-9205	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312			●	●		●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	8902-9205	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	8712-	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●		●	●		●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	8712-9312			●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	8712-	●	●	●	●	●	●
295	ROD; LINK,RELAY LEVER 10PC1 STD ENG(10L) L=130	1-33652-392-0	01	1	8712-9001					●
295	ROD; LINK,RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33652-329-0	01	1	8712-8809				●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	8810-9001		●
295	ROD; LINK,RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33652-393-0	01	1	8810-9001				●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●		●	●		●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●		●	●		●
296	ROD END L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	8902-9001		●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9307-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-9306	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-9306	●
298	SHAFT; SHIFT LEVER	1-33522-068-0	01	1	8712-			●	●	●	●
315	LEVER; SELECT	1-33651-417-0	01	1	8902-9001		●
315	LEVER; SELECT	1-33651-513-0	01	1	9307-	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-9306	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-9306	●
315	LEVER; SELECT 10PC1 STD ENG(10L)	1-33651-246-2	01	1	8712-9001					●
315	LEVER; SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33651-337-0	01	1	8712-9001				●	●
315	LEVER; SELECT	1-33651-337-0	01	1	9002-			●	●		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	8712-	●	●	●	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	8712-9001		●
318	WASHER; WAVE 10PC1 STD ENG(10L)	9-09855-315-0	01	1	8712-9001					●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●
319	BRACKET; SELECT LEVER (B)	1-33657-190-0	01	1	8712-9001		●
319	BRACKET; SELECT LEVER 10PC1 STD ENG(10L) (B)	1-33657-190-0	01	1	8712-9001					●
319	BRACKET; SELECT LEVER (C)	1-33657-447-0	01	1	9307-	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (C)	1-33657-447-0	01	1	9002-9306	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9002-9306	●
319	BRACKET; SELECT LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A)	1-33619-134-0	01	1	8712-9001				●	●
319	BRACKET; SELECT LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B)	1-33657-196-0	01	1	8712-9001				●	●
319	BRACKET; SELECT LEVER (B)	1-33657-196-0	01	1	9002-			●	●		●
320	SHAFT; LEVER	1-33619-129-0	01	1	8712-9001		●
320	SHAFT; LEVER 10PC1 STD ENG(10L)	1-33619-129-0	01	1	8712-9001					●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-129-0	01	1	9002-9306	●
320	SHAFT; LEVER	1-33619-134-0	01	1	9002-			●	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	8712-9001		●		●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9307-	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9205	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-9306	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004			●	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-9306	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306			●	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9307-			●	●		●
322	WASHER; LK ID=10.2	9-09150-510-0	03	1	8712-9001		●		●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●		●	●		●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	8712-	●	●	●	●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	8712-9001		●
325	SHIM; LEVER 10PC1 STD ENG(10L)	1-33659-096-0	01	1	8712-9001					●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	02	1	8712-9001		●		●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9002-9205	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9002-9205	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9002-9205			●	●		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-9306	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	03	1	9206-			●	●		●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-9001		●		●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9002-9205	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-9205			●	●		●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9206-			●	●		●

398 321 319 320 318 296 325 317 315 291 292 323 317 322 285 142 273 289 292 291 167 296 292 295 292 188 168 293 187 181 339 341 224 225 157 270 274 255 163 338 218 218 218 327 130 289 298 270 319 328

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
130	LEVER; SHIFT,INTERNAL	1-33521-103-1	01	1	8902-9001		●
130	LEVER; SHIFT,INTERNAL	1-33521-115-1	01	1	9307-9401	●
130	LEVER; SHIFT,INTERNAL	1-33521-125-0	01	1	9402-	●
130	LEVER; SHIFT,INTERNAL ASSISTER SHIFT CONTROL<WX8>	1-33521-115-1	01	1	9002-9306	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTER SHIFT CONTROL<WX8>	1-33521-103-1	01	1	9002-9306	●
130	LEVER; SHIFT,INTERNAL	1-33521-055-0	01	1	8712-			●	●	●	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	12	1	8902-9001		●
142	BOLT; QUAD BOX M10X35	1-09040-064-1	02	1	8902-9205	●	●
142	BOLT; QUAD BOX M10X28 FLANGE REAMER	1-09040-089-0	02	1	9206-	●
142	BOLT; QUAD BOX M10X60	9-01651-060-0	04	1	8902-9004	●	●
142	BOLT; QUAD BOX M10X60	0-16811-060-0	04	1	9005-9205	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	04	1	9206-9306	●
142	BOLT; QUAD BOX M10X35 W/LK WASHER	9-01991-035-0	04	1	8902-9002	●	●
142	BOLT; QUAD BOX M10X35 W/LK&PL WASHER	0-50151-035-0	04	1	9003-9205	●
142	BOLT; QUAD BOX M10X20,M10X33 L=60	1-09029-050-0	01	1	9002-9205	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-0	01	1	9206-9306	●
142	BOLT; QUAD BOX M10X32 W/LK WASHER	9-01991-032-0	11	1	9002-9002	●
142	BOLT; QUAD BOX M10X32 W/LK&PL WASHER	0-50151-032-0	11	1	9003-9205	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	15	1	9206-9306	●
142	BOLT; QUAD BOX M10X28 FLANGE	0-28181-028-0	13	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X26 L=56	1-09049-014-1	03	1	9307-	●
142	BOLT; QUAD BOX M10X20,M10X55 L=85	1-09049-016-0	02	1	9307-	●
142	BOLT; QUAD BOX M10X55 FLANGE	8-94399-863-1	02	1	9307-	●
142	BOLT; QUAD BOX M10X28	9-01971-028-0	04	1	8712-9002			●	●	●	●
142	BOLT; QUAD BOX M10X28 W/LK&PL WASHER	0-50141-028-0	04	1	9003-			●	●		●
157	BOX; QUAD,TRANS (B)	1-33541-342-0	01	1	8902-8907		●
157	BOX; QUAD,TRANS (B)	1-33541-393-0	01	1	8908-9001		●
157	BOX; QUAD,TRANS (A)	1-33541-319-8	01	1	8902-9108	●	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	9109-	●
157	BOX; QUAD,TRANS (C)	1-33541-388-1	01	1	9307-	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-375-1	01	1	9002-9010	●
157	BOX; QUAD,TRANS ASSISTER SHIFT CONTROL<WX8> (C)	1-33541-388-0	01	1	9011-9306	●
157	BOX; QUAD,TRANS EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	9002-9306	●
157	BOX; QUAD,TRANS (D)	1-33541-267-1	01	1	8712-			●	●	●	●
163	LEVER; SELECT,INTERNAL	1-33522-041-3	01	1	8712-	●	●	●	●	●	●
167	LEVER; SELECT,EXTERNAL	1-33521-096-1	01	1	8902-	●	●
167	LEVER; SELECT,EXTERNAL 10PC1 STD ENG(10L)	1-33521-064-0	01	1	8712-9001					●
167	LEVER; SELECT,EXTERNAL 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33521-070-0	01	1	8712-9001				●	●
167	LEVER; SELECT,EXTERNAL	1-33521-070-0	01	1	9002-			●	●		●
168	WASHER; LK,SELECT LEVER ID=8.2	9-09150-508-0	01	1	8712-	●	●	●	●	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	8712-	●	●	●	●	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	8712-	●	●	●	●	●	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	8712-9205	●	●	●	●	●	●
188	NUT; SELECT LEVER M8 FLANGE	0-91150-208-0	01	1	9206-9304	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-049-0	01	1	9305-	●
188	NUT; SELECT LEVER M8	9-09110-408-0	01	1	9206-			●	●		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82699-058-0	02	1	8902-9001		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	02	1	9002-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	9307-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A) L=65	1-47465-485-0	02	1	8712-			●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (C)	1-82699-123-1	01	1	9002-			●	●	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-228-0	02	1	9002-			●	●	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	8902-	●	●
224	WASHER; PL,QUAD BOX ID=10.5	9-09164-510-0	05	1	8902-9205	●	●
224	WASHER; PL,QUAD BOX ID=10.5 OD=18	9-09160-510-0	02	1	8712-			●	●	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	07	1	8902-9205	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	8902-	●	●
225	WASHER; LK,QUAD BOX ID=10.2	9-09150-510-0	02	1	8712-			●	●	●	●
255	PLATE; DIST,QUAD BOX	1-33549-070-1	01	1	8712-			●	●	●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	8712-9001		●		●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	8712-9001		●		●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	9002-9306	●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9002-9306			●	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	9002-9306	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9002-9306			●	●		●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTER SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	9002-9306	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9002-9306			●	●		●
270	BEARING; NEEDLE,QUAD BOX (A) NTN	1-09811-006-0	01	1	9307-			●	●
270	BEARING; NEEDLE,QUAD BOX (A) NSK	1-09811-057-0	01	1	9307-			●	●
270	BEARING; NEEDLE,QUAD BOX (B) NTN	1-09811-260-0	01	1	9307-			●	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	8712-9001		●		●	●
273	PIN; SPR,STOPPER EXC. ASSISTER SHIFT CONTROL<WX8>	1-09748-016-0	01	1	9002-9306	●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9002-9306			●	●		●
273	PIN; SPR,STOPPER	1-09748-016-0	01	1	9307-			●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	8712-	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-005-0	01	1	8712-9008	●	●	●	●	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	9009-	●		●	●		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	8712-	●	●	●	●	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	8712-	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	8712-9205	●	●	●	●	●	●
291	WASHER; LK,LINK ROD ID=8.2	9-09150-508-0	02	1	9206-9312			●	●		●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	8902-9205	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	8712-	●	●	●	●	●	●
292	NUT; LINK ROD (B) M8 FLANGE	0-91150-208-0	02	1	9206-9301	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9302-9312	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-049-0	02	1	9401-	●		●	●		●
292	NUT; LINK ROD (B) M8	9-09110-408-0	02	1	8712-9312			●	●	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	8712-	●	●	●	●	●	●
295	ROD; LINK,RELAY LEVER 10PC1 STD ENG(10L) L=130	1-33652-392-0	01	1	8712-9001					●
295	ROD; LINK,RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33652-329-0	01	1	8712-8809				●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	8810-9001		●
295	ROD; LINK,RELAY LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33652-393-0	01	1	8810-9001				●	●
295	ROD; LINK,RELAY LEVER	1-33652-393-0	01	1	9002-9510	●		●	●		●
295	ROD; LINK,RELAY LEVER	9-08400-815-0	01	1	9511-	●		●	●		●
296	ROD END L=48	1-09760-038-1	02	1	8712-	●	●	●	●	●	●
298	SHAFT; SHIFT LEVER	1-33522-089-0	01	1	8902-9001		●
298	SHAFT; SHIFT LEVER	1-33522-113-0	01	1	9307-	●
298	SHAFT; SHIFT LEVER ASSISTER SHIFT CONTROL<WX8>	1-33522-113-0	01	1	9002-9306	●
298	SHAFT; SHIFT LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33522-089-0	01	1	9002-9306	●
298	SHAFT; SHIFT LEVER	1-33522-068-0	01	1	8712-			●	●	●	●
315	LEVER; SELECT	1-33651-417-0	01	1	8902-9001		●
315	LEVER; SELECT	1-33651-513-0	01	1	9307-	●
315	LEVER; SELECT ASSISTER SHIFT CONTROL<WX8>	1-33651-513-0	01	1	9002-9306	●
315	LEVER; SELECT EXC. ASSISTER SHIFT CONTROL<WX8>	1-33651-417-0	01	1	9002-9306	●
315	LEVER; SELECT 10PC1 STD ENG(10L)	1-33651-246-2	01	1	8712-9001					●
315	LEVER; SELECT 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L)	1-33651-337-0	01	1	8712-9001				●	●
315	LEVER; SELECT	1-33651-337-0	01	1	9002-			●	●		●
317	BUSHING; LEVER ID=16 OD=18 H=16	1-09503-151-0	02	1	8712-	●	●	●	●	●	●
318	WASHER; WAVE	9-09855-315-0	01	1	8712-9001		●
318	WASHER; WAVE 10PC1 STD ENG(10L)	9-09855-315-0	01	1	8712-9001					●
318	WASHER; WAVE	9-09855-315-0	01	1	9002-	●
319	BRACKET; SELECT LEVER (B)	1-33657-190-0	01	1	8712-9001		●
319	BRACKET; SELECT LEVER 10PC1 STD ENG(10L) (B)	1-33657-190-0	01	1	8712-9001					●
319	BRACKET; SELECT LEVER (C)	1-33657-447-0	01	1	9307-	●
319	BRACKET; SELECT LEVER ASSISTER SHIFT CONTROL<WX8> (C)	1-33657-447-0	01	1	9002-9306	●
319	BRACKET; SELECT LEVER EXC. ASSISTER SHIFT CONTROL<WX8> (B)	1-33657-190-0	01	1	9002-9306	●
319	BRACKET; SELECT LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (A)	1-33619-134-0	01	1	8712-9001				●	●
319	BRACKET; SELECT LEVER 6RA1TC ENG(19L),6RB1TC ENG(30L),6RB1 TURBO ENG(33L) (B)	1-33657-196-0	01	1	8712-9001				●	●
319	BRACKET; SELECT LEVER (B)	1-33657-196-0	01	1	9002-			●	●		●
320	SHAFT; LEVER	1-33619-129-0	01	1	8712-9001		●
320	SHAFT; LEVER 10PC1 STD ENG(10L)	1-33619-129-0	01	1	8712-9001					●
320	SHAFT; LEVER EXC. ASSISTER SHIFT CONTROL<WX8>	1-33619-129-0	01	1	9002-9306	●
320	SHAFT; LEVER	1-33619-134-0	01	1	9002-			●	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	8712-9001		●		●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	9307-	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	9-01931-025-0	02	1	9002-9002	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X25 W/LK WASHER	0-50051-025-0	02	1	9003-9205	●
321	BOLT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	9206-9306	●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	9-01056-080-0	02	1	9002-9004	●
321	BOLT; BRKT,RELAY LEVER M10X80	9-01056-080-0	02	1	9002-9004			●	●		●
321	BOLT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10X80	0-10806-080-0	02	1	9005-9306	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9005-9306			●	●		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	9307-			●	●		●
322	WASHER; LK ID=10.2	9-09150-510-0	03	1	8712-9001		●		●	●
322	WASHER; LK ID=10.2	9-09150-510-0	01	1	9002-	●		●	●		●
323	NUT; LK,SELECT LEVER M10	9-09110-410-0	01	1	8712-	●	●	●	●	●	●
325	SHIM; LEVER	1-33659-096-0	01	1	8712-9001		●
325	SHIM; LEVER 10PC1 STD ENG(10L)	1-33659-096-0	01	1	8712-9001					●
325	SHIM; LEVER	1-33659-096-0	01	1	9002-	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	02	1	8712-9001		●		●	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	01	1	9206-	●
327	NUT; BRKT,RELAY LEVER ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	01	1	9002-9205	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10	9-09110-410-0	03	1	9002-9205	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-410-0	03	1	9002-9205			●	●		●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTER SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	9206-9306	●
327	NUT; BRKT,RELAY LEVER M10	9-09110-510-0	03	1	9206-			●	●		●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	8712-9001		●		●	●
328	WASHER; LK,BRKT EXC. ASSISTER SHIFT CONTROL<WX8> ID=10.2	9-09150-510-0	02	1	9002-9205	●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9002-9205			●	●		●
328	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	9206-			●	●		●
338	BRACKET; FLEX TUBE	1-47475-452-0	01	1	8712-			●	●	●	●
339	NUT; QUAD BOX M10	9-09110-510-0	02	1	8712-			●	●	●	●
341	STUD; QUAD BOX	1-09305-004-0	02	1	8712-			●	●	●	●
398	SWITCH; REV LAMP	1-82440-050-1	01	1	8902-9306	●	●
398	SWITCH; REV LAMP	1-82440-083-2	01	1	9307-	●
398	SWITCH; REV LAMP	1-82440-046-0	01	1	8712-			●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
