7-40 — INSTRUMENT PANEL AND BOX (#49698) — 236 parça

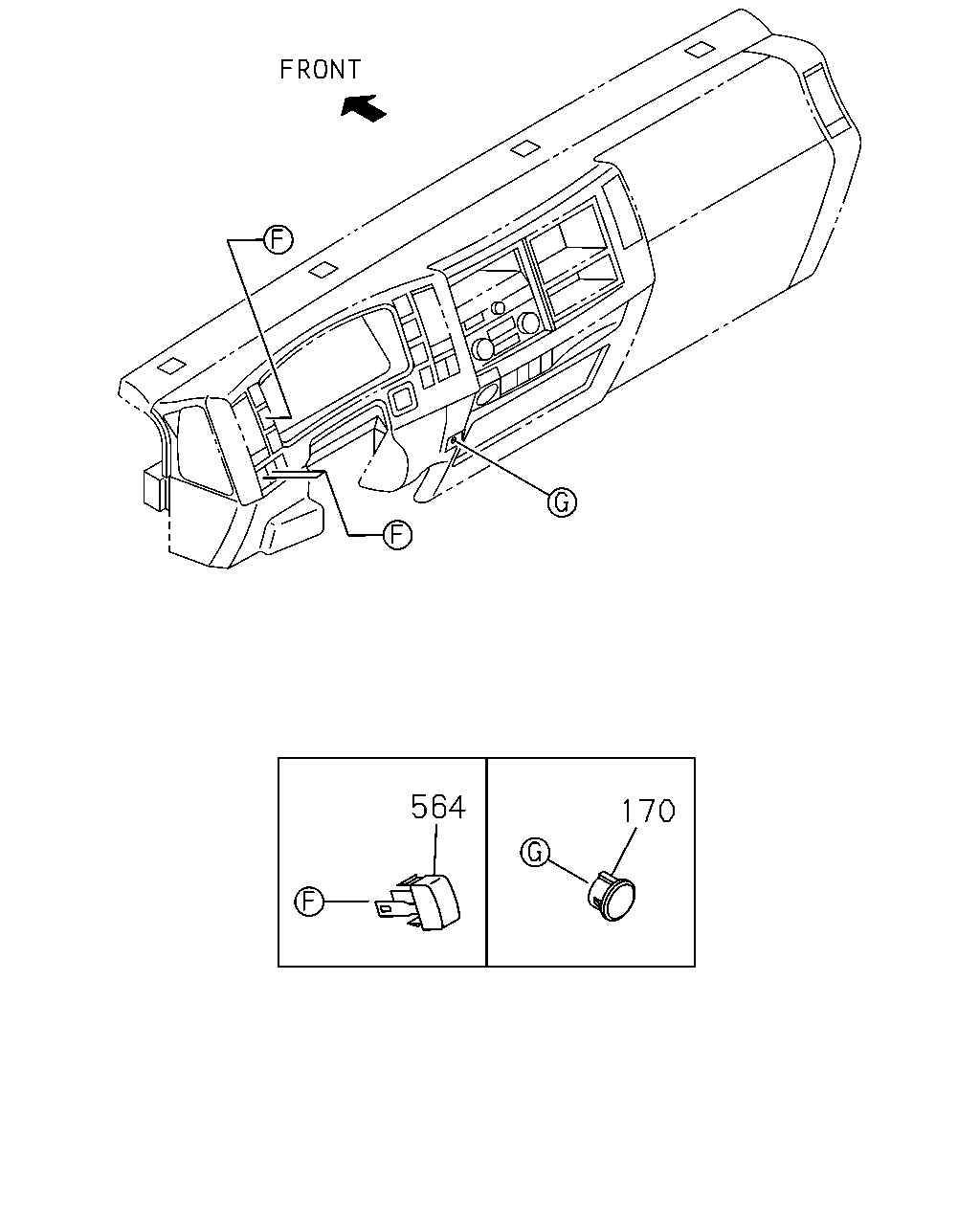

çizim 158470
564 170
BalonParca AdiParca NoAdetTipApplied Date A B
170 COVER; HOLE 8-98070-401-2 01 1 0811-0901 ●
170 COVER; HOLE 8-98070-401-2 01 1 0902- ● ●
564 COVER; SW 8-98025-954-1 03 1 0811-0901 ●
564 COVER; SW 8-98025-954-1 03 1 0902- ● ●

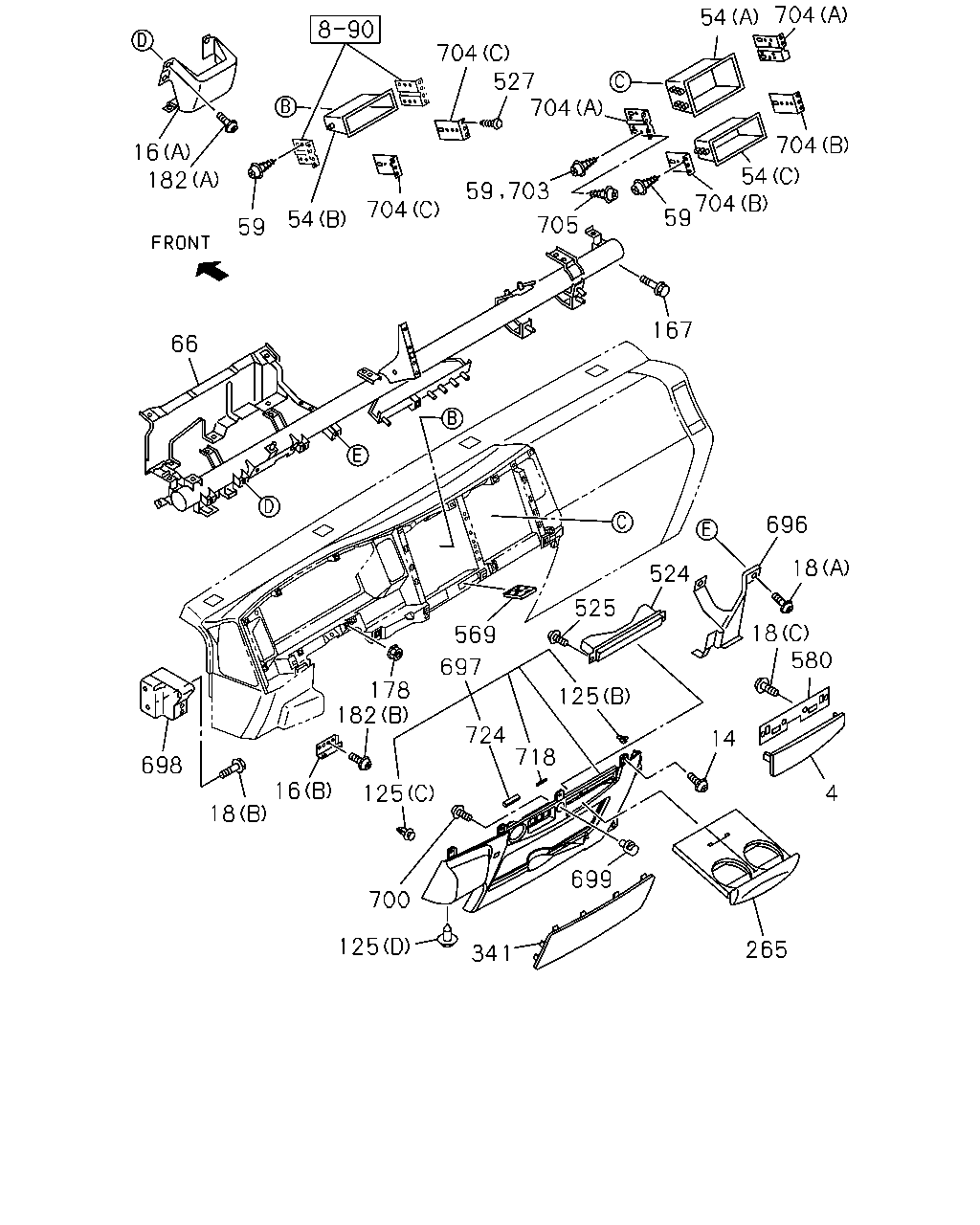

çizim 158483
704 54 704 54 704 59 167 705 703 704 527 704 59 704 54 59 16 182 66 696 524 525 569 697 178 182 16 18 698 125 724 125 18 18 580 4 14 265 699 718 700 125 341
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0811-0901 ●
4 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY 		8-97407-898-1 01 1 0902- ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0811-0901 ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0902-1101 ● ●
14 SCREW; INST PNL
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-1212 ● ●
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301- ● ●
16 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0811-0901 ●
16 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0902- ● ●
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0811-0901 ●
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0902-1112 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1201- ● ●
16 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 0811-0901 ●
16 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 0902-1112 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1201- ● ●
16 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0811-0901 ●
16 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0902- ● ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0811-0901 ●
18 BOLT; BRKT
(B) M8X16 FLANGE 		0-28050-816-0 04 1 0902- ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0811-0901 ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 0902-1101 ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1102-1212 ● ●
18 BOLT; BRKT
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301- ● ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0811-0901 ●
18 BOLT; BRKT
EXC. CUP HOLDER<7KZ> (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 0902- ● ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0811-0901 ●
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 0902- ● ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0811-0901 ●
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 0902- ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0811-0901 ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-2 01 1 0902-1112 ● ●
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1201- ● ●
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1201- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0901 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0811-0901 ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0902-1112 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 0902-1112 ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1201- ● ●
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1201- ● ●
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1201- ● ●
66 REINFORCEMENT; INST PANEL
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98192-942-0 01 1 1310- ● ●
66 REINFORCEMENT; INST PANEL 8-98098-026-3 01 1 0811-0901 ●
66 REINFORCEMENT; INST PANEL 8-98098-026-3 01 1 0902-1309 ● ●
66 REINFORCEMENT; INST PANEL
KD PREPARATORY PACK VAR.4<7TV> 		8-98098-026-3 01 1 1310- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0811-0901 ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0902-0909 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 0902- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0902- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0811-0901 ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0902- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0902- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0902- ● ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0811-0901 ●
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 0902- ● ●
178 NUT; INST PANEL
M6 FLANGE 		0-91180-106-0 01 1 0811-0901 ●
178 NUT; INST PANEL
M6 FLANGE 		0-91180-106-0 01 1 0902- ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0811-0901 ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 0902-1101 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1102-1212 ● ●
182 BOLT; BRKT,INST PANEL
(A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301- ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0811-0901 ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0902-1101 ● ●
182 BOLT; BRKT,INST PANEL
(B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1112 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1201-1212 ● ●
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0811-0901 ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97407-897-2 01 1 0902-0909 ● ●
265 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 0910- ● ●
341 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0811-0901 ●
341 LID; FUSE BOX
GRAY 		8-97406-043-1 01 1 0902-1205 ● ●
341 LID; FUSE BOX
GRAY 		8-97423-659-0 01 1 1206- ● ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0811-0901 ●
524 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 0902- ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0811-0901 ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 0902-1101 ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1102-1212 ● ●
525 SCREW; CUP STAND
CUP HOLDER<7KZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301- ● ●
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) DARK GRAY 		8-97098-326-0 01 1 1201- ● ●
569 HOLDER; CARD 8-97410-276-1 01 1 0811-0901 ●
569 HOLDER; CARD 8-97410-276-1 01 1 0902- ● ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0811-0901 ●
580 BRACKET; COVER
EXC. CUP HOLDER<7KZ> 		8-98091-546-0 01 1 0902- ● ●
696 BRACKET; KNEE 8-98098-126-0 01 1 0811-0901 ●
696 BRACKET; KNEE 8-98098-126-0 01 1 0902-1109 ● ●
696 BRACKET; KNEE 8-98071-234-0 01 1 1110-1211 ● ●
696 BRACKET; KNEE 8-98201-847-0 01 1 1212- ● ●
697 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0811-0901 ●
697 PANEL; INST CENTER
GRAY 		8-97405-999-8 01 1 0902-1205 ● ●
697 PANEL; INST CENTER
GRAY 		8-97423-657-1 01 1 1206- ● ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0811-0901 ●
698 BRACKET; INST BAR SIDE 8-98089-256-1 01 1 0902- ● ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0811-0901 ●
698 BRACKET; INST BAR SIDE 8-98089-257-1 01 1 0902- ● ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0811-0901 ●
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 0902- ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0811-0901 ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0902-1101 ● ●
700 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
700 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0811-0901 ●
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 0902- ● ●
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-98107-549-0 02 1 1201- ● ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0811-0901 ●
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 0902- ● ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0811-0901 ●
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 0902- ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1201-1212 ● ●
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0811-0901 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0811-0901 ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0902-1101 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 0902-1101 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1102-1212 ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301- ● ●
718 SEAL; COVER
5X30 		8-98176-199-0 01 1 1206- ● ●
718 SEAL; COVER
8X80 		8-98200-040-0 01 1 1110- ● ●
718 SEAL; COVER
4X35 		8-98200-041-0 01 1 1110- ● ●
724 INSULATOR; INST PANEL 8-98200-042-0 01 1 1110- ● ●

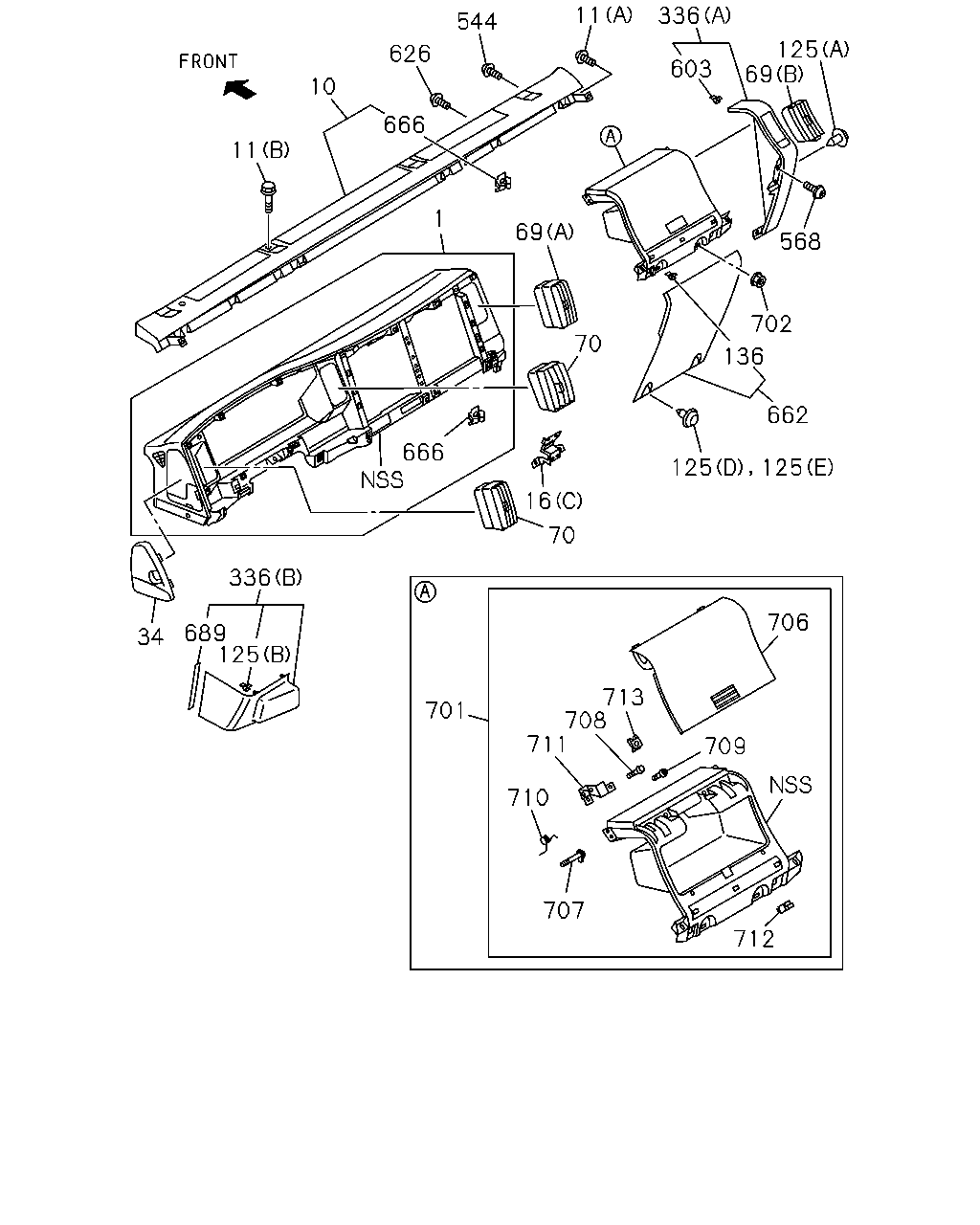

çizim 158491
11 336 544 125 69 626 603 10 666 11 1 69 568 702 70 136 662 666 125 125 16 70 336 706 689 125 34 713 708 711 701 709 710 707 712
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
GRAY 		8-97406-004-4 01 1 0811-0901 ●
1 PANEL; INST
GRAY 		8-97406-004-4 01 1 0902- ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0811-0901 ●
10 PANEL ASM; GARNISH
GRAY 		8-97406-272-4 01 1 0902-1003 ● ●
10 PANEL ASM; GARNISH
GRAY 		8-97419-684-5 01 1 1004- ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0811-0901 ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 0902-1101 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1102-1212 ● ●
11 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301- ● ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0811-0901 ●
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 0902- ● ●
16 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0811-0901 ●
16 BRACKET; INST PNL
PTO MANUAL CONTROL(6WC) (A) 		8-98100-403-1 01 1 0902- ● ●
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0811-0901 ●
16 BRACKET; INST PNL
(B) 		8-97585-532-0 01 1 0902-1112 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-97585-532-0 01 1 1201- ● ●
16 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 0811-0901 ●
16 BRACKET; INST PNL
(C) 		8-97585-612-2 01 1 0902-1112 ● ●
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) 		8-97585-612-2 01 1 1201- ● ●
16 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0811-0901 ●
16 BRACKET; INST PNL
EXC. PTO MANUAL CONTROL(6WC) (A) 		8-98081-718-1 01 1 0902- ● ●
34 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0811-0901 ●
34 LID; OIL TANK
GRAY 		8-97406-003-1 01 1 0902- ● ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0811-0901 ●
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-561-2 01 1 0902- ● ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0811-0901 ●
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 0902- ● ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0811-0901 ●
70 GRILLE; CENTER,AIR OUTLET 8-98028-563-2 02 1 0902- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97419-968-1 02 1 1002- ● ●
125 CLIP; INST PANEL
(E) GRAY 		8-97418-529-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0811-0901 ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0902-0909 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 0910-0911 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 04 1 0912-1001 ● ●
125 CLIP; INST PANEL
(D) GRAY 		8-97408-063-0 02 1 1002- ● ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(C) 		8-98004-025-0 01 1 0902- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 01 1 0902- ● ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0811-0901 ●
125 CLIP; INST PANEL
(B) 		8-98021-271-0 02 1 0902- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0811-0901 ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0902- ● ●
125 CLIP; INST PANEL
(A) GRAY 		8-97408-817-0 01 1 0902- ● ●
136 CLIP; INST COVER 8-98021-271-0 05 1 0811-0901 ●
136 CLIP; INST COVER 8-98021-271-0 05 1 0902- ● ●
336 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0811-0901 ●
336 COVER; INST PANEL SIDE
PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97415-670-1 01 1 0902- ● ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0811-0901 ●
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97406-002-3 01 1 0902- ● ●
336 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0811-0901 ●
336 COVER; INST PANEL SIDE
EXC. PTO MANUAL CONTROL(6WC) (B) GRAY 		8-97406-000-4 01 1 0902- ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0811-0901 ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0902-1101 ● ●
544 SCREW; TRAY
M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ● ●
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301- ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0811-0901 ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 0902-1101 ● ●
568 BOLT; COVER
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1102-1212 ● ●
568 BOLT; COVER
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301- ● ●
603 CLIP; COVER 8-98021-271-0 01 1 0811-0901 ●
603 CLIP; COVER 8-98021-271-0 01 1 0902- ● ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0811-0901 ●
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 0902- ● ●
662 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0811-0901 ●
662 COVER; LWR,INST PANEL
GRAY 		8-97406-260-1 01 1 0902- ● ●
666 INSERT; INST PANEL 8-98037-629-0 02 1 0811-0901 ●
666 INSERT; INST PANEL 8-98037-629-0 02 1 0902-1003 ● ●
666 INSERT; INST PANEL 8-98037-629-0 15 1 0811-0901 ●
666 INSERT; INST PANEL 8-98037-629-0 15 1 0902- ● ●
689 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0811-0901 ●
689 SEAL; INST
EXC. PTO MANUAL CONTROL(6WC) 		8-98068-244-0 01 1 0902- ● ●
701 TRAY; INST
GRAY 		8-97406-268-4 01 1 0811-0901 ●
701 TRAY; INST
GRAY 		8-97406-268-4 01 1 0902- ● ●
702 NUT; TRAY
M6 FLANGE 		0-91180-106-0 02 1 0811-0901 ●
702 NUT; TRAY
M6 FLANGE 		0-91180-106-0 02 1 0902- ● ●
706 LID; TRAY INST
GRAY 		8-97409-510-0 01 1 0811-0901 ●
706 LID; TRAY INST
GRAY 		8-97409-510-0 01 1 0902- ● ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0811-0901 ●
707 SHAFT; TRAY INST LID 8-98035-730-1 02 1 0902-1311 ● ●
707 SHAFT; TRAY INST LID 8-97926-393-0 02 1 1312- ● ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0811-0901 ●
708 STOPPER; TRAY INST LID 8-98010-867-1 02 1 0902- ● ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0811-0901 ●
709 SCREW; TRAY INST
M5X16 TAPPING 		0-71040-516-0 04 1 0902- ● ●
710 SPRING; TRAY INST LID 8-98034-986-0 01 1 0811-0901 ●
710 SPRING; TRAY INST LID 8-98034-986-0 01 1 0902-1311 ● ●
710 SPRING; TRAY INST LID 8-97926-398-0 01 1 1312- ● ●
710 SPRING; TRAY INST LID 8-98034-987-0 01 1 0811-0901 ●
710 SPRING; TRAY INST LID 8-98034-987-0 01 1 0902-1311 ● ●
710 SPRING; TRAY INST LID 8-97926-399-0 01 1 1312- ● ●
711 HOLDER ASM; LID 8-98034-928-0 01 1 0811-0901 ●
711 HOLDER ASM; LID 8-98034-928-0 01 1 0902-1311 ● ●
711 HOLDER ASM; LID 8-97926-396-0 01 1 1312- ● ●
711 HOLDER ASM; LID 8-98034-929-0 01 1 0811-0901 ●
711 HOLDER ASM; LID 8-98034-929-0 01 1 0902-1311 ● ●
711 HOLDER ASM; LID 8-97926-397-0 01 1 1312- ● ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0811-0901 ●
712 LOCK; TRAY INST LID 8-98031-846-0 01 1 0902- ● ●
713 NUT; TRAY INST LID
M5 		1-09984-196-0 04 1 0811-0901 ●
713 NUT; TRAY INST LID
M5 		1-09984-196-0 04 1 0902-1311 ● ●
713 NUT; TRAY INST LID
M5 		8-97926-400-0 04 1 1312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
