7-20 — MIRROR AND MIRROR STAY (#49696) — 65 parça

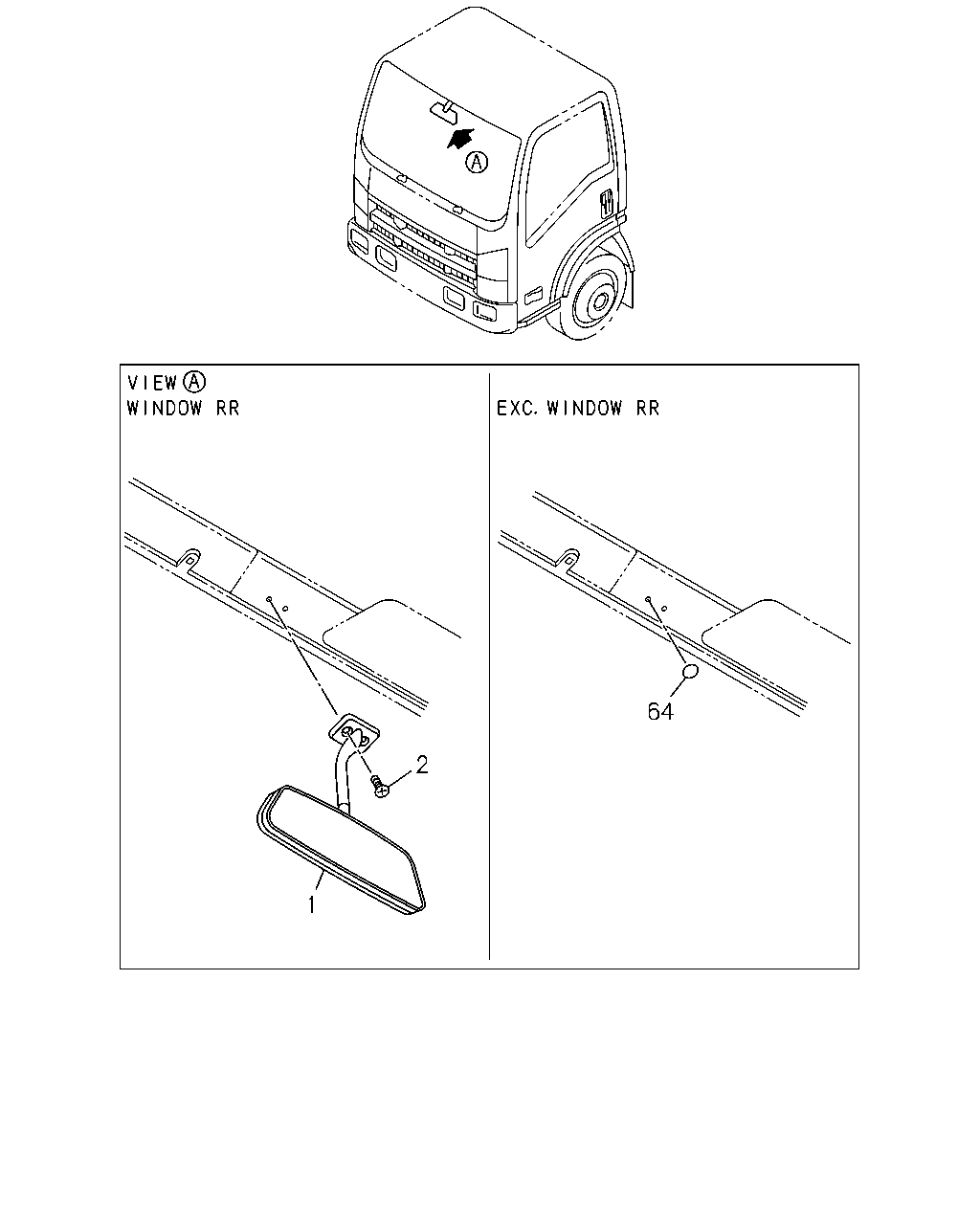

çizim 158476
64 2 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 0811-0901 ●
1 MIRROR; ROOM
WINDOW RR<8LF> DARK GRAY 		8-98097-534-1 01 1 0902- ● ●
2 SCREW; MIRROR TO BODY
WINDOW RR<8LF> M6X26 		8-98033-674-0 02 1 0811-0901 ●
2 SCREW; MIRROR TO BODY
WINDOW RR<8LF> M6X26 		8-98033-674-0 02 1 0902- ● ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0811-0901 ●
64 SEAL; MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0902-0903 ● ●
64 SEAL; MIRROR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) EXC. WINDOW RR<8LF> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0904- ● ●
64 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0811-0901 ●
64 SEAL; MIRROR
BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0902-0903 ● ●
64 SEAL; MIRROR
BODY COLOR EBONY BLACK(508),BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BOD Y COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR HIGHWAY ORANGE(944),BODY COLOR SUNBELT GREEN(989),BO DY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. WINDOW RR<8LF> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0904- ● ●

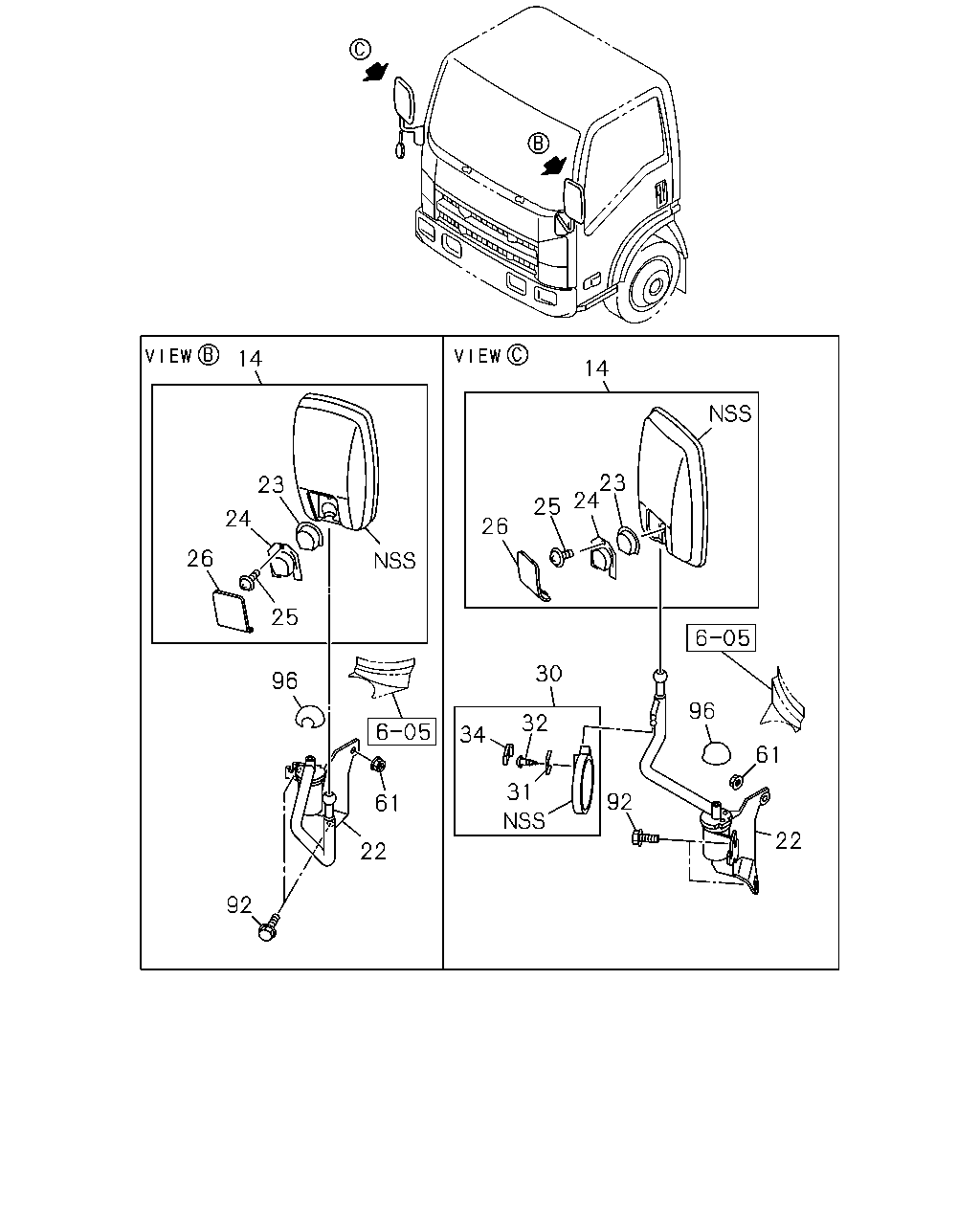

çizim 158477
14 14 23 24 23 25 24 26 26 25 30 96 96 32 34 61 31 92 61 22 22 92
BalonParca AdiParca NoAdetTipApplied Date A B
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0811-0901 ●
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0811-0901 ●
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0902- ●
14 MIRROR ASM; OUTSIDE 8-94262-542-3 01 1 0902- ●
14 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 0902- ●
14 MIRROR ASM; OUTSIDE
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-94262-542-3 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> UNDER MIRROR<RR9> 		8-98070-506-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37> EXC. UNDER MIRROR<RR9> 		8-98070-504-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98070-510-0 01 1 0811-0901 ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98070-510-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98070-510-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR 8-98070-503-0 01 1 0811-0901 ●
22 STAY; OUTSIDE MIRROR 8-98070-503-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> 		8-98070-503-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-508-0 01 1 0811-0901 ●
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98070-508-0 01 1 0902- ●
22 STAY; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> EXC. UNDER MIRROR<RR9> 		8-98070-508-0 01 1 0902- ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0811-0901 ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0811-0901 ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0902- ●
23 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0902- ●
23 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 0902- ●
23 WASHER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.0 		8-94262-545-0 01 1 0902- ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0811-0901 ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0811-0901 ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0902- ●
24 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0902- ●
24 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6 		8-94262-546-1 01 1 0902- ●
24 HOLDER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=1.6 		8-94262-546-1 01 1 0902- ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0811-0901 ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0811-0901 ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0902- ●
25 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0902- ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 0902- ●
25 SCREW; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> M6X30 		8-94279-365-0 01 1 0902- ●
26 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0811-0901 ●
26 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0811-0901 ●
26 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0902- ●
26 COVER; OUTSIDE MIRROR
T=2.3 		8-94262-547-2 01 1 0902- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.3 		8-94262-547-2 01 1 0902- ●
26 COVER; OUTSIDE MIRROR
O/SIDE MIRROR ASSIST SIDE MANUAL SHORT STAY<D37>, O/SIDE MIRROR ASSIST SIDE MANUAL LONG STAY<6TF> T=2.3 		8-94262-547-2 01 1 0902- ●
30 MIRROR; UNDER 8-94262-625-2 01 1 0811-0901 ●
30 MIRROR; UNDER 8-94262-625-2 01 1 0902- ● ●
31 PLATE; MIRROR 8-94262-631-0 01 1 0811-0901 ●
31 PLATE; MIRROR 8-94262-631-0 01 1 0902- ● ●
32 SCREW; UNDER MIRROR
M5X18 		8-94279-372-0 02 1 0811-0901 ●
32 SCREW; UNDER MIRROR
M5X18 		8-94279-372-0 02 1 0902- ● ●
34 CAP; MIRROR 8-94262-629-0 01 1 0811-0901 ●
34 CAP; MIRROR 8-94262-629-0 01 1 0902- ● ●
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE 		0-91180-108-0 02 1 0811-0901 ●
61 NUT; STAY,OUTSIDE MIRROR
M8 FLANGE 		0-91180-108-0 02 1 0902- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE 		0-28650-825-0 04 1 0811-0901 ●
92 BOLT; STAY BRKT,MIRROR
M8X25 FLANGE 		0-28650-825-0 04 1 0902- ● ●
96 CAP; MIRROR STAY 8-98027-552-2 02 1 0811-0901 ●
96 CAP; MIRROR STAY 8-98027-552-2 02 1 0902- ● ●
