Sayfa 0-15B - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15B - CRANKSHAFT,PISTON AND FLYWHEEL ▶

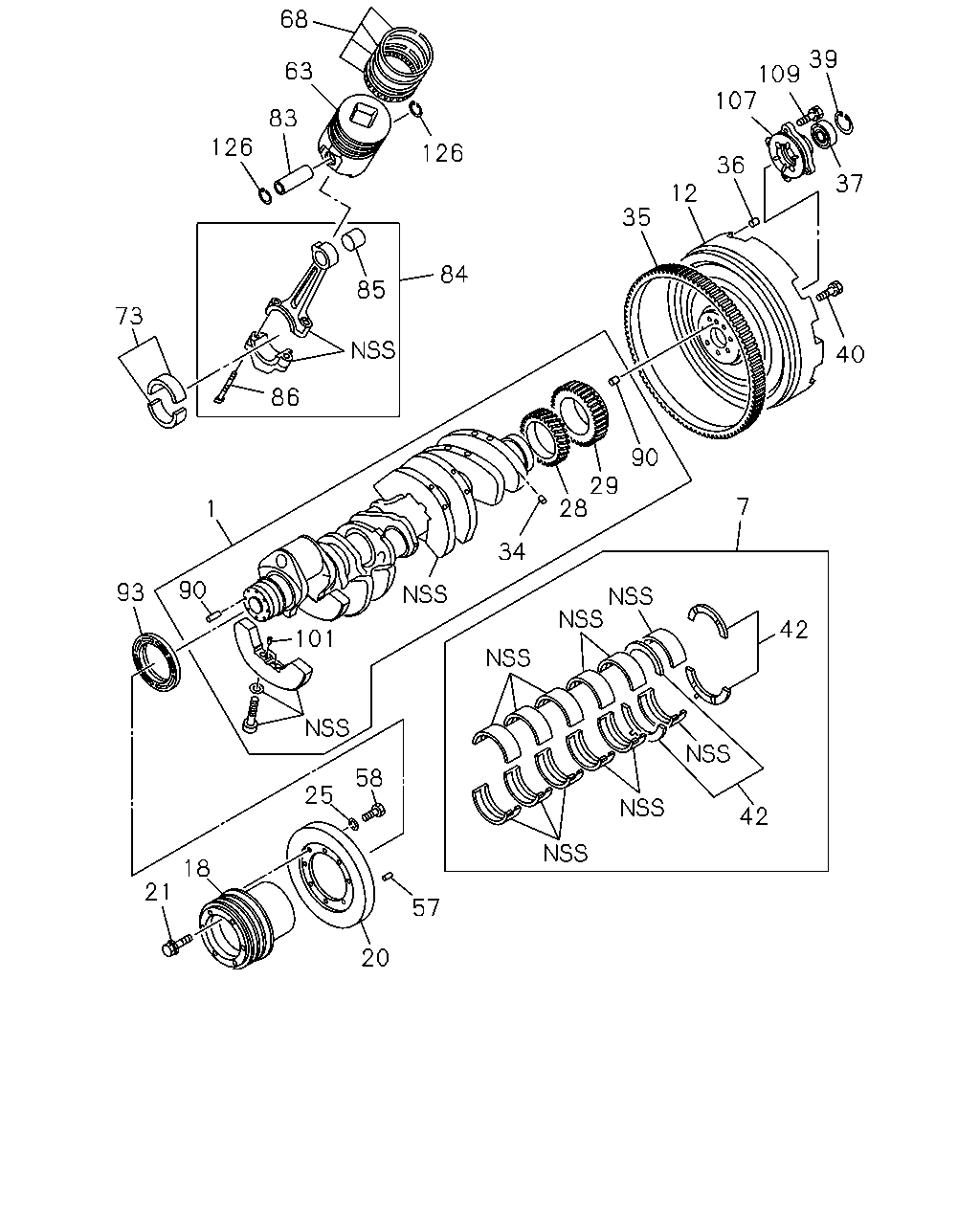

0-15B — CRANKSHAFT,PISTON AND FLYWHEEL (#4969) — 77 parça

68 39 109 107 63 83 126 126 36 37 12 35 84 85 73 40 86 90 29 28 7 1 34 90 93 42 101 58 25 42 18 21 57 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-12310-641-4	01	1	9606-9710	●
1	CRANKSHAFT ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-12310-704-0	01	1	9711-9905	●
1	CRANKSHAFT ENGINE REAR PTO<SV1>	1-12310-704-1	01	1	9906-		●
1	CRANKSHAFT EXC. ENGINE REAR PTO<SV1>	1-12310-640-4	01	1	9606-9710	●
1	CRANKSHAFT EXC. ENGINE REAR PTO<SV1>	1-12310-703-0	01	1	9711-9905	●
1	CRANKSHAFT EMISSION SYSTEM ECE REQUIREMENTS<SFV> EXC. ENGINE REAR PTO<SV1>	1-12310-703-1	01	1	9906-		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-096-0	01	1	9606-9606	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-099-1	01	1	9606-9905	●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-099-1	01	1	9906-0006		●
7	METAL KIT; CRANKSHAFT,STANDARD	1-11510-111-0	01	1	0007-		●
12	FLYWHEEL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-294-2	01	1	9606-9905	●
12	FLYWHEEL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-294-2	01	1	9906-		●
12	FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-258-4	01	1	9606-9905	●
12	FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-12331-258-4	01	1	9906-		●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-0	01	1	9606-9905	●
18	PULLEY; CR/SHF 3-GROOVE	1-12371-222-1	01	1	9906-		●
20	DAMPER; CR/SHF	1-12375-143-2	01	1	9606-9905	●
20	DAMPER; CR/SHF	1-12375-143-2	01	1	9906-		●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	08	1	9606-9905	●
21	BOLT; PULLEY FIX M18X42 W/WASHER	1-12334-016-2	08	1	9906-		●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9606-9905	●
25	WASHER; DAMPER ID=12.5	9-09851-682-0	08	1	9906-		●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9606-9905	●
28	GEAR; CR/SHF Z=48	1-12521-012-1	01	1	9906-		●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO<SV1> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> Z=34	1-38261-016-0	01	1	9606-9905	●
29	GEAR; CR/SHF,PTO ENGINE REAR PTO<SV1> Z=34	1-38261-016-0	01	1	9906-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9606-9905	●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	01	1	9906-		●
35	GEAR; RING Z=164	1-12333-019-0	01	1	9606-9711	●
35	GEAR; RING Z=164	1-12333-024-0	01	1	9712-9905	●
35	GEAR; RING Z=164	1-12333-024-0	01	1	9906-		●
36	PIN; FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=10 L=22	9-08151-022-0	02	1	9606-9609	●
36	PIN; FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) OD=10 L=22	9-08151-022-0	02	1	9610-9905	●
36	PIN; FLYWHEEL EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV), CLUTCH-15.5" TWIN PLATE SPICER(TEY) OD=10 L=22	9-08151-022-0	02	1	9906-		●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-0	01	1	9606-9905	●
37	BEARING; PILOT,TOP GEAR SHAFT	1-09800-200-1	01	1	9906-		●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9606-9905	●
39	RING; SNAP,BRG OD=76.5	9-09180-172-0	01	1	9906-		●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9606-9905	●
40	BOLT; FLYWHEEL M18X60 W/PL WASHER	1-12334-012-3	08	1	9906-		●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9606-9905	●
42	WASHER; THRUST,CR/SHF	1-11515-041-0	02	1	9906-		●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9606-9905	●
57	PIN; PULLEY OD=8 L=16	9-08150-816-0	01	1	9906-		●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9606-9905	●
58	BOLT; CR/SHF PULLEY	9-02361-220-0	08	1	9906-		●
63	PISTON ALSO INCLUDED IN LINER SET. ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-12111-813-0	10	1	9606-9905	●
63	PISTON ALSO INCLUDED IN LINER SET. EXC. ANTI NOISE EQUIPMENT<SV9> NON GRADE	1-12111-926-0	10	1	9702-9905	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	1-12111-926-0	10	1	9906-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-0	10	1	9606-9905	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	1-12121-129-1	10	1	9906-		●
73	METAL SET; CONN ROD,STANDARD	1-12271-067-0	10	1	9606-9606	●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	10	1	9607-9905	●
73	METAL SET; CONN ROD,STANDARD	1-12271-076-0	10	1	9906-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-3	10	1	9606-9905	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	1-12211-036-4	10	1	9906-		●
84	ROD ASM; CONN	1-12230-166-5	10	1	9606-9705	●
84	ROD ASM; CONN	1-12230-194-0	10	1	9706-9905	●
84	ROD ASM; CONN	1-12230-194-0	10	1	9906-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-042-0	10	1	9606-9705	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	10	1	9706-9905	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-045-0	10	1	9906-		●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	20	1	9606-9905	●
86	BOLT; CONNROD M13X66 FLANGE	1-12235-039-1	20	1	9906-		●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9606-9905	●
90	PIN; FLYWHEEL & PULLEY OD=8 L=16	9-08150-816-0	02	1	9906-		●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9606-9905	●
93	THROWER; OIL,CR/SHF	1-12319-017-0	01	1	9906-		●
101	PIN; CR/SHF	9-08150-616-0	16	1	9606-9905	●
101	PIN; CR/SHF	9-08150-616-0	16	1	9906-0103		●
101	PIN; CR/SHF OD=6 L=16	9-08160-616-0	16	1	0104-		●
107	RETAINER; BRG	1-12338-006-0	01	1	9606-9905	●
107	RETAINER; BRG	1-12338-006-0	01	1	9906-		●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9606-9905	●
109	BOLT; RET M10X20 FLANGE	0-28181-020-0	04	1	9906-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9606-9905	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	1-09587-065-0	20	1	9906-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
