◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶

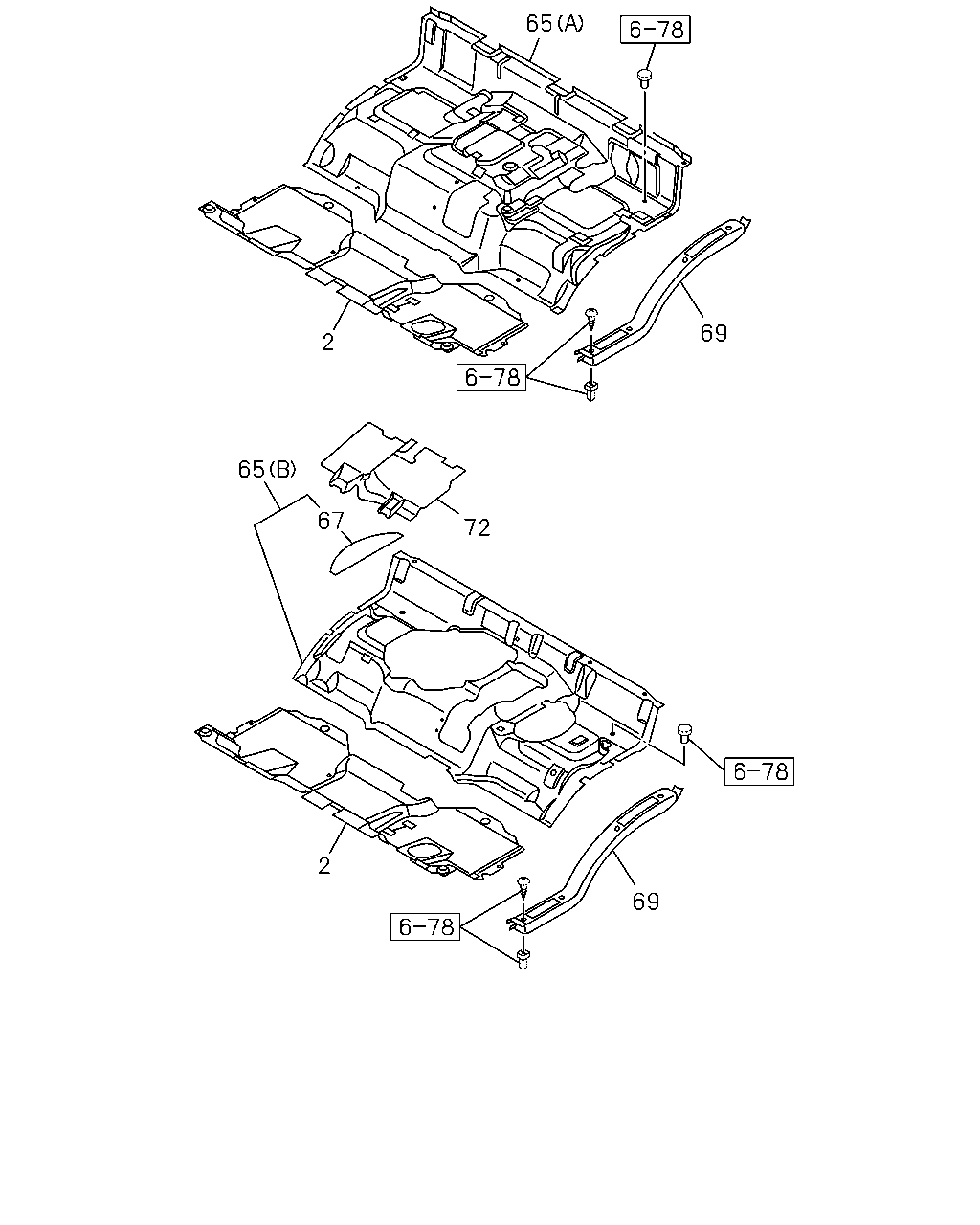

6-75 — MAT AND CARPET (#49687) — 17 parça

65 69 2 65 67 72 2 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MAT; FLOOR GRAY	8-97411-668-3	01	1	0811-0901	●
2	MAT; FLOOR GRAY	8-97411-668-3	01	1	0902-1301	●	●
2	MAT; FLOOR GRAY	8-97422-051-0	01	1	1302-	●	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97411-678-5	01	1	0811-0901	●
65	MAT ASM; SILENCER,CAB FLOOR INSPECTION ENGINE COVER<8GA> (B) GRAY	8-97411-678-5	01	1	0902-	●	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-677-4	01	1	0811-0901	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97411-677-4	01	1	0902-1301	●	●
65	MAT ASM; SILENCER,CAB FLOOR EXC. INSPECTION ENGINE COVER<8GA> (A) GRAY	8-97422-053-0	01	1	1302-	●	●
67	LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0811-0901	●
67	LID; COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97408-863-0	01	1	0902-0904	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0811-0901	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-388-1	01	1	0902-	●	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0811-0901	●
69	COVER; TRIM,FLOOR MAT,DOOR SIDE GRAY	8-97405-389-1	01	1	0902-	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97414-561-1	01	1	0811-0901	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97414-561-1	01	1	0902-0911	●	●
72	MAT; SILENCER,ENG COVER INSPECTION ENGINE COVER<8GA> GRAY	8-97417-598-1	01	1	0912-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
