◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#49685) — 34 parça

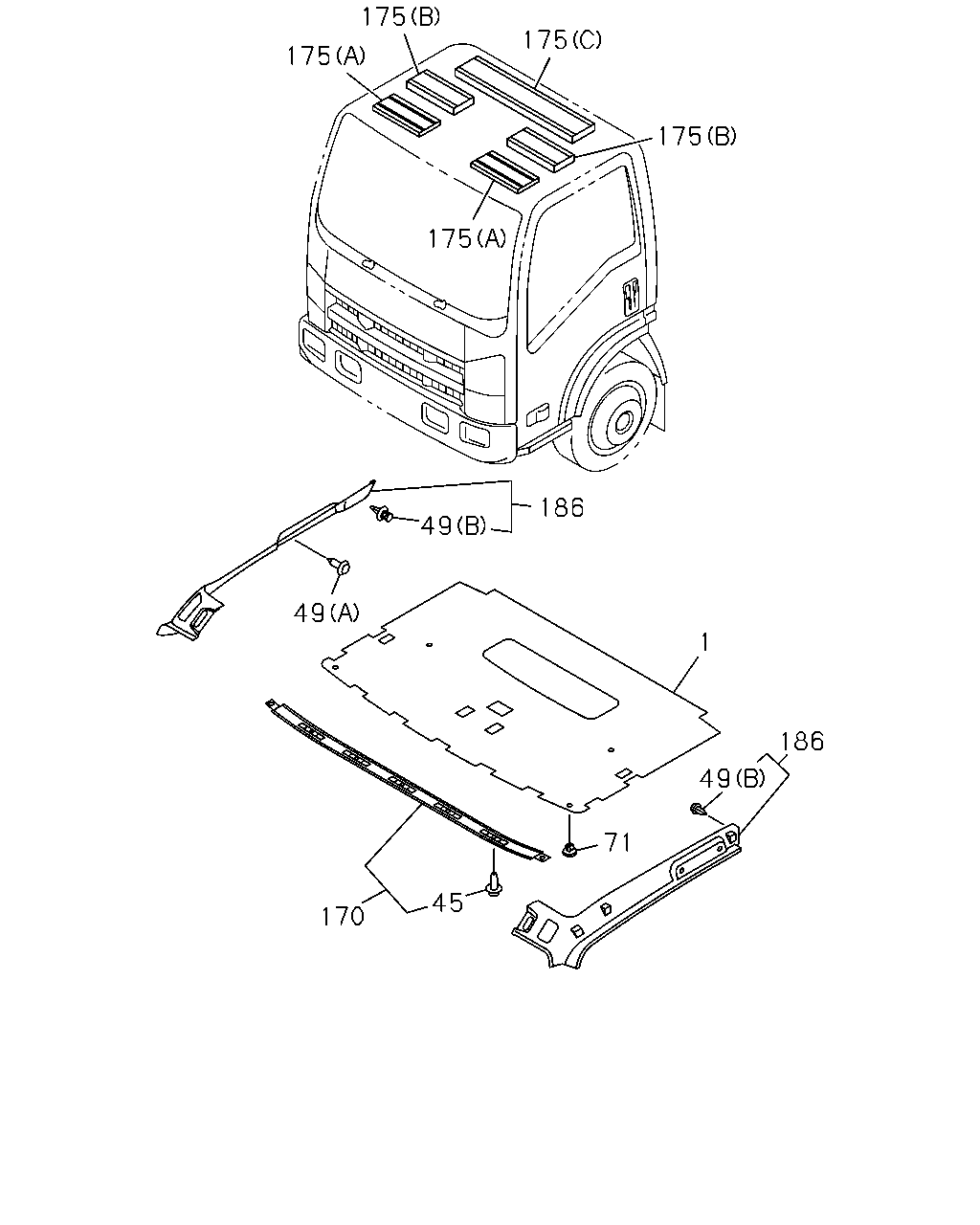

çizim 158467
175 175 175 175 175 186 49 49 1 186 49 71 45 170
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY 		8-97411-681-2 01 1 0811-0901 ●
1 LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY 		8-97411-681-2 01 1 0902- ● ●
1 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-282-6 01 1 0811-0901 ●
1 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-282-6 01 1 0902- ● ●
1 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-277-5 01 1 0811-0901 ●
1 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97406-277-5 01 1 0902- ● ●
45 CLIP; FINISHER 8-98035-592-1 05 1 0811-0901 ●
45 CLIP; FINISHER 8-98035-592-1 05 1 0902-0911 ● ●
45 CLIP; FINISHER 8-98035-592-1 03 1 0912- ● ●
49 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0811-0901 ●
49 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 02 1 0902- ● ●
49 CLIP; TRIM COVER
(B) 		8-98059-610-0 03 1 0811-0901 ●
49 CLIP; TRIM COVER
(B) 		8-98059-610-0 03 1 0902-1410 ● ●
49 CLIP; TRIM COVER
(B) 		8-98059-610-0 02 1 1411- ● ●
49 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 0811-0901 ●
49 CLIP; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY 		8-97407-768-0 04 1 0902- ● ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 06 1 0811-0901 ●
71 FASTENER; HD LINING
DARK GRAY 		8-97405-282-0 06 1 0902- ● ●
170 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 0811-0901 ●
170 FINISHER; HEAD LINING
DARK GRAY 		8-97406-296-4 01 1 0902- ● ●
175 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0811-0901 ●
175 CUSHION; HEAD LINING
(B) 		8-98037-299-3 02 1 0902- ● ●
175 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0811-0901 ●
175 CUSHION; HEAD LINING
(C) 		8-98037-300-3 01 1 0902- ● ●
175 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0811-0901 ●
175 CUSHION; HEAD LINING
(A) 		8-98082-685-1 02 1 0902-1301 ● ●
186 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0811-0901 ●
186 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-252-3 01 1 0902- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0811-0901 ●
186 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-250-3 01 1 0902- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0811-0901 ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-263-3 01 1 0902- ● ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0811-0901 ●
186 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY 		8-97405-251-3 01 1 0902- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
