◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ ELF ▶ 51205 - ELF200/300(MEXICO) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#49682) — 22 parça

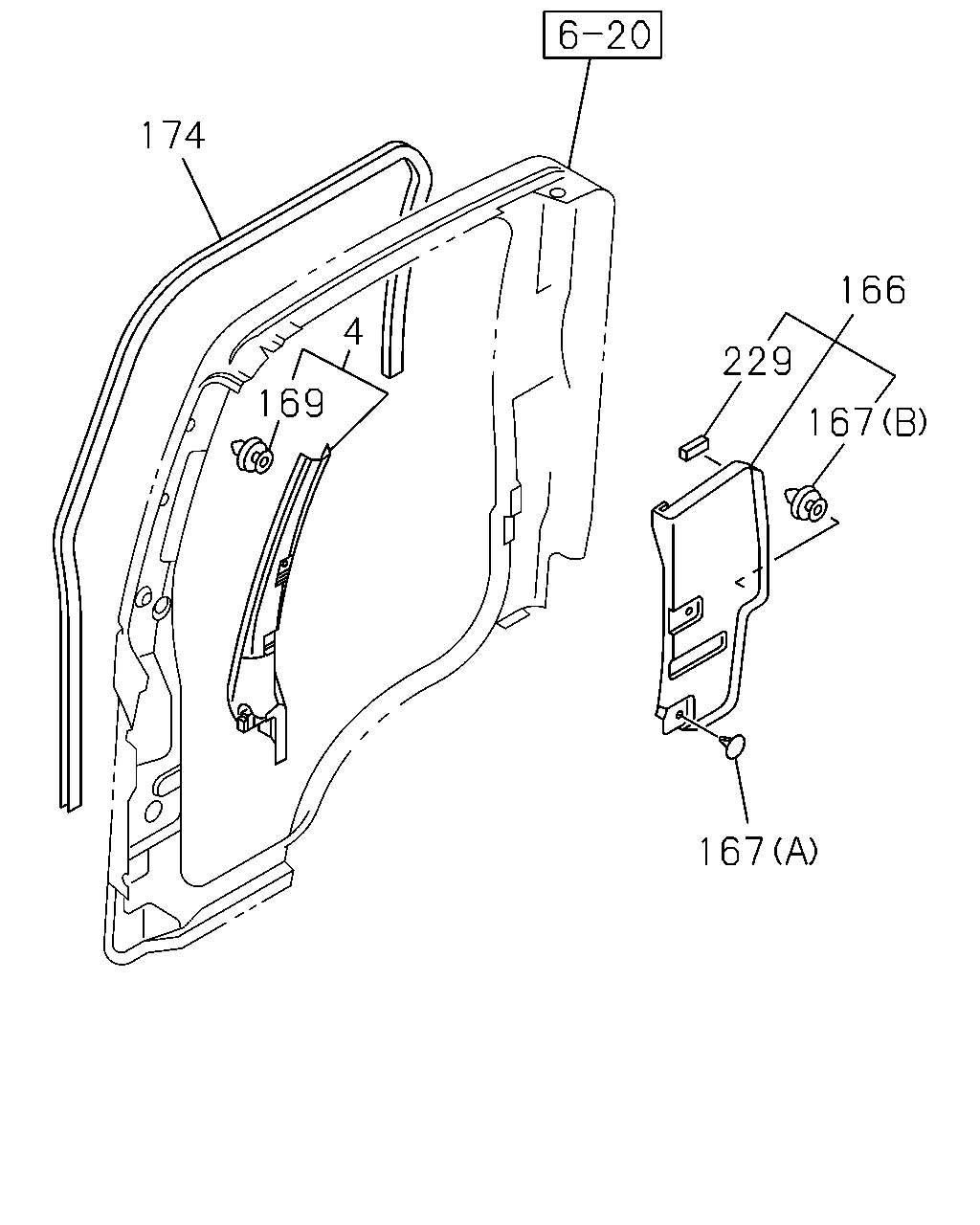

çizim 158452
174 166 4 229 169 167 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0811-0901 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-254-2 01 1 0902- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0811-0901 ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97405-255-2 01 1 0902- ● ●
166 TRIM; RR PILLAR
GRAY 		8-97405-297-2 01 1 0811-0901 ●
166 TRIM; RR PILLAR
GRAY 		8-97405-297-2 01 1 0902- ● ●
166 TRIM; RR PILLAR
GRAY 		8-97412-727-0 01 1 0811-0901 ●
166 TRIM; RR PILLAR
GRAY 		8-97412-727-0 01 1 0902- ● ●
167 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 0811-0901 ●
167 CLIP; TRIM,RR PILLAR
(A) GRAY 		8-97406-421-0 04 1 0902- ● ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 0811-0901 ●
167 CLIP; TRIM,RR PILLAR
(B) 		8-98059-610-0 06 1 0902- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0811-0901 ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK 		8-94279-974-1 04 1 0902- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0811-0901 ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97405-283-3 01 1 0902-0912 ● ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-665-0 01 1 1001- ● ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0811-0901 ●
174 FINISHER; BODY SIDE
DARK GRAY 		8-97405-288-3 01 1 0902-0912 ● ●
174 FINISHER; BODY SIDE
L=2609 		8-98154-666-0 01 1 1001- ● ●
229 SEAL 8-98081-818-0 01 1 0811-0901 ●
229 SEAL 8-98081-818-0 01 1 0902- ● ●
